Westinghouse DB-25 Circuit Breaker (M/E/O,D/O) - 600 Amp "Class A Recondition"

by Westinghouse

Contact for Quote: 800-909-3660 | sales@naswgr.com

DB-25

Westinghouse DB-25 Circuit Breakers
3 Position Spring Assist Version
600 volt
600 Amp
3 Pole
Manually Operated
Drawout
URC AC Pro Solid State Trip Unit

Other DB-25 styles are available
DB-25 loose circuit breaker renewal parts available
DB-25 Switchgear & DB-25 Switchgear Parts available

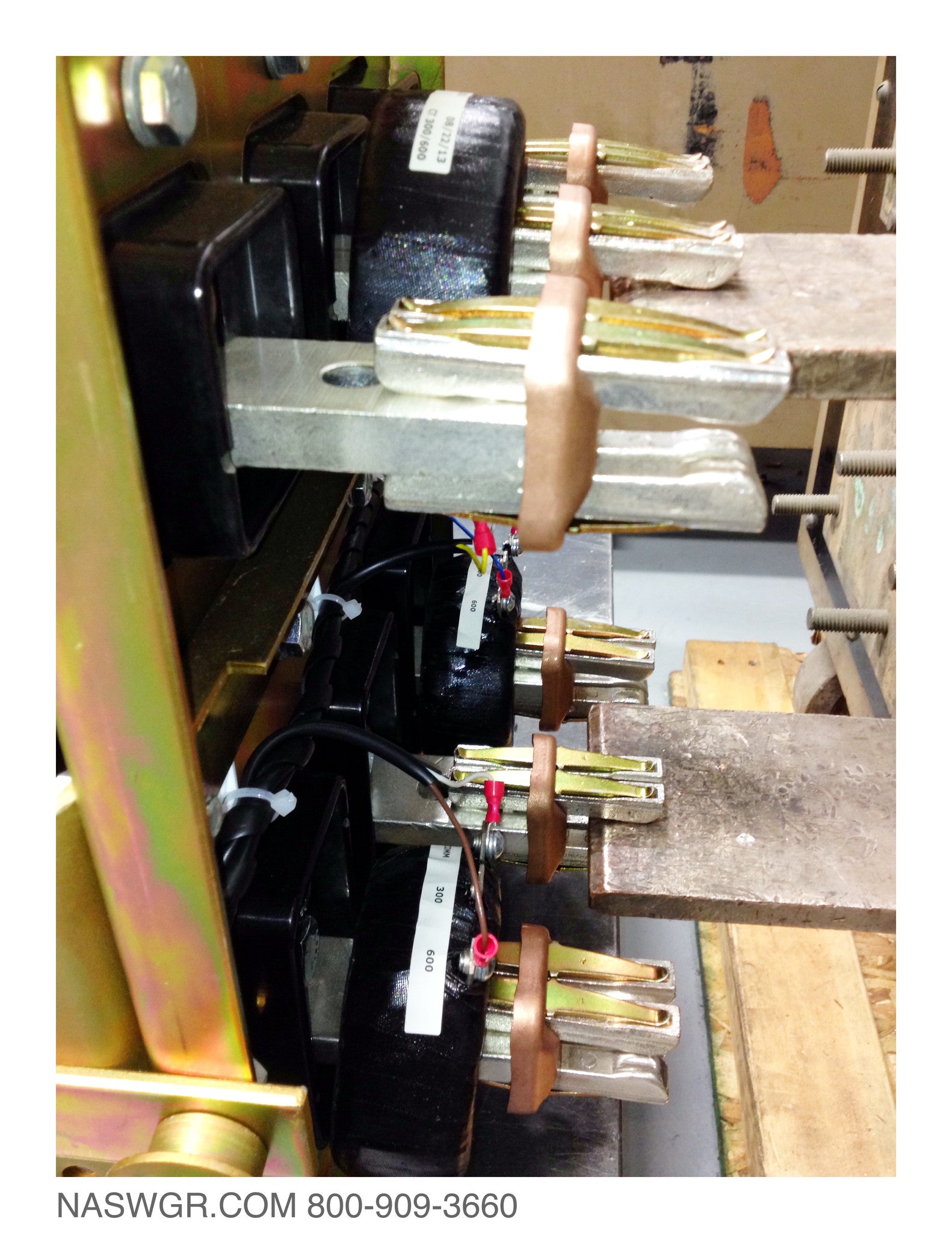

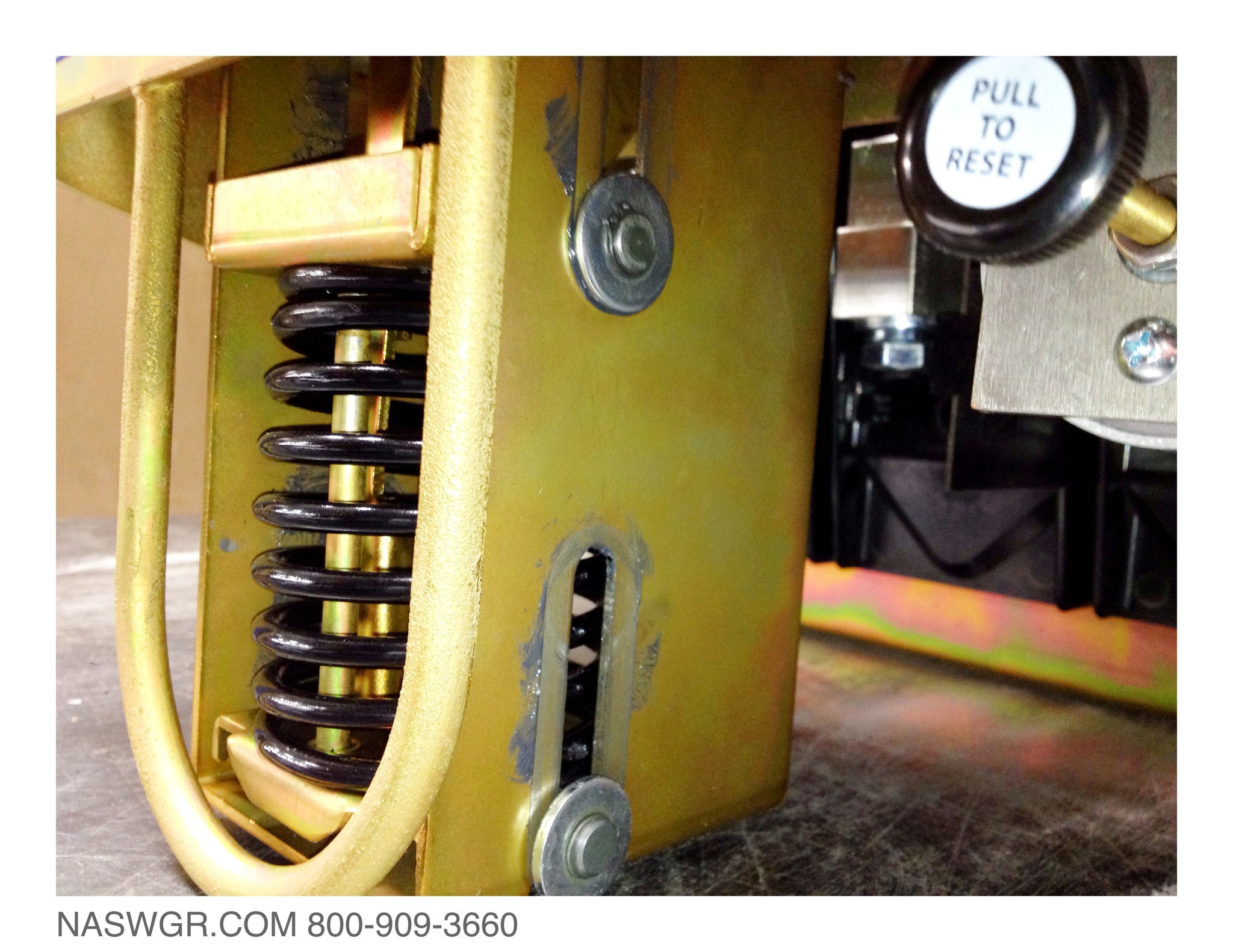

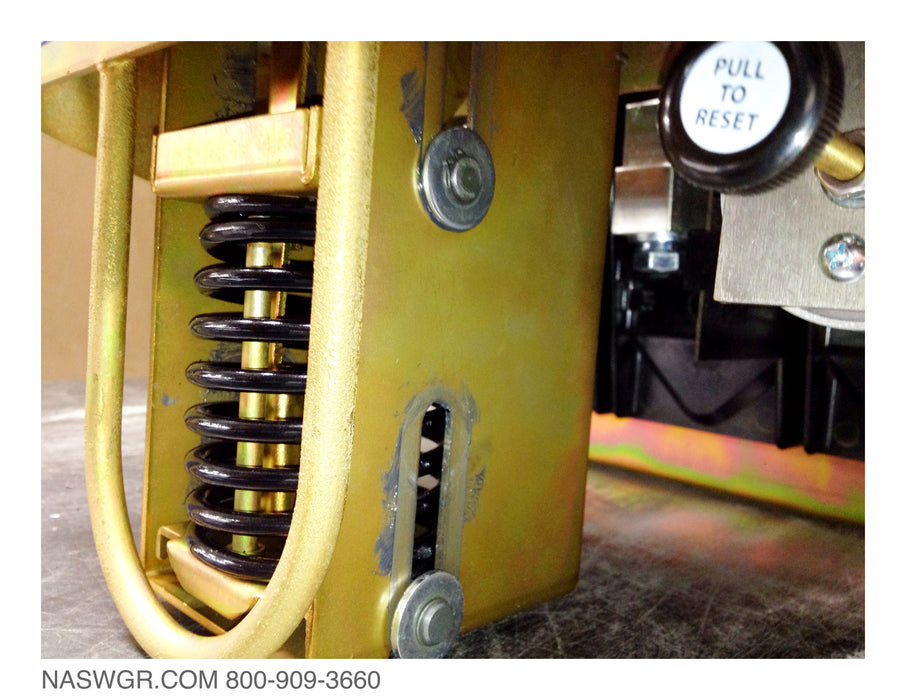

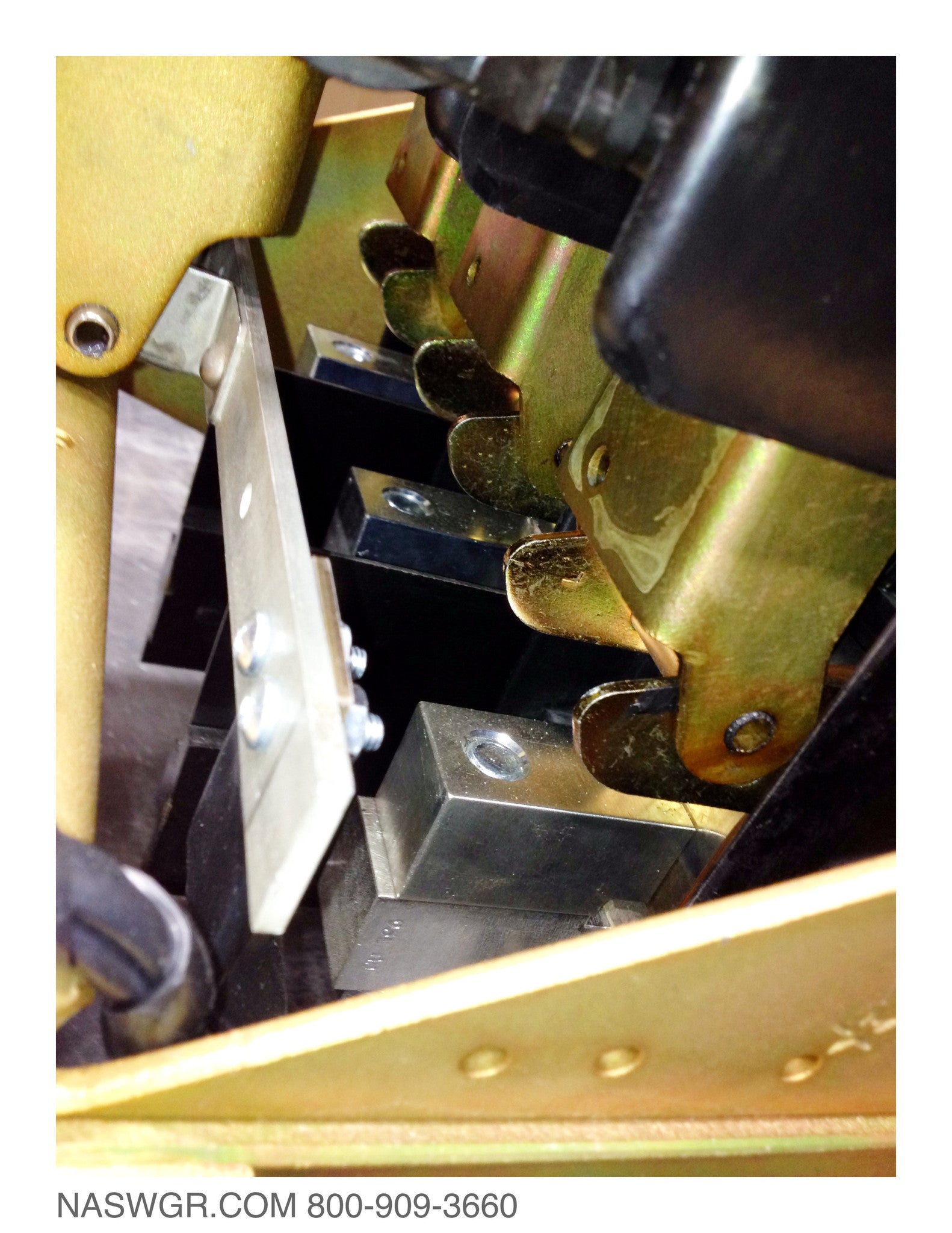

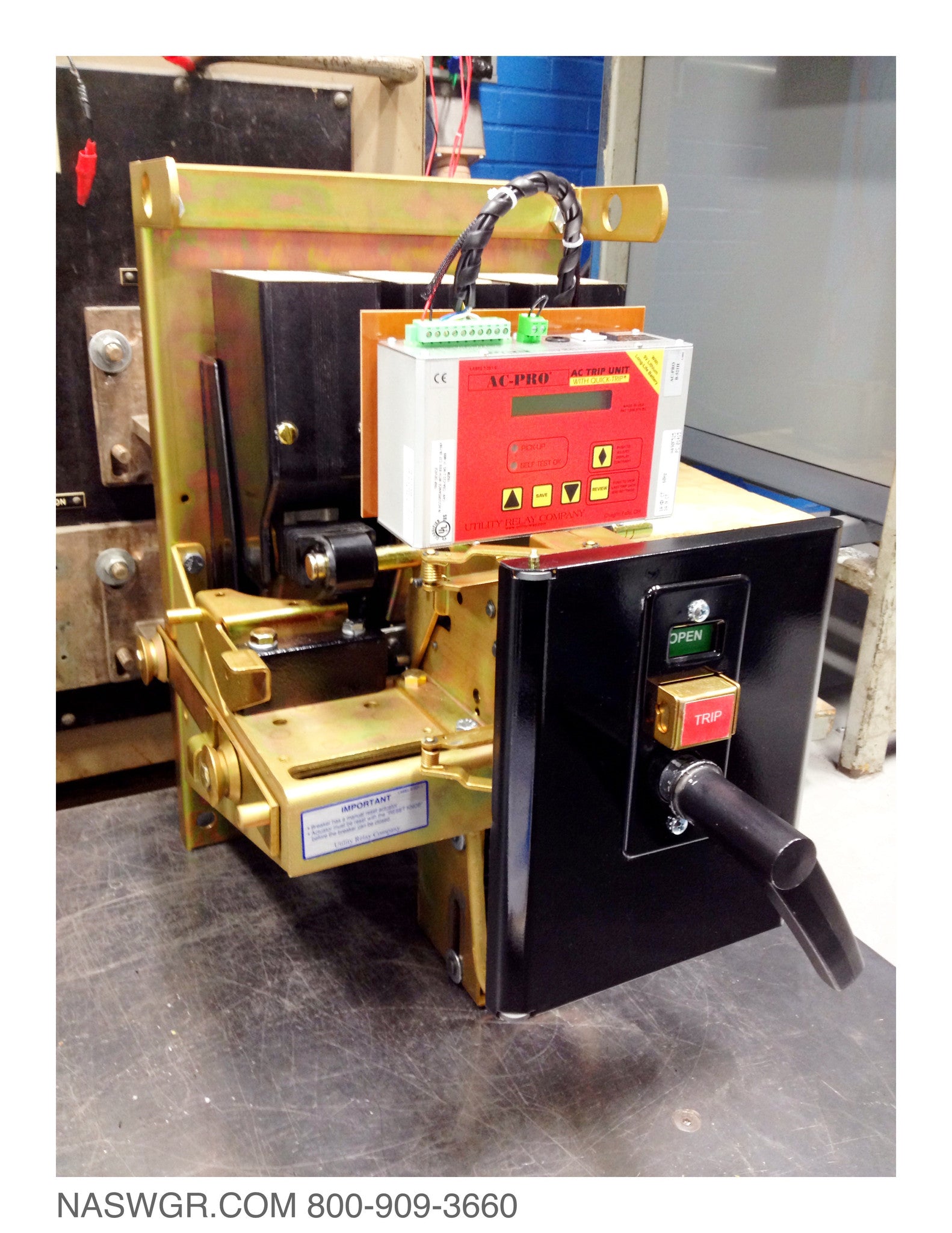

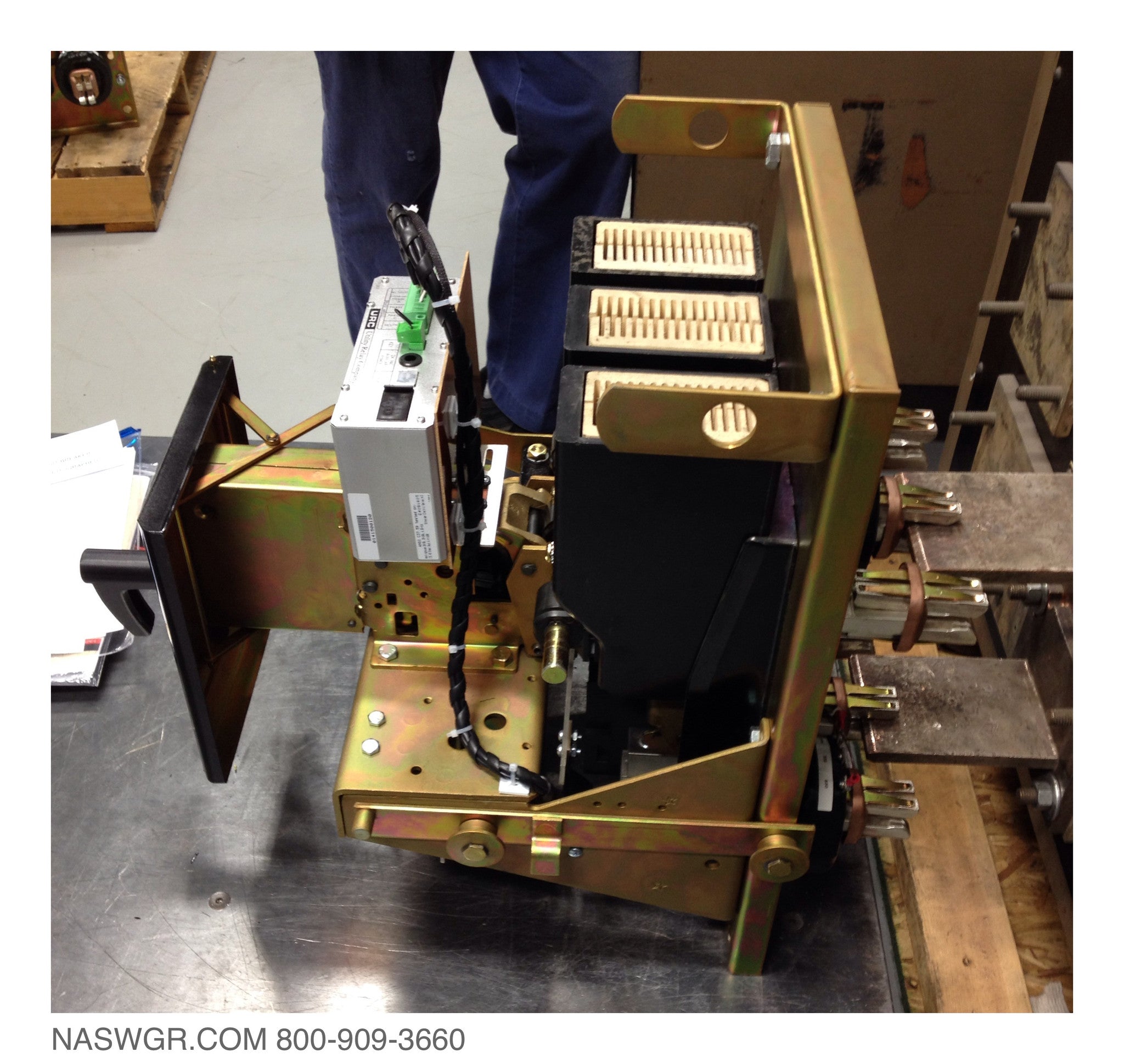

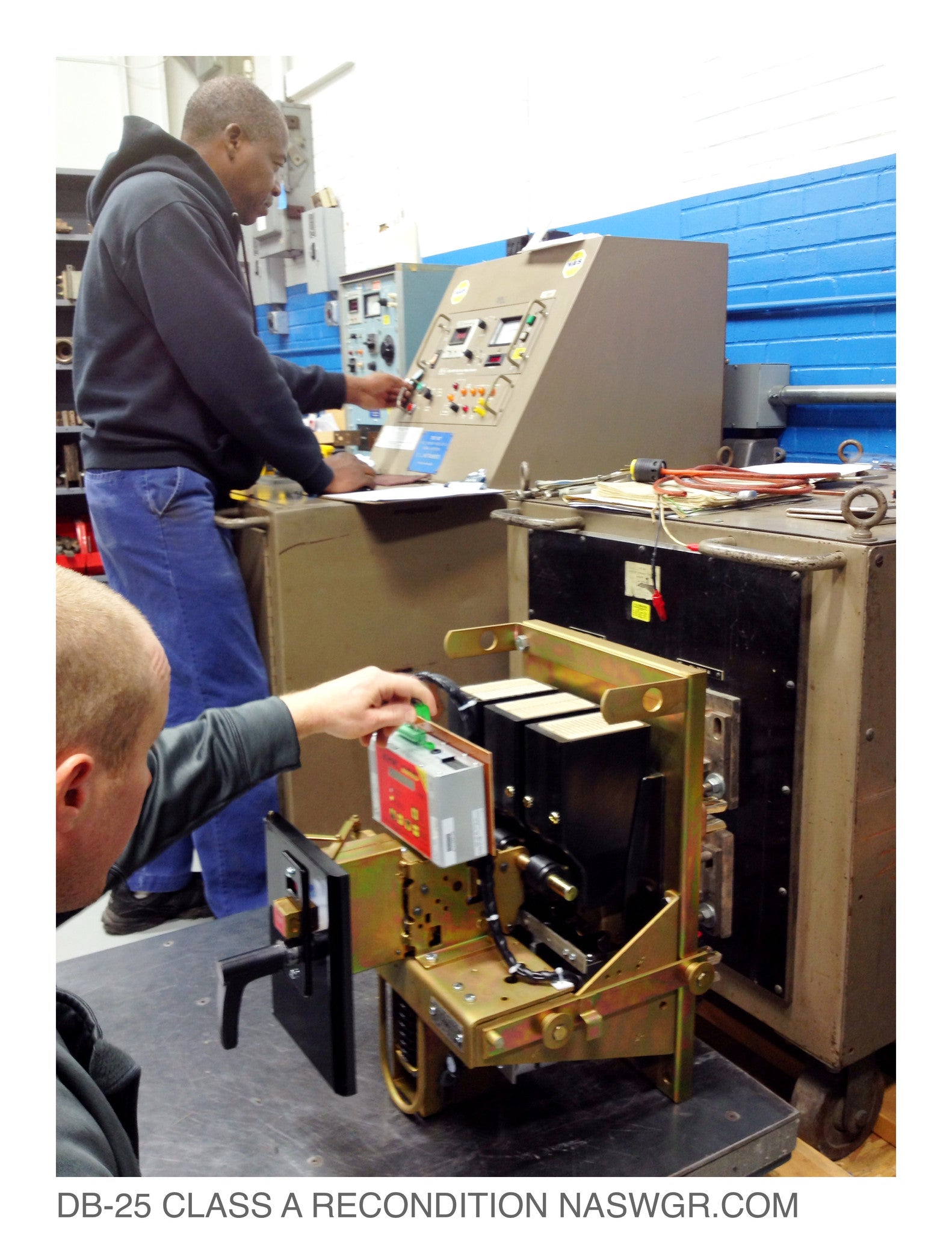

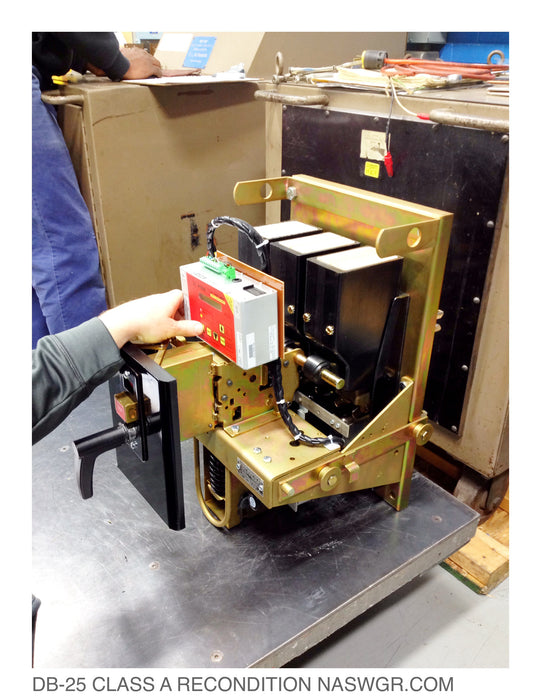

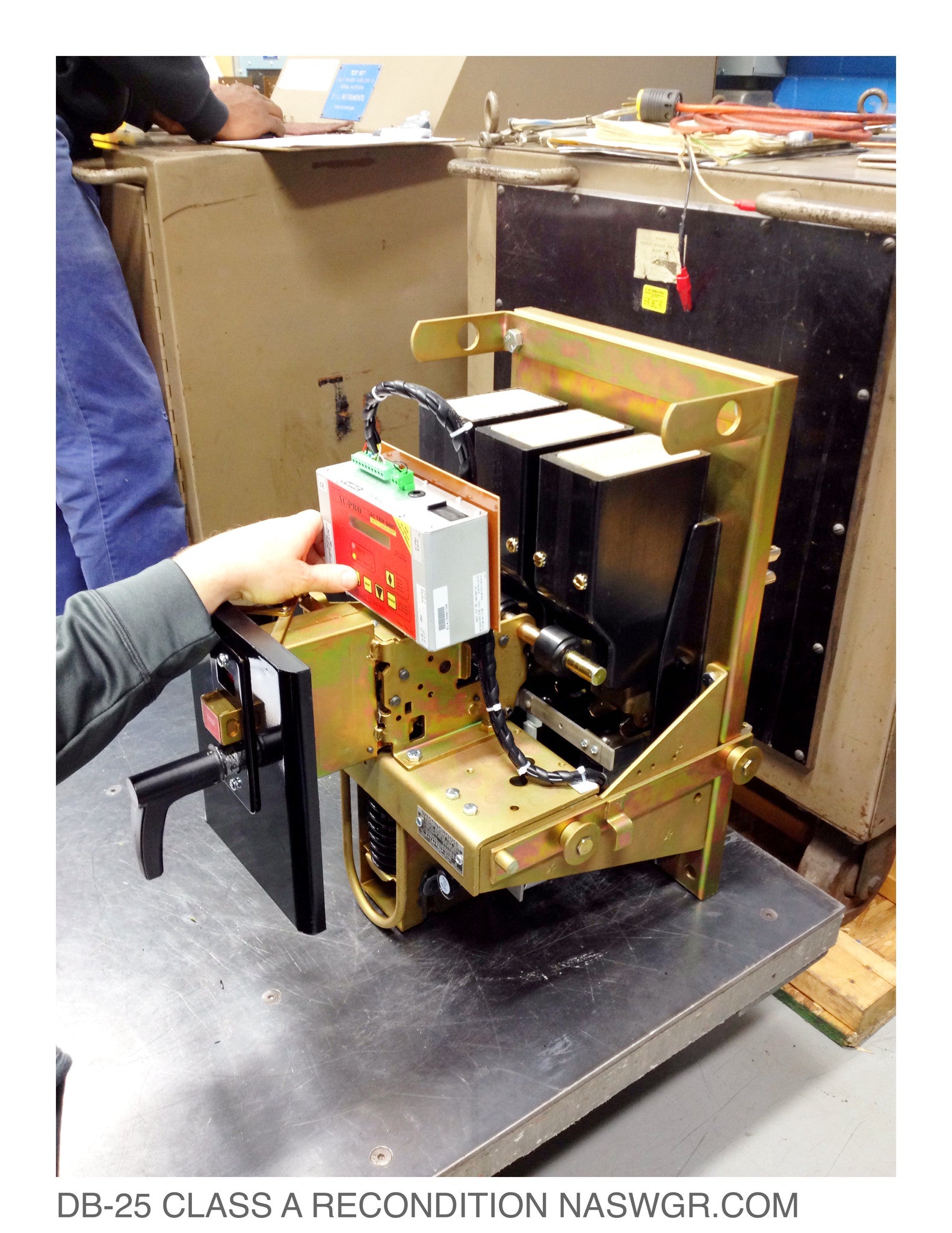

The pictured Westinghouse DB-25 air circuit breaker is available Class A reconditioned, Meggered, Ductored and Tested on our Primary Injection Test Set with a Report. Each Class A Reconditioned DB-25 3-Position Will be backed by our 1 Year Warranty.

Please keep this in mind- NAS owns more DB style circuit breakers, switchgear and loose parts than anyone else on earth. Call us or email us for "Your Personal Site Visit".

In a pinch and need a DB-25 circuit breaker after hours? Call our emergency hotlines at.
Michael Habeeb 216-402-0507
Mike Jordan- 216-570-2725

WE HAVE MANY IN STOCK!!!

NAS, Inc. stocks MILLIONS of circuit breaker parts & accessories and our inventory changes DAILY!  If you are looking for a similar item but cannot find it, please contact us at 800-909-3660 or sales@naswgr.com and we will locate it for you!

 NAS Logo

North American Switchgear, Inc. stocks over 12,600+ Power Circuit Breakers, hundreds of sections of metal-clad switchgear and millions of parts for breakers and switchgear.  In addition, we stock low and medium voltage motor control and starters, load break switches and transformers.  We specialize in obsolete and out-of-production circuit breakers. Not only do we stock most breakers manufactured between the 1940’s and today, but we also stock parts and switchgear.  Please visit our eBay store or contact us at 800-909-3660 or sales@naswgr.com for more information!










































































DB-25 Renewal Parts ,
Pole Unit (Complete)  , 21A8826G01 / 1529382 ,
Moving Main Contact W/ Shunt , 18A9894G03 / 1491414 ,
Moving Arcing Contact  , 18A9894G01 / 1491412 ,
Operating Link  , 1491410 ,
Stationary Upper Stud , 21A3598G01 / 1491419 ,
Finger Clusters , 1491904 ,
Arc Chutes  , 1491059 ,
Lower Stud , 1735836 ,
Pole Unit Base , 1809545 ,
Complete Mechanism E/O, 3 Position , 419D872G01 ,
Complete Mechanism E/O, Single Position , 419D87G03 ,
Complete Mechanism M/O, 3 Position , 419D872G03 ,
Complete Mechanism M/O, Single Position , 419D870G04 ,
Breaker Lever , 1491459 ,
Reset Spring , 13D6586H02 ,
Pawl , 1491442 ,
Pawl Spring , 1491450 ,
Pawl Pin , 1802680 ,
Tripping Lever , 1572414 ,
Trip Lever Spring , 1491445 ,
Tripping Spring , 126A107H03 ,
Closing Spring , 125A871H03 ,
Toggle Lever 2nd , 1491458 ,
Toggle Lever 3rd , 1491463 ,
Auxiliary Switch, 4 Pole D.O. , 14B7132G06 ,
Auxiliary Switch, 8 Pole D.O. , 14B7132G07 ,
Moving Secondary Contact (4P) , 18B1225G09 ,
Breaker Operating Handle , 302C425G02 ,
Breaker and Operating Handle (Rotary Close and Trip) , 13B4832H04 ,
DB-25 E/O, 3 position , 405D804G05-EO ,
DB-25 M/O, 3 position , 405D804G07-MO ,
DB-25 E/O, Single Position , 21A9784G07-EO ,
DB-25 M/O, Single Position , 21A9784G09-MO ,
Stationary Arcing Contact , 21A3598G02 / 1491421 ,
Opening Spring (post 1-1-56) (3 Pos.) (1 Pos.) , 1809546 ,
Roller Spring (3 Pos.) (1 Pos.) , 1491454 ,
Tripping Spring (3 Pos.) , 126A107H03 ,
Shaft E/O , 419D396G03 ,
Shaft M/O , 419D396G01 ,
Lift Link , 419D396H01 ,
Mechanism Shaft E/O , 419D396G04 ,
Mechanism Shaft M/O , 419D396G02 ,
Toggle Lever 1st Position (3 position) , 419D395H11 ,
Toggle Lever 1st Position (single position) , 419D395H13 ,
Closing Coil 440 V Ac , 300P167G01 ,
Closing Coil 220 V Ac , 300P166G01 ,
Closing Coil 115 V Ac , 1529458 ,
Closing Coil 125 V Dc , 1529458 ,
Closing Coil 250 V Dc , 1718045 ,
X Relays 115 V Ac, 60 Hz , 33A2746G34 ,
X Relays 220 V Ac, 60 Hz , 33A2746G35 ,
X Relays 440 V Ac, 60 Hz , 33A2746G36 ,
X Relays 125 V Dc , 33A2746G32 ,
X Relays 250 V Dc , 33A2746G33 ,
X Relay Cover , 1491301 ,
X Relay Blowout Coil , 1589340 ,
X Relay Right Hand Stationary Contact , 1491294 ,
X Relay Moving Contact , 1491295 ,
X Relay Left Hand Stationary Contact , 23A3609G17 ,
Shunt Trip 48V DC/ 120V AC , 1491361 ,
Shunt Trip 125V DC/ 240V AC and Capacitor Trip , 1491362 ,
Shunt Trip Coils 115 V Ac, 60 Hz , 1574583 ,
Shunt Trip Coils 220 V Ac, 60 Hz , 1491403 ,
Shunt Trip Coils 125 V Dc , 1491403 ,
Shunt Trip Coils 250 V Dc , 1491404 ,
Undervoltage Trip Devices 48 V DC
Undervoltage Trip Device 125 V DC , 23A9019G31 ,
Undervoltage Trip Devices 120 V AC , 23A9019G33 ,
Undervoltage Trip Coil 120 AC (Instantaneous) , 1491403 ,
Undervoltage Trip Coil 220 AC / 48 DC (Instantaneous) , 1491404 ,
Undervoltage Trip Coil 250 DC (Instantaneous) , 1529248 ,
Undervoltage Trip Coil 125 DC /440 AC (Instantaneous) , 1611027 ,
Undervoltage Time Delay Trip , 1533717 ,
Molded Contact Base , 1615701 ,
Molded Contact Base
Main Contact , 1615590 ,
Secondary Contact , 18B1225G10 ,
Levering Device, 3 position , 18B1225G10 ,


Levering Device, single position , 301C730G02 ,


Amptector IA Retrofit Kit, 100 A - LIG (w/o ground indicator) , 8184A50G64 ,
Amptector IA Retrofit Kit, 100 A - LSG (w/o ground indicator) , 8184A50G65 ,
Amptector IA Retrofit Kit, 100 A - LSIG (w/o ground indicator) , 8184A50G66 ,
Amptector IA Retrofit Kit, 200-600 A – LIG , 8184A50G07 ,
Amptector IA Retrofit Kit, 200-600 A – LSG , 8184A50G08 ,
Amptector IA Retrofit Kit, 200-600 A – LSIG , 8184A50G09 ,
Amptector IIA Retrofit Kit, 200-600 A – LIG , 8184A50G37 ,
Amptector IIA Retrofit Kit, 200-600 A – LSG , 8184A50G38 ,
Amptector IIA Retrofit Kit, 200-600 A – LSIG , 8184A50G39 ,
Amptector IA Retrofit Kit, 200-600 A - LIG (w/o ground indicator) , 8184A50G67 ,
Amptector IA Retrofit Kit, 200-600 A - LSG (w/o ground indicator) , 8184A50G68 ,
Amptector IA Retrofit Kit, 200-600 A - LSIG (w/o ground indicator) , 8184A50G69 ,
Sensor , 8184A41H01 ,
Sensor , 8184A39H01 ,
Actuator , 692C704G01 ,
Amptectors type IA with indicator and ground – LI , 6998D02G02 ,
Amptectors type IA with indicator and ground – LS , 6998D02G04 ,
Amptectors type IA with indicator and ground – LSI , 6998D02G05 ,
Amptectors type IA with indicator – LI , 6998D22G01 ,
Amptectors type IA with indicator – LS , 6998D00G03 ,
Amptectors type IA with indicator – LSI , 6998D22G06
Amptectors type IIA without indicator or ground – LI , 6997D20G41 ,
Amptectors type IIA without indicator or ground – LS , 6997D20G42 ,
Amptectors type IIA without indicator or ground – LSI , 6997D20G43
Amptector IA Retrofit Kit, 100 A – LIG, 8184A50G04 ,
Amptector IA Retrofit Kit, 100 A – LSG , 8184A50G05 ,
Amptector IA Retrofit Kit, 100 A – LSIG , 8184A50G06 ,
Amptector IIA Retrofit Kit, 100 A – LIG , 8184A50G34 ,
Amptector IIA Retrofit Kit, 100 A – LSG, 8184A50G35 ,
Amptector IIA Retrofit Kit, 100 A – LSIG , 8184A50G36 ,
