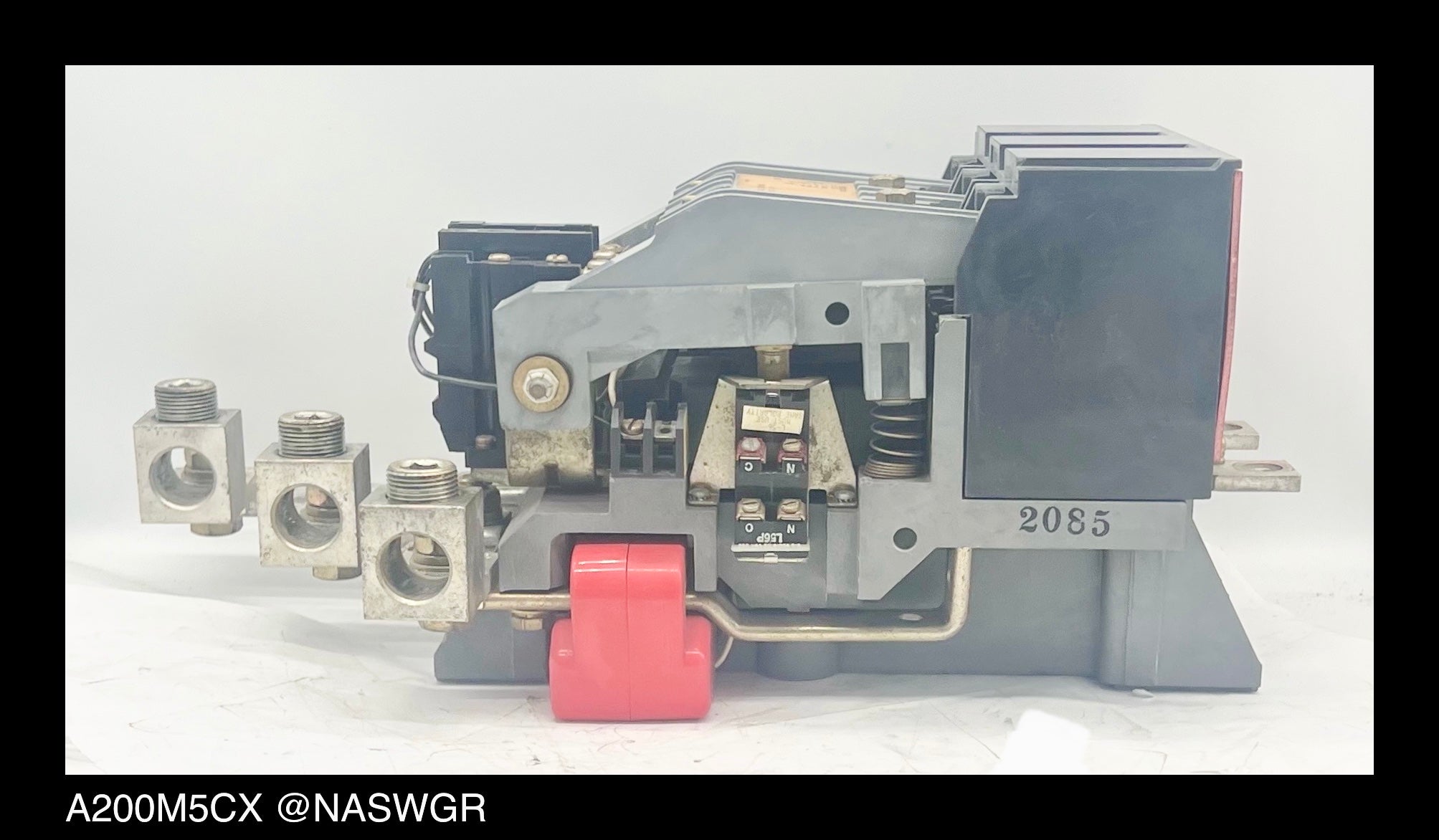

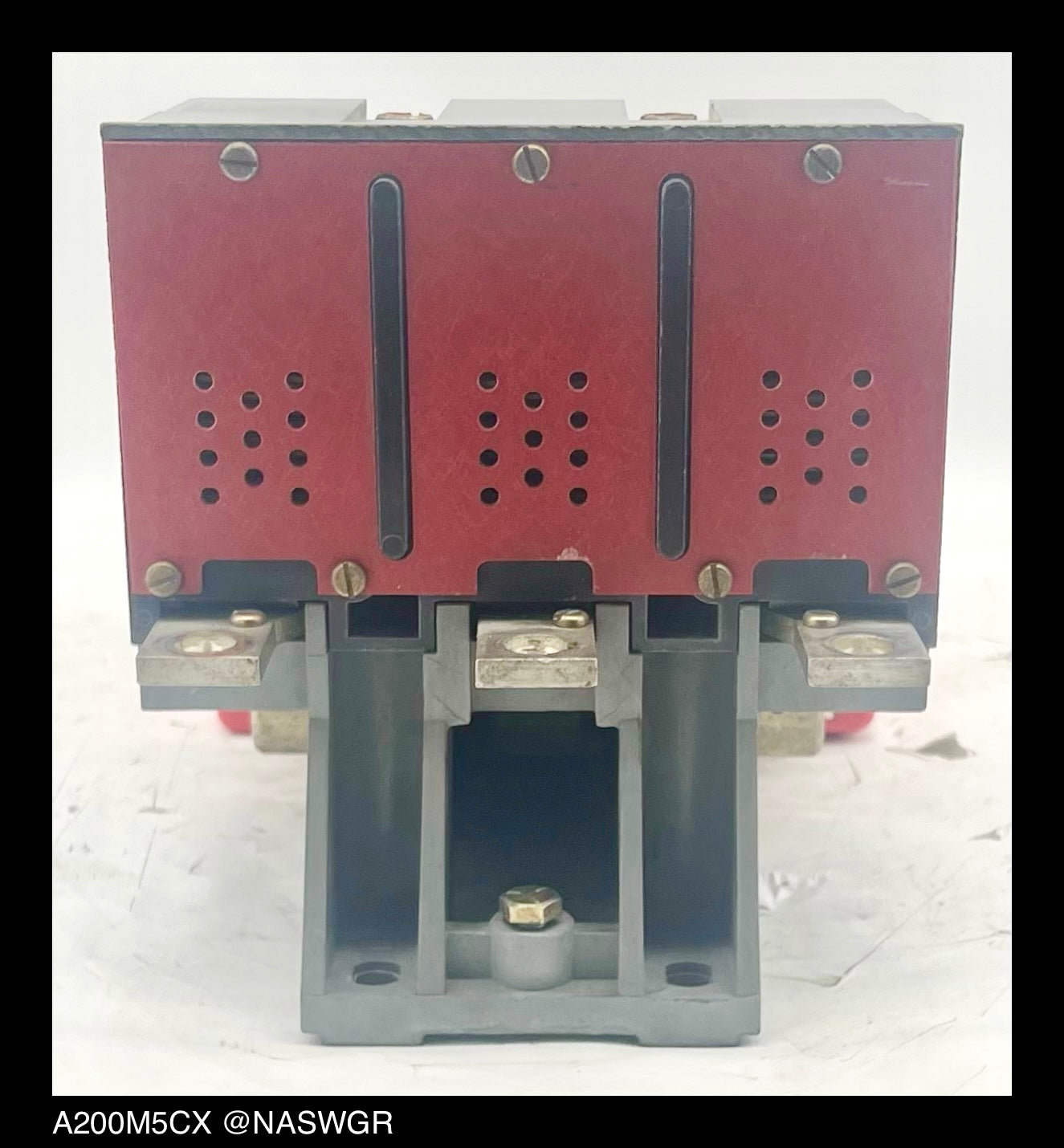

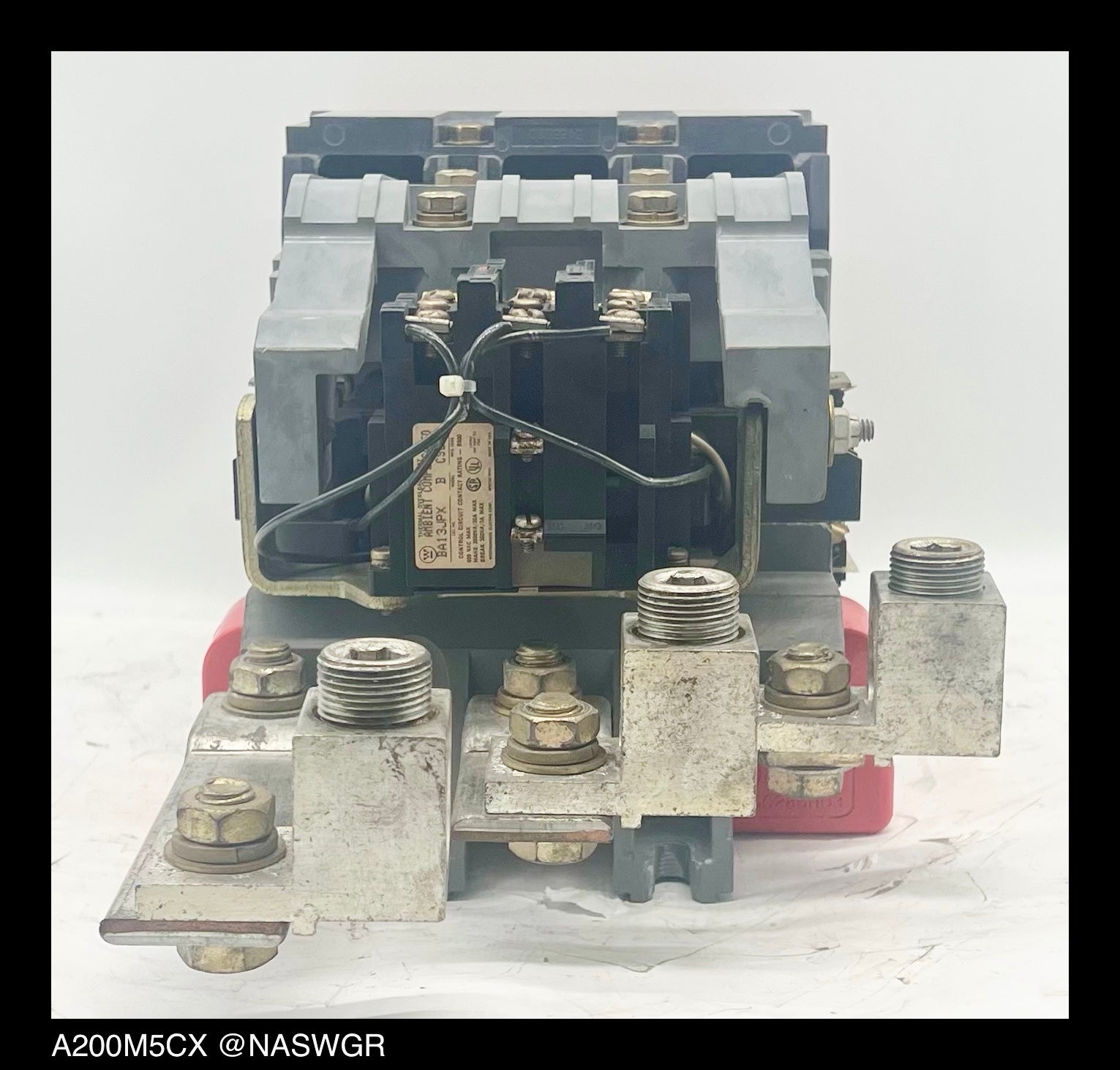

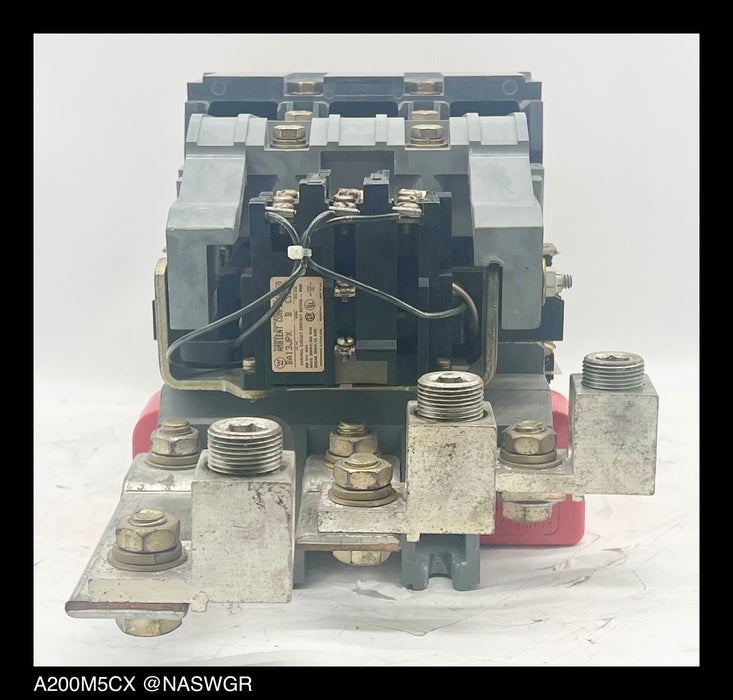

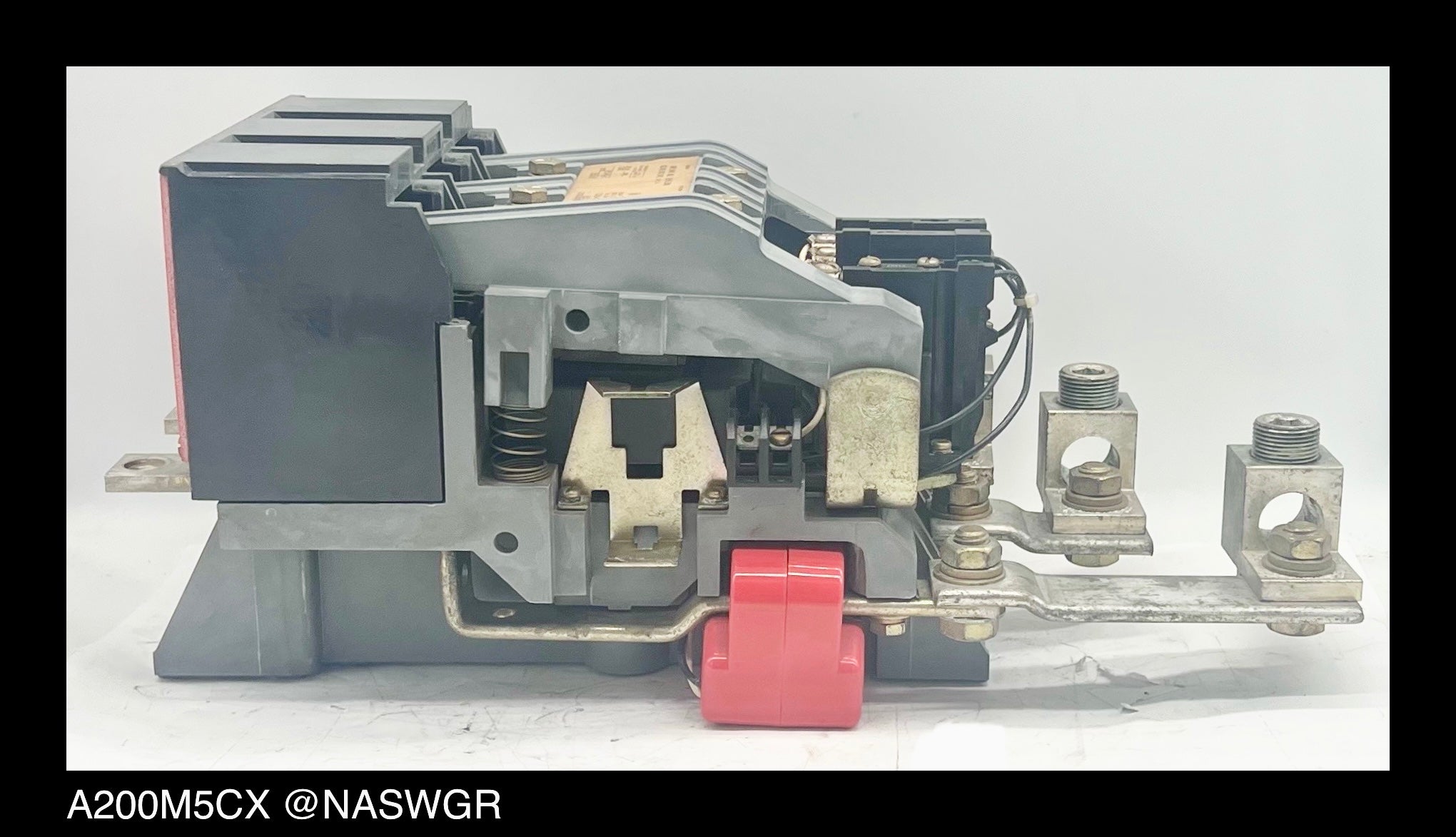

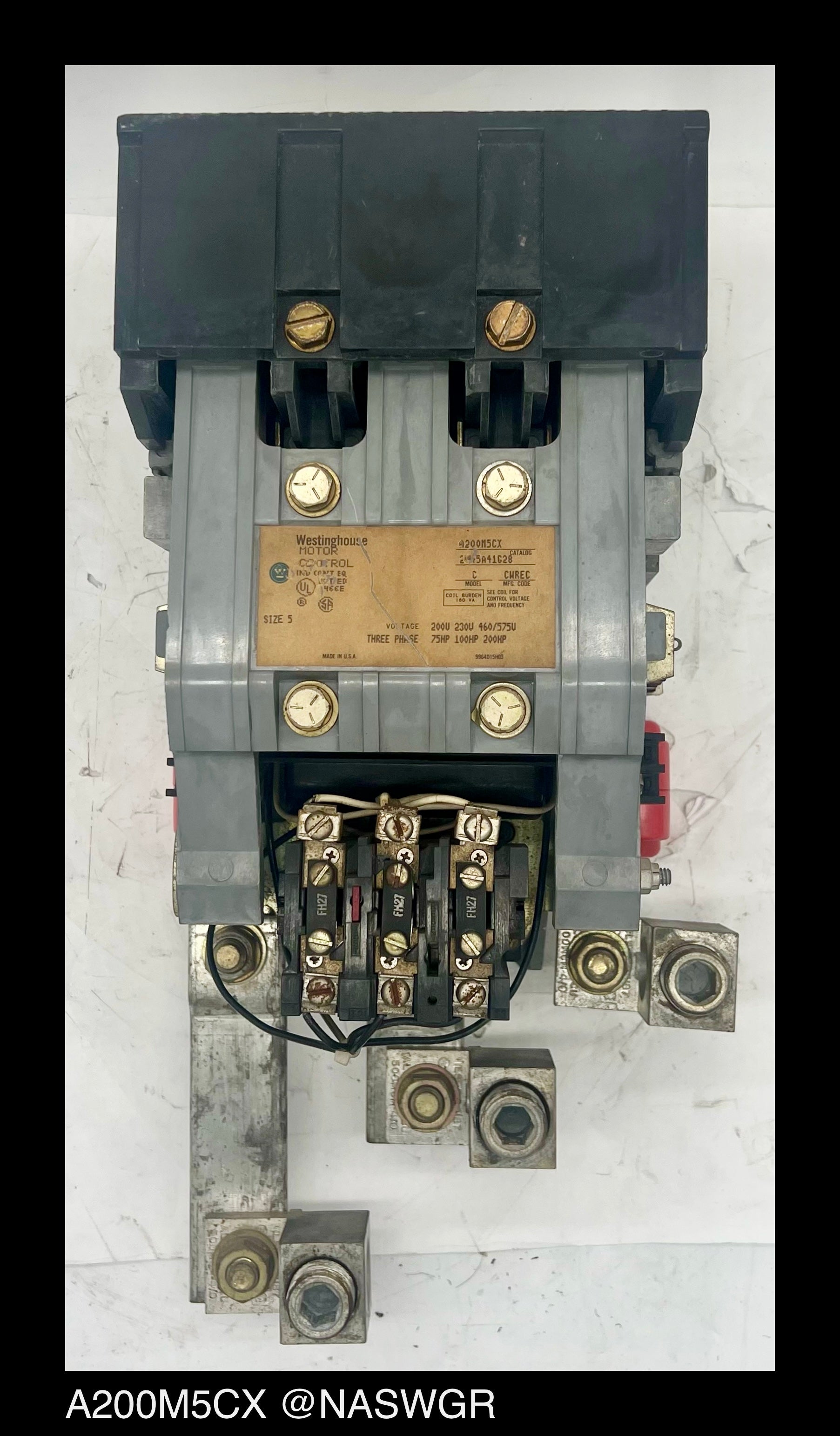

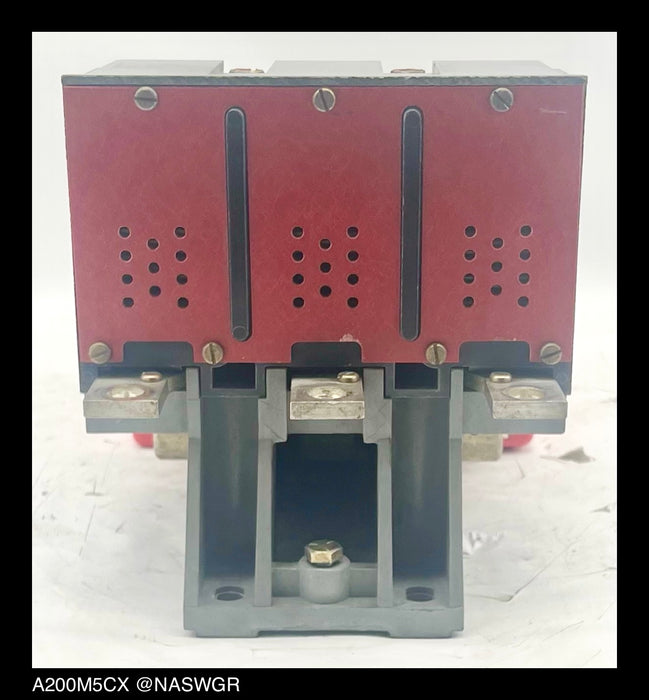

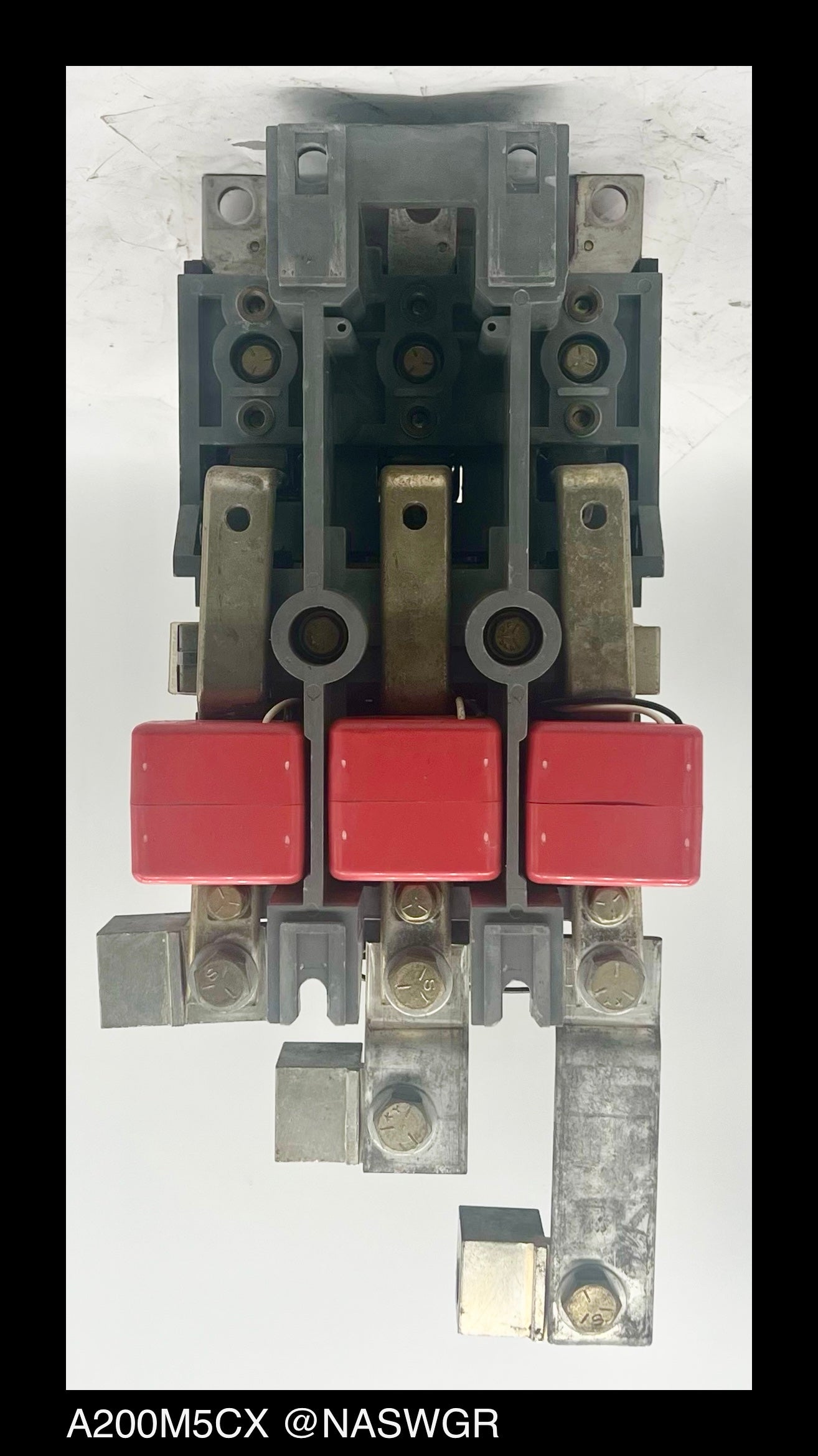

A200M5CX

Westinghouse Non-Reversing Starter
A200 Series
NEMA Size 5
Model C
Cat#: A200M5CX
Style#: 2045A41G28
Max 3P Horsepower: 200Hp @ 460/575v
270 A Enclosed, 300 A Open
600vAC
3 Pole
Coil Voltage: 440/480vAC
Part#:
Type B Overload Relay
Ambient Compensated
Cat#: BA13JPX
(1) Aux Switch: 1NO/1NC
3 Phase Current Transformer
Style#: 655C285H03
Ratio: 300:5 Amp

Each A200M5CX is Cleaned, Tested with Report, and Carries our One Year Warranty.

Call 800-909-3660 or email sales@naswgr.com with questions.

NASMCG13612 (OL Relay needs replaced) Location: 6514B, B, BLDG 6
