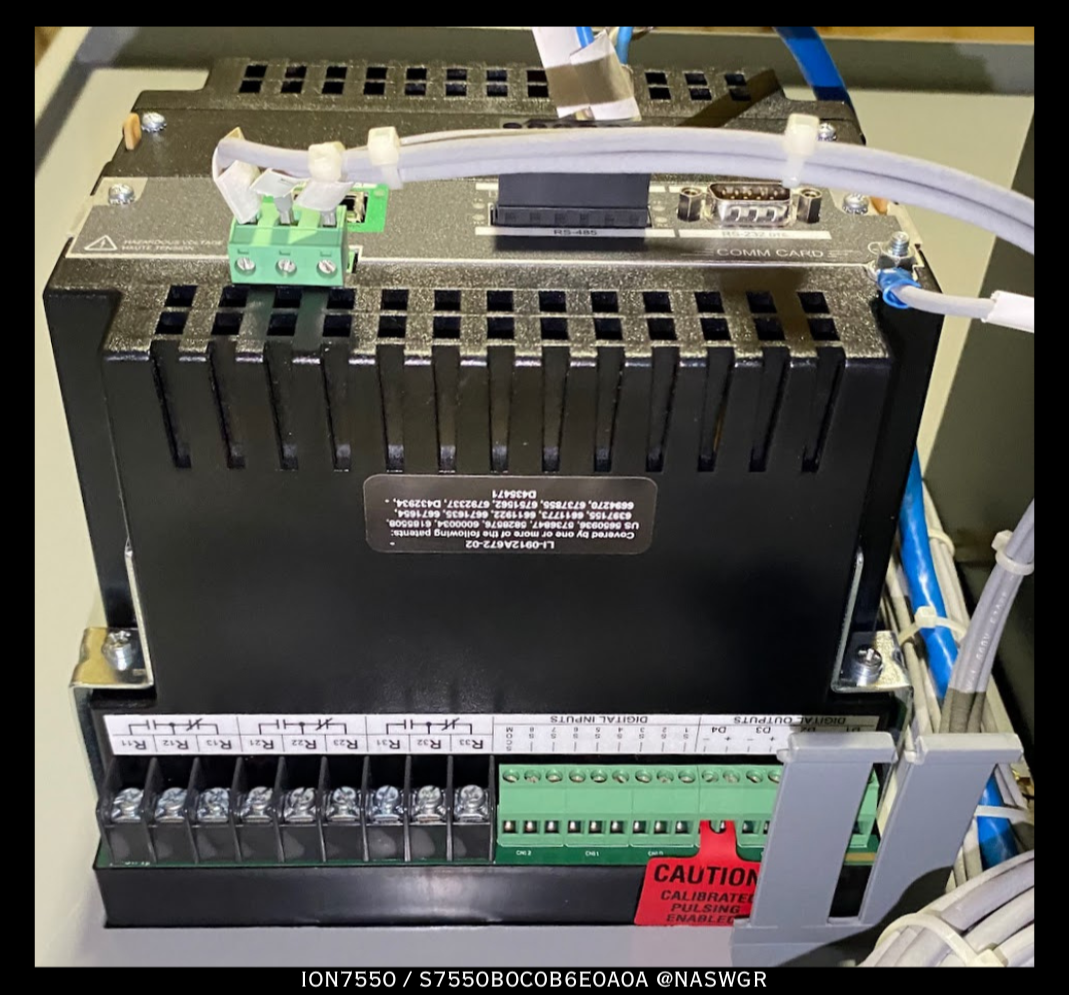

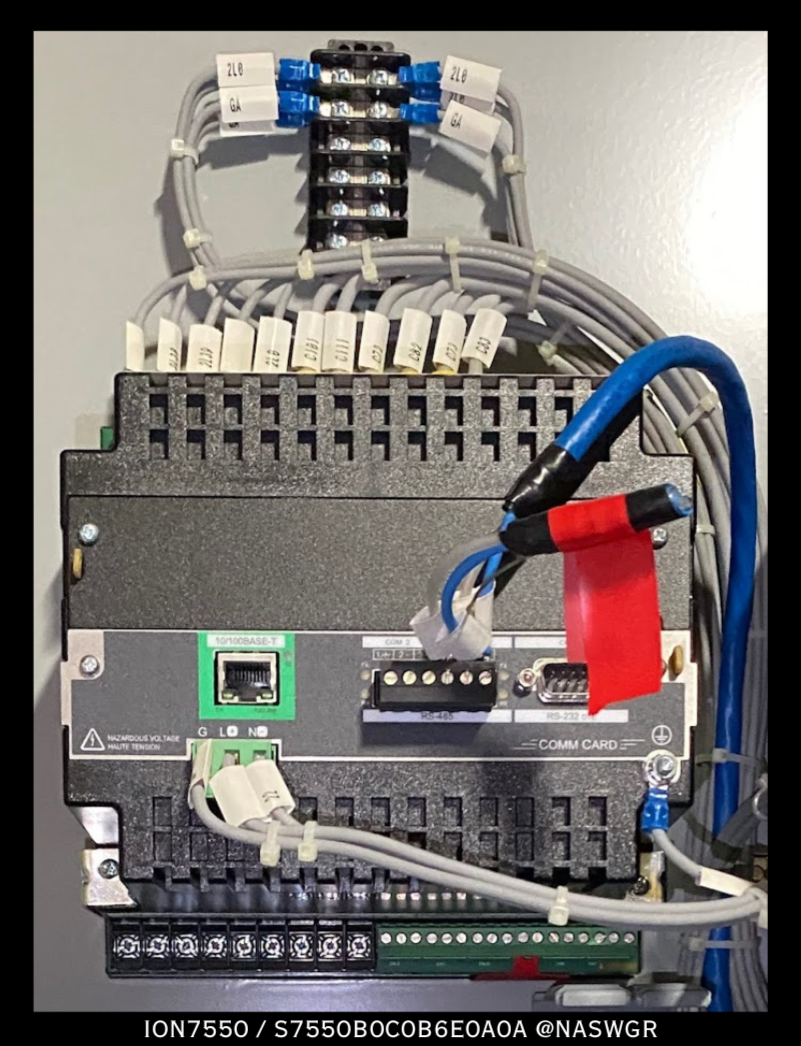

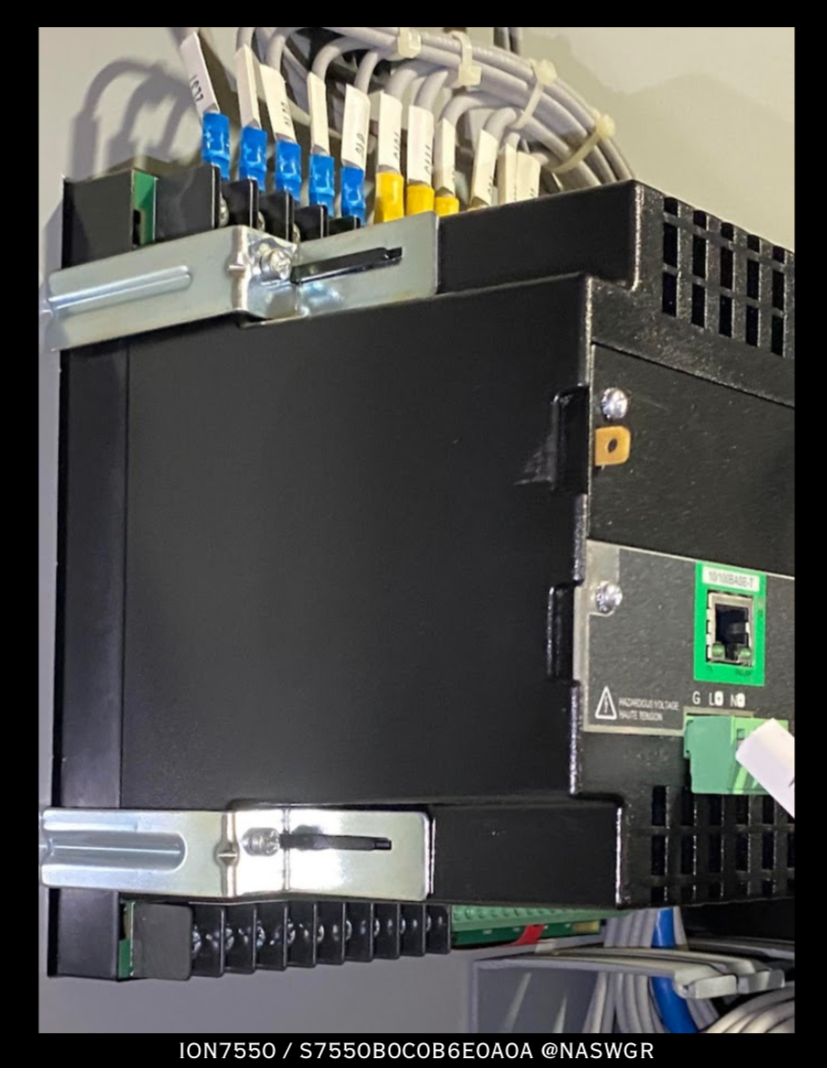

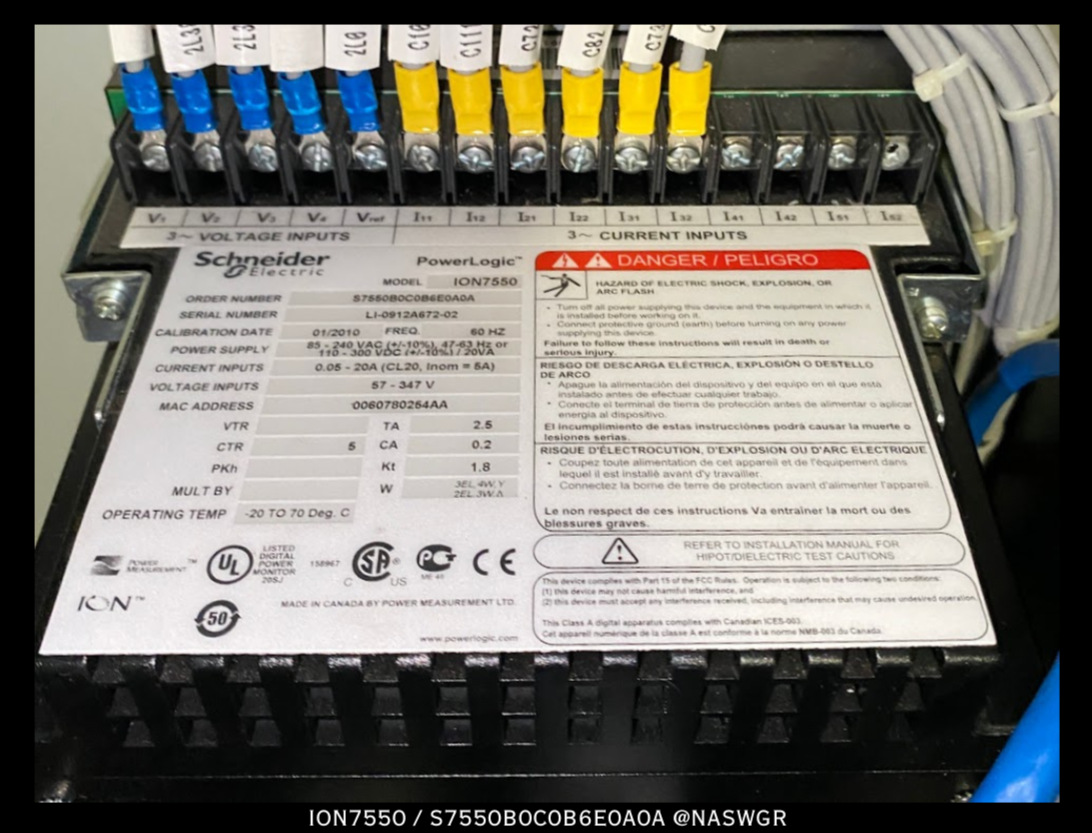

ION7550 / S7550B0C0B6E0A0A

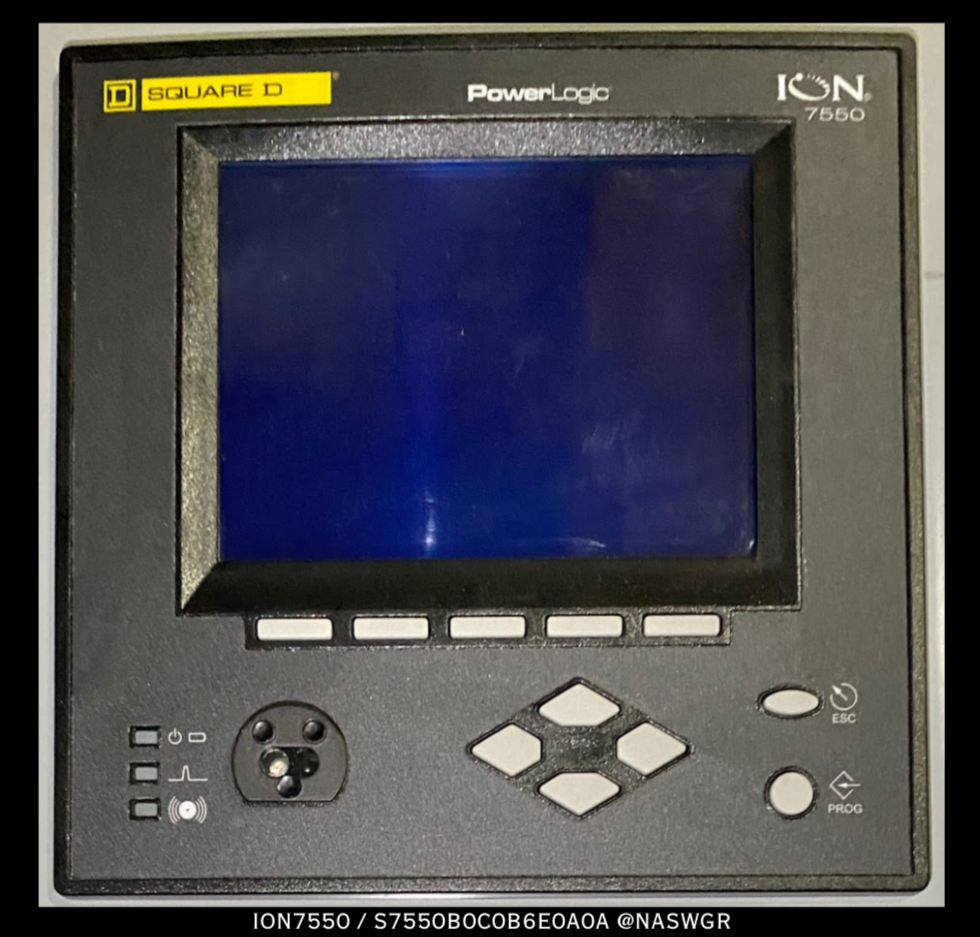

Square D PowerLogic Advanced Meter
ION7550 Series
Catalog #: S7550B0C0B6E0A0A

-Advanced meter with wide-range voltage inputs (57-347V line-neutral or 100-600V line-line), sag and swell detection, data, and waveform recording; supports ION, IEC 61850 (only for meters with 5MB memory and Ethernet comm card) Modbus-RTU,
and DNP 3.0
-Integrated display with front optical port, 10 MB logging memory, and 256 samples per cycle (ION7550)
-5 amp nominal, 20-Ampm full-scale current input
-57 to 347 VAC line-to-neutral/100 to 600 VAC line-to-line
-Standard power supply (85-240 VAC, ±10%/47-63 Hz/110-300 VDC, ±10%)
-Calibrated for 60 Hz systems

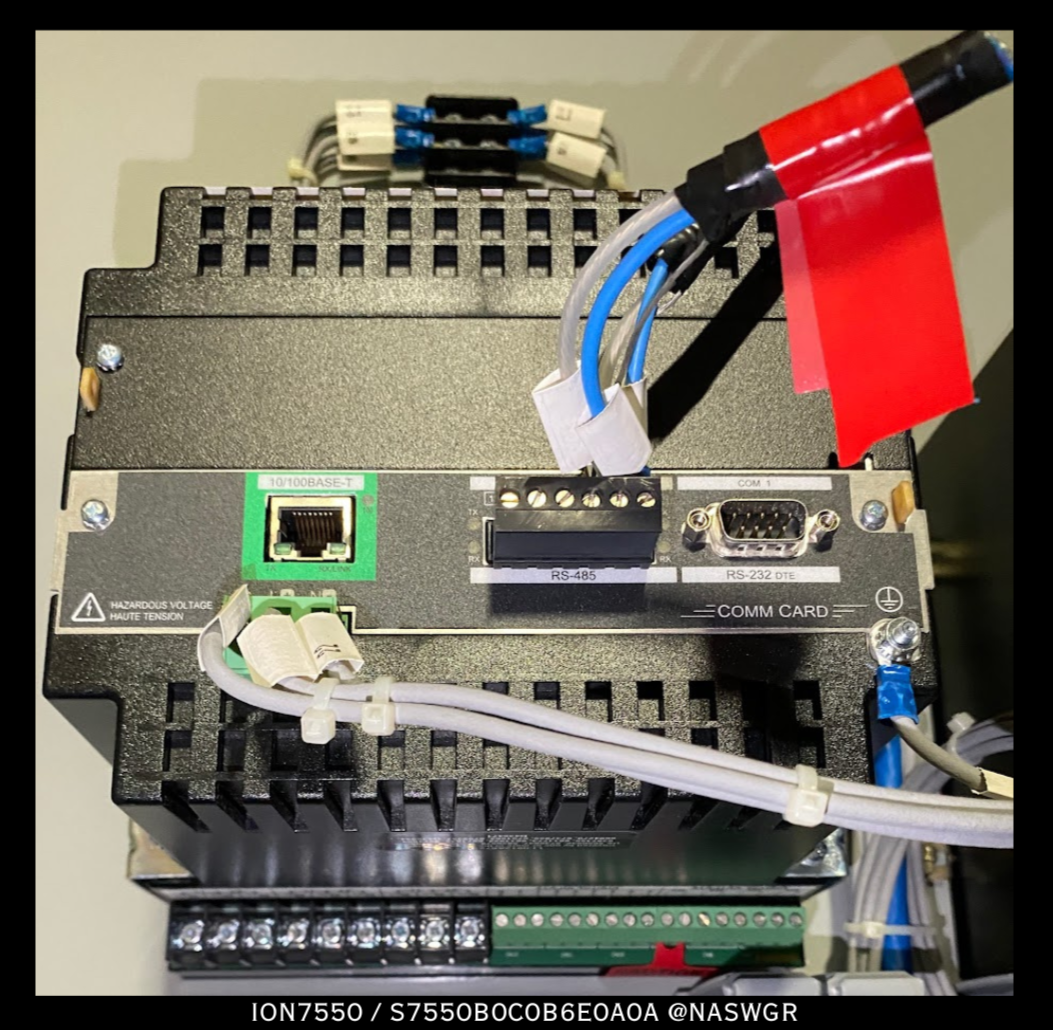

-Standard communications plus 10BASE-T/100BASE-TX (RJ45); Ethernet gateway function uses a serial communications port
-Standard I/O (8 digital ins, 3 form C relays, 4 form A solid-state out)
-Password protected, no hardware lock
-Other Options None

Each ION7550 Advanced Meter is Cleaned, Tested with Report, and Carries our One Year Warranty.

Call 800-909-3660 or email sales@naswgr.com with questions.

After hours emergency hotline 216-570-2725

NASPG54581, NASPG54584  Location: SNAS6093/94, Bay 3A Row 11/12
