Square D MasterPact NW20H1 Circuit Breaker ~ 2000 Amp

by Schneider Electric / Square D

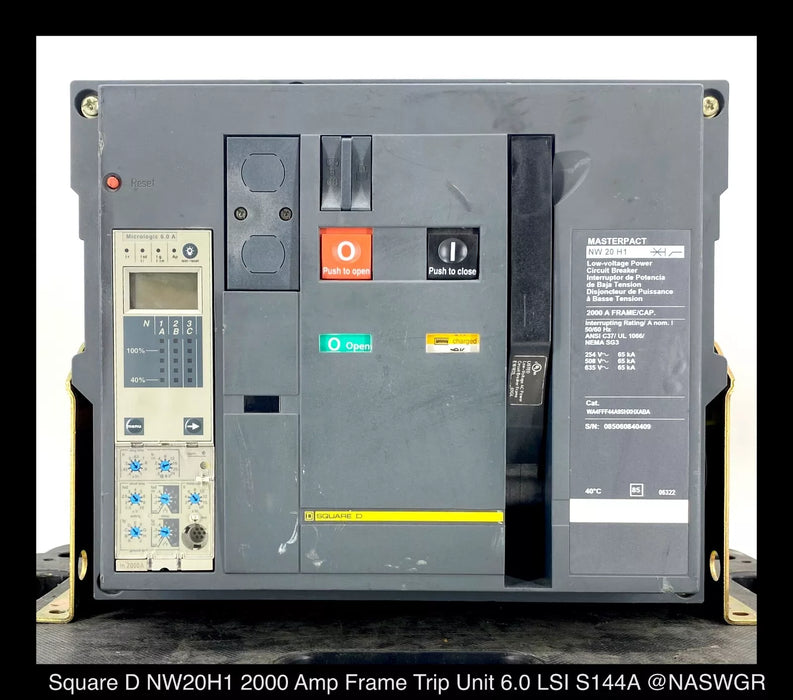

Square D MasterPact NW20H1 Circuit Breaker


Masterpact Catalog Break Down
W - 3 Pole / NW 115mm Pole Spacing / 3200 Amp Frame Max
A - Square D / ANSI Standard

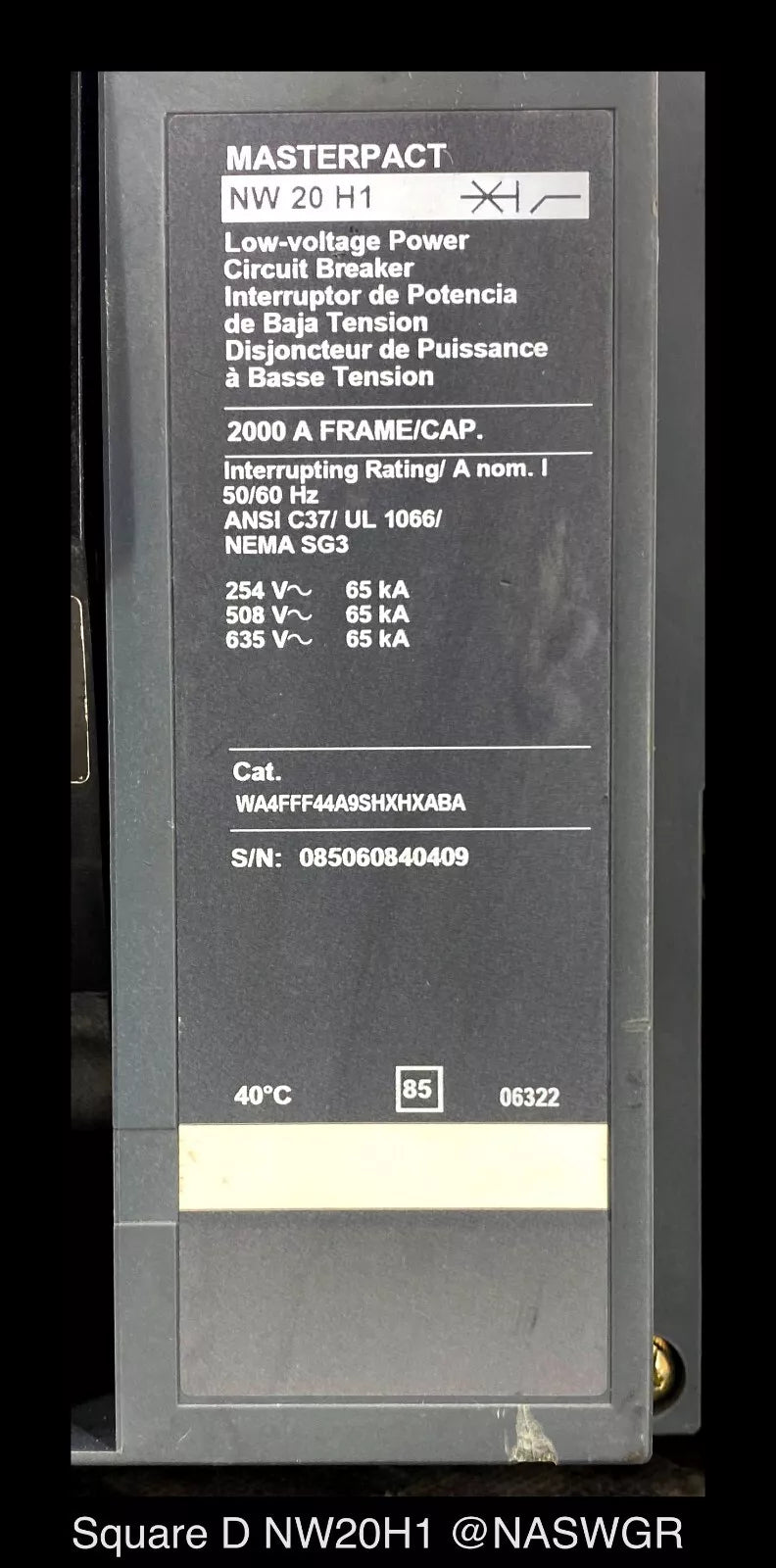

4 - Interrupting/ Withstand Rating @ 65/65/65k
F - 2000 Amp Frame
F - 2000 Amp Sensors & Rating Plug

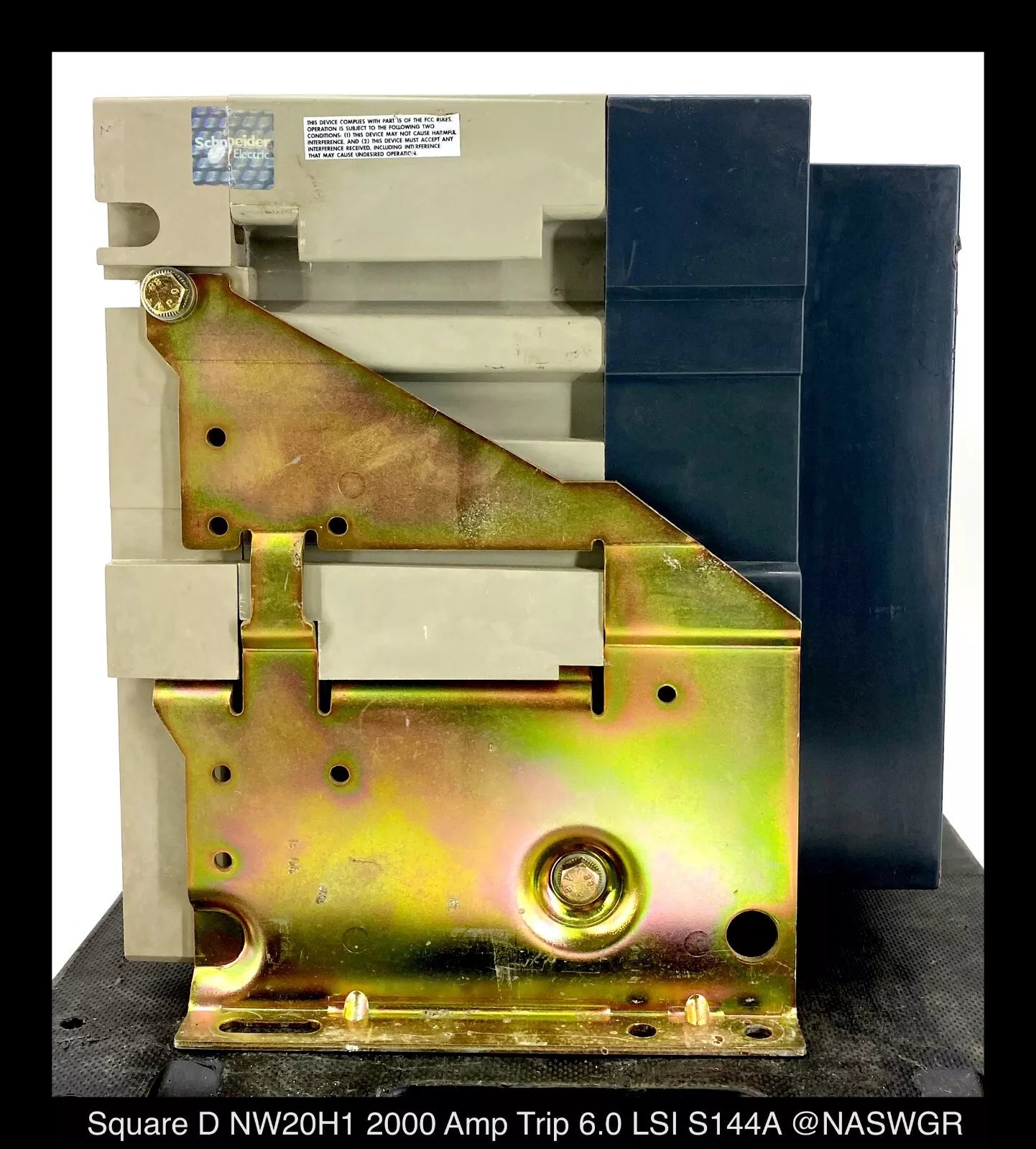

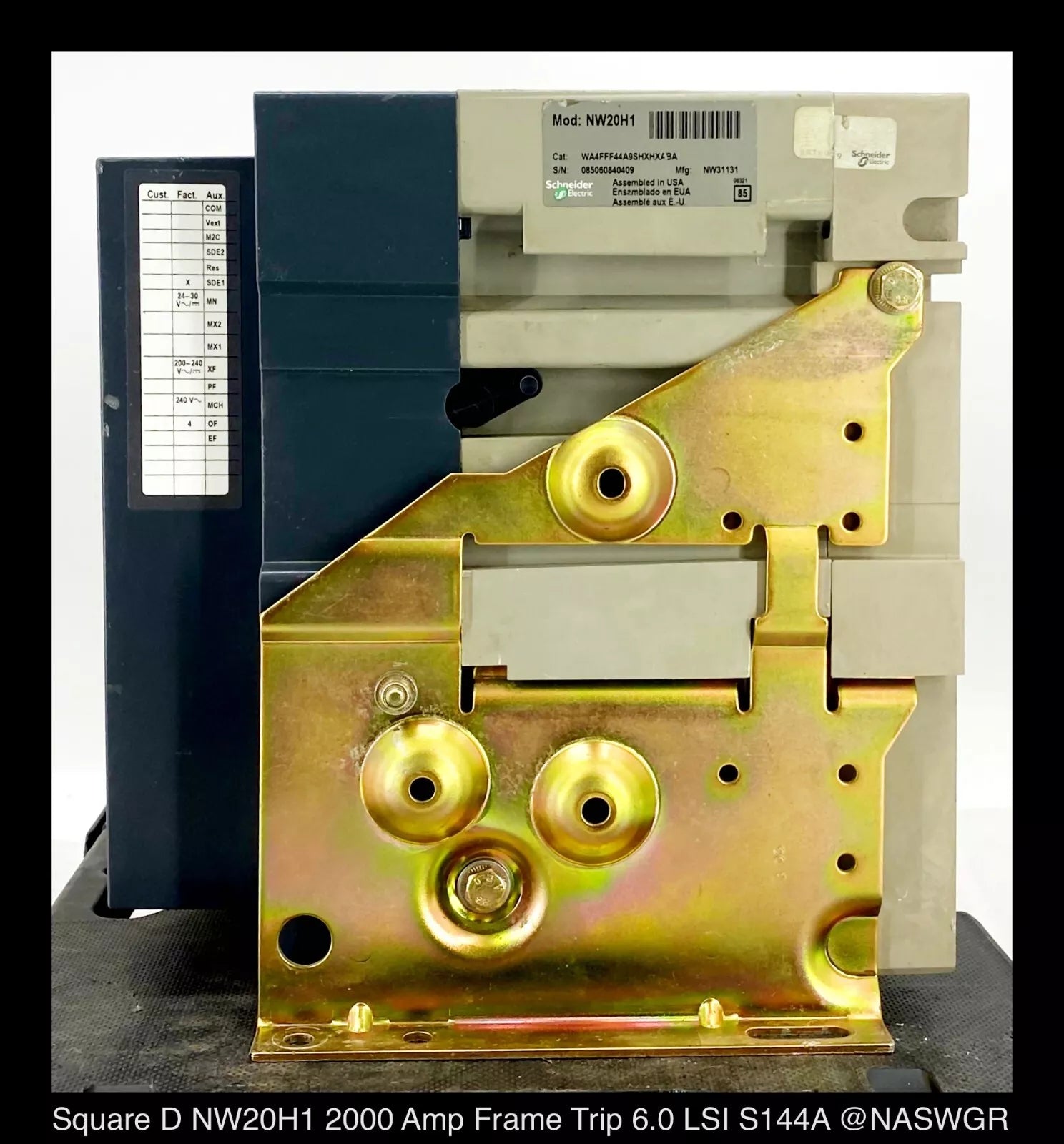

F - Fixed Mount, 2 Hole (Front Connected Flat)

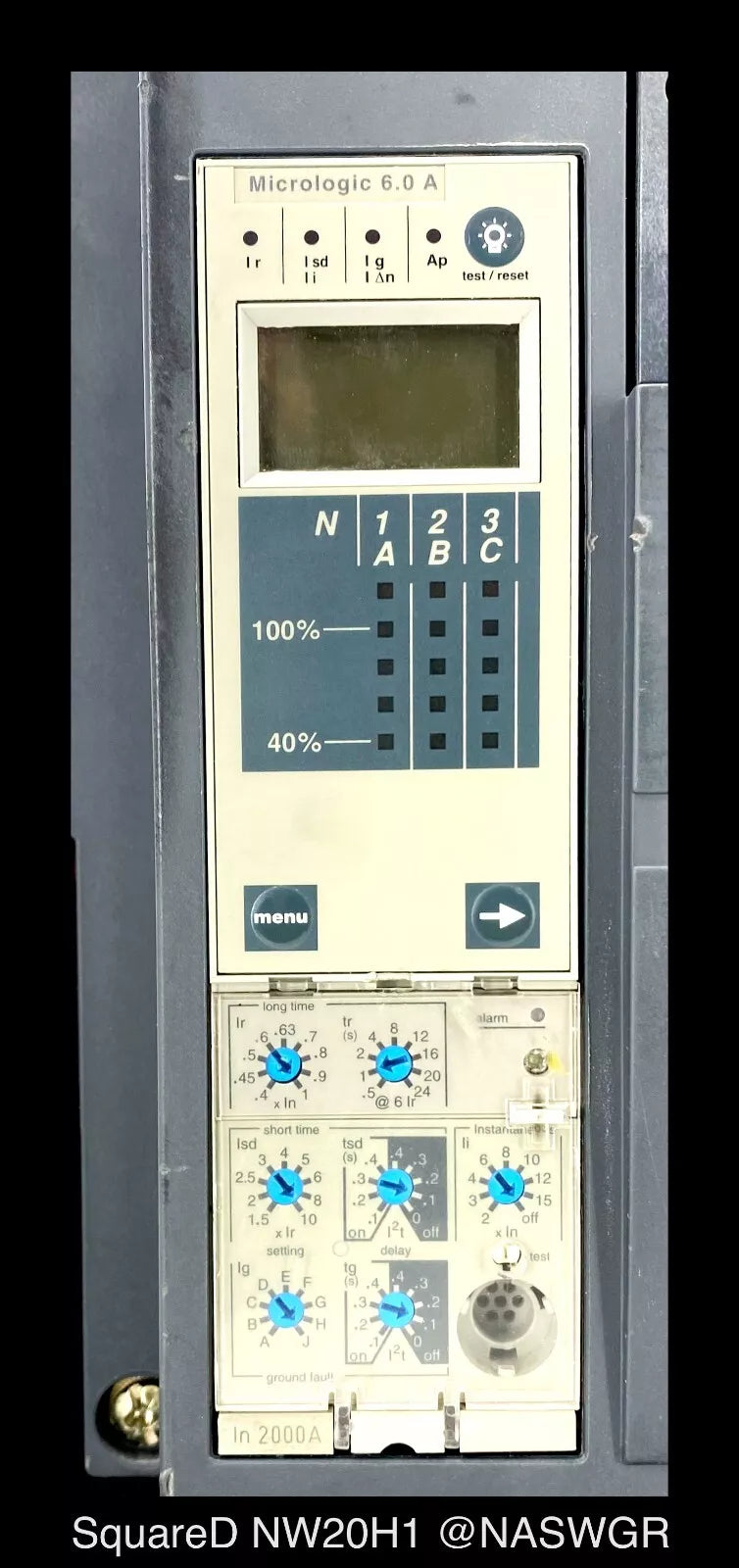

44 - Micrologic 6.0A (LSIG)
A - UL Plug "A"
9 - No Communications
S - No PCM / 4 form C Auxiliary Switches
H - 200-240vAC/DC Spring Charge Motor
X - No Shunt Trip
H - 200-240vAC/DC Closing Coil
X - No Overcurrent Trip Switch
A - 24-30vAC/DC UVR Device
B - Low Level Ready to Close Switch
A - Padlock

NAS can modify breaker to your accessory configuration. Message us your Catalog # to see if we can match your needs!

Each Reconditioned NW20H1 is Tested with Report and Backed by our One Year Warranty.

Standard lead time (1-3) days prior to shipping. If item is needed sooner please call or email.

Must ship via freight on a pallet. Please contact for freight quote.

Call 800-909-3660 or email sales@naswgr.com with questions.

After hours emergency hotline 216-402-0507 or 216-570-2725

NASG14059  Location: 6448B(A)
