Square D MasterPact NW16H3 Circuit Breaker ~ 1600 Amp

by Schneider Electric / Square D

Contact for Quote: 800-909-3660 | sales@naswgr.com

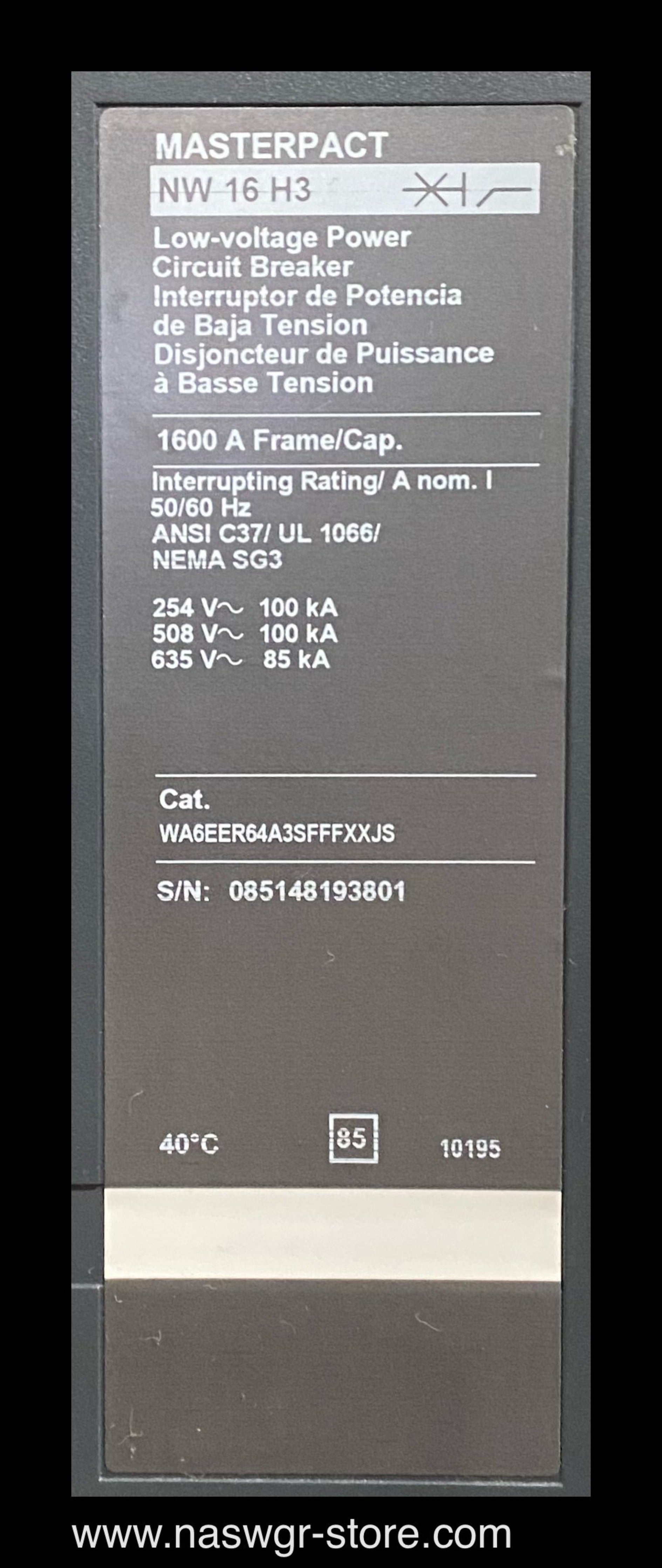

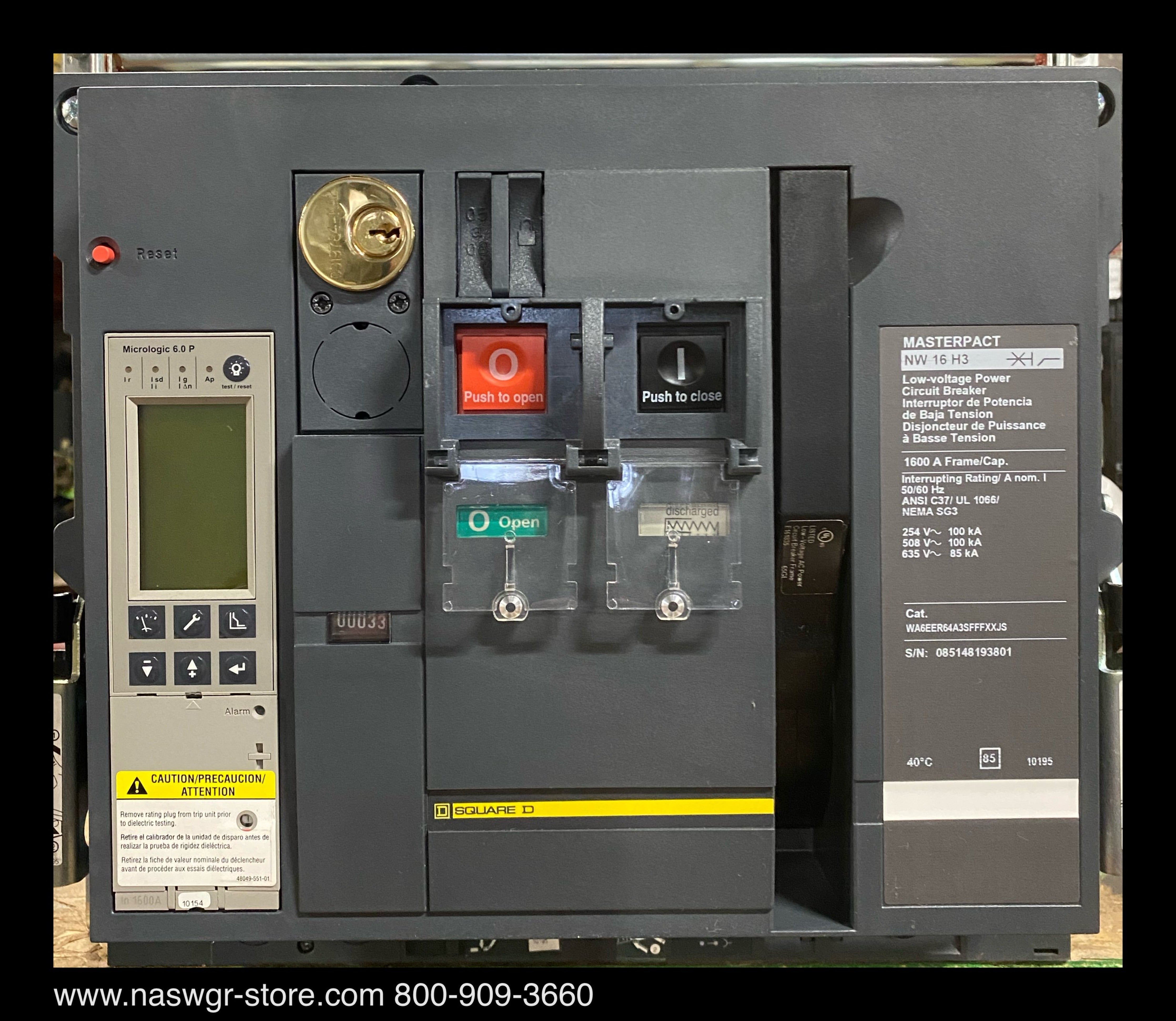

Square D MasterPact NW16H3 Circuit Breaker

Masterpact Catalog Break Down
W - 3 Pole / NW 115mm Pole Spacing / 3200 Amp Frame Max
A - Square D / ANSI Standard
6 - Interrupting/ Withstand Rating @ 100/100/85k
E - 1600 Amp Frame
E - 1600 Amp Sensors & Rating Plug
R - Drawout Frame

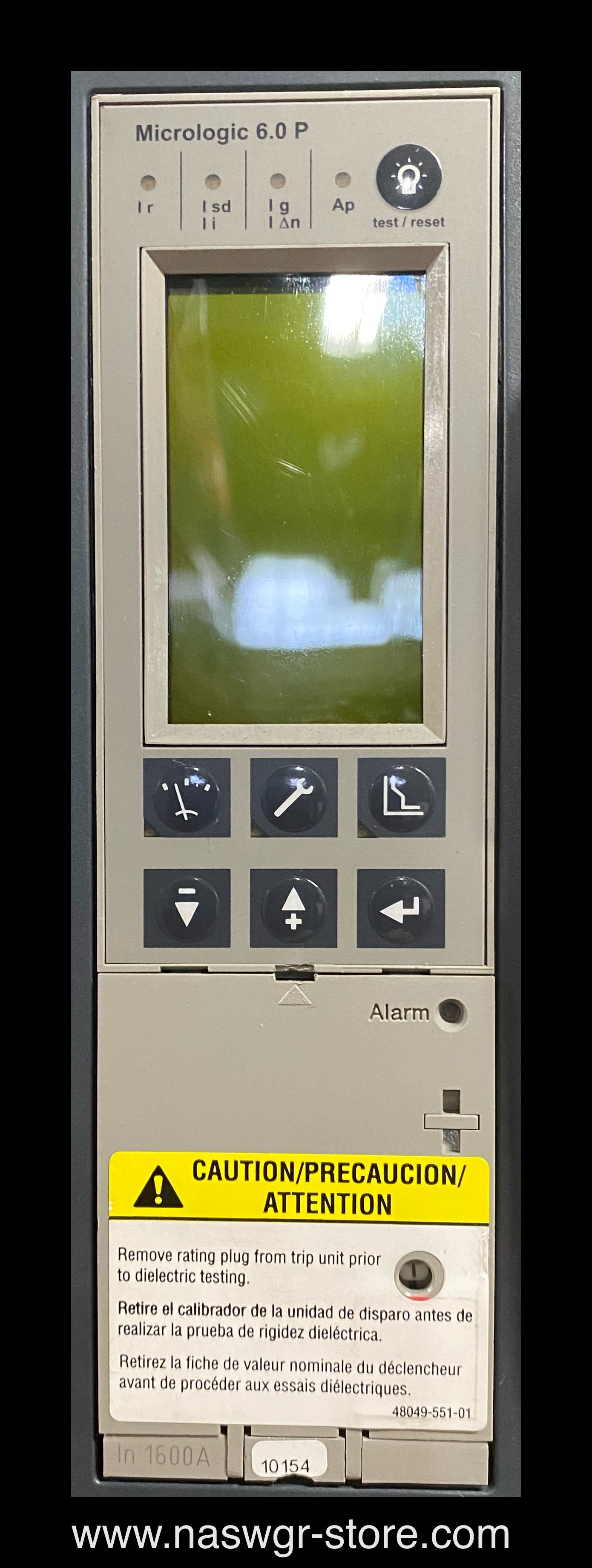

64 - Micrologic 6.0P (LSIG)
A - UL Plug "A"
3 - Modbus Communications

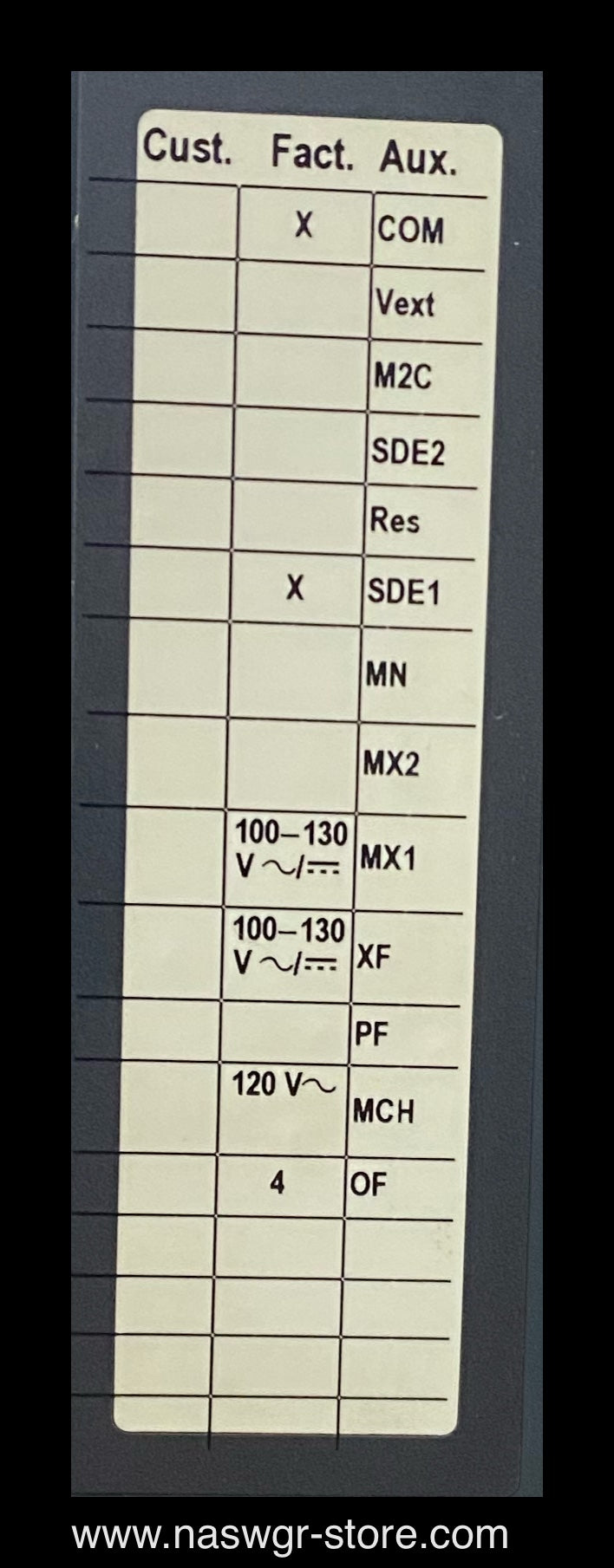

S - No PCM / 4 form C Auxiliary Switches
F - 100-130vAC/DC Spring Charge Motor
F - 100-130vAC/DC Shunt Trip
F - 100-130vAC/DC Closing Coil
X - No Overcurrent Trip Switch
X - No UVR Device or 2nd Shunt Trip
J - Padlockable Push Button Cover & Operations Counter
S - Padlock & 1 Fed. Pioneer Lock

NAS can modify breaker to your accessory configuration. Message us your Catalog # to see if we can match your needs!

Each NW16H3 is Tested with Report and Backed by our One Year Warranty.

Must ship via freight on a pallet. Please contact for freight quote.

Call 800-909-3660 or email sales@naswgr.com with questions.

After hours emergency hotline 216-402-0507 or 216-570-2725
