Square D MasterPact NW16H1 Circuit Breaker ~ 1600 Amp

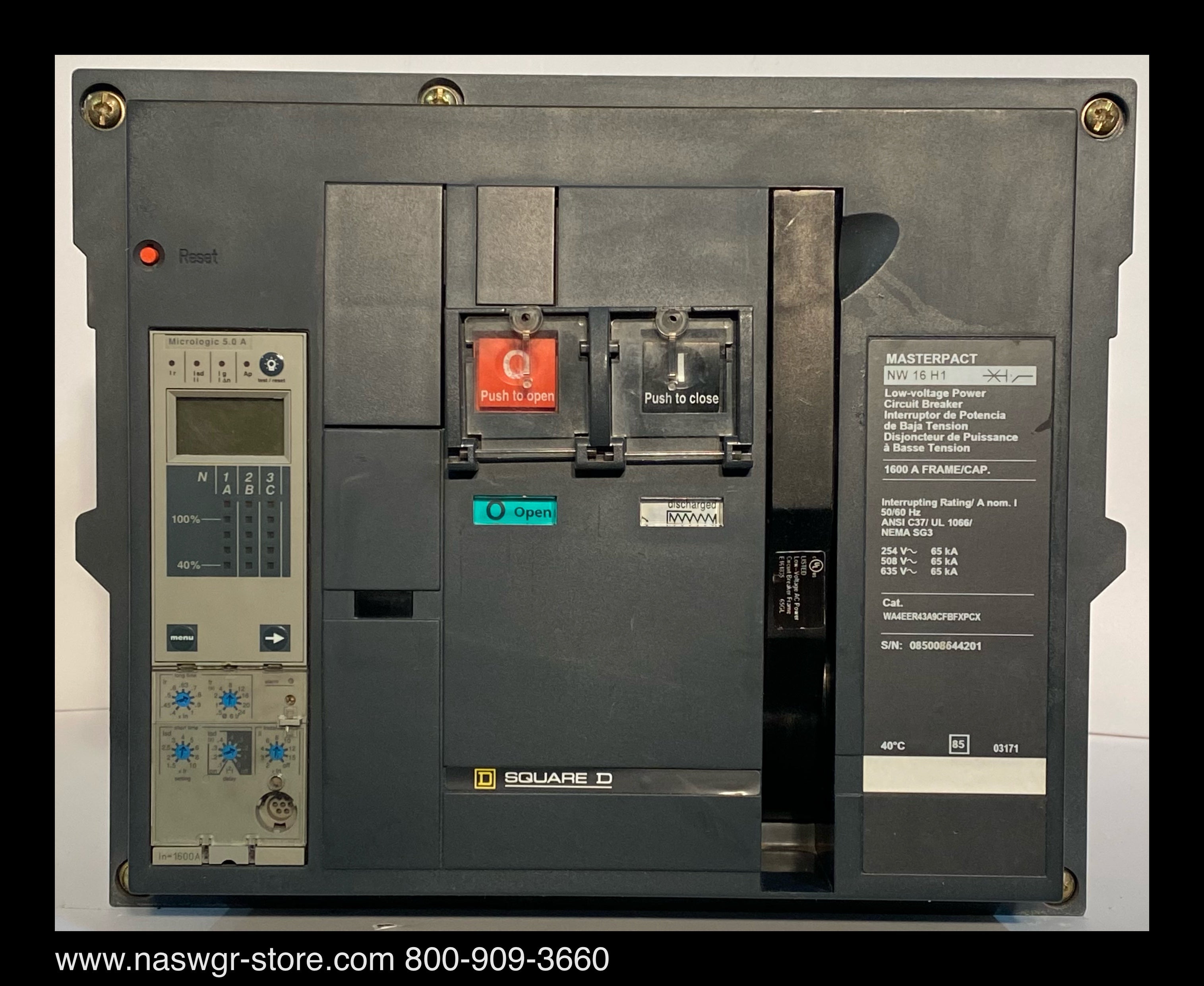

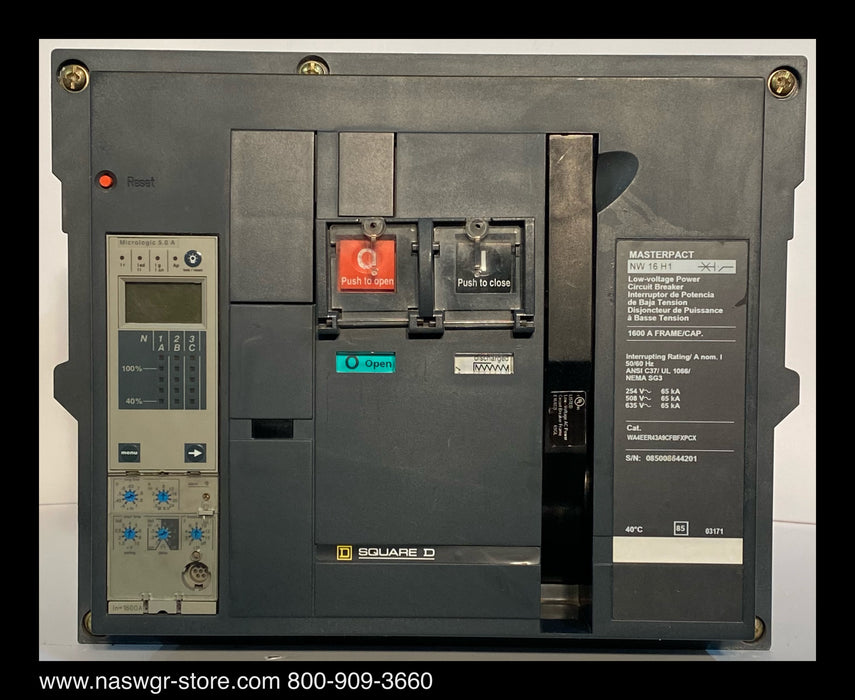

Square D MasterPact NW16H1 Circuit Breaker

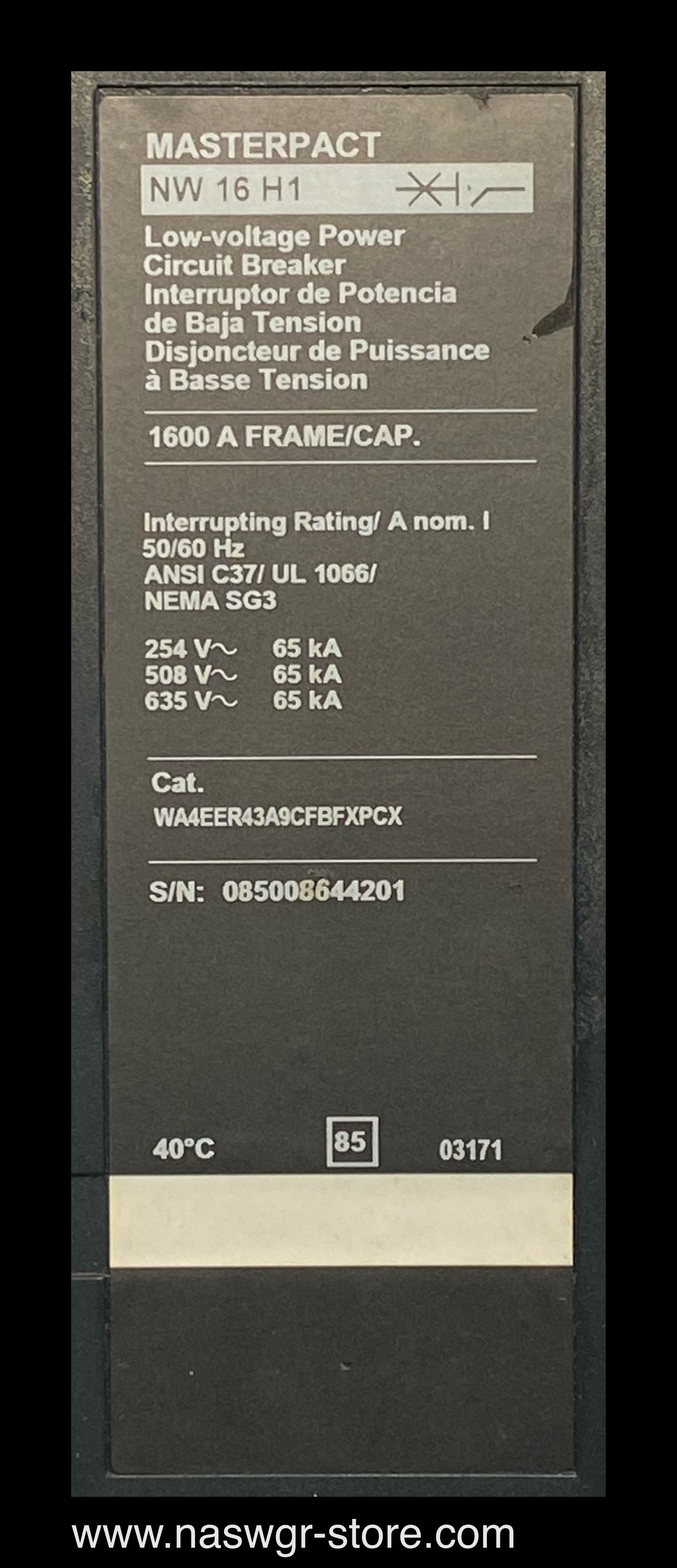

Masterpact Catalog Break Down
W - 3 Pole / NW 115mm Pole Spacing / 3200 Amp Frame Max
A - Square D / ANSI Standard
4 - Interrupting/ Withstand Rating @ 65/65/65k
E - 1600 Amp Frame
E - 1600 Amp Sensors & Rating Plug
R - Drawout Breaker

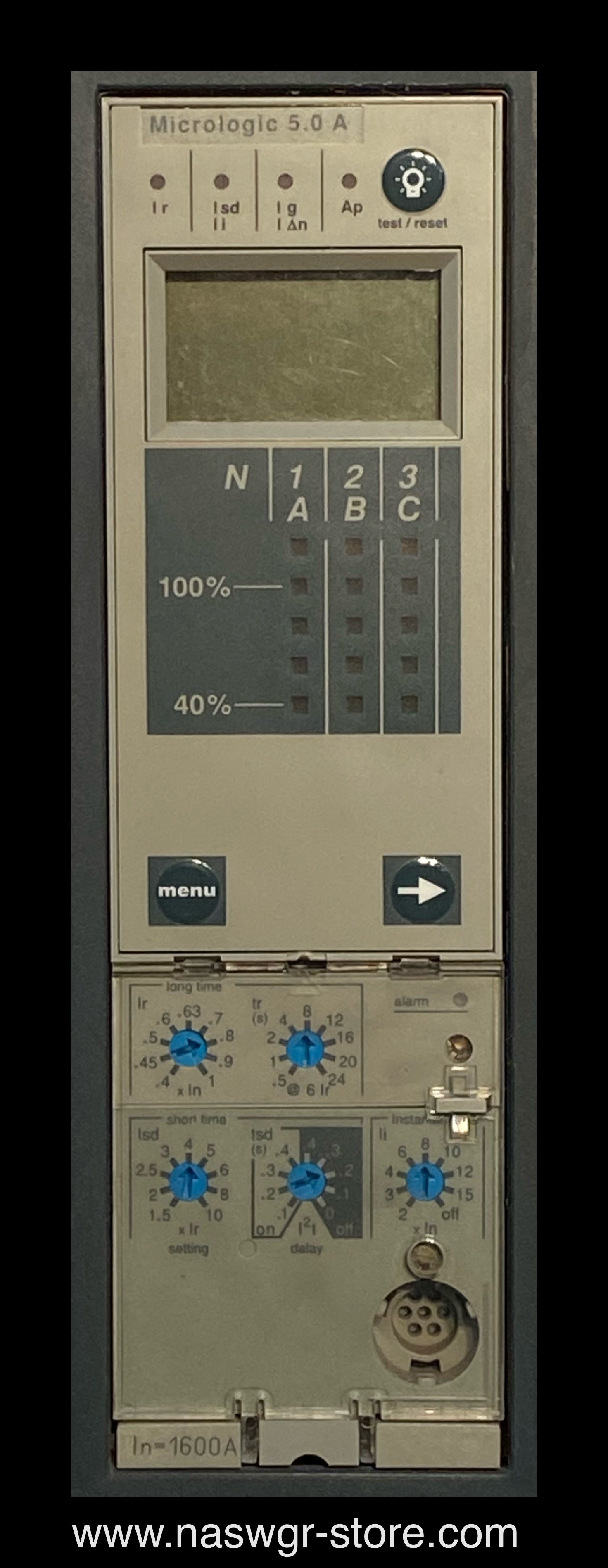

43 - Micrologic 5.0A (LSI)
A - UL Plug "A"
9 - No Communications

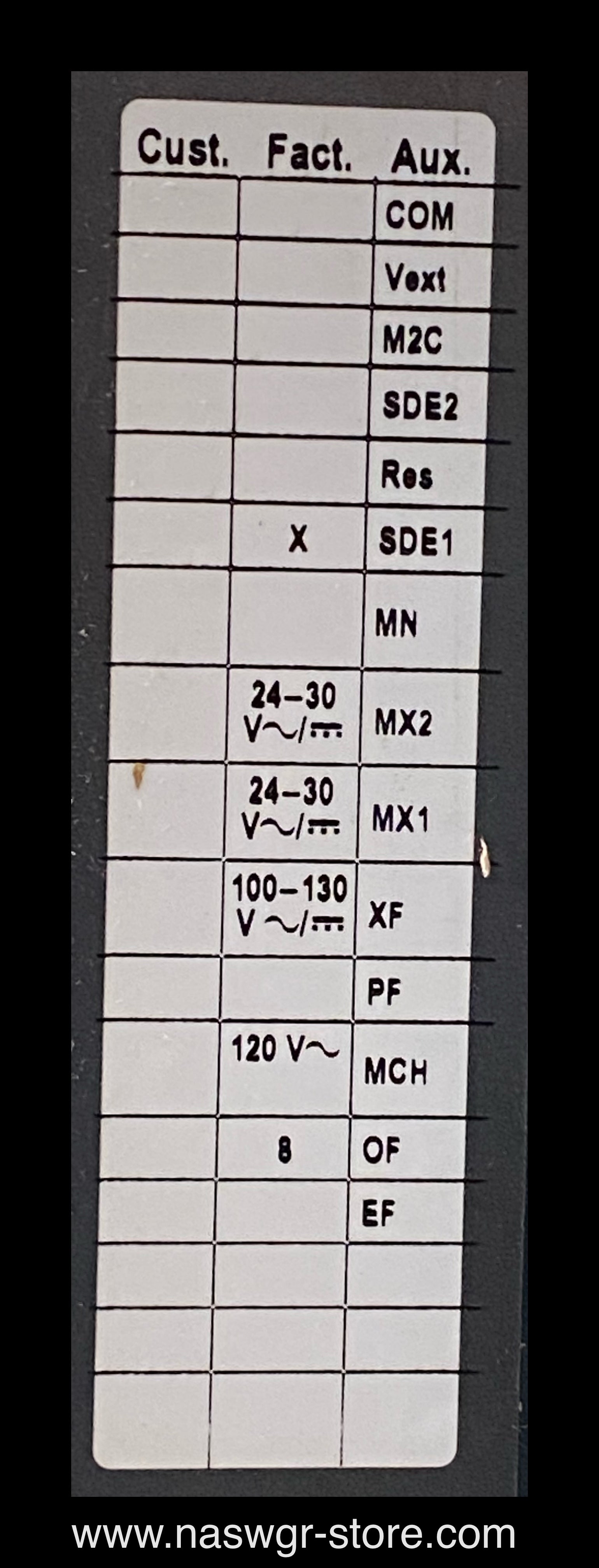

C - No PCM / 8 form C Auxiliary Switches
F - 100-130vAC/DC Spring Charge Motor
B - 24-30vAC/DC Shunt Trip
F - 100-130vAC/DC Closing Coil
X - No Electric reset or 2nd OTS
P - 24-30vAC/DC Shunt Trip
C - Padlockable Pushbutton Cover
X - No Locks
NAS can modify breaker to your accessory configuration. Message us your Catalog # to see if we can match your needs!
Each Reconditioned NW16H1 is Tested with Report and Backed by our One Year Warranty.
Standard lead time (1-3) days prior to shipping. If item is needed sooner please call or email.
Must ship via freight on a pallet. Please contact for freight quote.
Call 800-909-3660 or email email@example.com with questions.
After hours emergency hotline 216-402-0507 or 216-570-2725
NASG15788 Location: 6436B,A
