Siemens WL WLL2A316 Circuit Breaker (E/O,D/O) - 1200 Amp
Contact for Quote: 800-909-3660 | sales@naswgr.com
WLL2A316

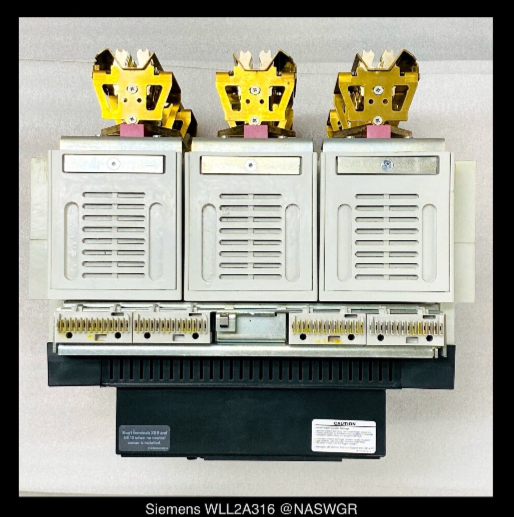

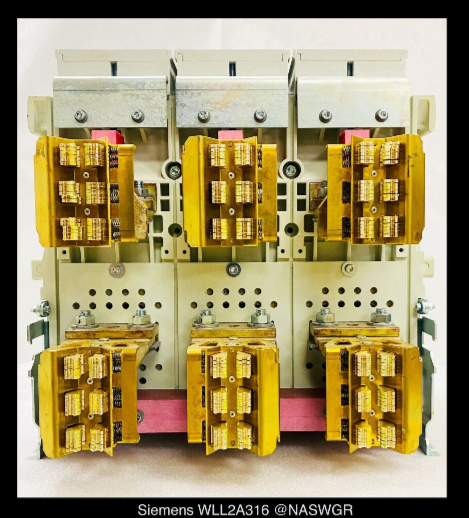

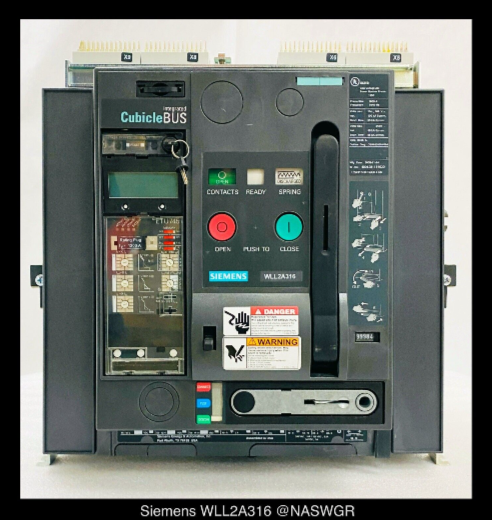

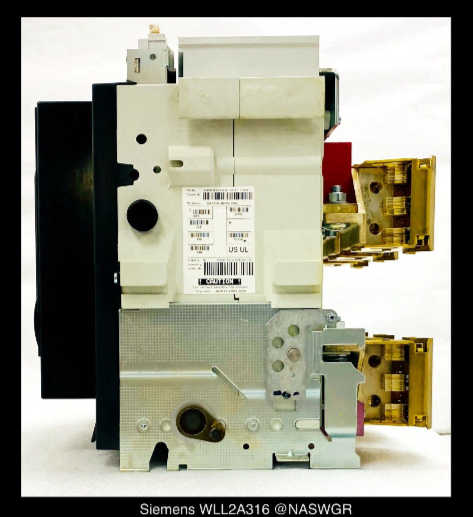

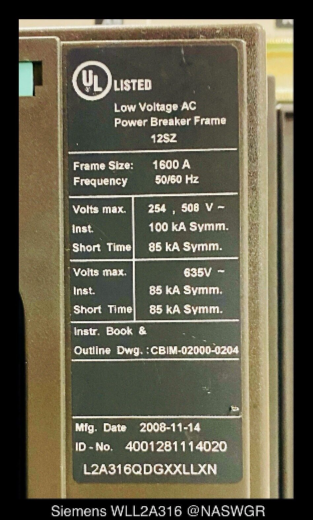

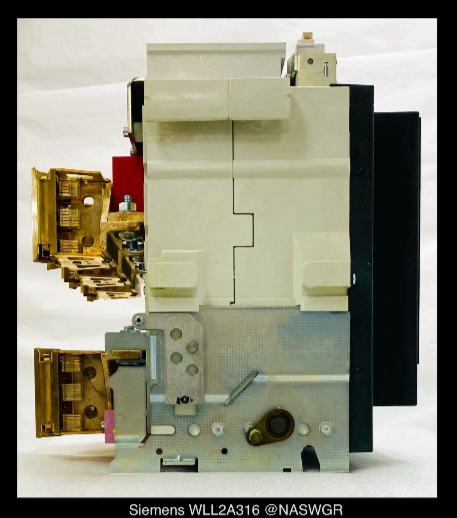

Siemens WL WLL2A316 Circuit Breaker
Cat#: L2A316QDGXXLLXN
WL Catalog Break Down
L - Interrupting/ Withstand Rating @ 100/100/85kA
2 - Frame Size 2
A - Drawout
3 - 3 Pole
16 - 1600 Amp Frame
Q - 1200 Amp Rating Plug

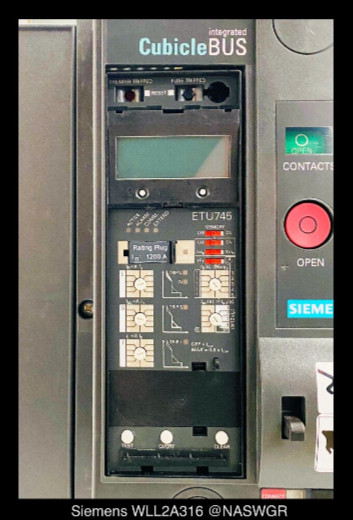

D - ETU745 (LSI) w/ LCD Screen
G - Bell Alarm and 4a/4b Auxiliary Contacts
X - No Shunt Trip
X - No UV or 2nd Shunt Trip
L - 120vAC/125vDC Motor Operator and Operations Counter
L - No Close Coil - Power Metering Capable, Modbus Communications
X - No Padlock Provisions
N - No Additional Accessories
NAS can modify breaker to your accessory configuration. Message us your Catalog # to see if we can fulfill your needs!
Each WLL2A316 is Cleaned, Tested with Report, and Carries our One Year Warranty.
Call 800-909-3660 or email sales@naswgr.com with questions.
After hours emergency hotline 216-570-2725
NASG17518/19/20JP Location:
