Siemens 5-MSV-350C-1200-78 Vacuum Circuit Breaker

by Siemens

Contact for Quote: 800-909-3660 |

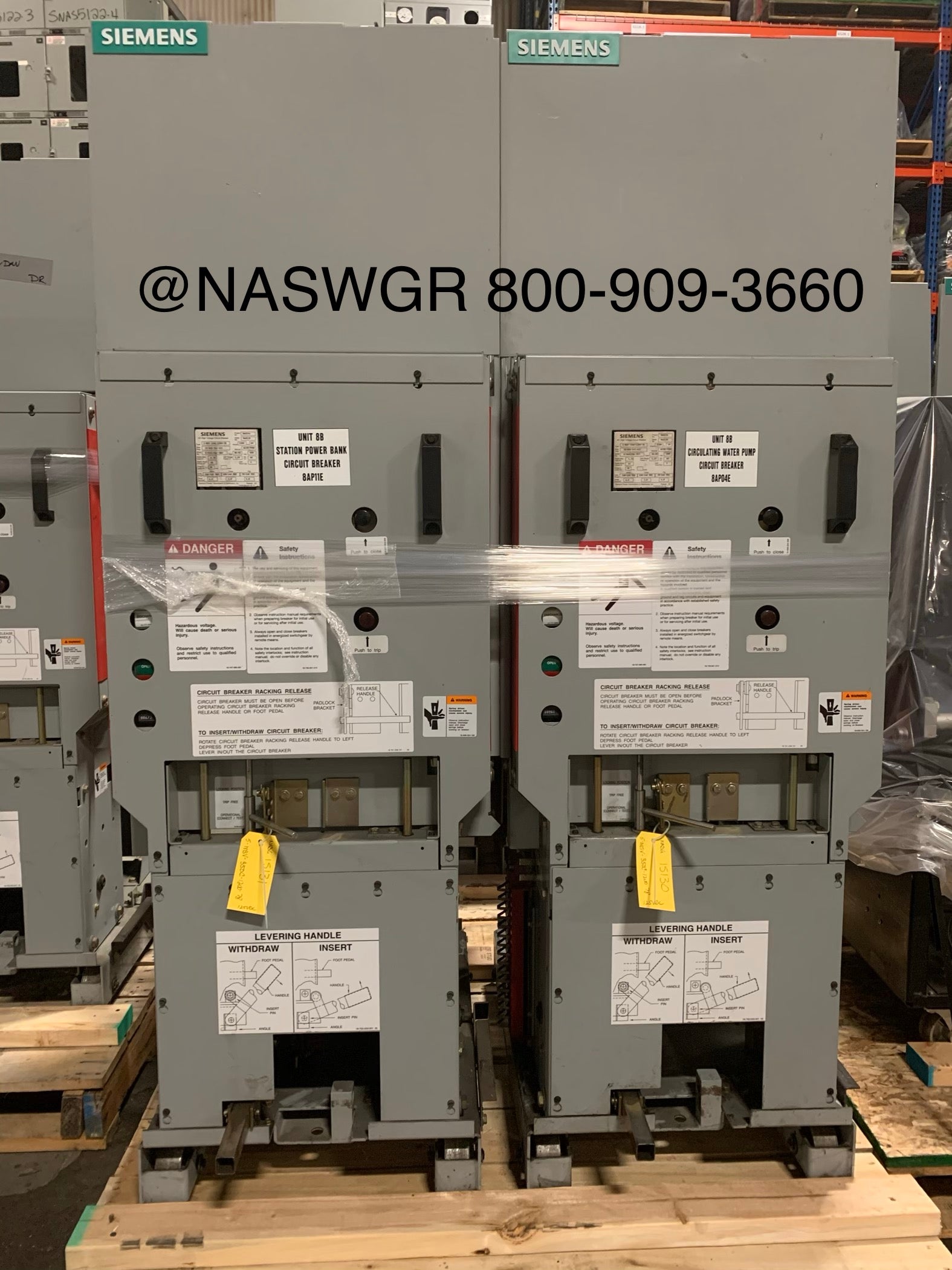

Siemens 5-MSV-350C-1200-78 AC High Voltage Circuit Breaker
1200 Amp
Instr. Bk. No. SGIM-9988
Type: 5-MSV-350C-1200
Rated Max. Volts KV 4.76
Rated Short Circuit kA 41
Cont. curr. A 1200
Close & Latch kA 78
5-MSV-350C 1200 amp

Operator Data
Motor: 100-140 VDC           Range Amps Nominal 6.0
Close: 100-140 VDC           Range Amps Nominal 1
Trip:     100-140 VDC          Range Amps Nominal  4.8

Wiring Diagram 18-806-541-411

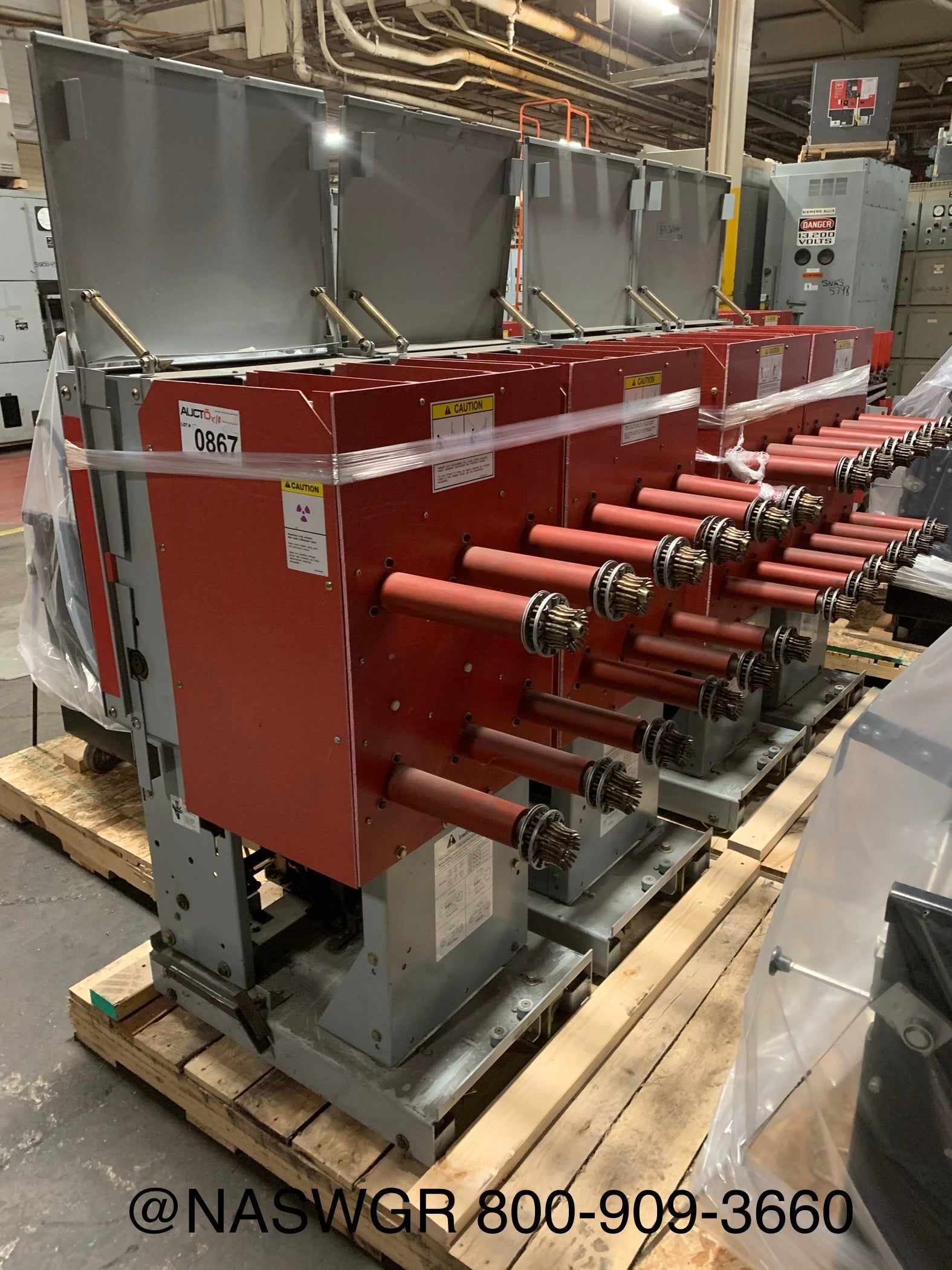

Siemens Vacuum Bottles- VS-15052

Breaker is in excellent condition

Estimated shipping weight: 700 lbs. Please contact us for shipping information.

Item must ship via freight on a pallet.

Each used 5-MSV-350C-1200-78 will be cleaned, tested with report and 1 year warranty.

Standard lead time (1-3) days prior to shipping. If item is needed sooner please call or email.

Call 800-909-3660 or email with questions.

After hours emergency hotline 216-402-0507 or 216-570-2725
