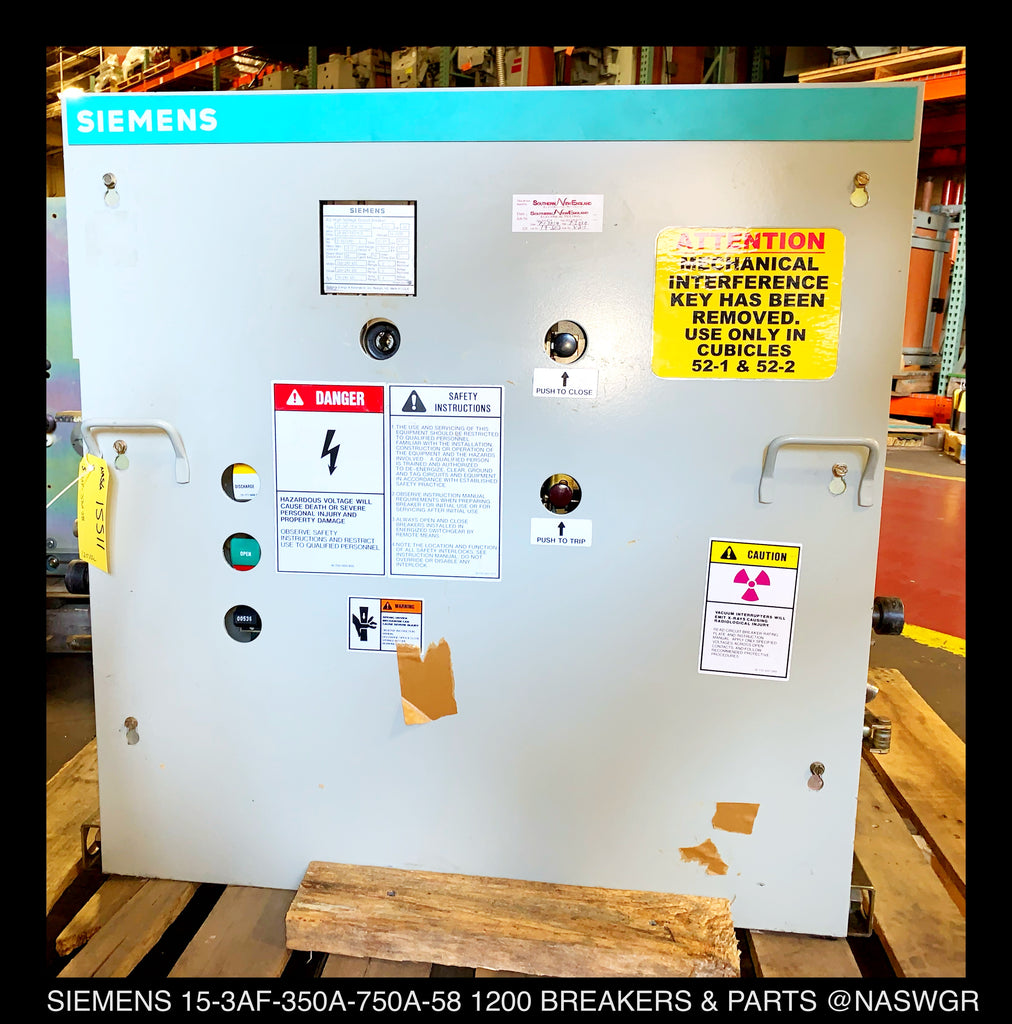

Siemens 15-3AF-750A-58 AC High Voltage Circuit Breaker 1200 AMP

by Siemens

Contact for Quote: 800-909-3660 |

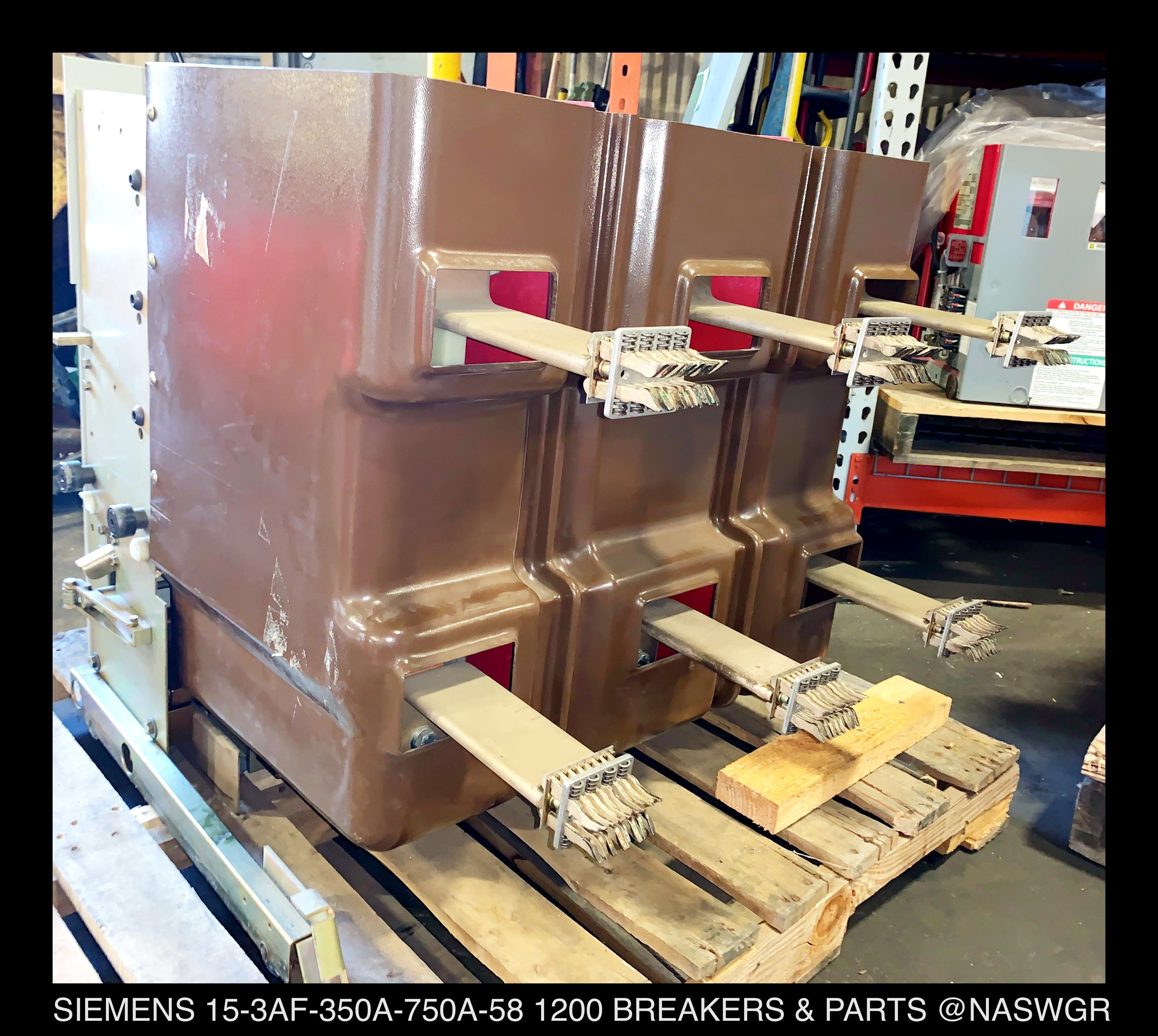

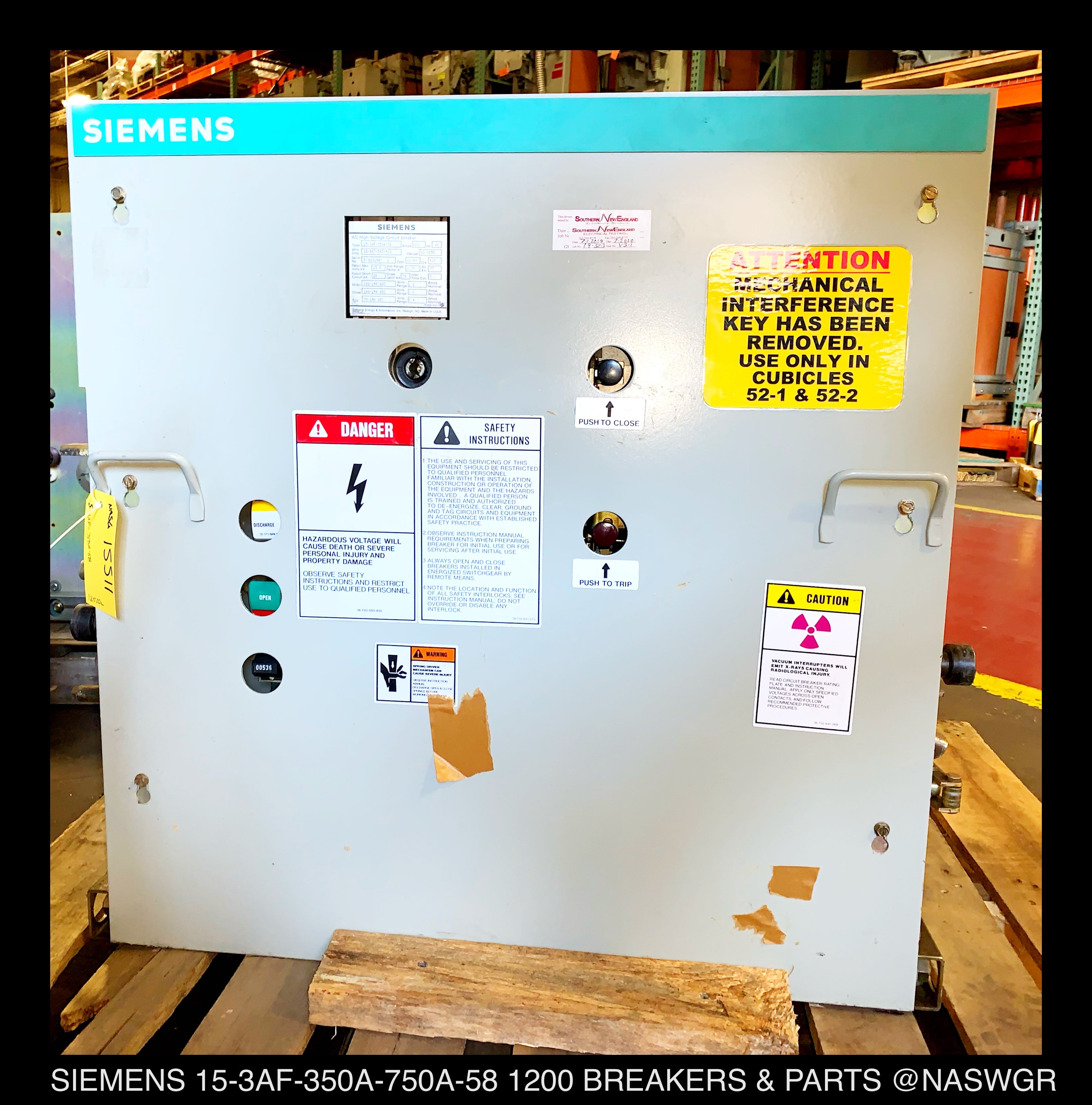

Siemens 15-3AF-750A-58 AC High Voltage Circuit Breaker
1200 Amp
Instr. Bk. No. SG-3158

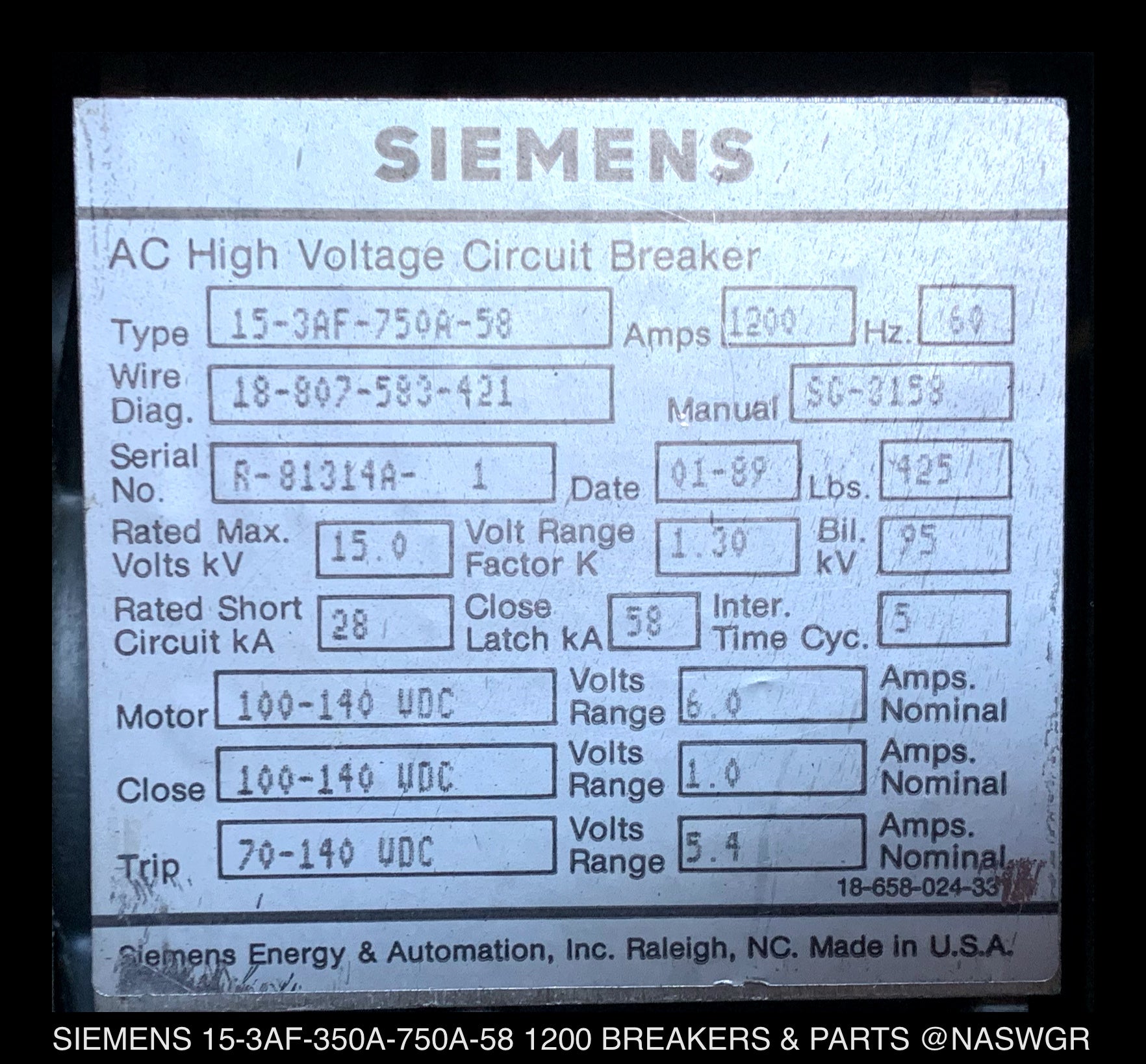

Type: 15-3AF-750A-58
Rated Max. Volts KV 15
Rated Short Circuit kA 28
Cont. curr. A 1200
Close & Latch kA 58
Volt Range Factor K 1.30
60 Hz.

Operator Data
Motor: 100-140 VDC          Range Amps Nominal 6.0
Close: 100-140 VDC           Range Amps Nominal 1.0
Trip Coil 1: 70-140 VDC      Range Amps Nominal 5.4
Wiring Diagram 18-807-583-421

Estimated weight: 425 lbs + Pallet. Please contact us for shipping information.

Item must ship via freight on a pallet.

Call 800-909-3660 or email with questions.

After hours emergency hotline 216-402-0507 or 216-570-2725

NASG15512-NASG15516-NASG15511 BLDG 6
