Power Shield Type SS3 ~ 609906-T006

Power Shield Type SS3 ~ 609906-T006

609906-T006

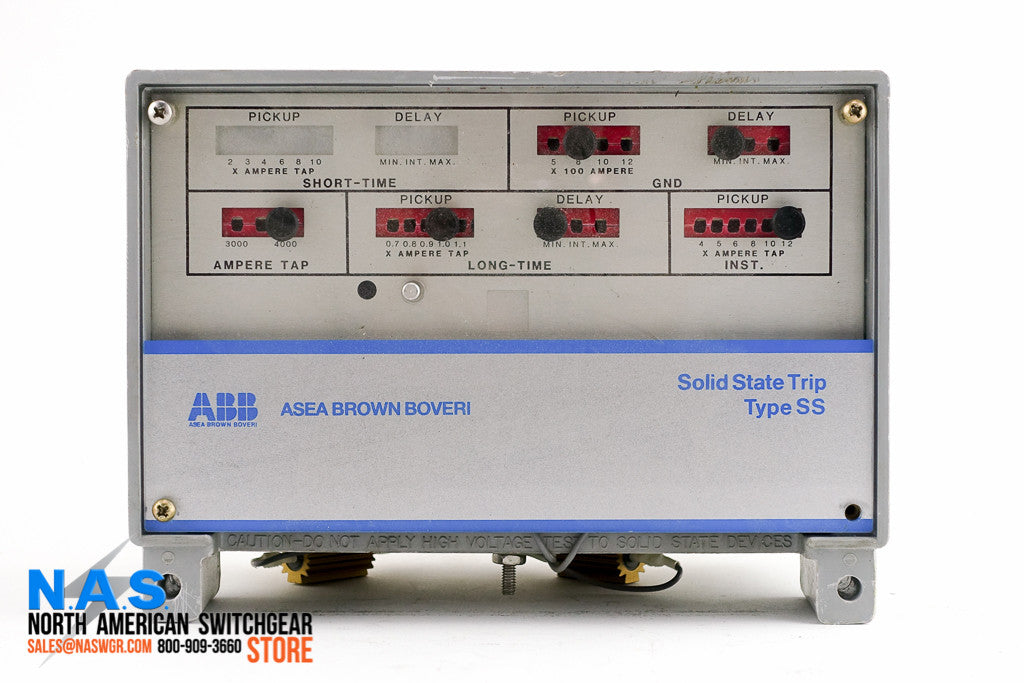

Power Shield LIG Solid State Trip Unit

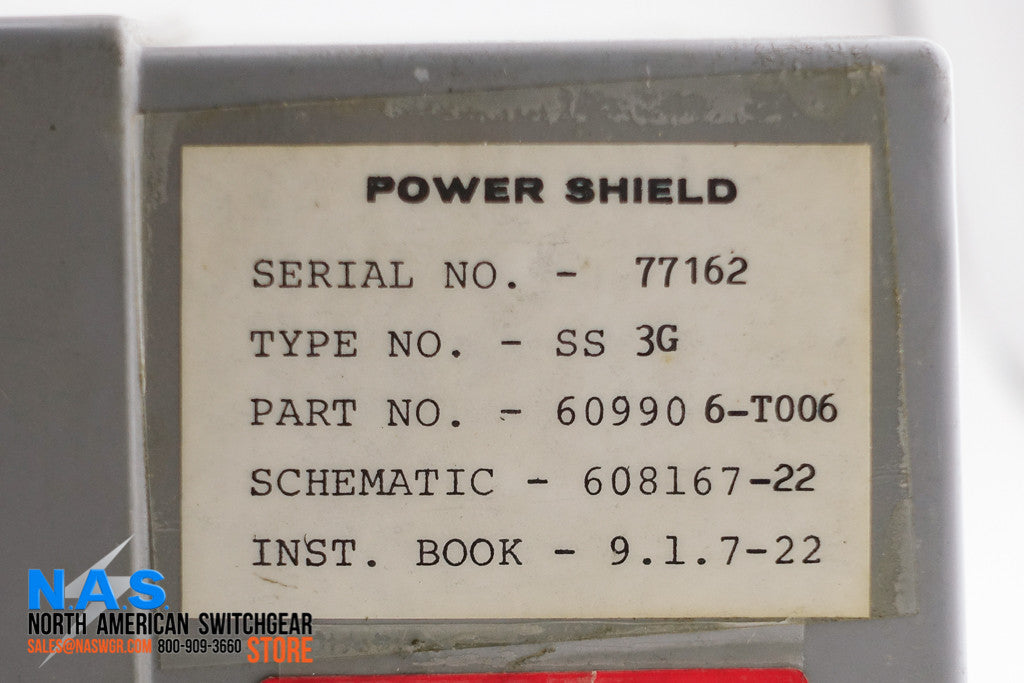

Type No. SS3
Part No. 609906-T006
Schematic - 608167-22
Inst. Book - 9.1.7-22

Long Time Pickup: 0.7, 0.8, 0.9, 1.0, 1.1
Long Time Delay: Min, Int, Max
Instantaneous: 4, 5, 6, 8, 10, 12
Ground Pickup: 500, 800, 1000, 1200
Ground Delay: Min, Int, Max
Ampere Tap: 3000, 4000

Each Used Relay Will be Cleaned, Tested & Backed by Our 1 Year Warranty.


Standard lead time (1-3) days prior to shipping. If item is needed sooner please call or email.

Call 800-909-3660 or email sales@naswgr.com with questions.

After hours emergency hotline 216-402-0507 or 216-570-2725

NASPG19021 Location: 6367B
