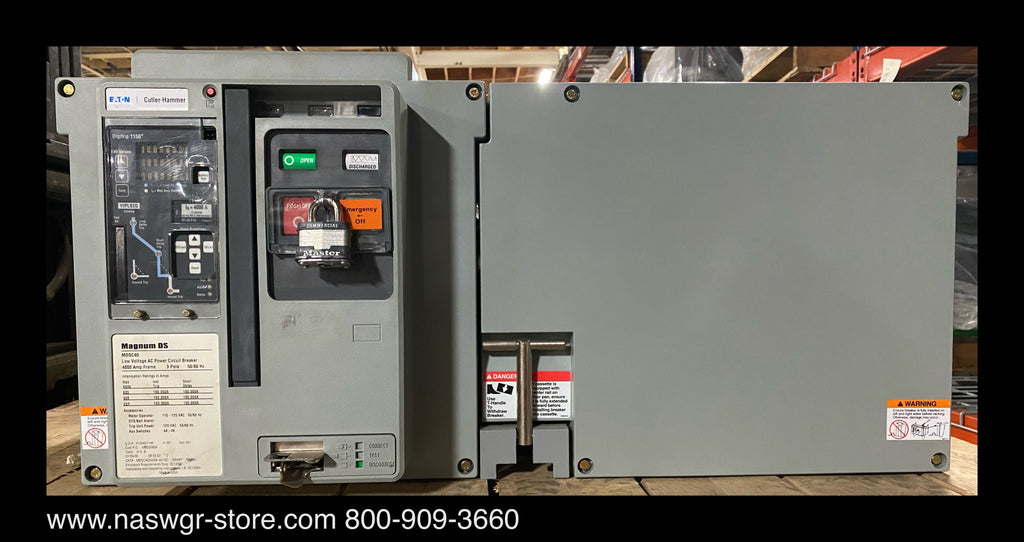

EATON Cutler Hammer Magnum DS MDSC40 Circuit Breaker
Catalog # MDSC403WEA321GCNAN4YNNNAX
4000 amp MDSC403
3 pole ABCABC Frame
4000 amp frame
4000 amp Current Transformers
*Please keep in mind NAS can convert these breakers to match your existing needs. Please email us your catalog number and we will provide you with a proper quote*
MAGNUM DS Layout
S- Standard or Double
C- 100/100kA Interrupting
4- 4000 amp
0- ABCABC Frame
3- 3 Pole
W- Drawout Frame
E- English Nameplate
A- All Breakers Future Use
4- Sensors and Rating Plug
0- 4000 amp
1- 1150+ LSIG
G- 120 vAC External Control Voltage for Programmer
C- 24vDC Shunt Trip
N- 110-125vAC Motor Operator ~ 6D32790G34
A- 110-127vAC/DC Spring Release Device
N- No UVR Device
4- 4A/4B Auxiliary Switch ~ MAUX2 ~ 2C12791G01
Y- Bell Alarm OTS with 2A/2B Contacts and Trip Indicator
N- No Padlocks
N- No Operations Counter
N- No Latch Check Switch
A- Shipping Options
X- Future Breakers
Digitrip 1150+ 11PLSIG ~ 2A11799G41
Ground Fault Functions
Trip Unit Power 120vAC
Units currently have 4000 amp and 3200 amp Rating Plugs
Each Reconditioned MDSC40 Circuit Breaker is Tested with Report and Backed by Our 1 Year Warranty.
Meggered, Ductored and Tested on Our High Current Primary Injection Test Set.
*NAS can offer these in manually operated or converted to match your needs*
Keep in mind NAS carries Magnum DS Switchgear from 600 amp up to 4000 amp.
Must ship via freight on a pallet.
Call 800-909-3660 or email firstname.lastname@example.org with questions.
After hours emergency hotline 216-402-0507 or 216-570-2725
NASG14082 , NASG14083 Location: 6456B(A)
NASG14073 , NASG14074 Location: 6456B(B)
