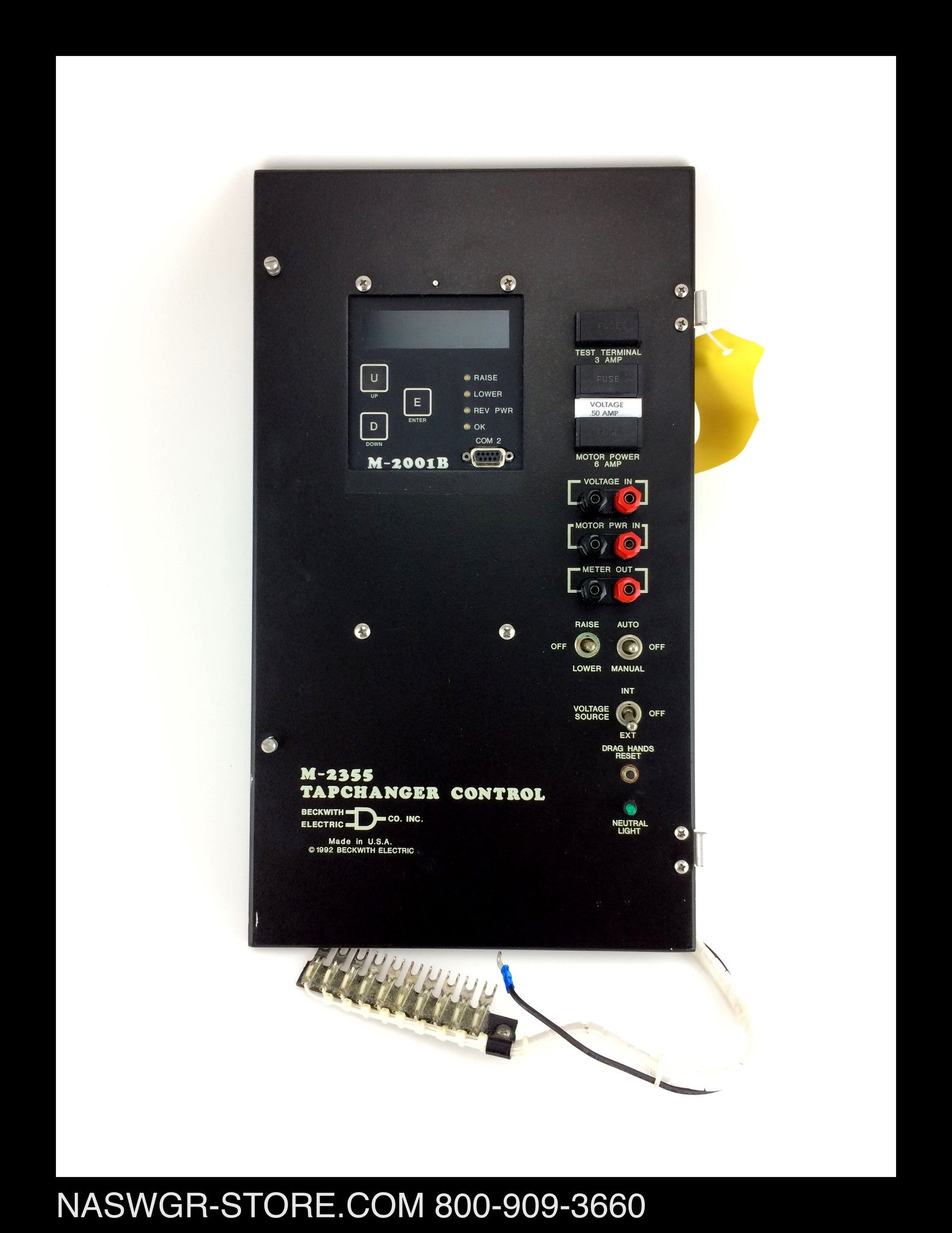

M-2355/M-2001

Beckwith Electric Adapter Panel
Series Digital Tapchanger Control
Model: M-2100B-C2
Software D-0061V07.09.40

Standard Features: The M‑2355B Adapter Panel, with the M‑2001 Series Digital Tapchanger Control, provides a solid‑state voltage control relay designed to directly replace Cooper CL‑2, CL‑2A, CL‑4A, CL‑4B and CL‑4C regulator controls. The combination of the Tapchanger Control and Adapter Panel includes the following features:
• Voltage waveform sampling and digital processing circuitry ensure accurate RMS voltage sensing in the presence of distortion on the input voltage and current.
• Control accuracy is ±0.3 % when tested in accordance with the ANSI/IEEE C57.15.9‑1999 standard over a temperature range of -30° C to +65° C. The control accuracy is ±0.5 % when tested over the full operational temperature range of -40° C to +85° C.
• Input and output circuits are protected against system transients. Units pass all requirements of ANSI/IEEE C37.90.1‑1989, which defines surge withstand capability. All input and output terminals will withstand 1500 Vac RMS to chassis or instrument ground for one minute with a leakage current not to exceed 25 mA, from all terminals to ground. Input and output circuits are electrically isolated from each other, from other circuits and from ground.

Each M-2355/M‑2001 is Cleaned, Tested with Report, and Backed by our One Year Warranty.

After hours emergency hotline 216-402-0507 or 216-570-2725

Call 800-909-3660 or email sales@naswgr.com with questions.

NASPG24790, NASPG24791, NASPG24792, NASPG24794  Location: 6214B

---
