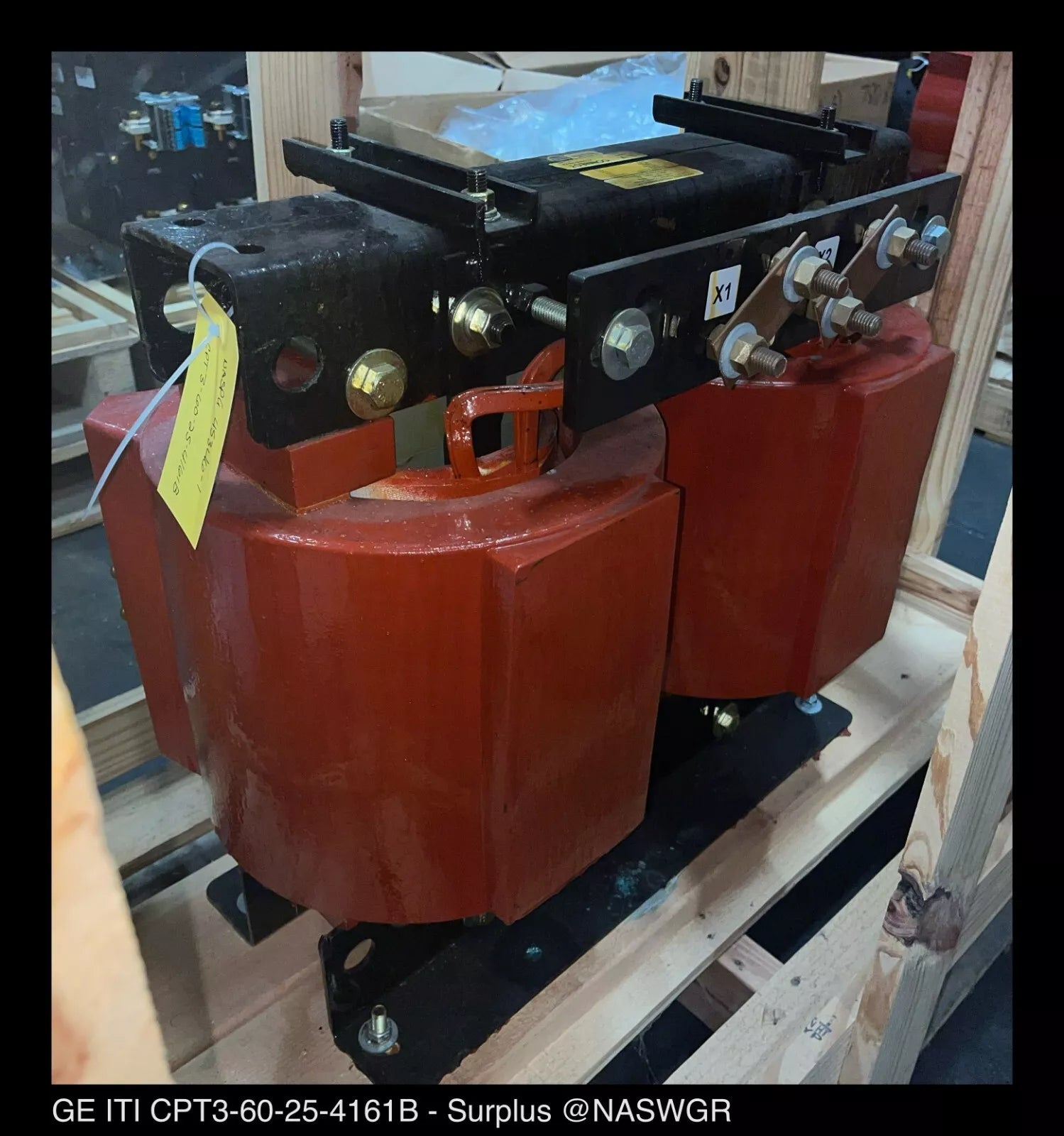

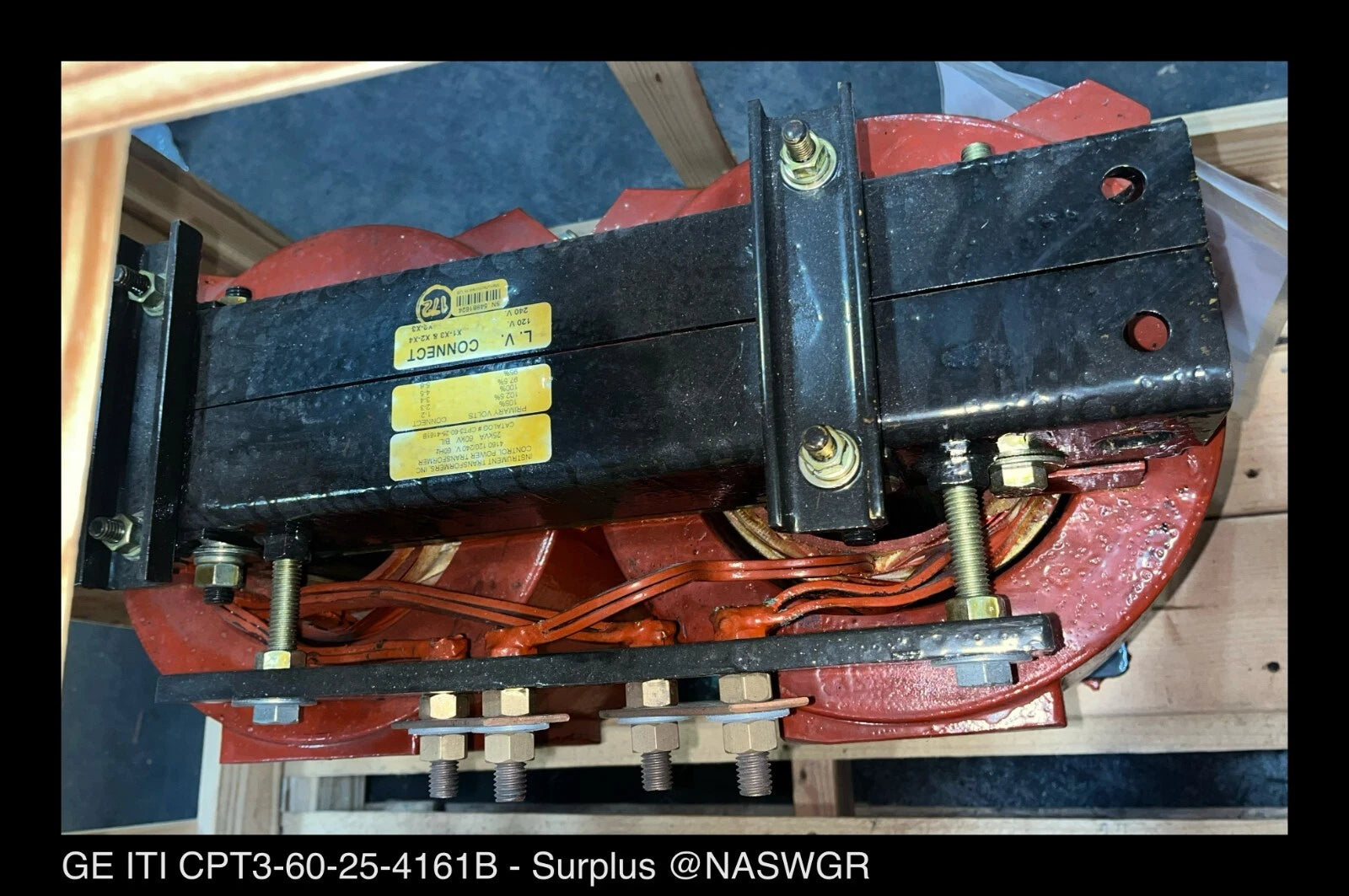

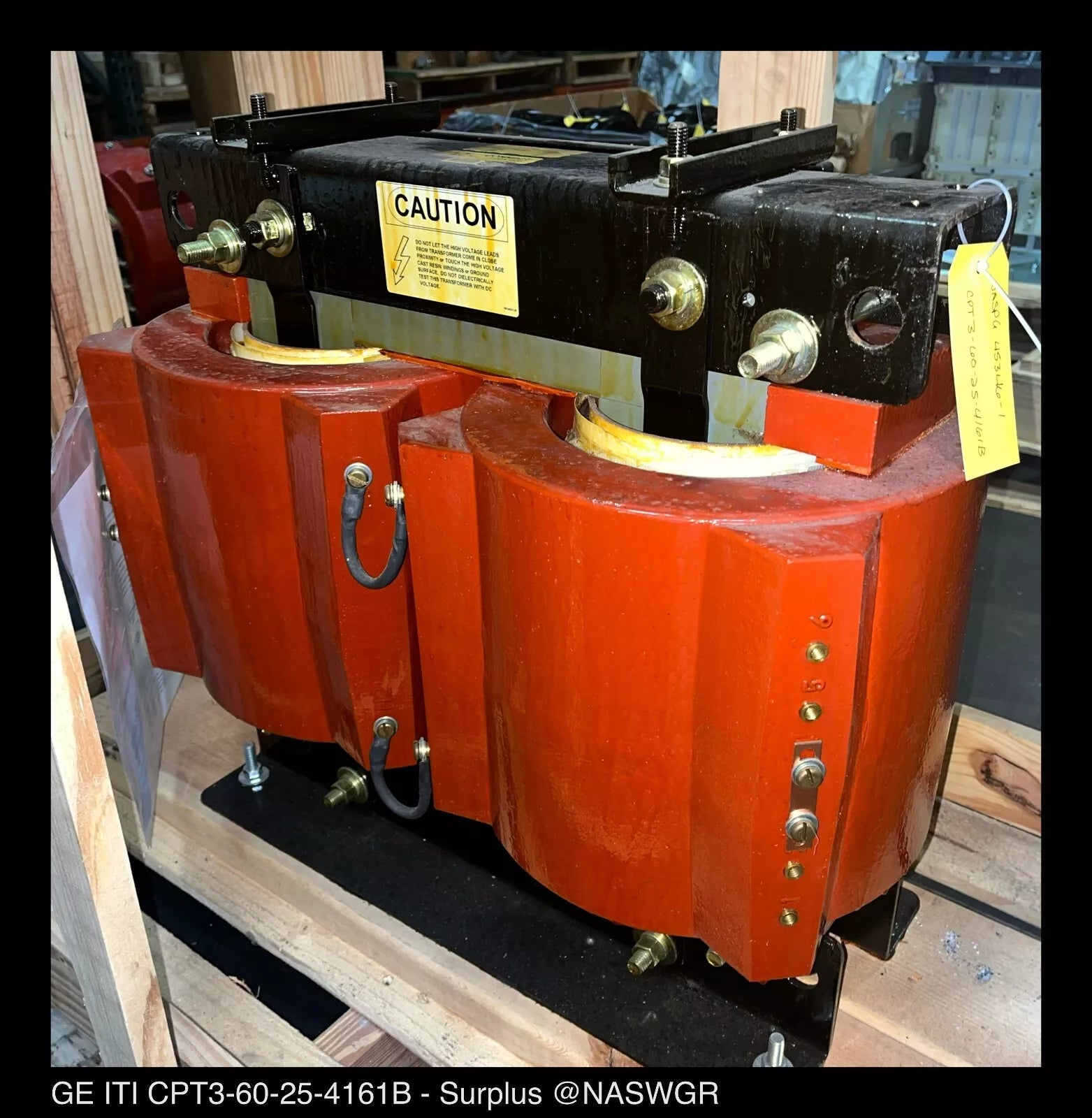

CPT3-60-25-4161B

GE ITI Control Power Transformer
60 kV BIL
25 kVA, Single Phase, 4160-120/240, 60 HZ, B Taps
25 kVA at 30°C ambient
21.5 kVA at 55°C ambient
Windings are encapsulated in epoxy resin
Mounting base is steel
Assembly is varnish coated
Available as unfused only
Self-cooled
For indoor use
Approximate weight 411 lbs

Primary terminals are brass screws 1/4-20 with one flat washer and star washer

Secondary terminals are brass studs 1/2-13 with one flat washer, lock washer, and two nuts, plus series/parallel links

Supplied with 1 ± 7 ½% or 2 ± 2 ½% taps above and below nominal voltage on the primary winding

Each CPT3-60-25-4161B is Inspected Prior to Shipping and Carries Our One Year Warranty.

Ships via freight on a pallet, let NAS help setup shipping.

Call 800-909-3660 or email sales@naswgr.com with questions.

After hours emergency hotline 216-570-2725

NASPG45346-1 Location: 803G, BLDG 6
