V3540E ~ Square D ISO-Flex Medium Votlage Controller Switchgear ~ Model 3 Class 8198

by Square D

Contact for Quote: 800-909-3660 | sales@naswgr.com

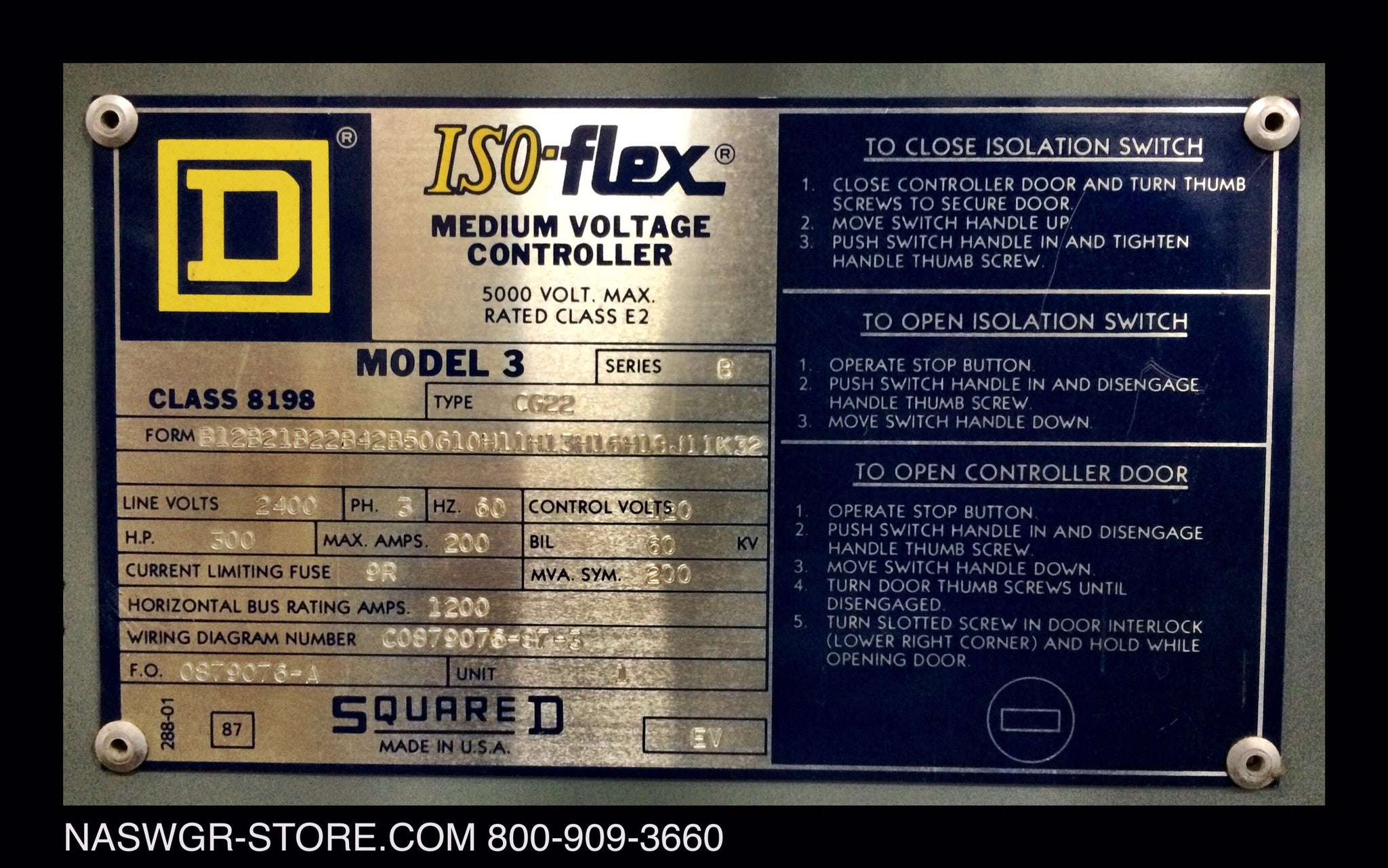

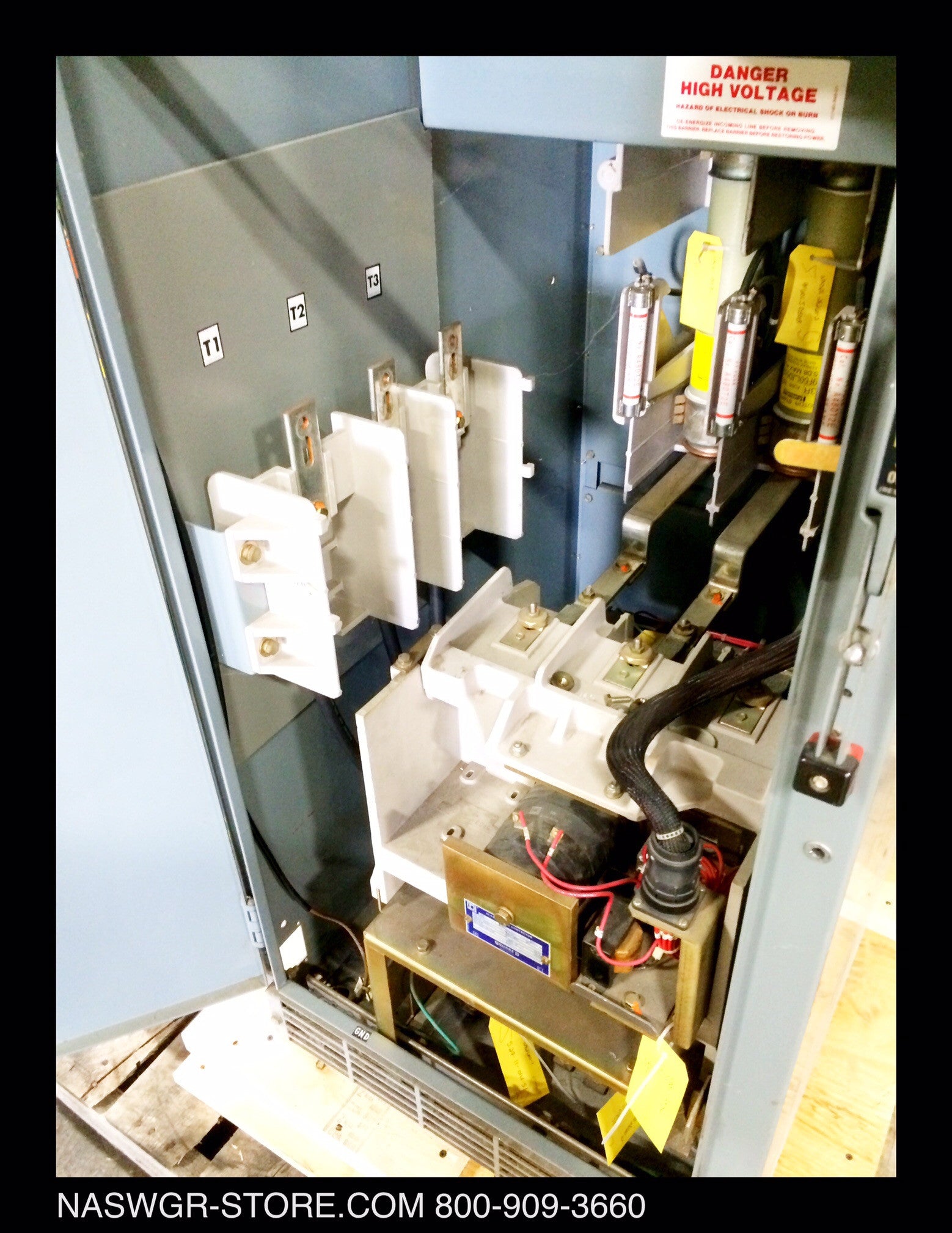

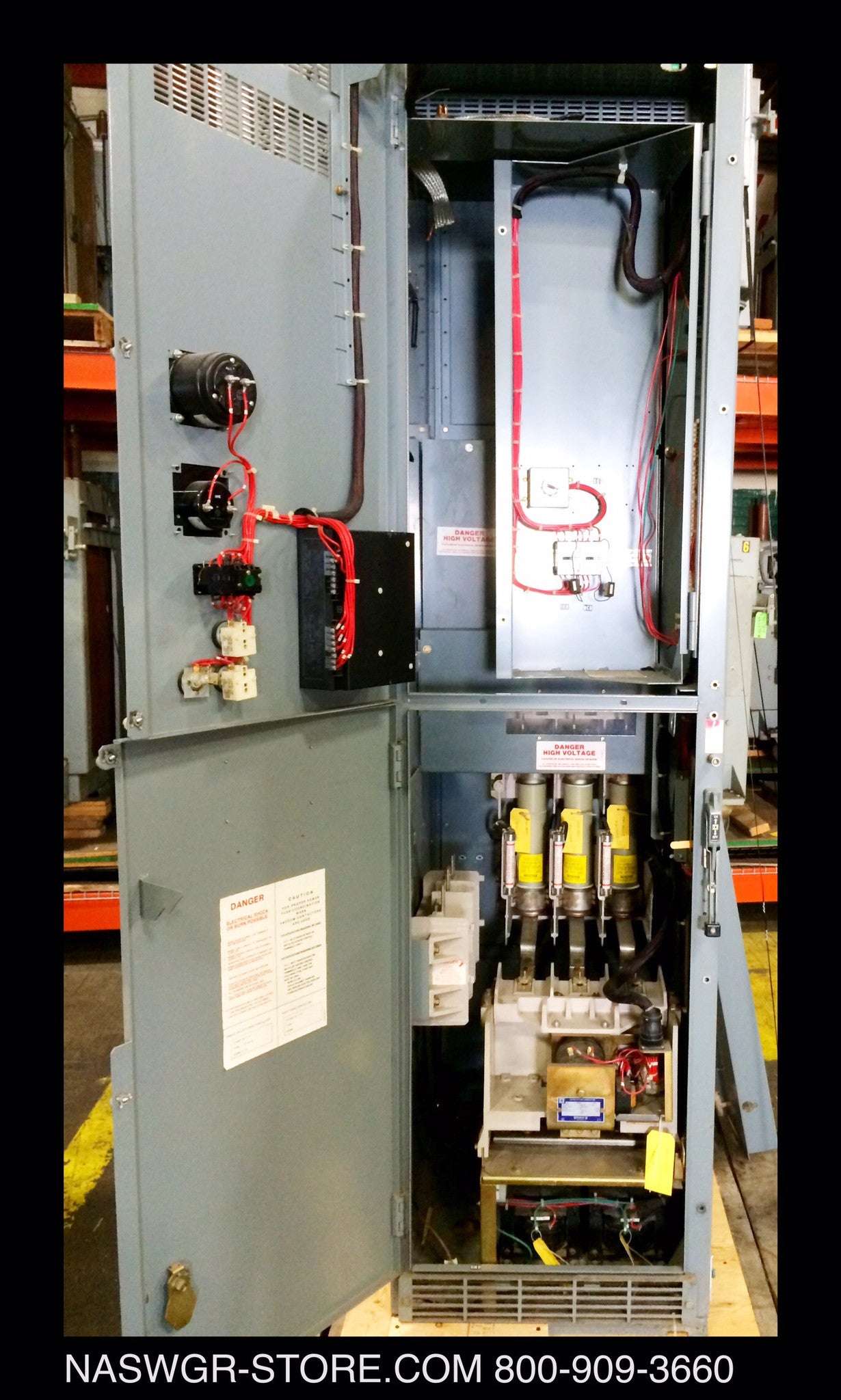

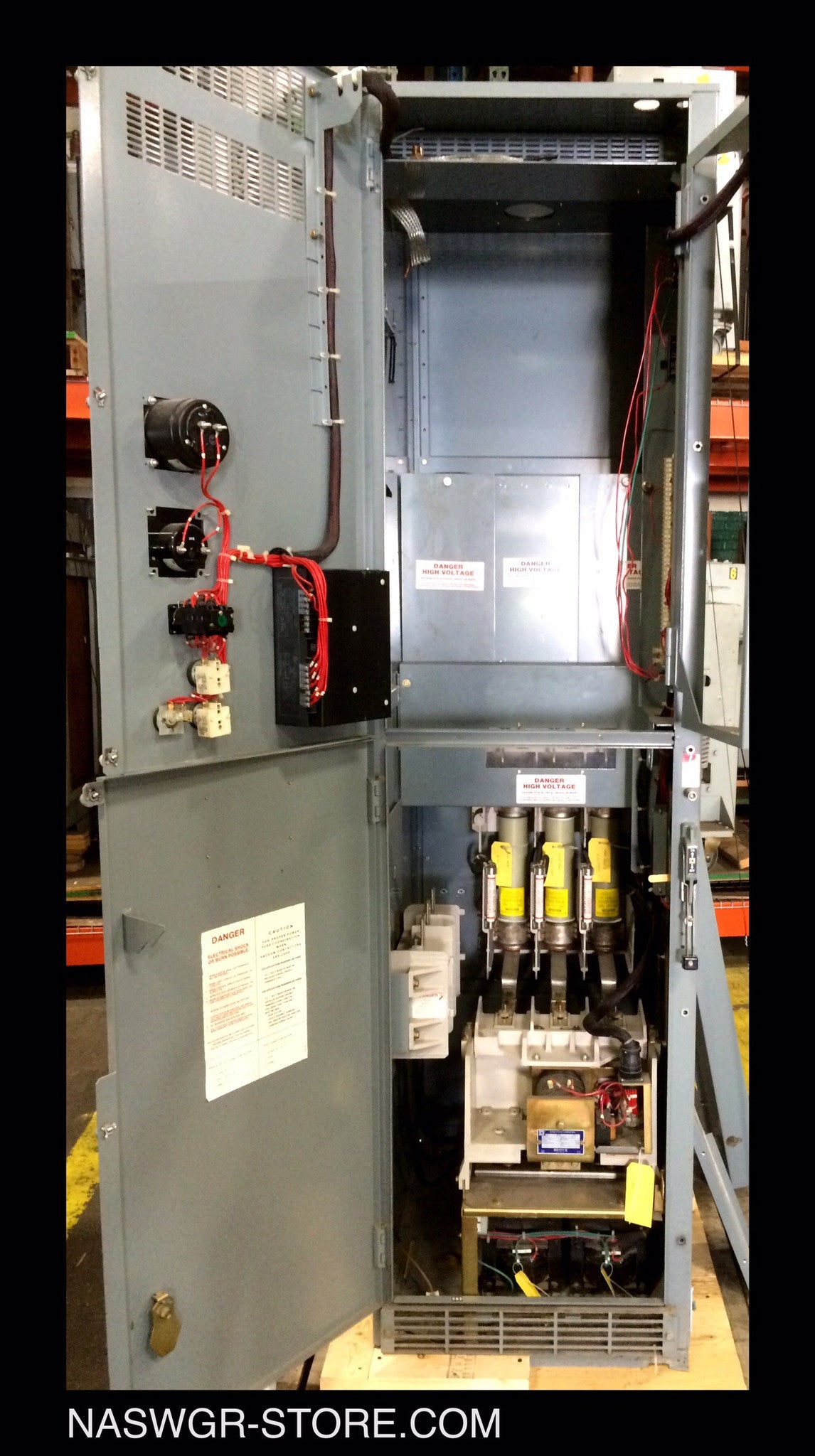

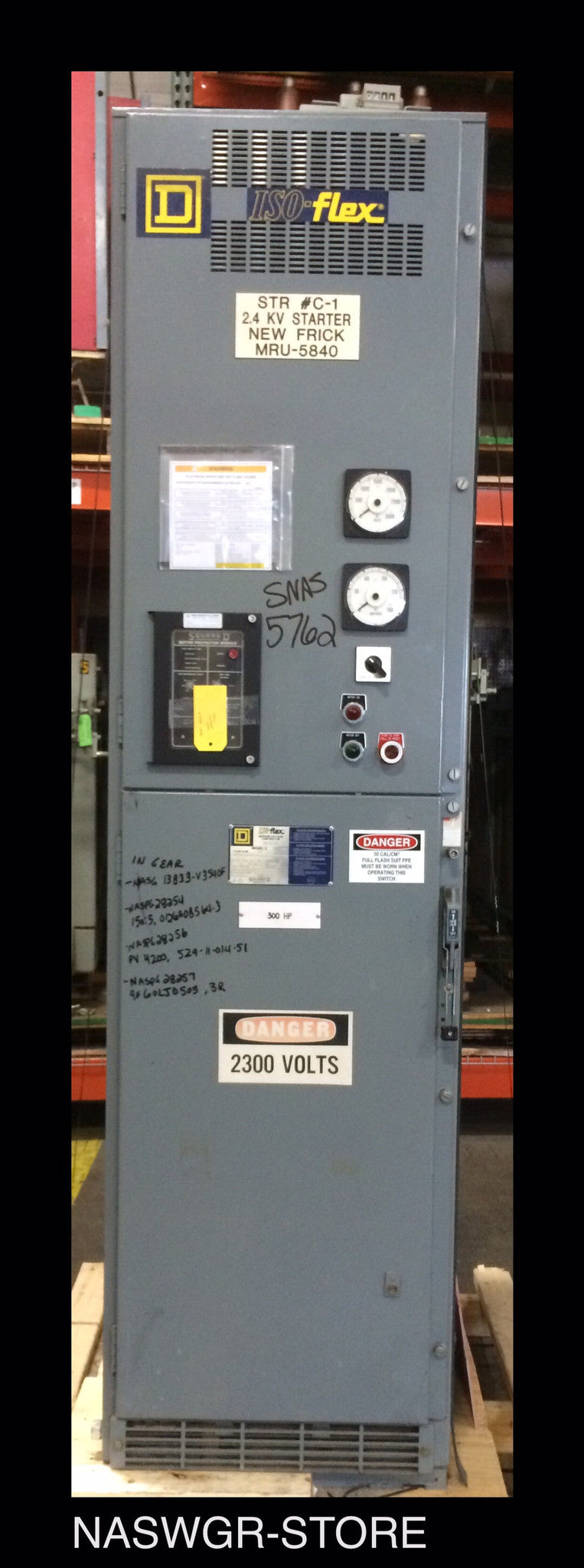

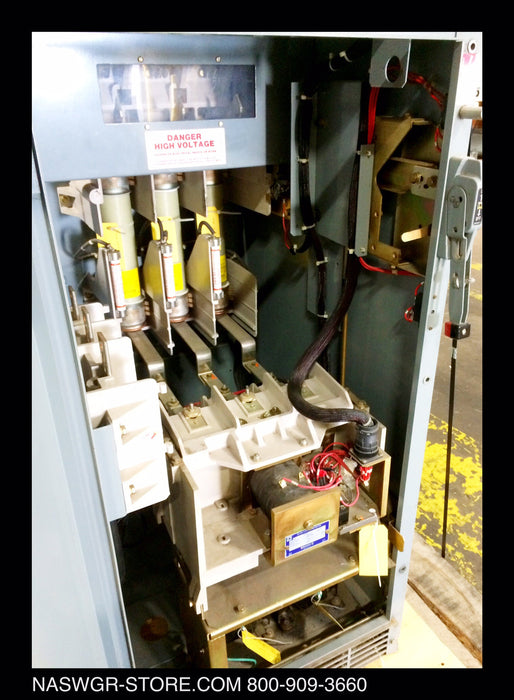

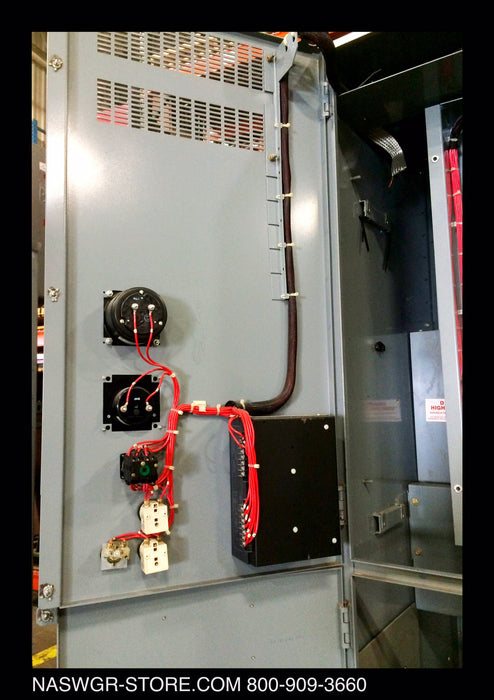

Square D ISO-Flex Medium Voltage Controller Switchgear

Square D ISO-Flex Medium Voltage Controller Switchgear
5000 Volt Max.
Rated Class E2
Type: GC22
Series B
Model 3
Class 8198
Form: B12B21B22B42B50G10H11H13H16H18J11K32
Line Volts 2400   3 Phase

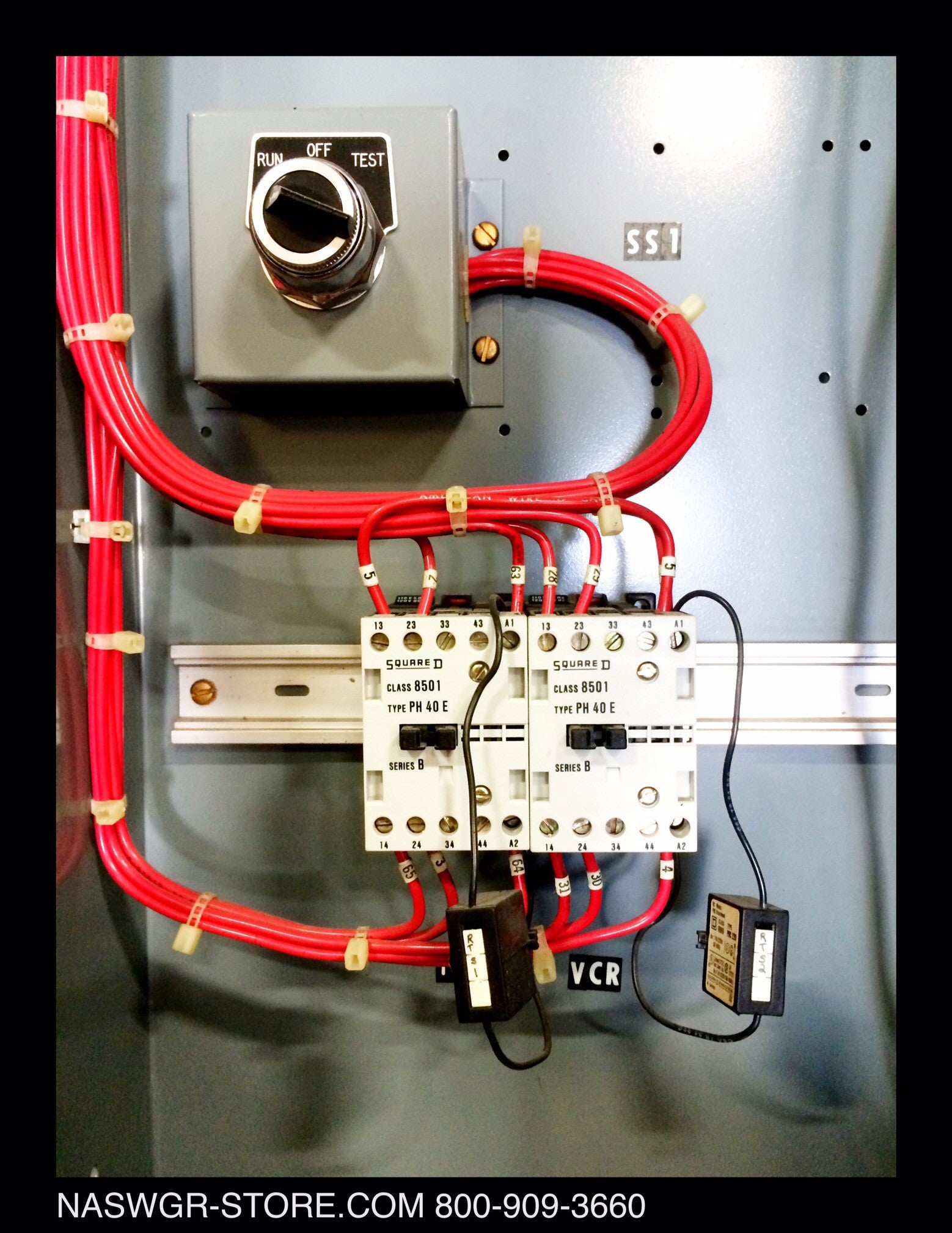

   Control Volts 120
H.P. 300   Max. Amps 200   60 KV
Current Limiting Fuse 9R   MVA SYM. 200

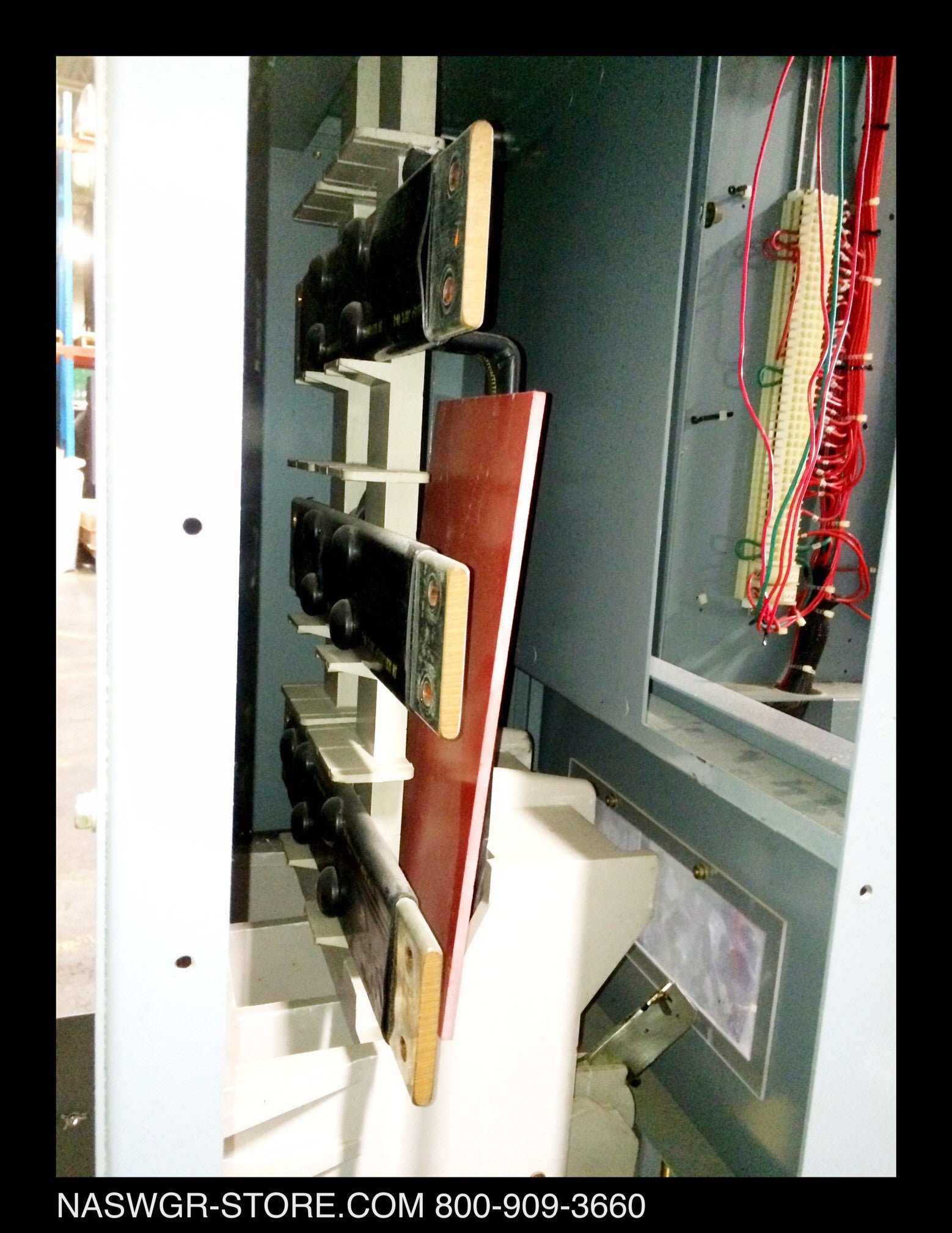

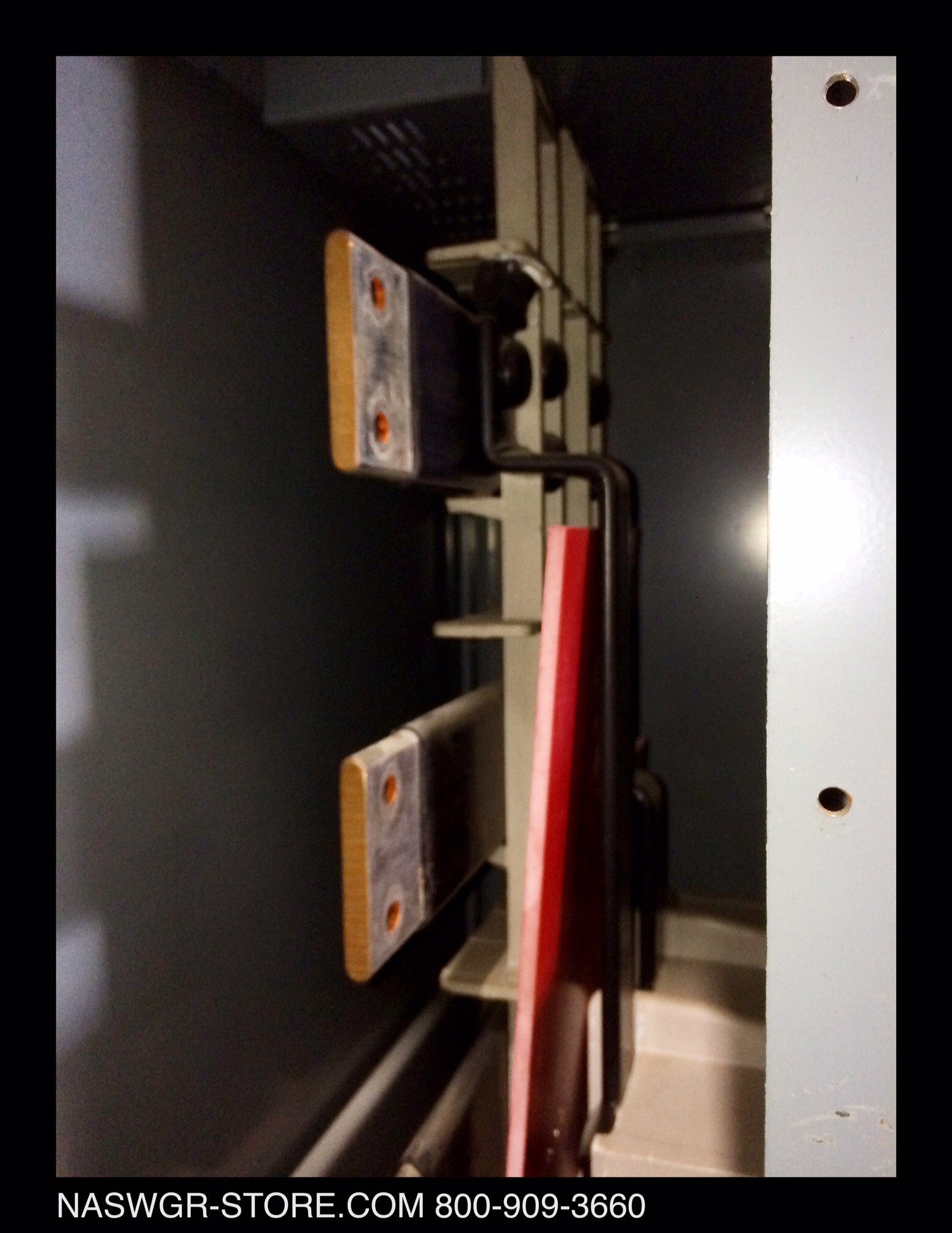

Horizontal Bus Rating Amps 1200

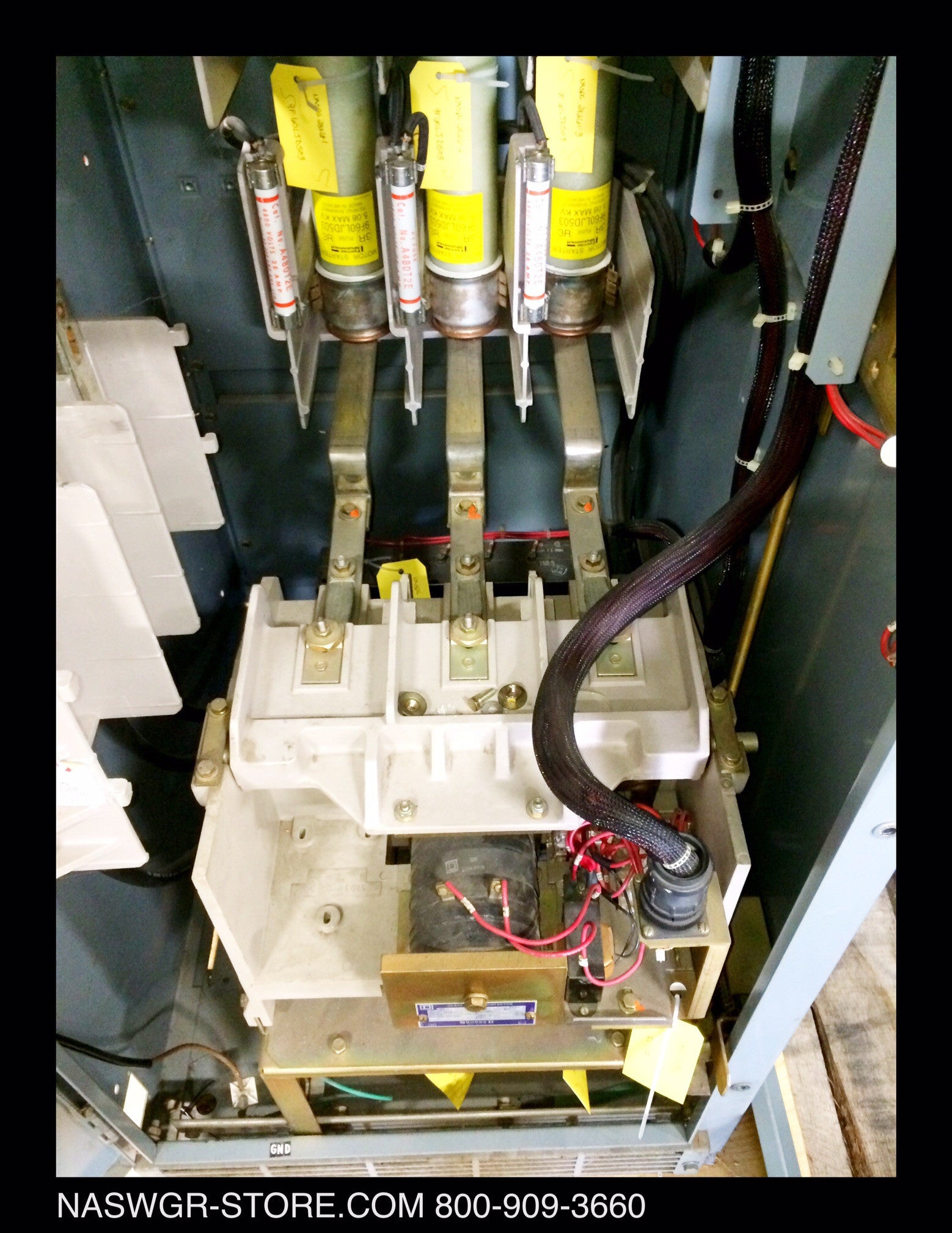

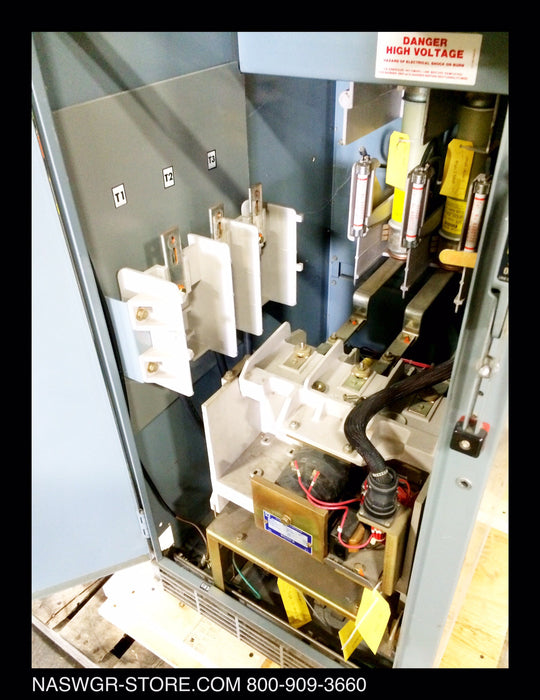

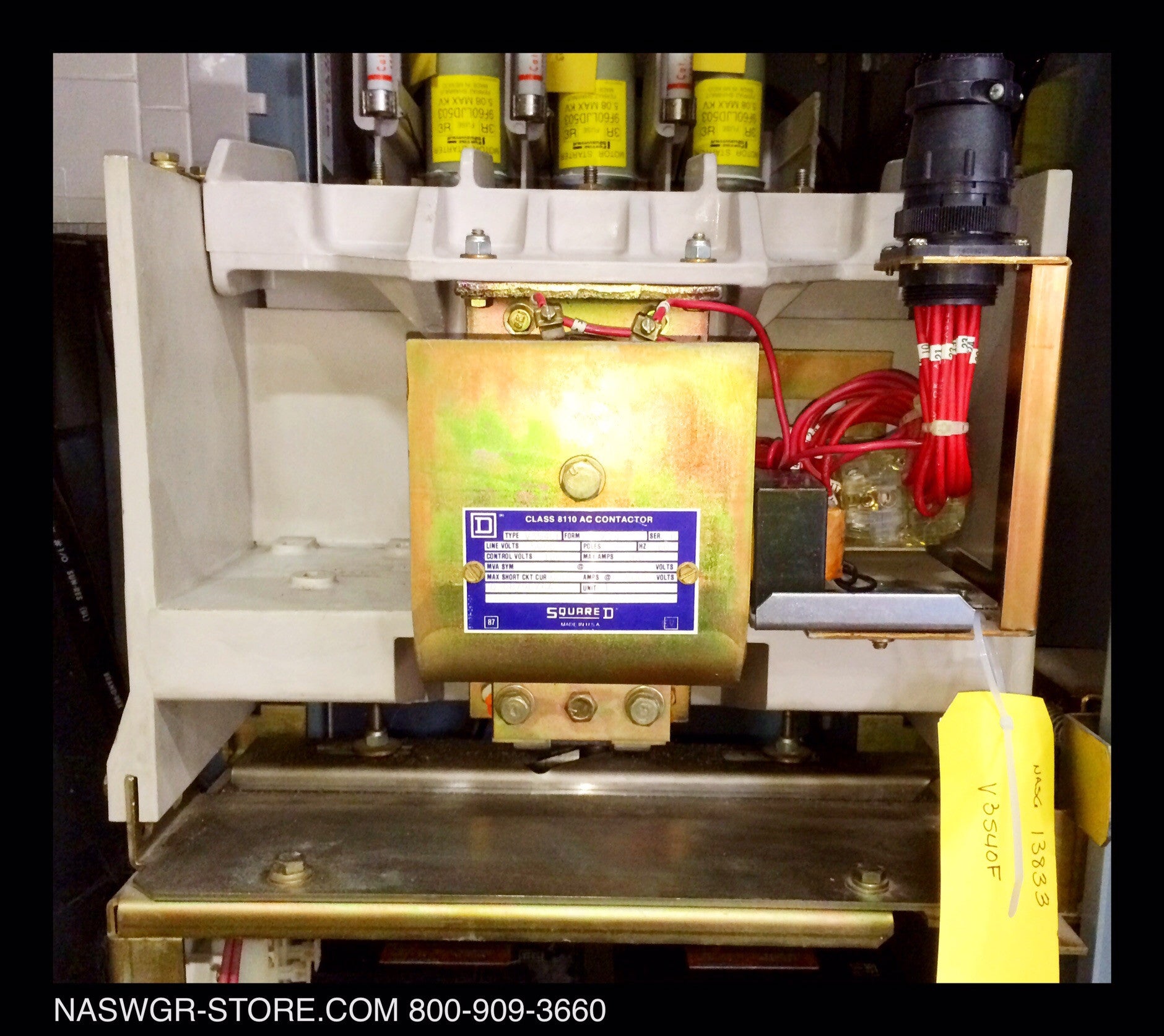

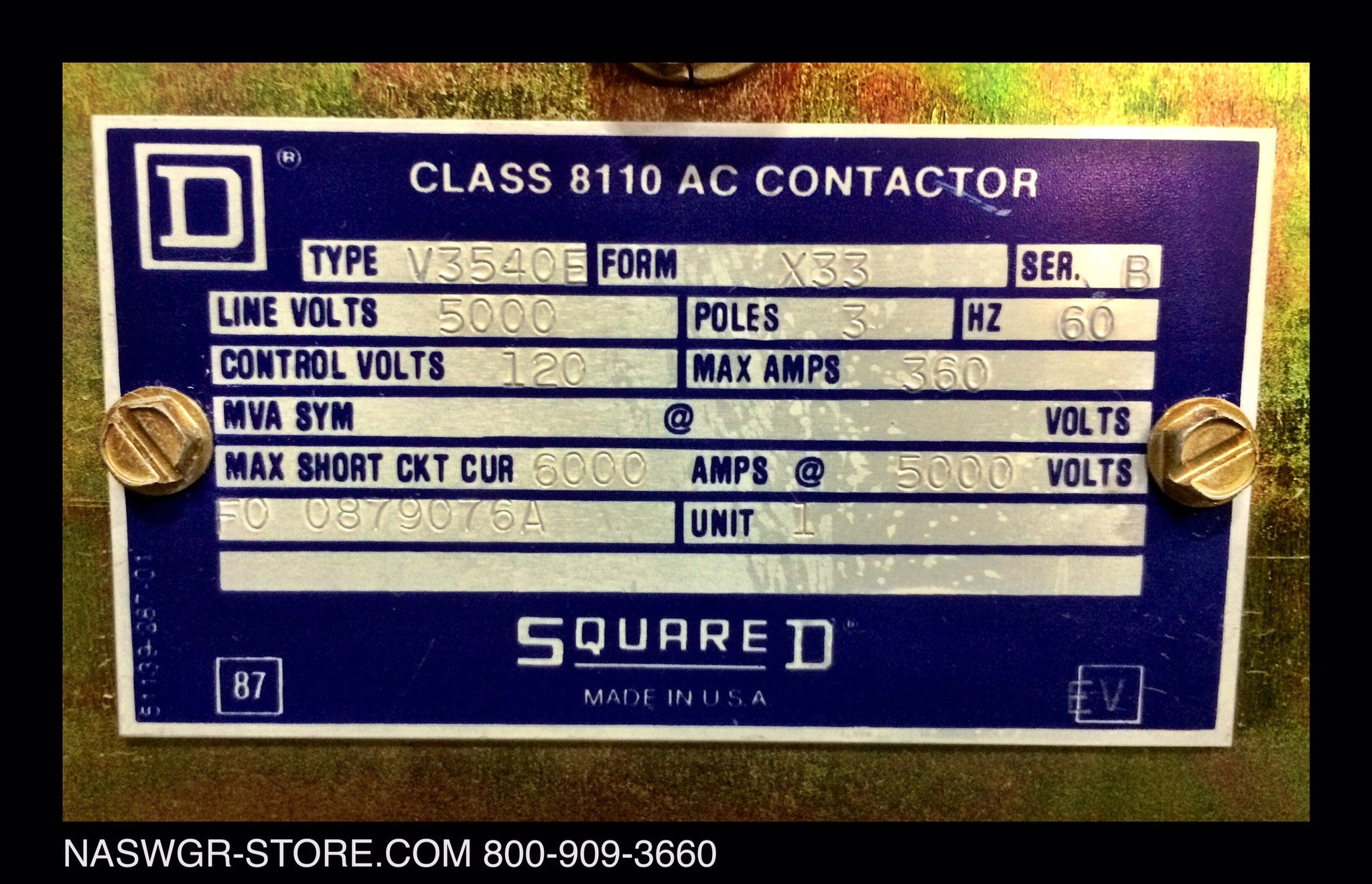

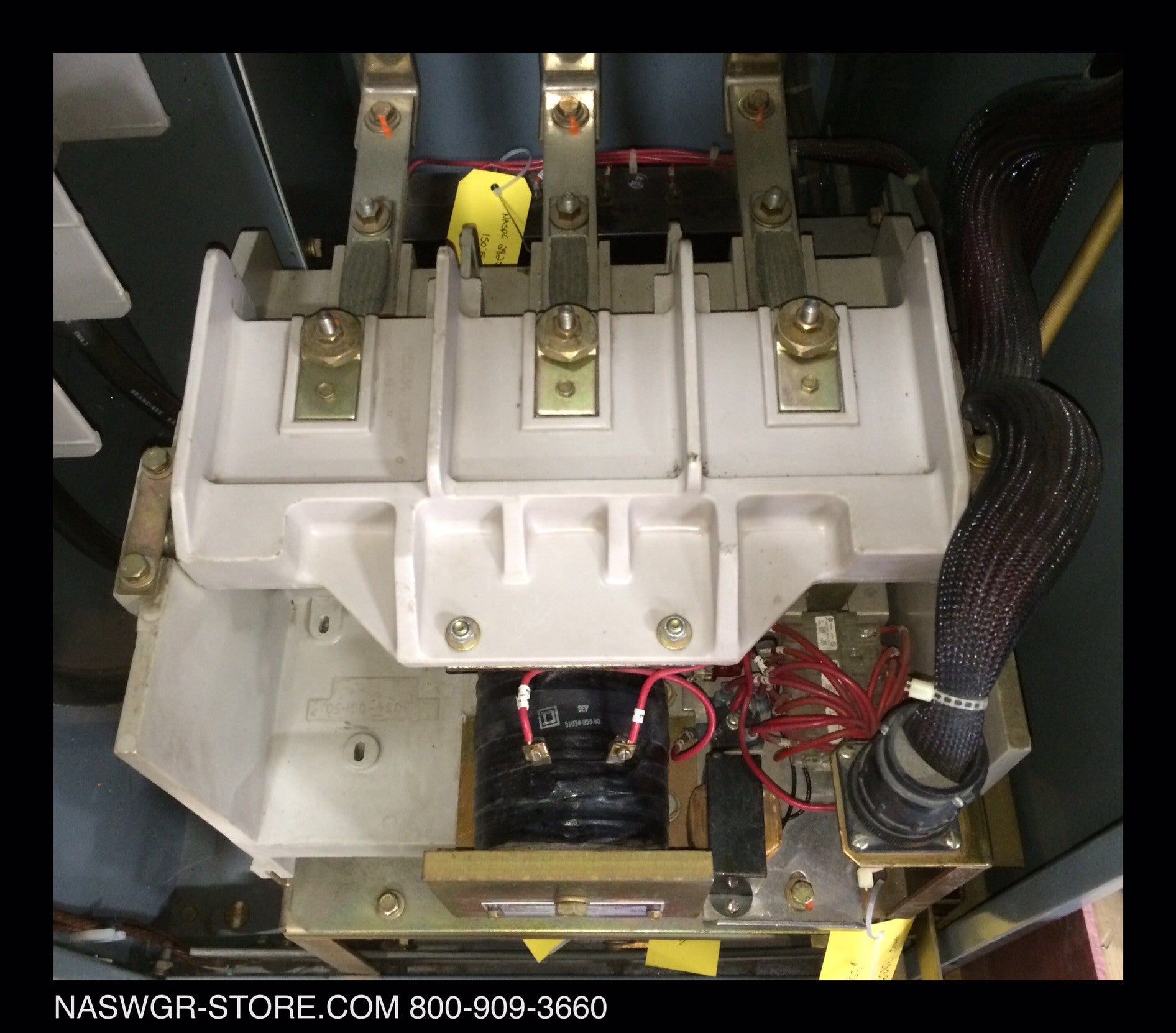

Square D V3540E AC Contactor
Type: V3540E
Form: X33
Ser. A
Line Volts 5000
Control Volts 120
3 Pole
Max. Amps 360
Max. Short CKT CUR. 6000 Amps @ 5000 Volts

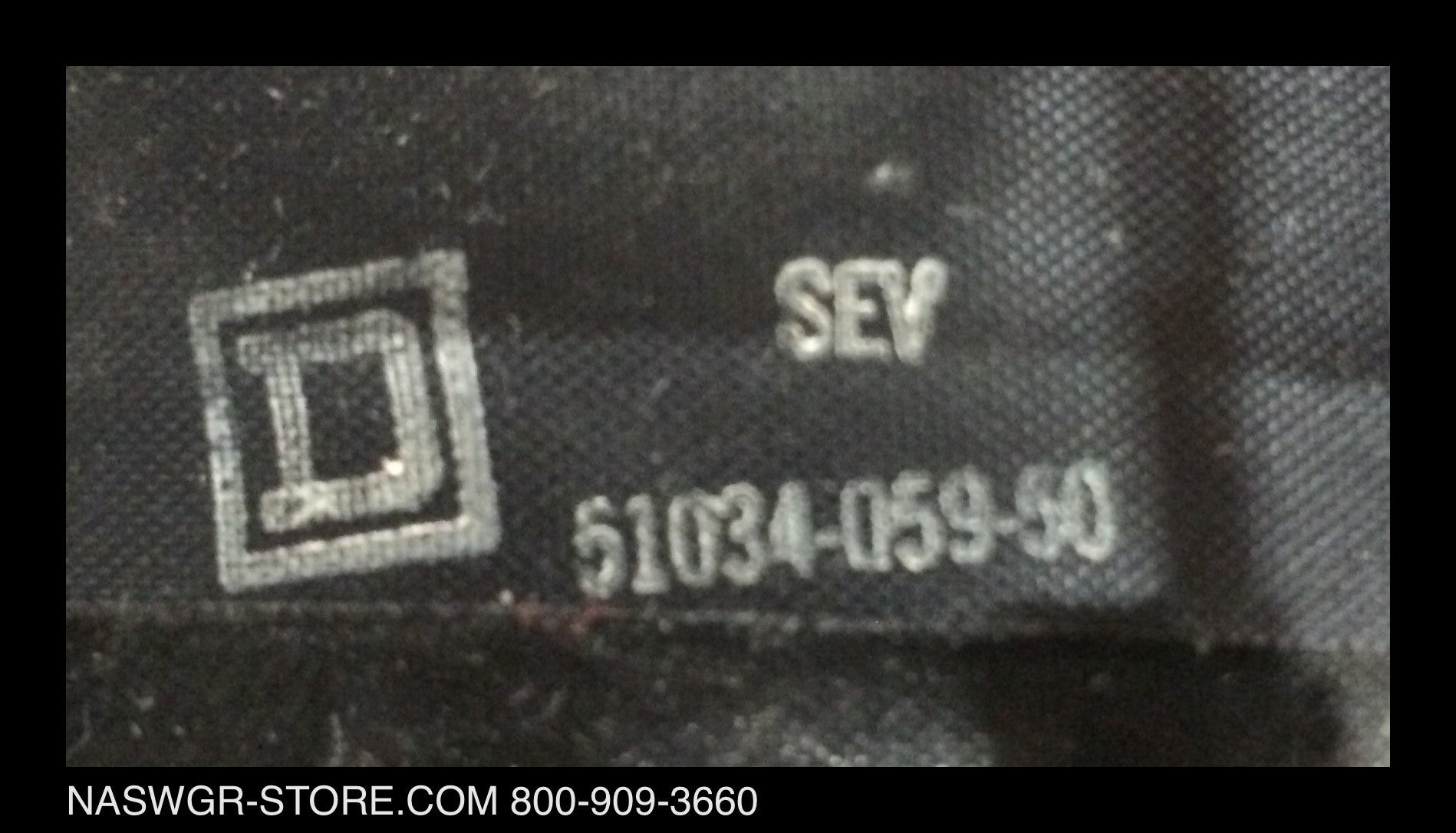

Coil: 51034-059-50

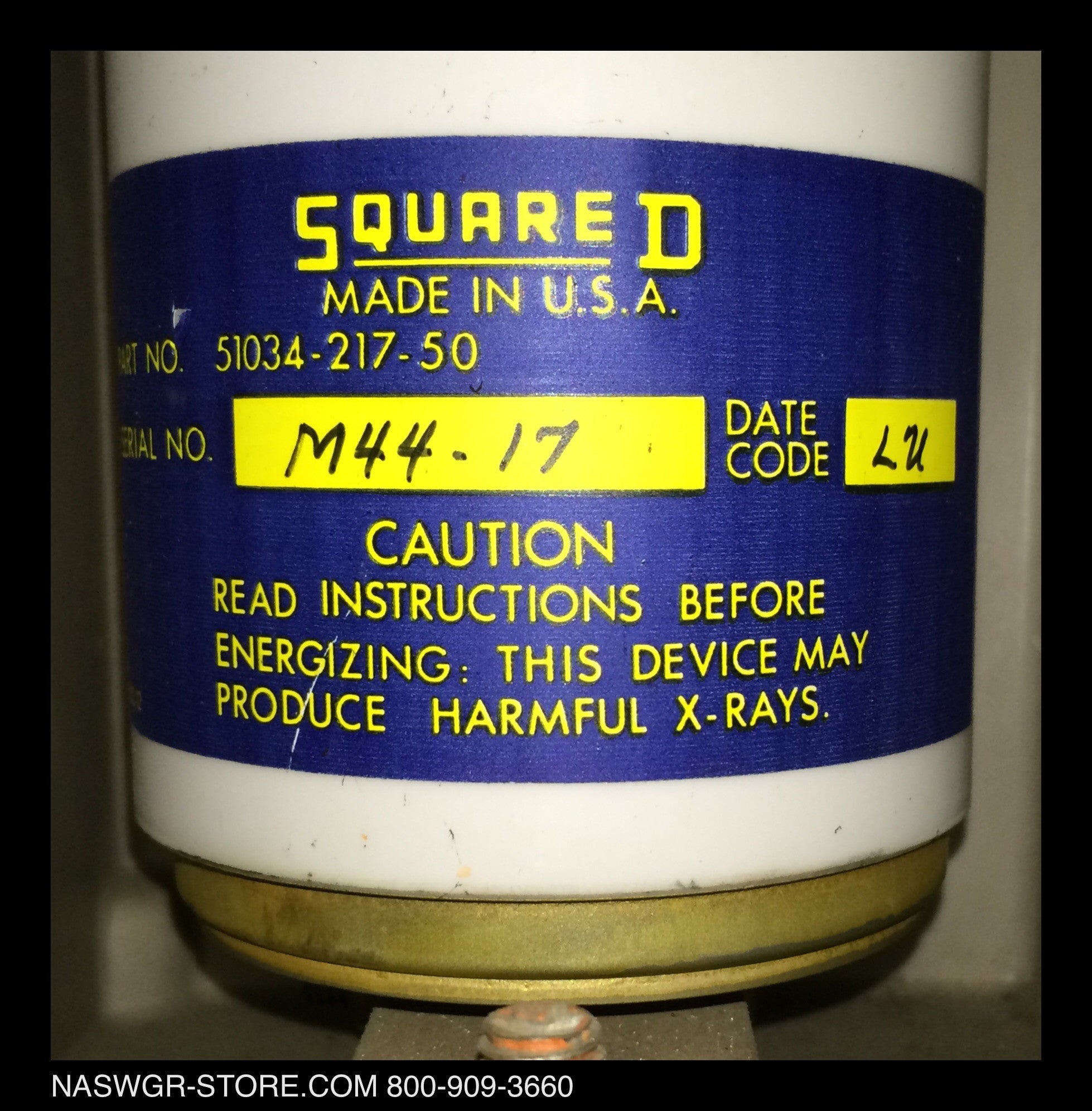

Bottle PN: 51034-217-50

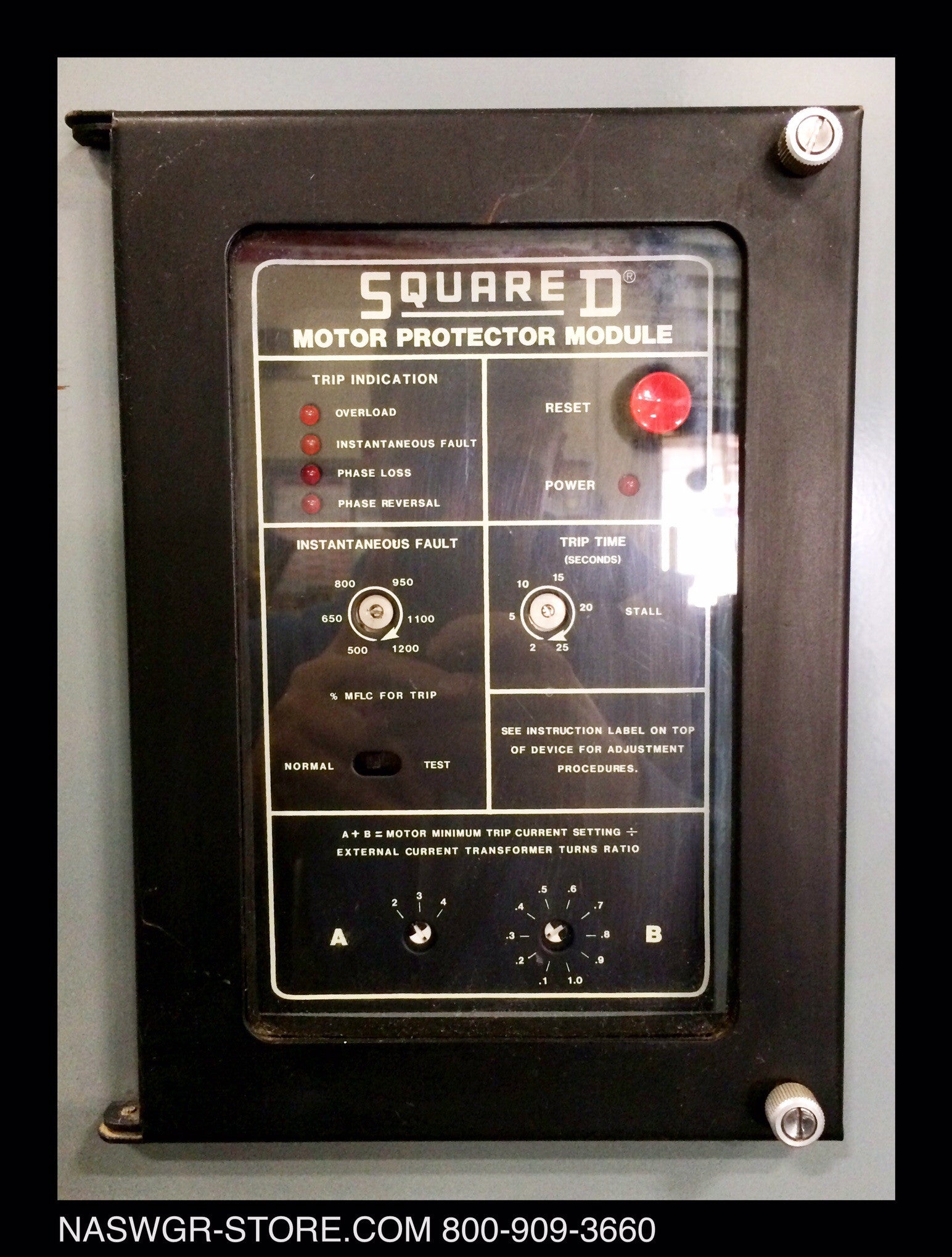

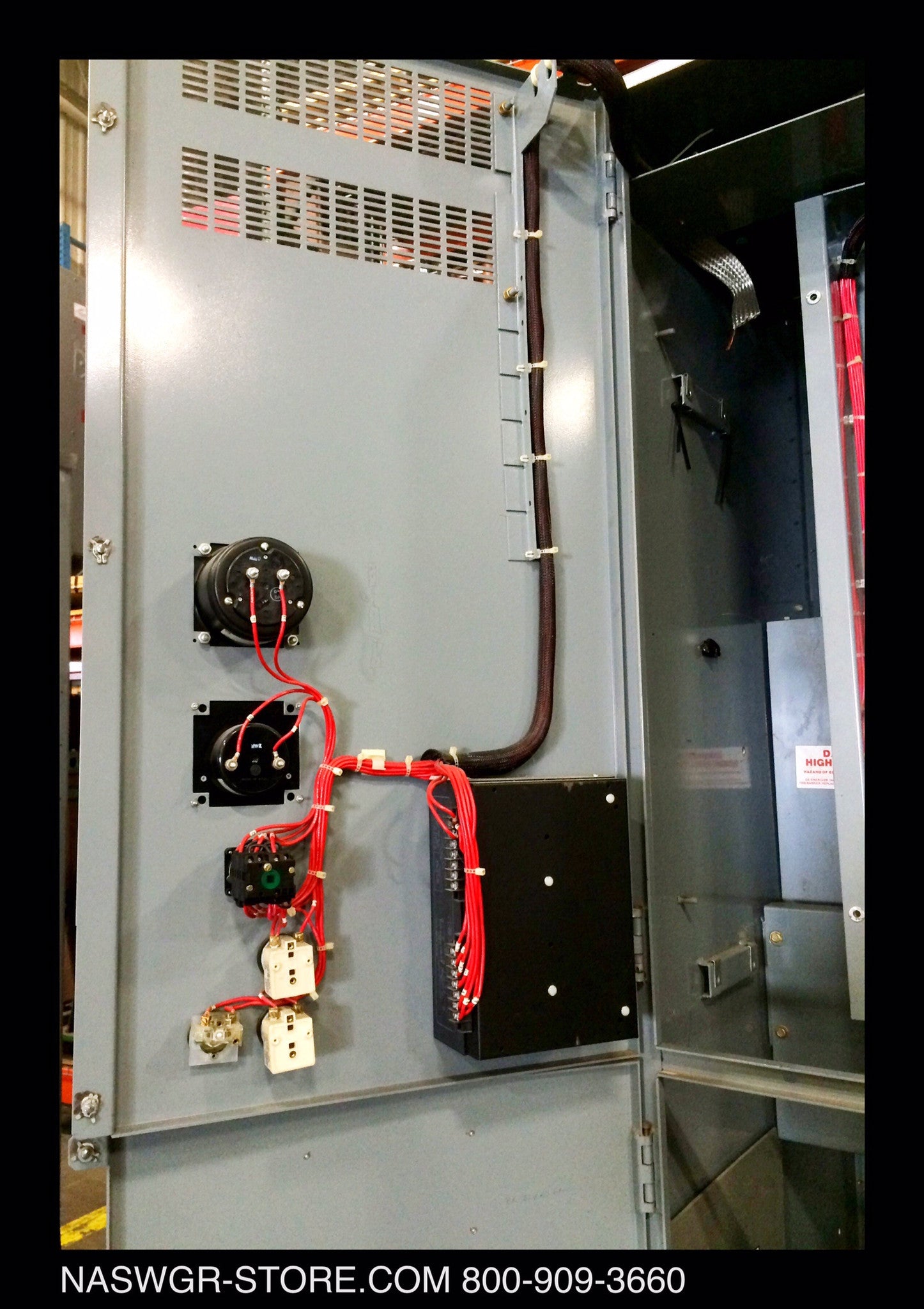

Square D Motor Protector Module

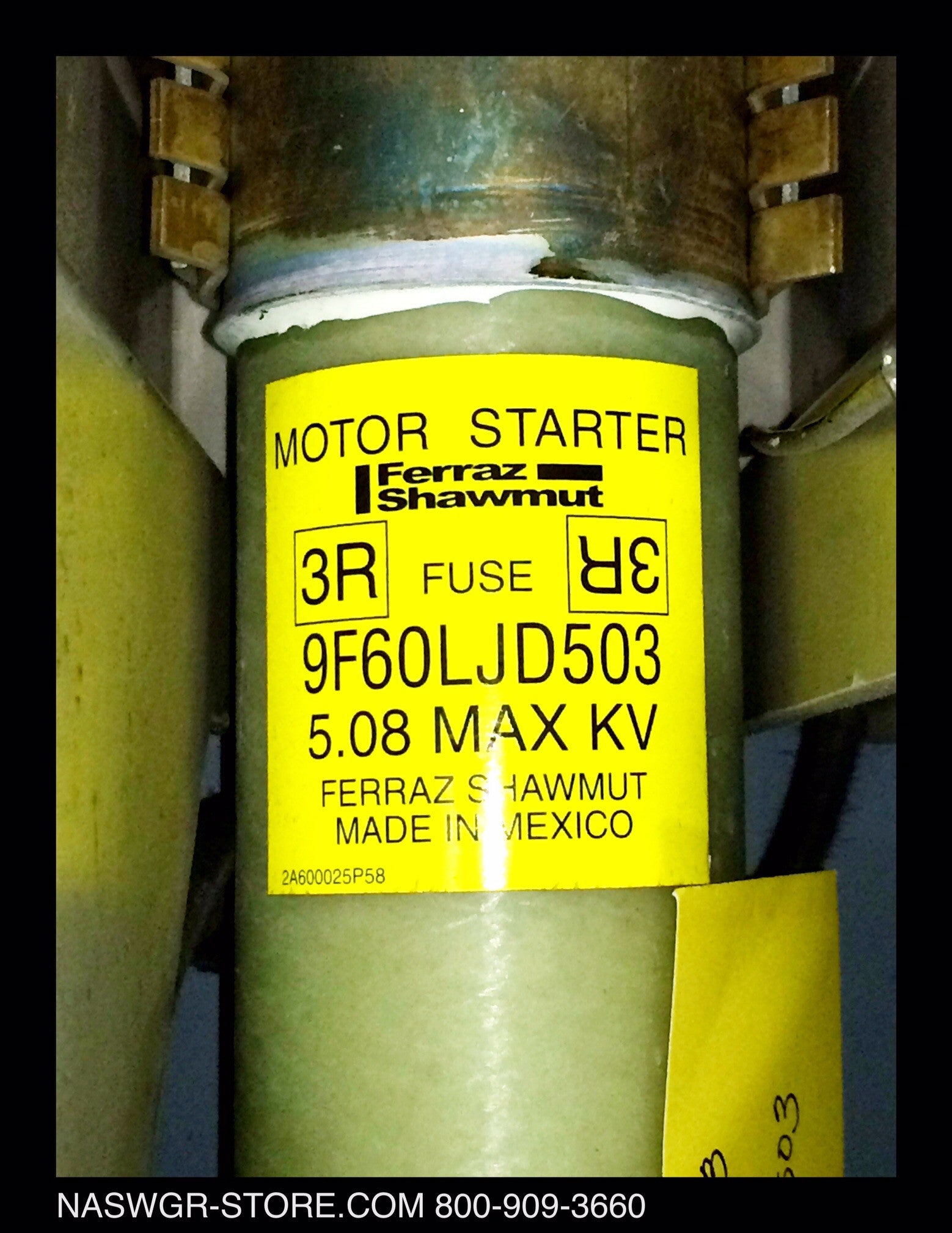

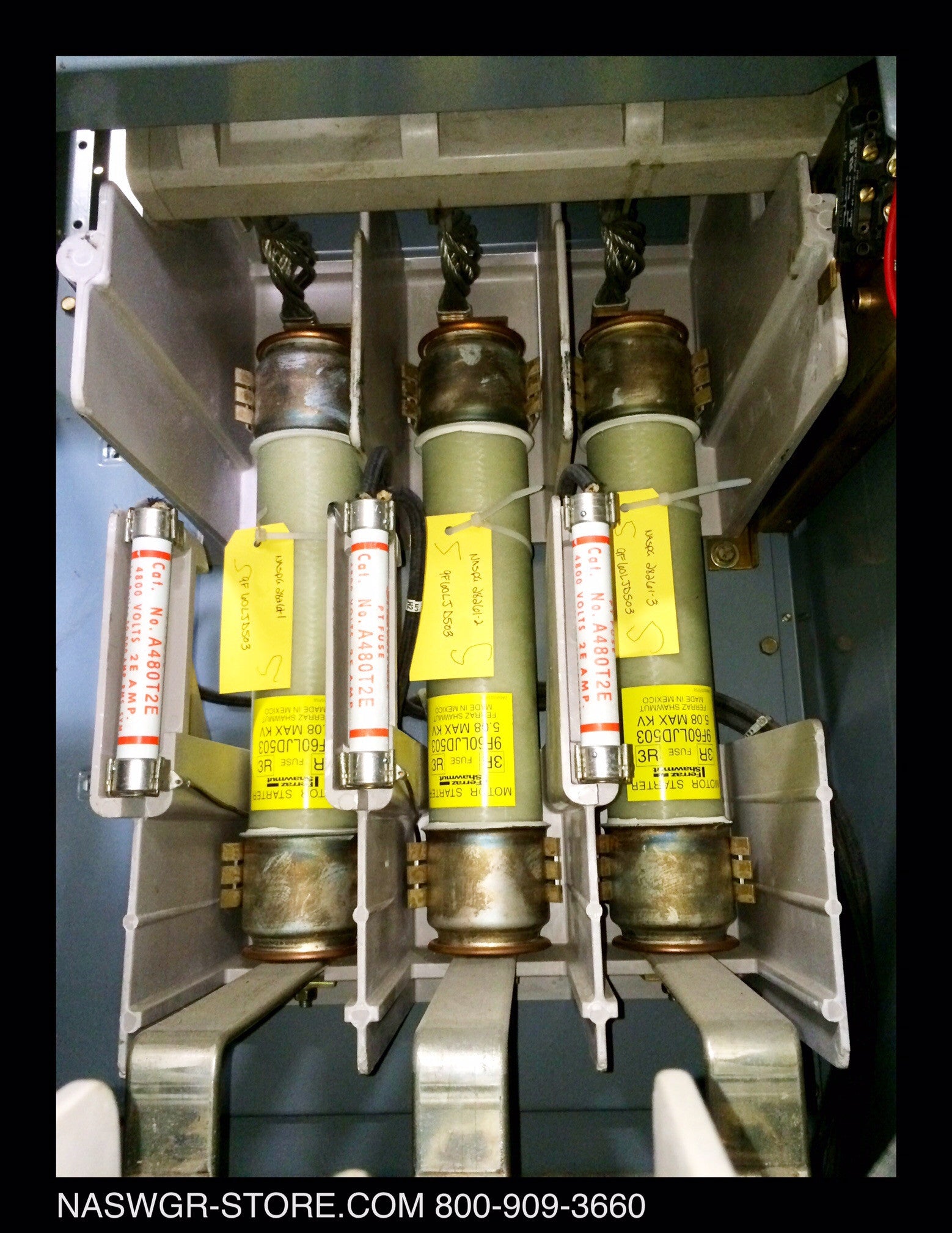

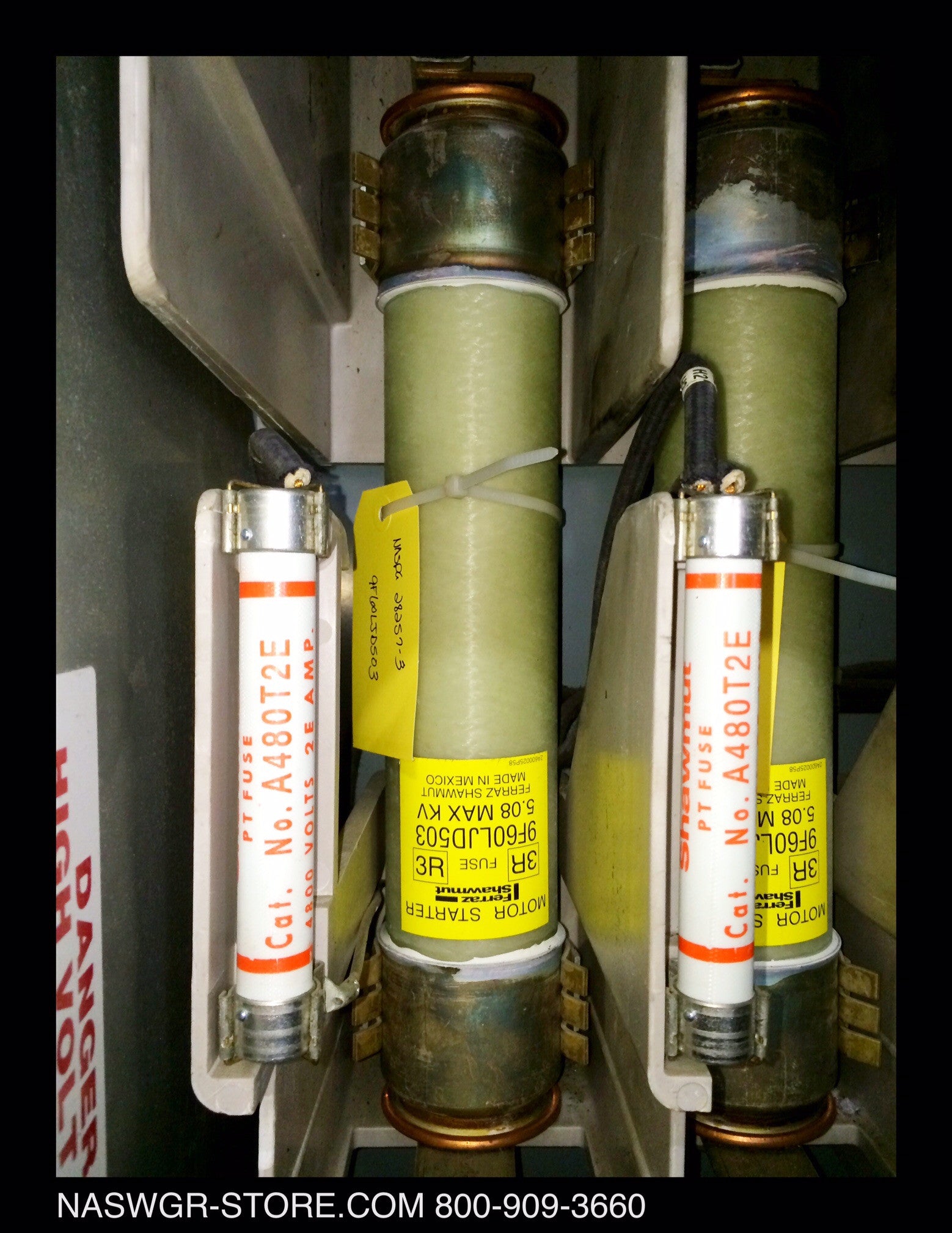

Ferraz Shawmut Fuses
PN: 9F60LJD503
3R Fuse
5.08 Max. KV

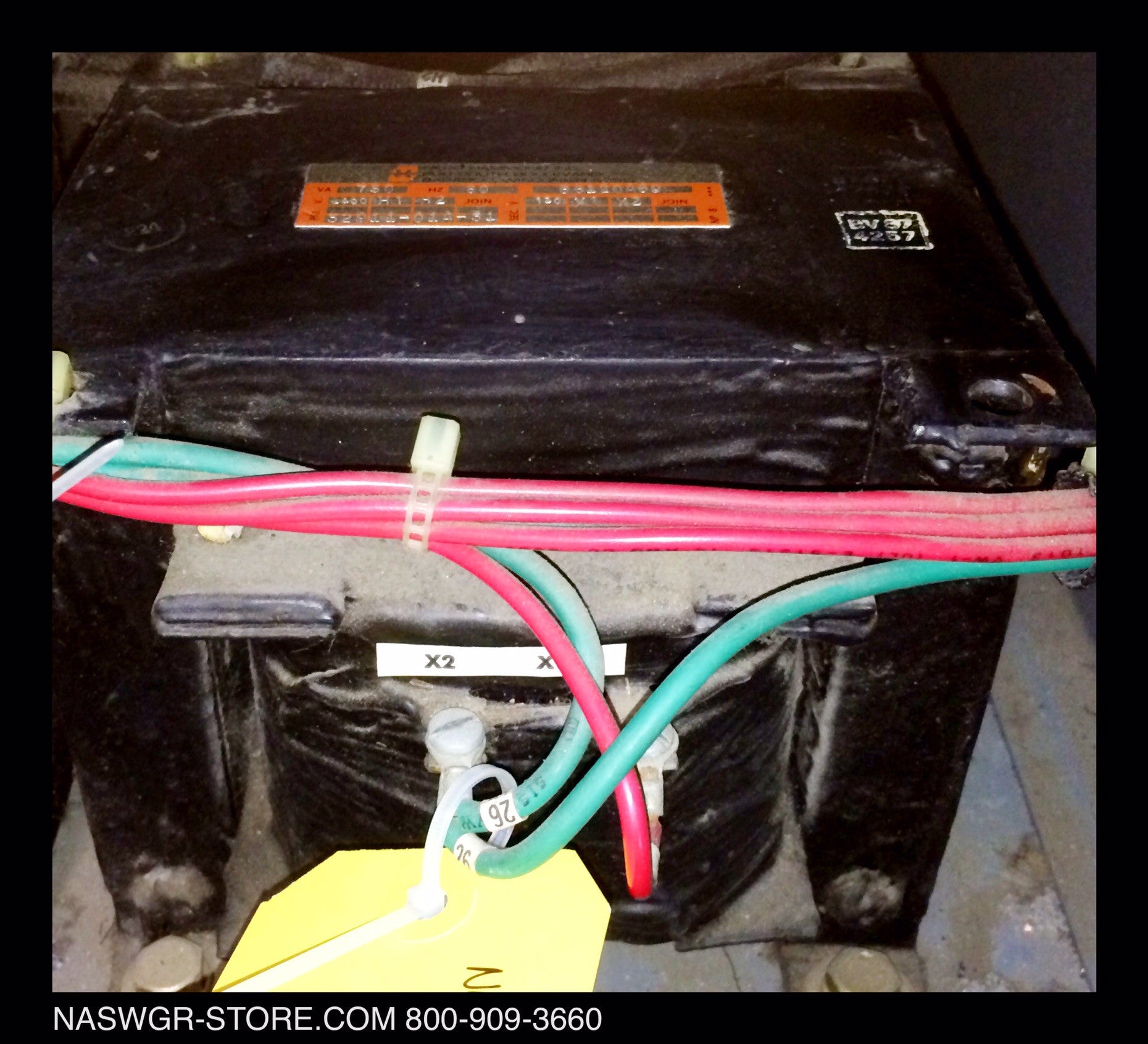

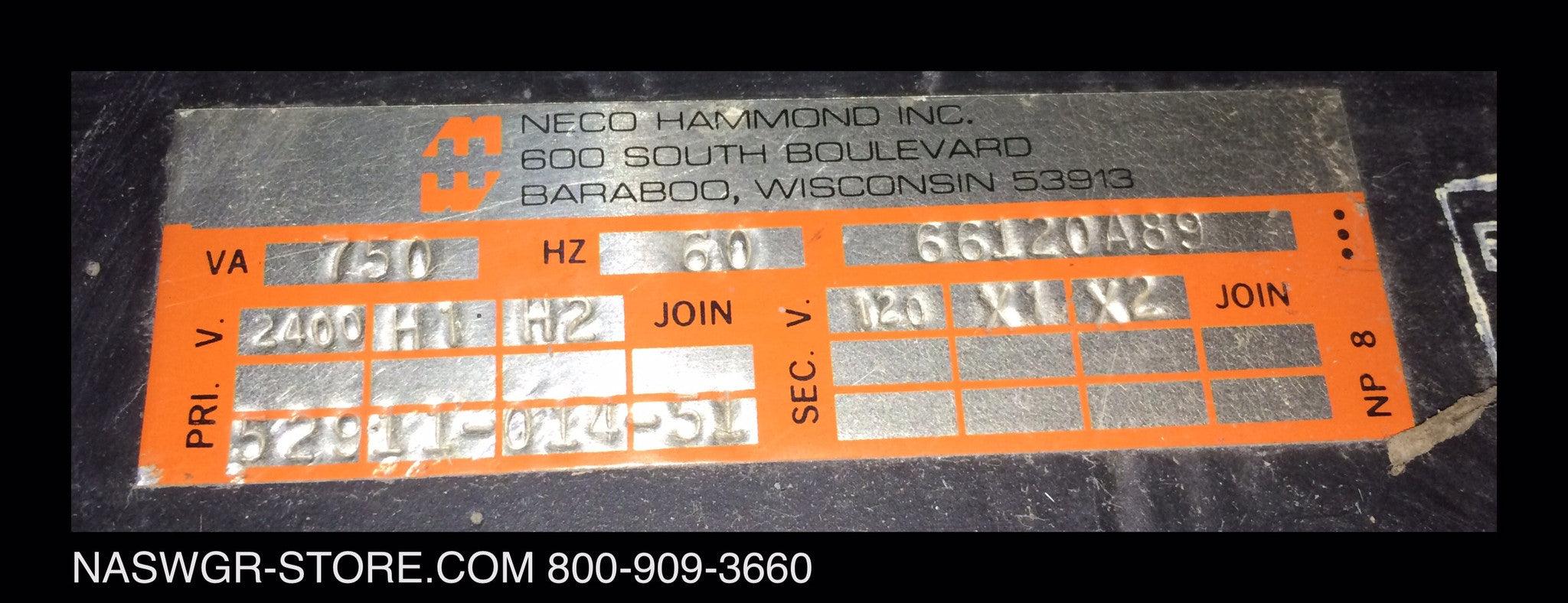

Nico Hammond Inc. Transformer
PN: 52911-014-51
Sec. V. 120
Primary V. 2400
750 VA

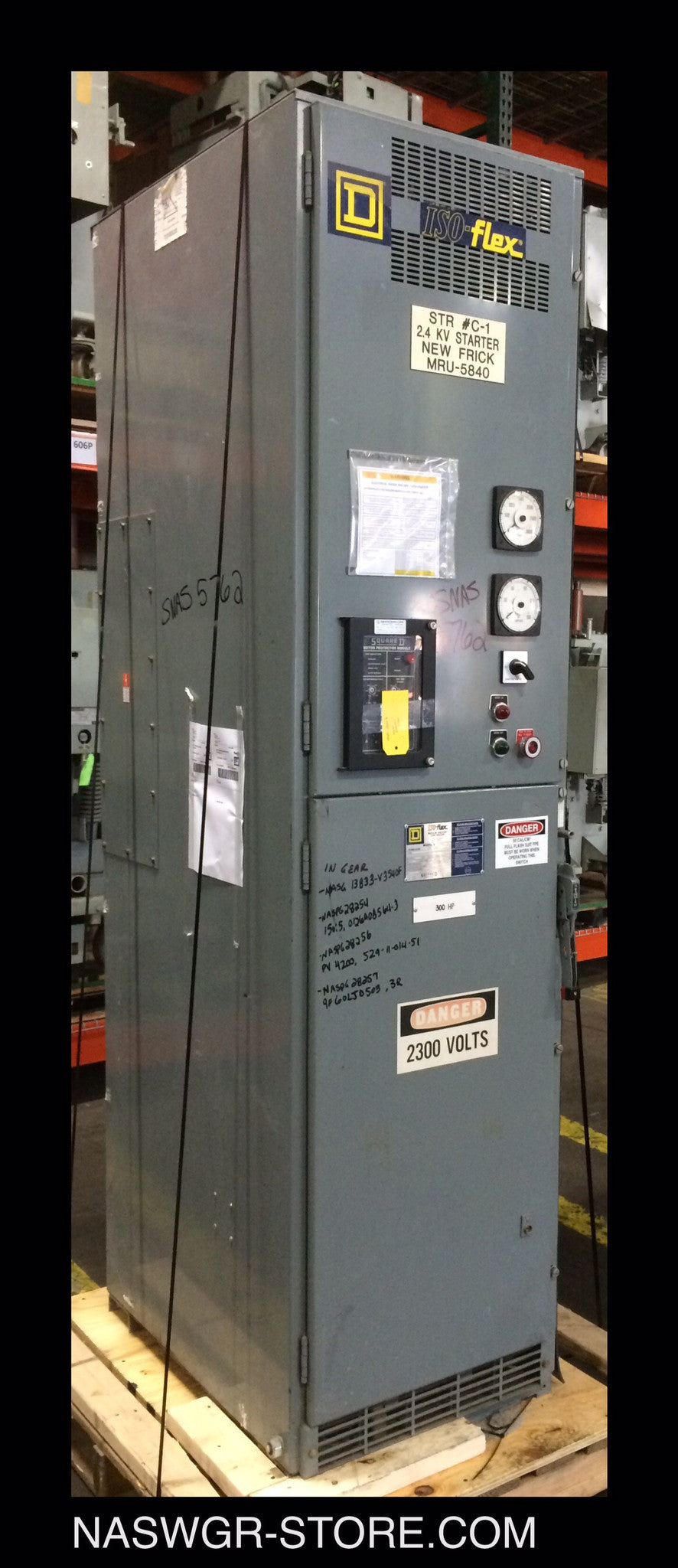

Structure Dim.
90" Height
42.5" Depth
24" Width

Items can be sold separately
Each Used Square D V3540E Vacuum Contactor is Hi-Potted and Tested Prior to shipping.
Cleaned, Tested with report and Backed By Our 1 Year Warranty.

Click here to view our Iso-Flex V3540E Video

Item must ship via freight. Please Call 800-909-3660 or email sales@naswgr.com with questions.

Standard lead time (1-3) days prior to shipping. If item is needed sooner please call or email.

After hours emergency hotline 216-402-0507 or 216-570-2725

SNAS5763   Location: BAY 3A, ROW 12
