MDS620

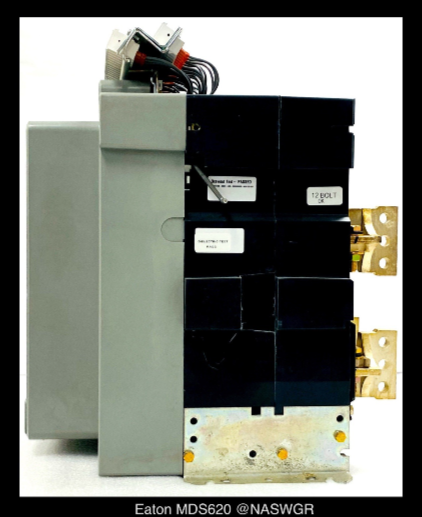

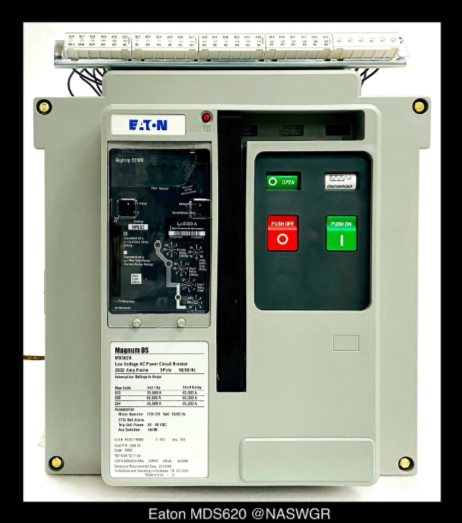

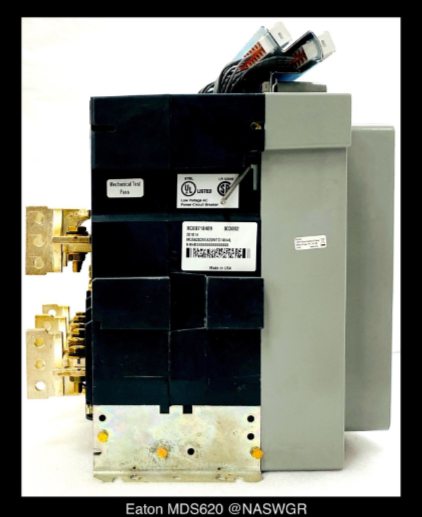

Eaton Magnum MDS620 Circuit Breaker
Unused Surplus in Original Box

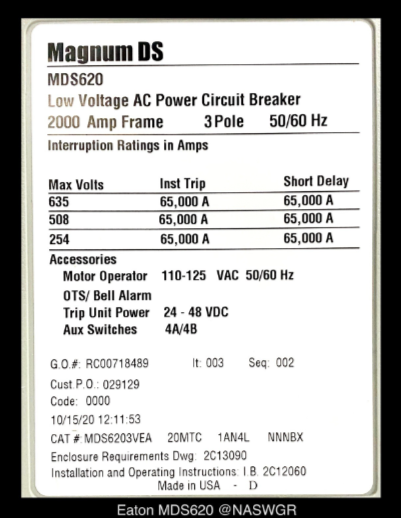

Cat#: MDS6203VEA 20MTC 1AN4L NNNBX
Magnum DS Catalogue Breakdown
MD - Magnum DS Breaker
S - Standard Frame
6 - Interrupting/ Withstand Rating @ 65k
20 - 2000 amp Frame
3 - 3 Pole

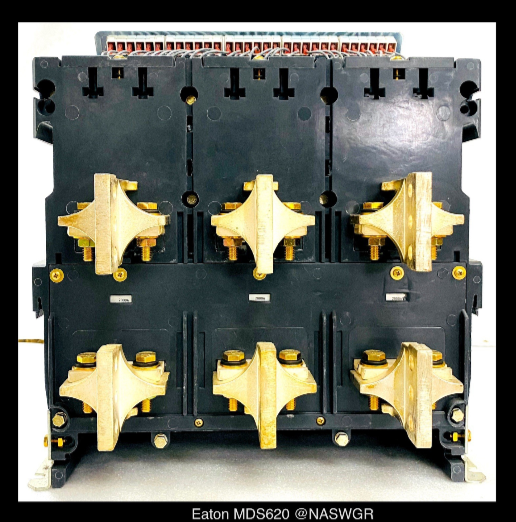

V - Fixed Vertical Stabs Frame
E - English Nameplate
A- Non-DSL
20 - 2000 A Sensors and Rating Plug
MT - 520M (LSI) control power 24-48vDC
C - 24vDC Shunt Trip
1 - 110-125vAC Motor Operator (3 sec)
A - 110-127vAC/DC Spring Release Device
N - No UVR Device

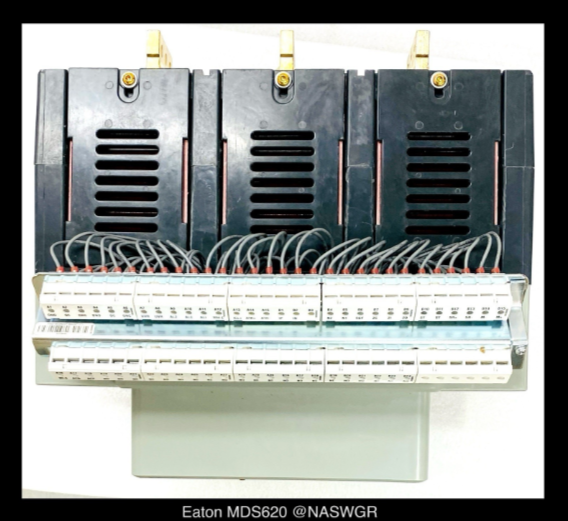

4 - 4A/4B Auxiliary Switch
L - Mech Trip Indicator, Mech Interlock for Manual Reset, & Bell Alarm/OTS
N - No Pushbutton Padlock
N - No Operations Counter
N - No Latch Check Switch
B - Shipping Options
X - Future Breakers

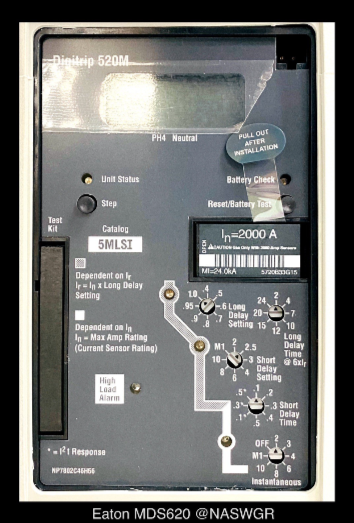

Digitrip 520M Cat# 5MLSI
Rating Plug Cat#: 5720B33G15

NAS can modify breaker to your accessory configuration. Message us your Catalog# to see if we can fulfill your needs!

Each Unused MDS620 is Inspected, Tested with Report, and Carries our One Year Warranty.

Must ship via freight on a pallet. Please message your shipping address to us for a freight quote.

Call 800-909-3660 or email sales@naswgr.com with questions.

After hours emergency hotline 216-570-2725

NASG17712  (W/Box) NASG17703 (No Box) Location:
