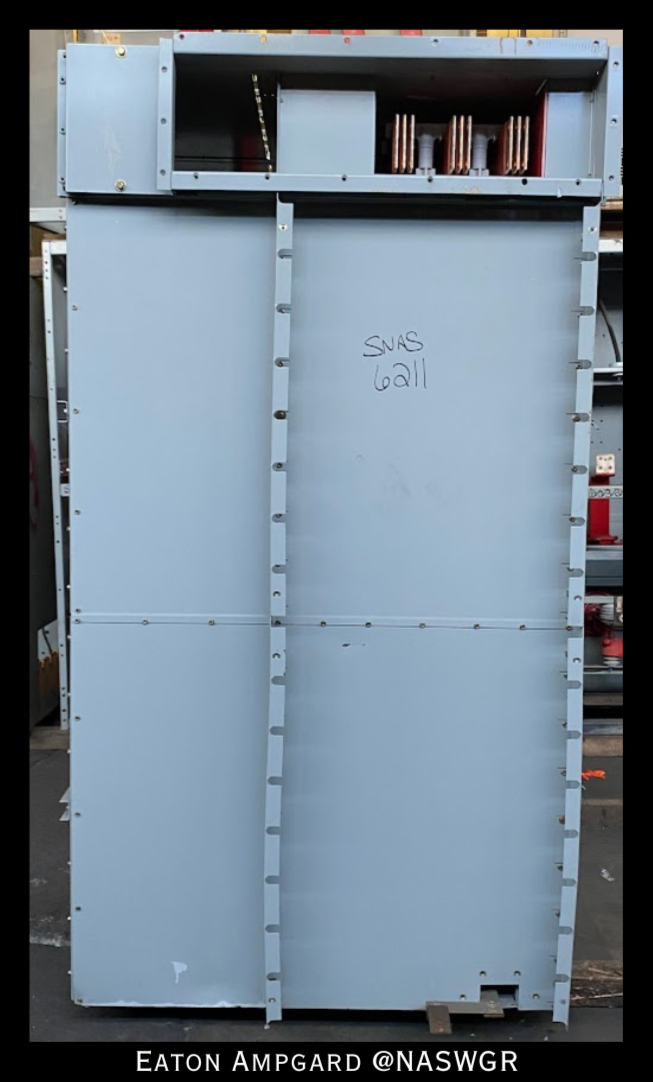

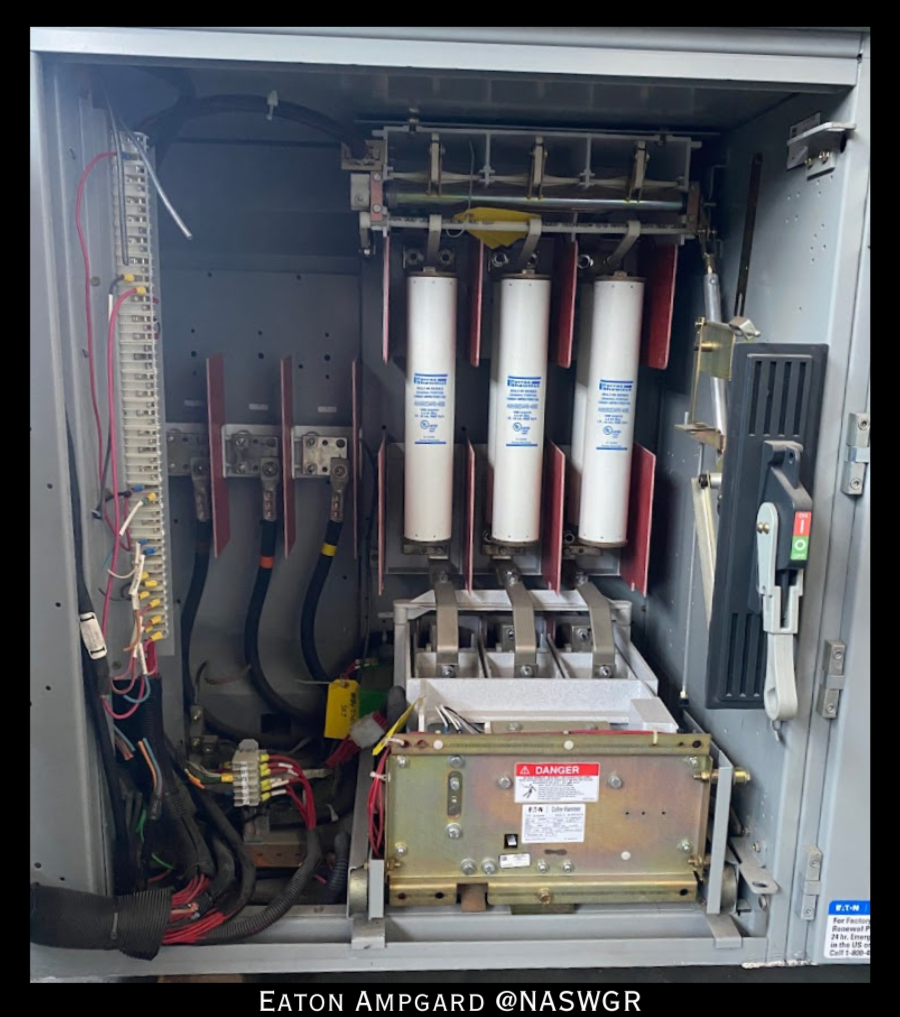

Eaton / Cutler Hammer Ampgard Medium Voltage Control Cell Section- 1150kVA/4160V
by Eaton / Cutler Hammer
Contact for Quote: 800-909-3660 | sales@naswgr.com

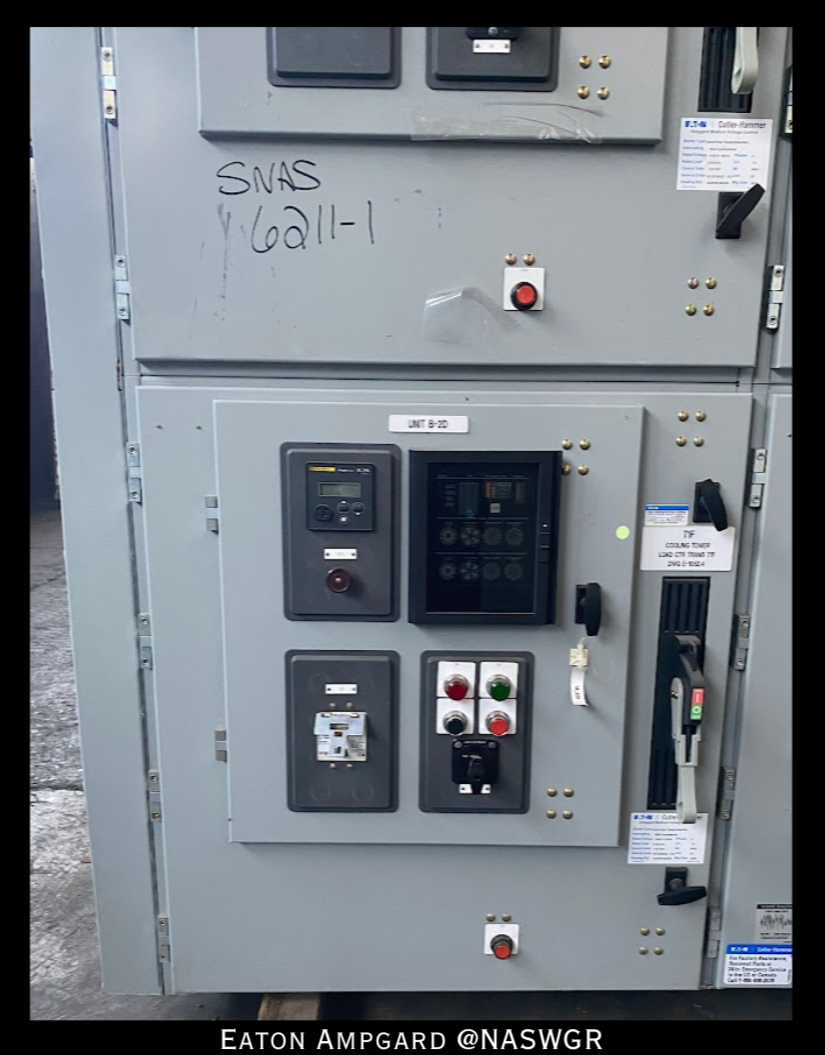

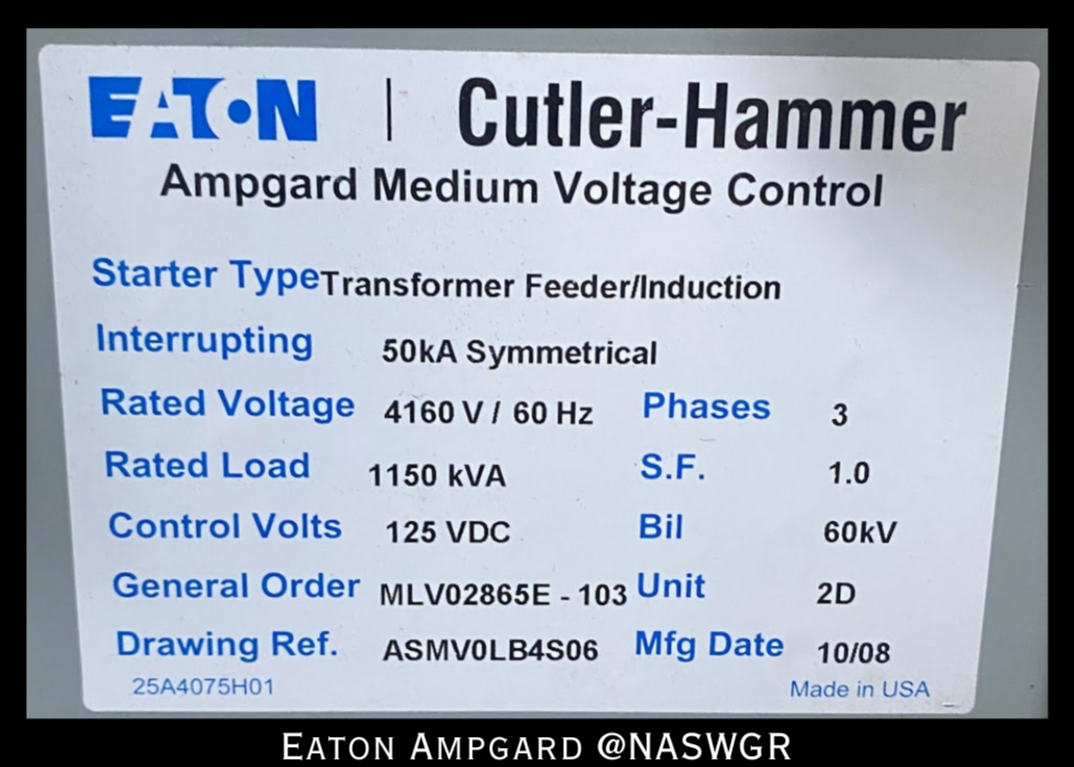

Eaton / Cutler Hammer Ampgard Medium Voltage Control
Eaton / Cutler Hammer Ampgard Medium Voltage Control
Starter Type: Transformer Feeder/Induction
Interrupting: 50kA Symmetrical
Rated Voltage: 4160V / 60Hz
Rated Load: 1150 kVA
Control Volts: 125vDC
General Order: MLV02865E-103
Drawing Ref: ASMV0LB4S06
Phases: 3
S.F: 1.0
Bil: 60kV
Unit: 2D
MFG Date: 10/08

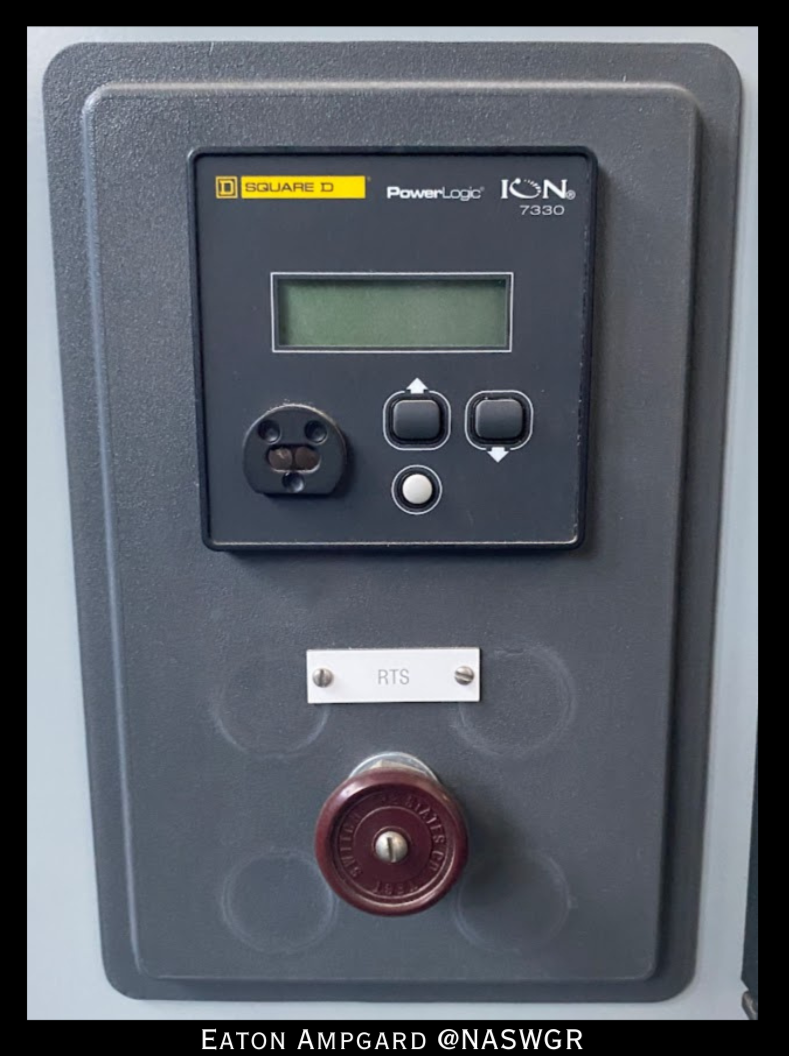

Square D ION7330 Power Logic Relay
Model#: ION7330
Style#: S7330A0B0B0A0K0A
Ratio Primary Voltage: 95-240V
Amperage: 0.3A

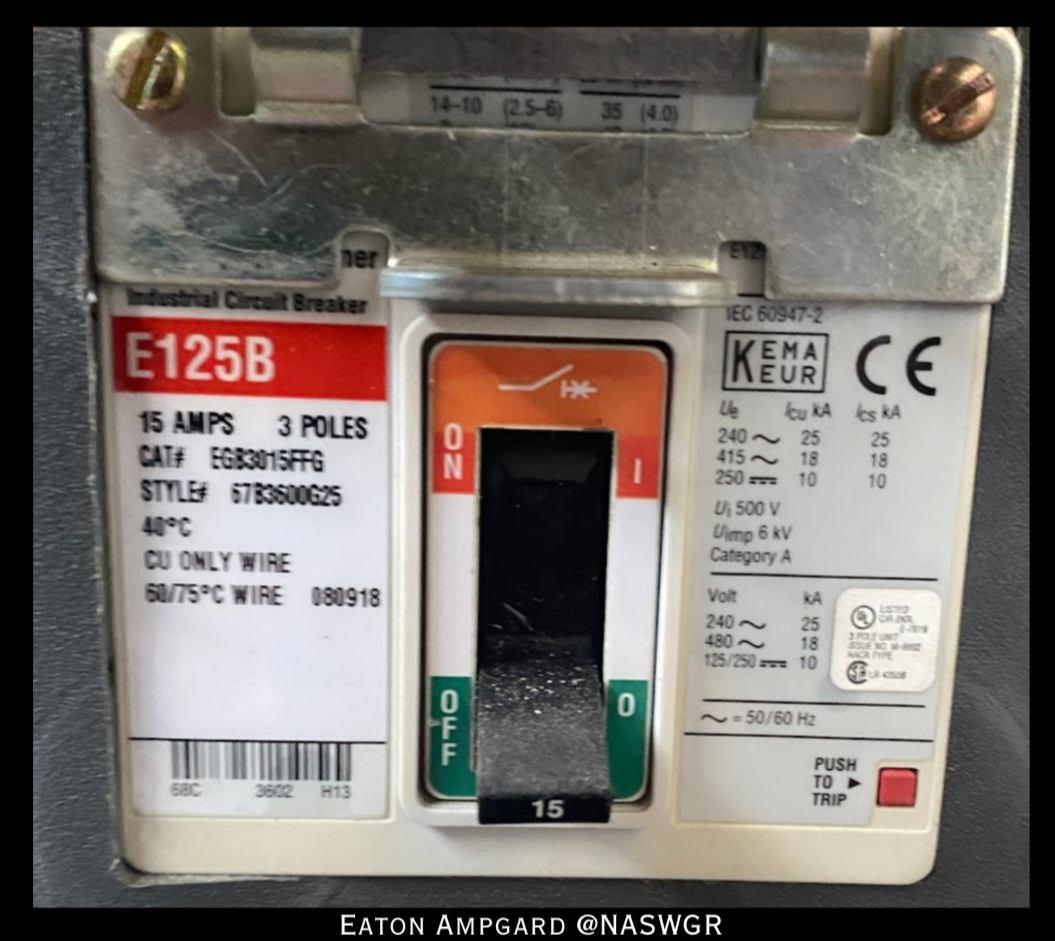

Eaton EGB3015FFG Industrial Circuit Breaker
Model#: E125B
Cat#: EGB3015FFG
Style#: 67B3600G25
Amperage: 15A
3 Phase

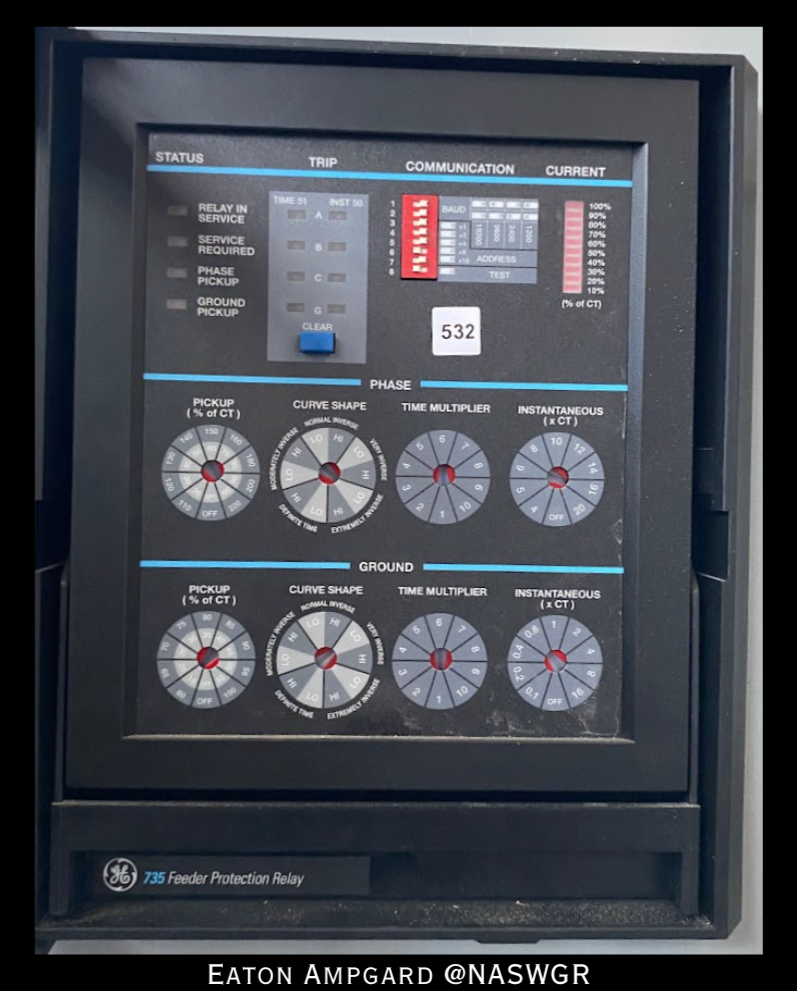

GE 735 Feeder Protection Relay
Model#: SR735
Cat#: SR735-5-5-HI-485
Serial#: E2580998
Current CTs: 5A
Ground CTs: 5A
Control 90-300vDC @10W
Power 70-265vAC @10VA
Trip Contacts
125vDC Break 0.8A
@L/R=40mS 100W
200vAC 20A 5000VA
Service Contacts
250vDC 10A Resistive 75W
Eaton EGB3015FFG Industrial Circuit Breaker
Model#: E125B
Cat#: EGB3015FFG
Style#: 67B3600G25
Amperage: 15A
3 Phase
GE 735 Feeder Protection Relay
Model#: SR735
Cat#: SR735-5-5-HI-485
Serial#: E2580998
Current CTs: 5A
Ground CTs: 5A
Control 90-300vDC @10W
Power 70-265vAC @10VA
Trip Contacts
125vDC Break 0.8A
@L/R=40mS 100W
200vAC 20A 5000VA
Service Contacts
250vDC 10A Resistive 75W

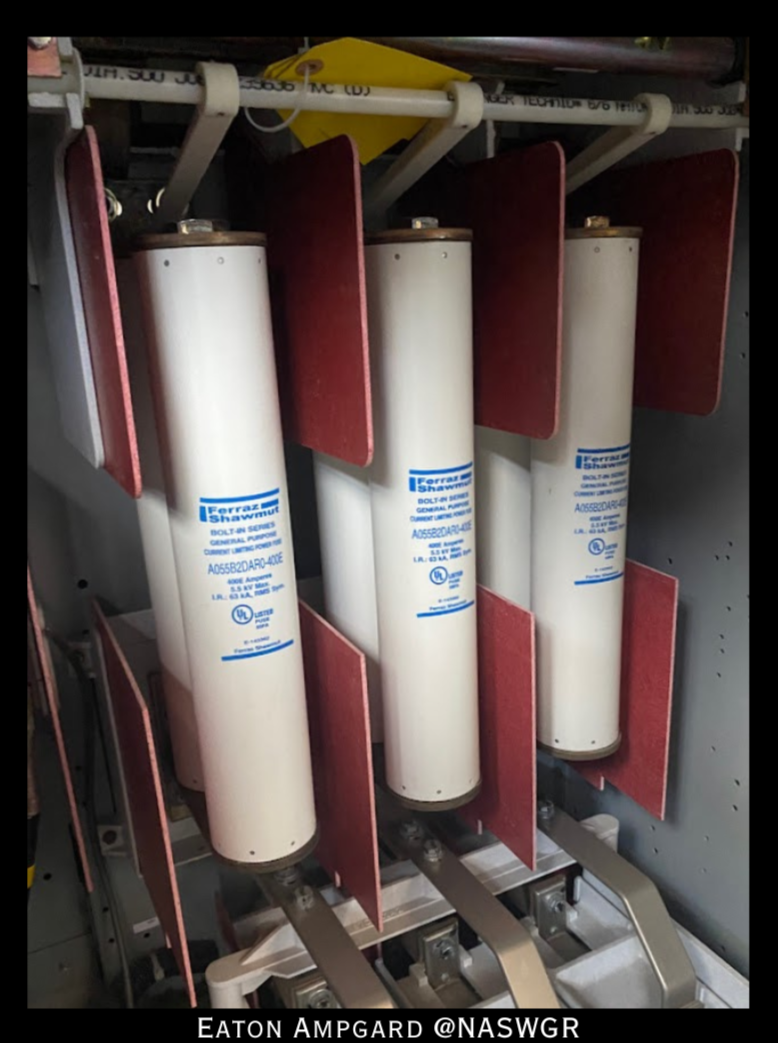

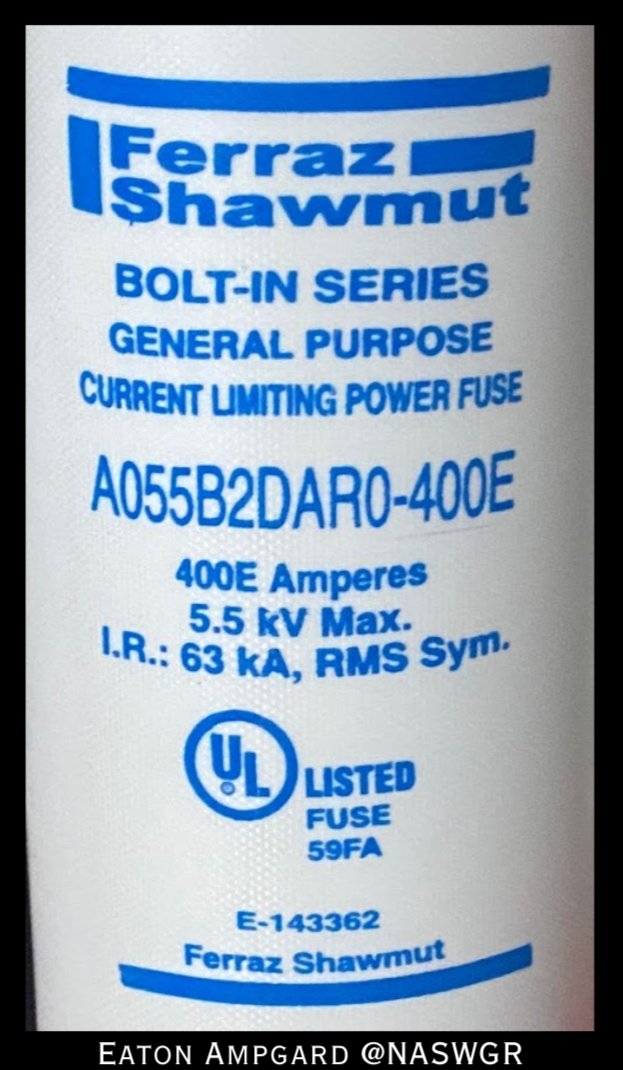

Ferraz Shawmut A055B2DAR0-400E Amptrap Current Limiting Power Fuse
Cat#: A055B2DAR0-400E
Voltage: 5kV
Amperage: 400E
Interrupting Rating: 63kA, RMS Sym

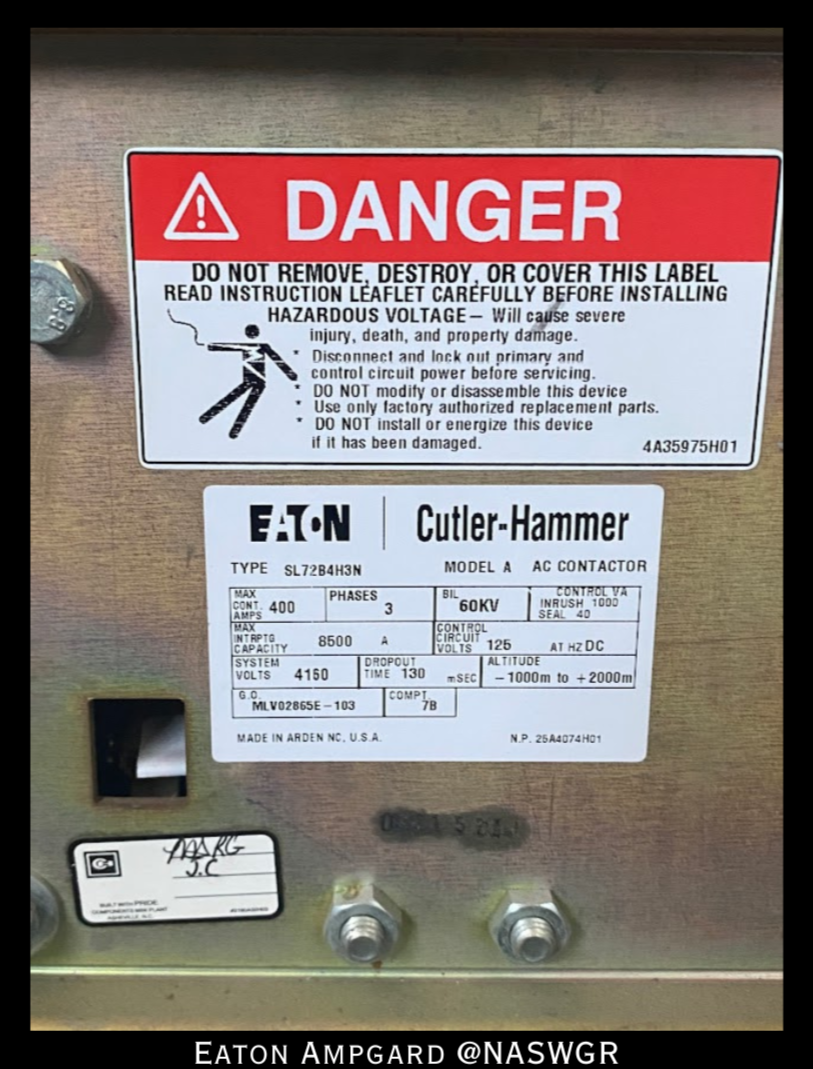

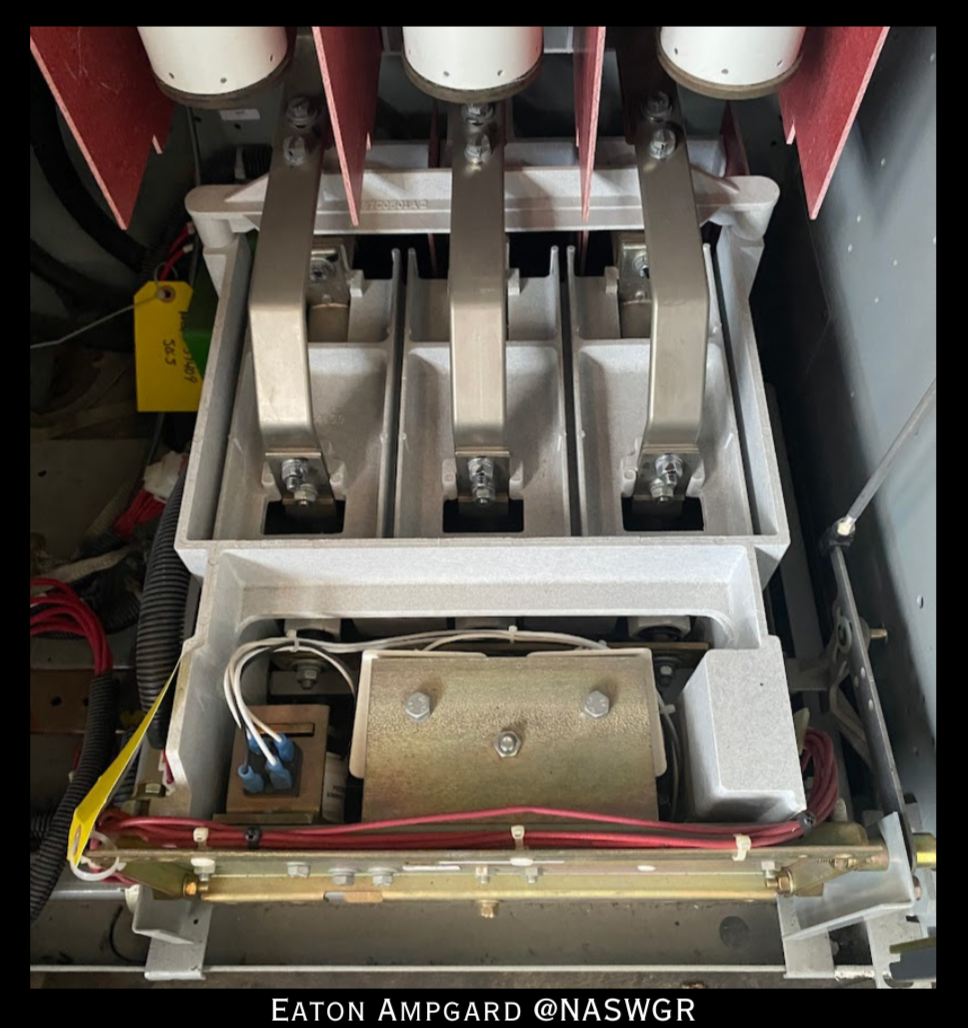

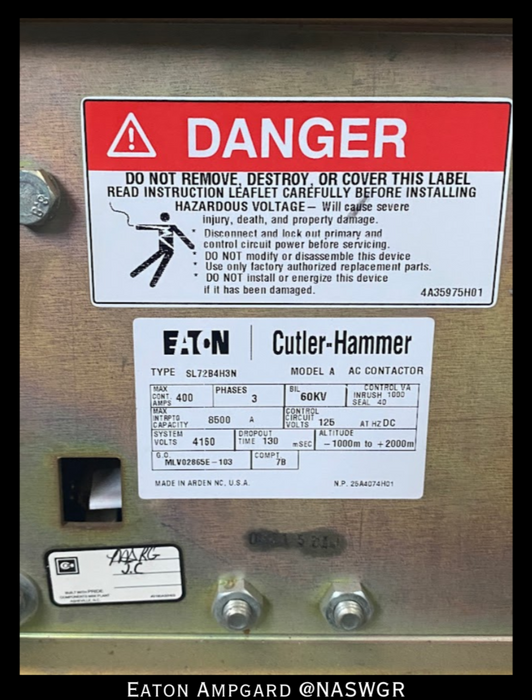

Eaton Ampgard SL72B4H3N AC Contactor
Model A
Type: SL72B4H3N
Rated Amps: 400 A
Rated Volts: 5kV
Interrupting Rating: 8.5kA
System Volts: 4160 V
BIL: 60kV
3 Phase
Control Volts: 120vAC
Control Circuit Burden: Closing 1kVA, Holding 40VA
Dropout Time: 130ms
Standard Aux Contacts
G.O: MLV02865E-104
Altitude -1000m to + 2000m

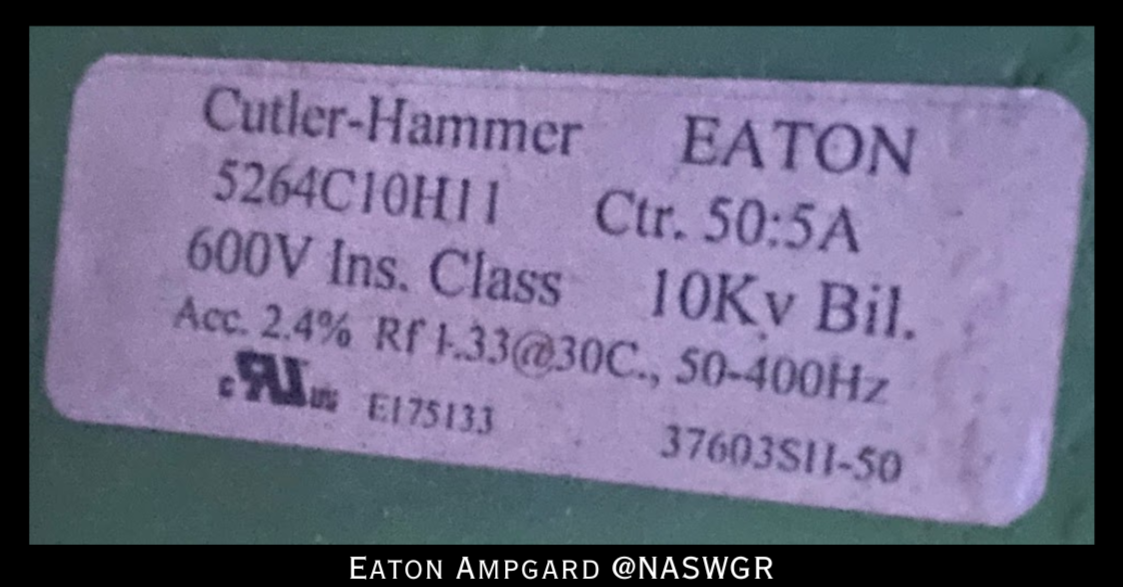

Eaton/Cutler Hammer 5264C10H11 Current Transformer
Cat#: 5264C10H11
Ratio: 50:5A
600V Ins.Class
10kV Bil
Acc.2.4% RF1.33@30C.,50-400Hz
Cat#: A055B2DAR0-400E
Voltage: 5kV
Amperage: 400E
Interrupting Rating: 63kA, RMS Sym
Eaton Ampgard SL72B4H3N AC Contactor
Model A
Type: SL72B4H3N
Rated Amps: 400 A
Rated Volts: 5kV
Interrupting Rating: 8.5kA
System Volts: 4160 V
BIL: 60kV
3 Phase
Control Volts: 120vAC
Control Circuit Burden: Closing 1kVA, Holding 40VA
Dropout Time: 130ms
Standard Aux Contacts
G.O: MLV02865E-104
Altitude -1000m to + 2000m
Eaton/Cutler Hammer 5264C10H11 Current Transformer
Cat#: 5264C10H11
Ratio: 50:5A
600V Ins.Class
10kV Bil
Acc.2.4% RF1.33@30C.,50-400Hz
Each Eaton Ampgard Section will be Inspected Prior to Shipping.
Call 800-909-3660 or email sales@naswgr.com with questions.
After hours emergency hotline 216-570-2725
NASPG57406- ION7330
NASMCG18960- EGB3015FFG

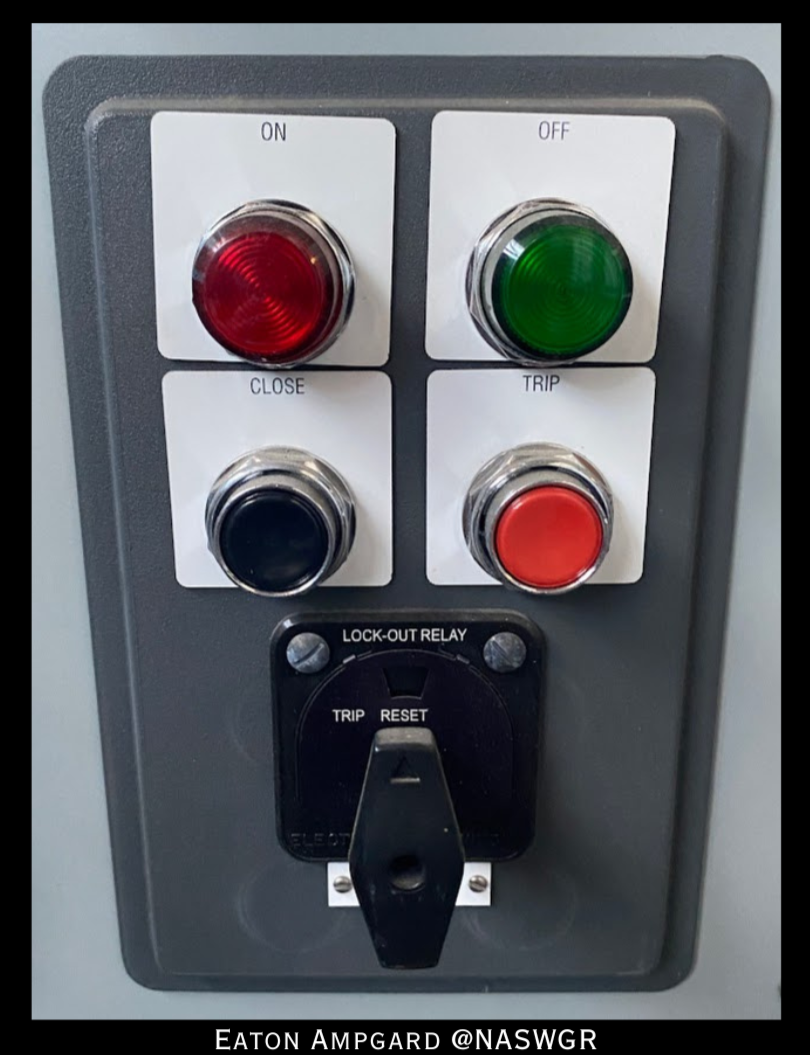

Electroswitch Lockout Relay
NASPG57403- 735 Feeder Relay
NASPG57408- QTY3- A055B2DAR0-400E
NASG17843: SL72B4H3N
NASPG52709- 5264C10H11
3 Stage- 7802D
D15CR22 Relay
C320KGD1 Relay w/ C320KGT15

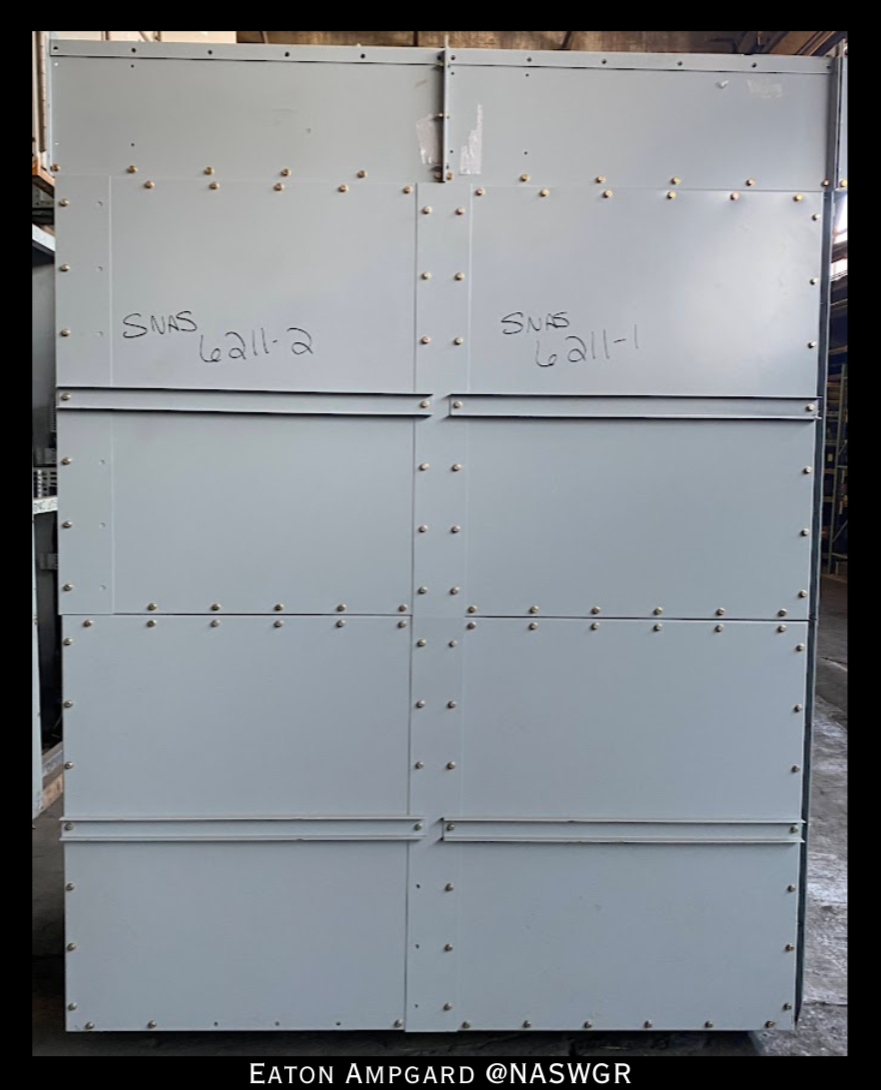

Location: SNAS6211-1 (Bottom Section) , SWGR BLDG
