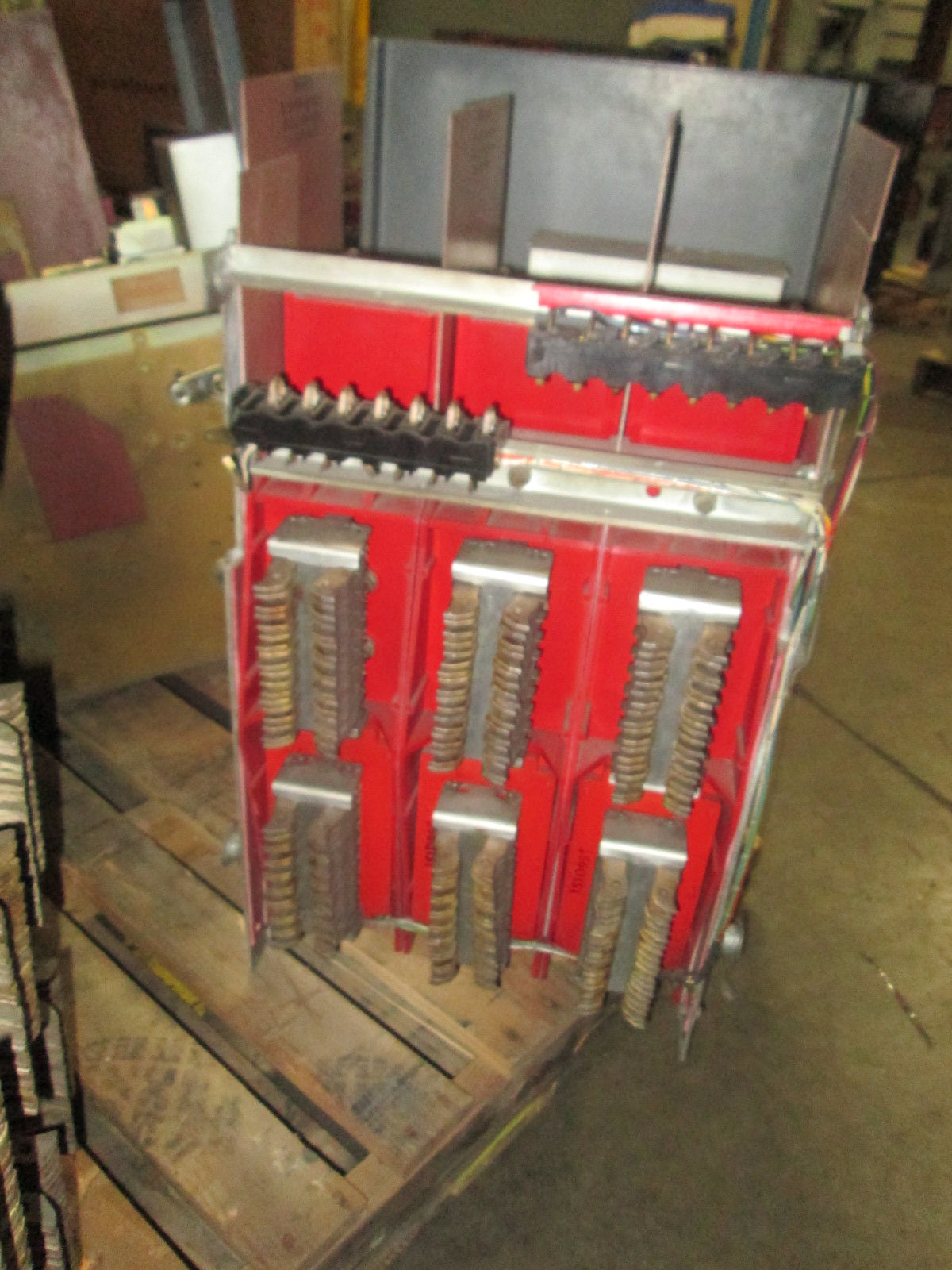

DS-632 Westinghouse Low Voltage AC Power Circuit Breaker

by Westinghouse

Contact for Quote: 800-909-3660 | sales@naswgr.com

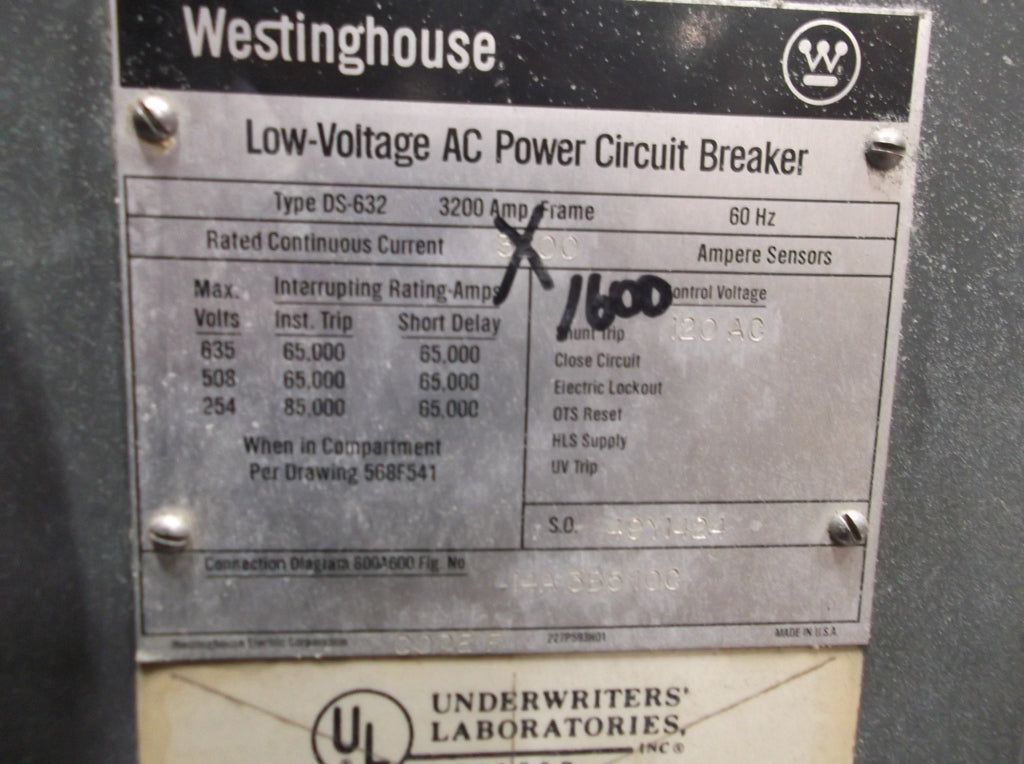

Westinghouse Low Voltage AC Power Circuit Breaker

Type DS-632
3200 Amp Frame
60 Hz
Rated Cont. Current: 1600
3200 Rated Amps
600 Rated volts
Electronically or Mechanically operated
Available with LS, LSI, LI, or LSIG functions
Closing volts: 120VAC
Trip volts: 120VAC, 115VAC, or 48VDC
Control volts: 120VAC
Motor volts: 120 or 115VAC
2, 4 stage aux
Secondaries: 1,2, or 3
