Westinghouse DB-75 Circuit Breaker

DB-75 ~ Westinghouse DB-75 Circuit Breaker ~ 3000 Amp

DB-75

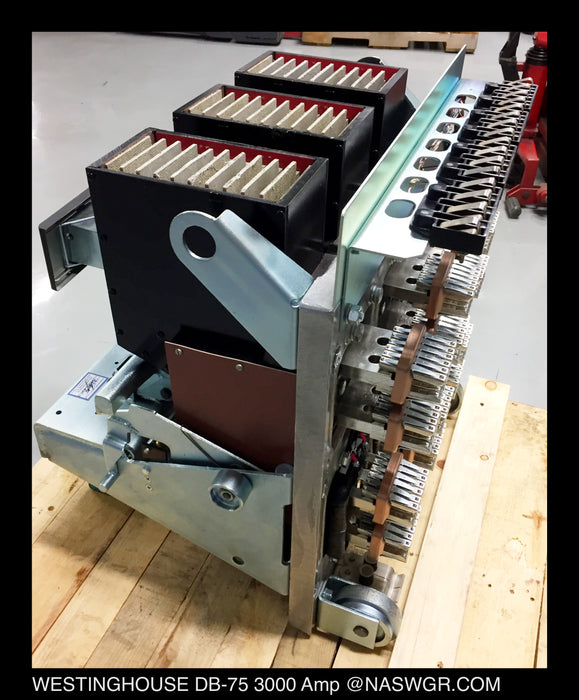

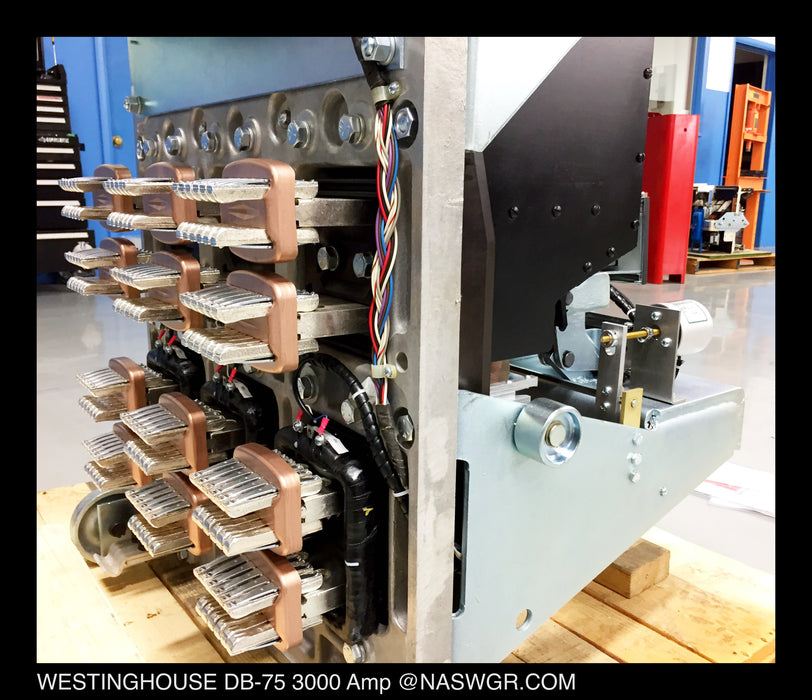

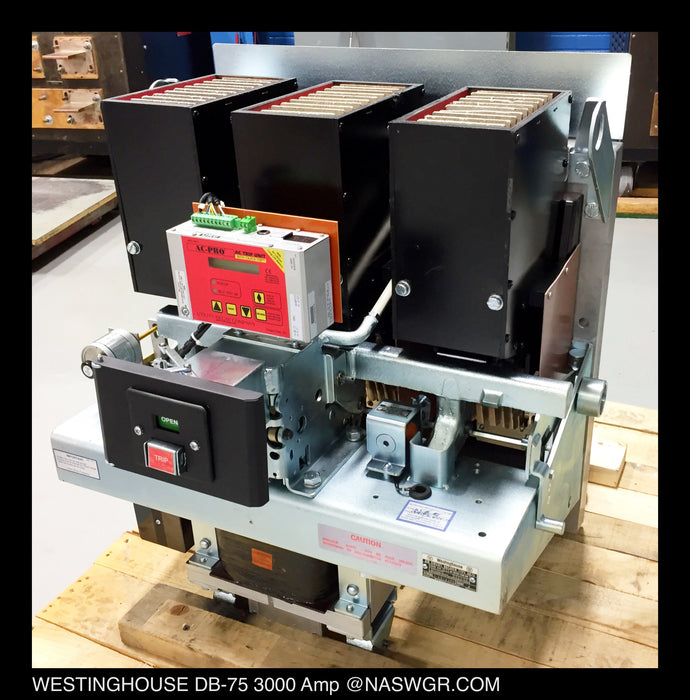

Westinghouse DB-75 Circuit Breaker
3000 amp
600 volt
3 Pole
Electrically Operated
Drawout

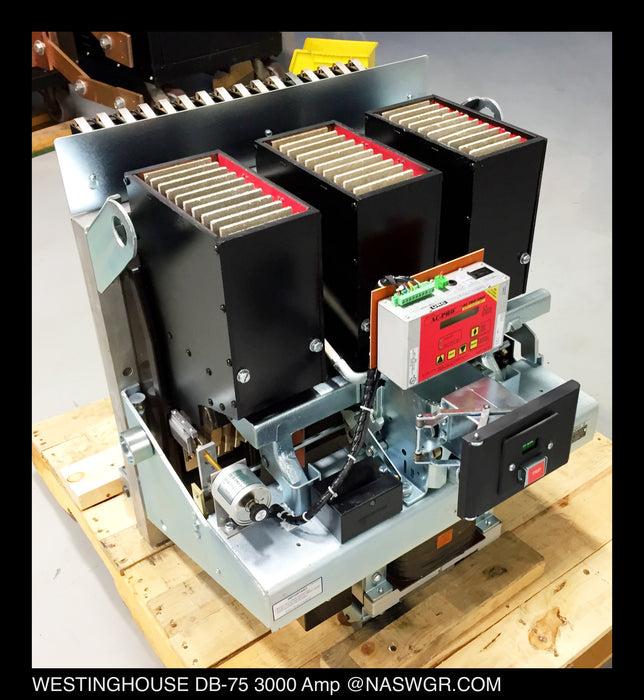

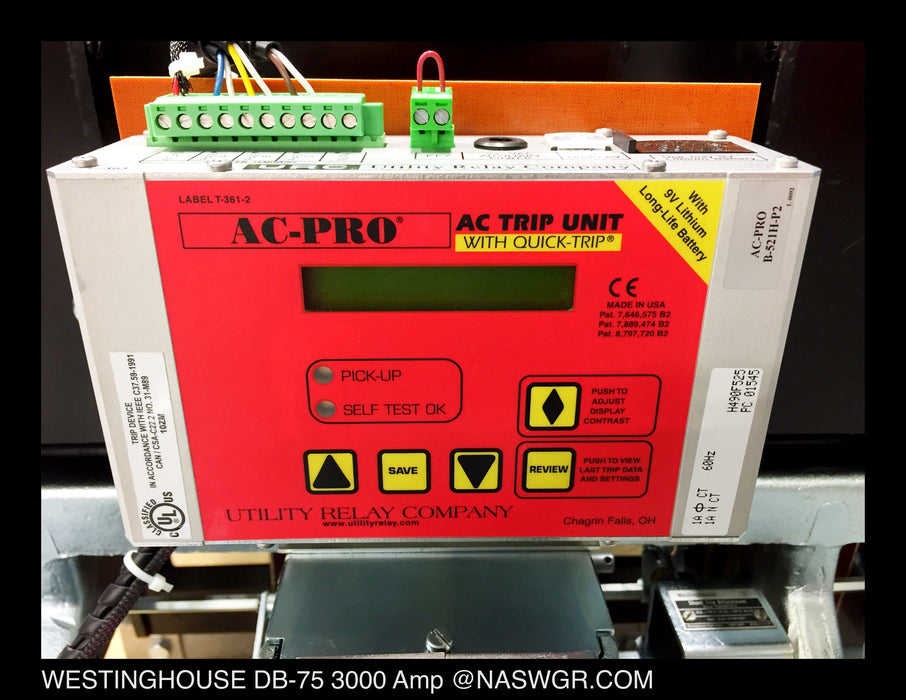

URC AC Pro Solid State Trip Unit or the Unit of Your Choice.

DB-75 Parts
DB-75 Switchgear
DB-75 Repair

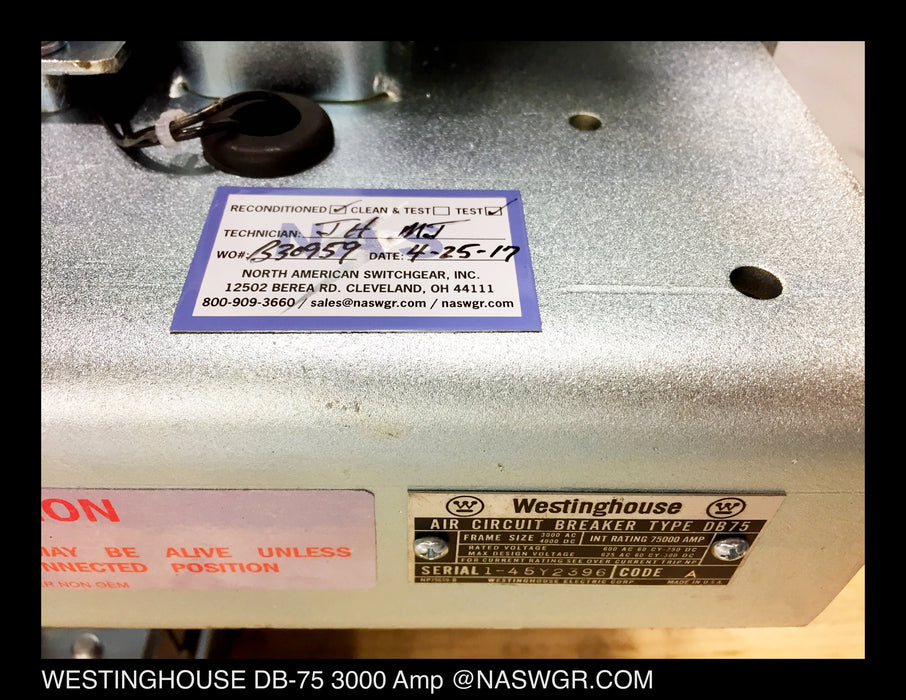

Each Class A Reconditioned DB-50 is Tested with Report and Backed by Our 1 Year Warranty.

Meggered, Ductored and Tested on High Current Primary Injection Test Set.

Call 800-909-3660 or email sales@naswgr.com with questions.

After hours emergency hotline 216-402-0507 or 216-570-2725


North American Switchgear, Inc. is an industry leader in the sale of new, used and out-of-production industrial circuit breakers, switchgear and associated parts.  Our Cleveland, OH facility spans over 300,000 square feet and houses over 13,000 low and medium voltage circuit breakers from all major manufacturers.  Aside from the sale of circuit breakers, switchgear and replacement parts, NAS also offers equipment recondition and repair services.  For more information please visit our website at www.naswgr.com, call 800-909-3660 or email sales@naswgr.com



























































Actuator , 692C706G01 ,

Amptector IA Retrofit Kit, 2000-3000 A – LIG , 8184A50G16 ,

Amptector IA Retrofit Kit, 2000-3000 A – LIG (w/o ground indicator) , 8184A50G76 ,

Amptector IA Retrofit Kit, 2000-3000 A – LSG ,8184A50G17 ,

Amptector IA Retrofit Kit, 2000-3000 A – LSG (w/o ground indicator) , 8184A50G77 ,

Amptector IA Retrofit Kit, 2000-3000 A – LSIG , 8184A50G18 ,

Amptector IA Retrofit Kit, 2000-3000 A – LSIG (w/o ground indicator) , 8184A50G78 ,

Amptector IIA Retrofit Kit, 2000-3000 A – LIG , 8184A50G46 ,

Amptector IIA Retrofit Kit, 2000-3000 A – LSG , 8184A50G47 ,

Amptector IIA Retrofit Kit, 2000-3000 A – LSIG , 8184A50G48 ,

Amptectors type IA with indicator – LI , 6998D22G01 ,

Amptectors type IA with indicator – LS ,6998D00G03 ,

Amptectors type IA with indicator – LSI , 6998D22G06 ,

Amptectors type IA with indicator and ground – LI , 6998D02G02 ,

Amptectors type IA with indicator and ground – LS , 6998D02G04 ,

Amptectors type IA with indicator and ground – LSI , 6998D02G05 ,

Amptectors type IIA without indicator or ground – LI , 6997D20G41 ,

Amptectors type IIA without indicator or ground – LS , 6997D20G42 ,

Amptectors type IIA without indicator or ground – LSI , 6997D20G43 ,

Arc Chutes , 405D389G04 ,

Auxiliary Switch, 4 Pole D.O. , 20B834G07 ,

Auxiliary Switch, 8 Pole D.O. , 20B834G08 ,

Breaker Lever , 1799891 ,

Closing Coil 115 vAC , 1809520 ,

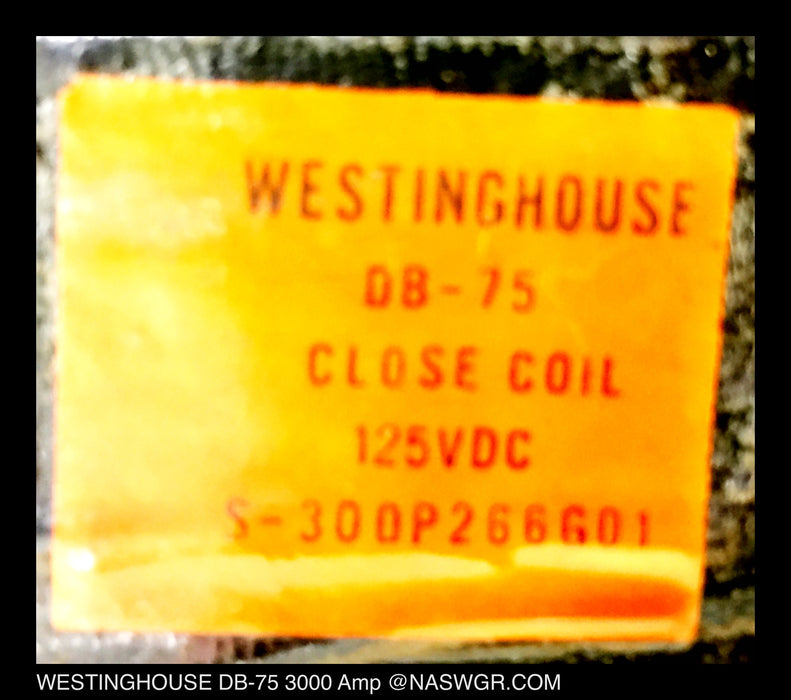

Closing Coil 125 vDC , 1809520 ,

Closing Coil 220 vAC , 300P268G01 ,

Closing Coil 250 vDC , 300P268G01 ,

Closing Coil 440 vAC , 300P834G01 ,

Complete Mechanism E/O, 3 Position , 410D348G02 ,

Complete Mechanism E/O, Single Position , 44A9415G06 ,

DB-75, 3 position , 406D349G01 ,

DB-75, single position , 406D444G01 ,

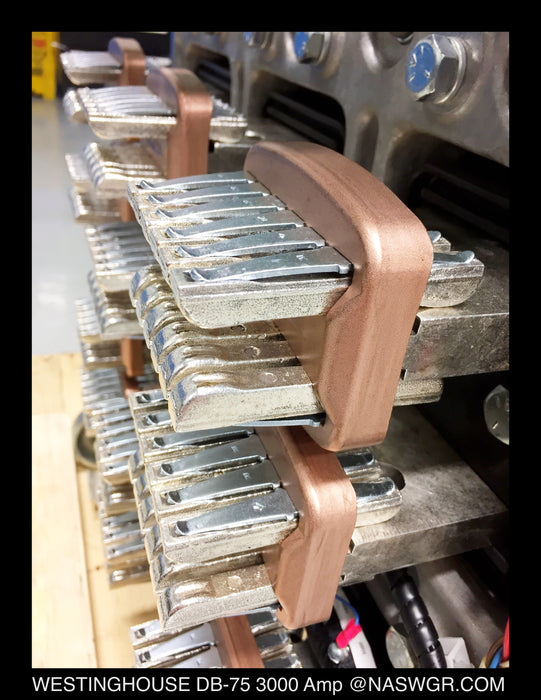

Finger Clusters , 679C711G08 ,

Hinge Contact Finger , 1799912 ,

Latch Segment , 20B8584H04 ,

Lever Spring , 1799968 ,

Levering Crank, 3 position , 303C008G02 ,

Levering Crank, single position , 300C334G01 ,

Lower Stationary Contact Fingers , 1799915 ,

Lower Stud Assembly , 406D445G03 ,

Main Contact , 1810289 ,

Mechanism Shaft , 1799932 ,

Molded Contact Base , 1810282 ,

X Relays 125 V Dc (used with heavy duty burden coils) , 1802990 ,

X Relays 220 V Ac, 60 Hz , 33A2746G35 ,

X Relays 220 V Ac, 60 Hz (used with heavy duty burden coils) , 60A1412G28 ,

X Relays 250 V Dc , 33A2746G33 ,

X Relays 250 V Dc (used with heavy duty burden coils) , 1802991 ,

X Relays 440 V Ac, 60 Hz , 33A2746G36 ,

X Relays 440 V Ac, 60 Hz (used with heavy duty burden coils) , 60A1412G29 ,

 Visit our website www.naswgr.com
