AM13.8-500-5H - General Electric Magne-blast 1200AMP Circuit breaker

by General Electric

Contact for Quote: 800-909-3660 |

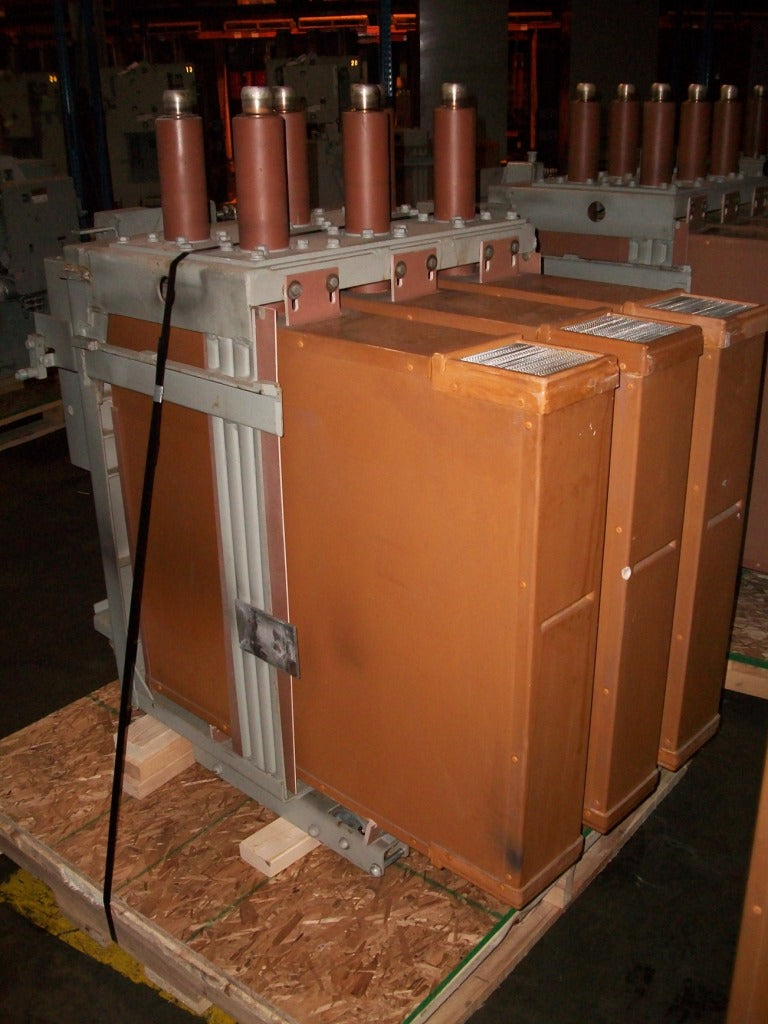

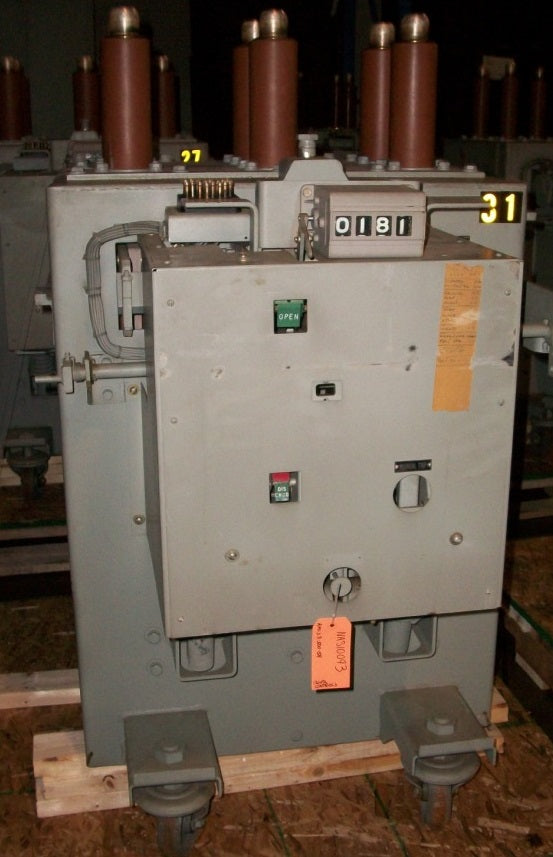

General Electric AM13.8-500-5H 1200AMP Magne-Blast Circuit Breaker
PN: AM13.8-500-5H
1200 AMPS
Serial Number: 0204A6663-004
Rated Volts: 13800
Rated AMP: 1200
CY: 60
Maximum design volts: 15000
Int. Time: 8
WT 1650

Rated Interrupting MVA: 500
Interrupting  AMP at Rated Volts: 21000
Max Interrupting AMP: 25000
MOM AMP: 40000

Closing Coil: 6174582 G1
Closing Volts: 125VDC
Closing AMPS: 6
Volt Range: 90-130

Potential Trip Coil: 6174582 G1
125 Volts
AMP: 6
Volt Range: 70-140


Each used AM13.8-500-5H will be Cleaned and Tested prior to shipping.
Average lead time (1-3) days prior to shipping. If item is needed sooner please call or email.

Call 800-909-3660 or email with questions.

After hours emergency hotline 216-402-0507 or 216-570-2725
