Square D Masterpact NW08H/HF, CWLAVV2AXBXBXXXFXX Cassette Cradle - 800A - Unused
Contact for Quote: 800-909-3660 | sales@naswgr.com
CWLAVV2AXBXBXXXFXX

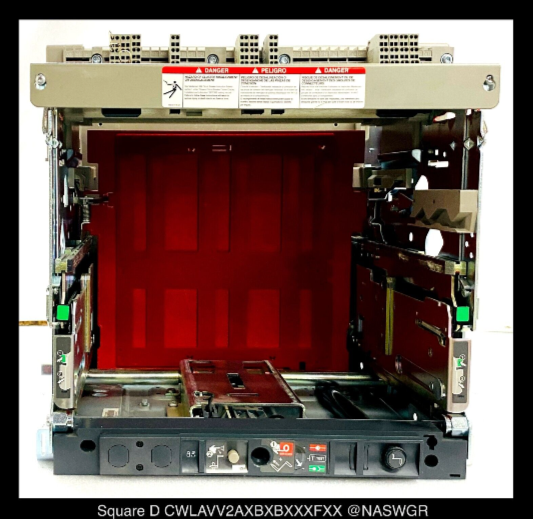

Square D NW08H/HF Masterpact Cassette Cradle
Unused Surplus in Original Packaging
Cat#: CWLAVV2AXBXBXXXFXX
Masterpact low voltage power circuit breaker cassette breakdown
C = Complete Cradle
W = Standard 3 Pole - NW 115mm - 3000 Amp Frame Max
L = Square D UL&CSA&NOM Standard
A = 800 Amp Frame (UL - H/HF)
V= Top Terminals 2 hole Rear Connected "T" Vertical
V = Bottom Terminals 2 hole Rear Connected "T" Vertical
2 = Shutters Included
A = Cell Keying (standard), No Locks
X = None
B = Push-in with 4 form C Aux Contacts (Connected,Test,Disconnected 1 form C)
X = None
B = ZSI/MDGF/Neutral Sensor/24vDC Supply
X = None
X = None
X = None
F = Shunt Trip, Shunt Close, & Spring Charging Motor
X = None
X = None
Each Unused Square D NW Cradle is Inspected Prior to Shipping.
Must ship via freight on a pallet. Please contact for freight quote.
Call 800-909-3660 or email sales@naswgr.com with questions.
After hours emergency hotline 216-570-2725
NASPG55725 Location: BLDG 6
