071001ABA0X771850200

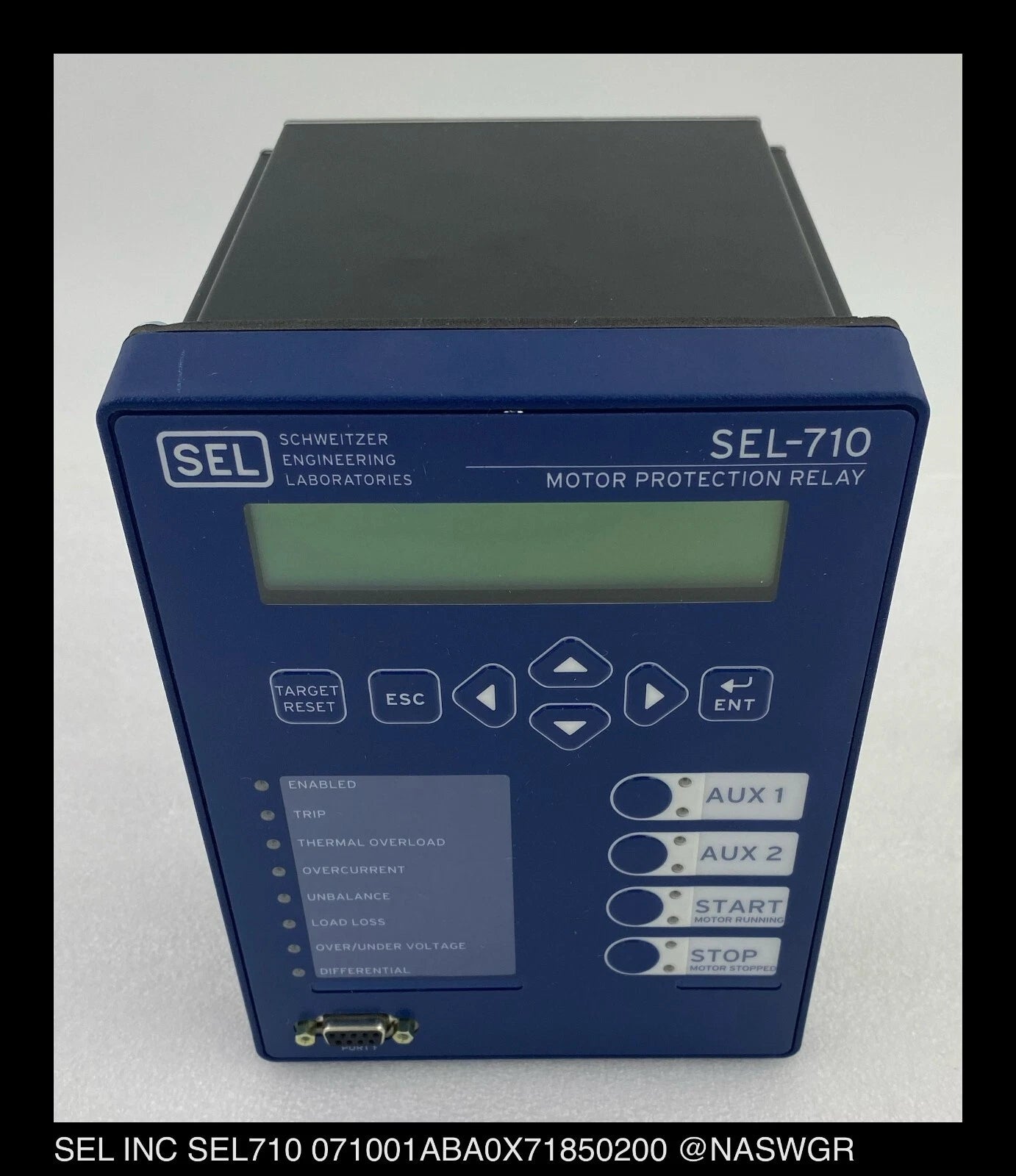

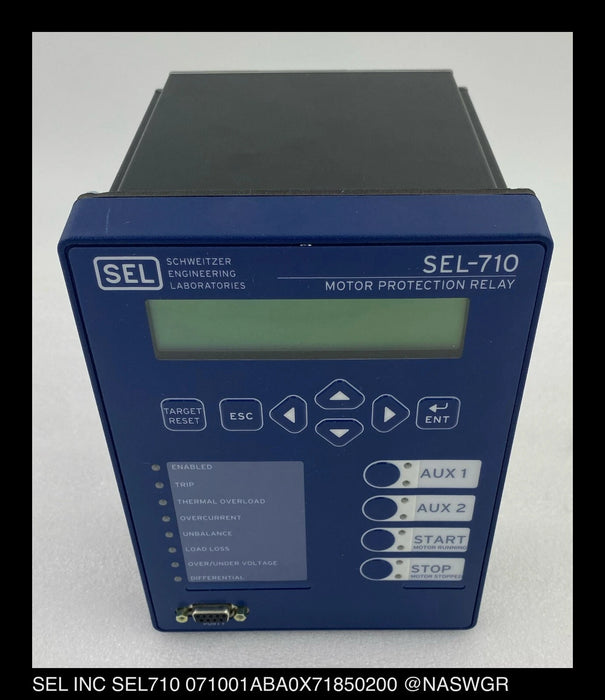

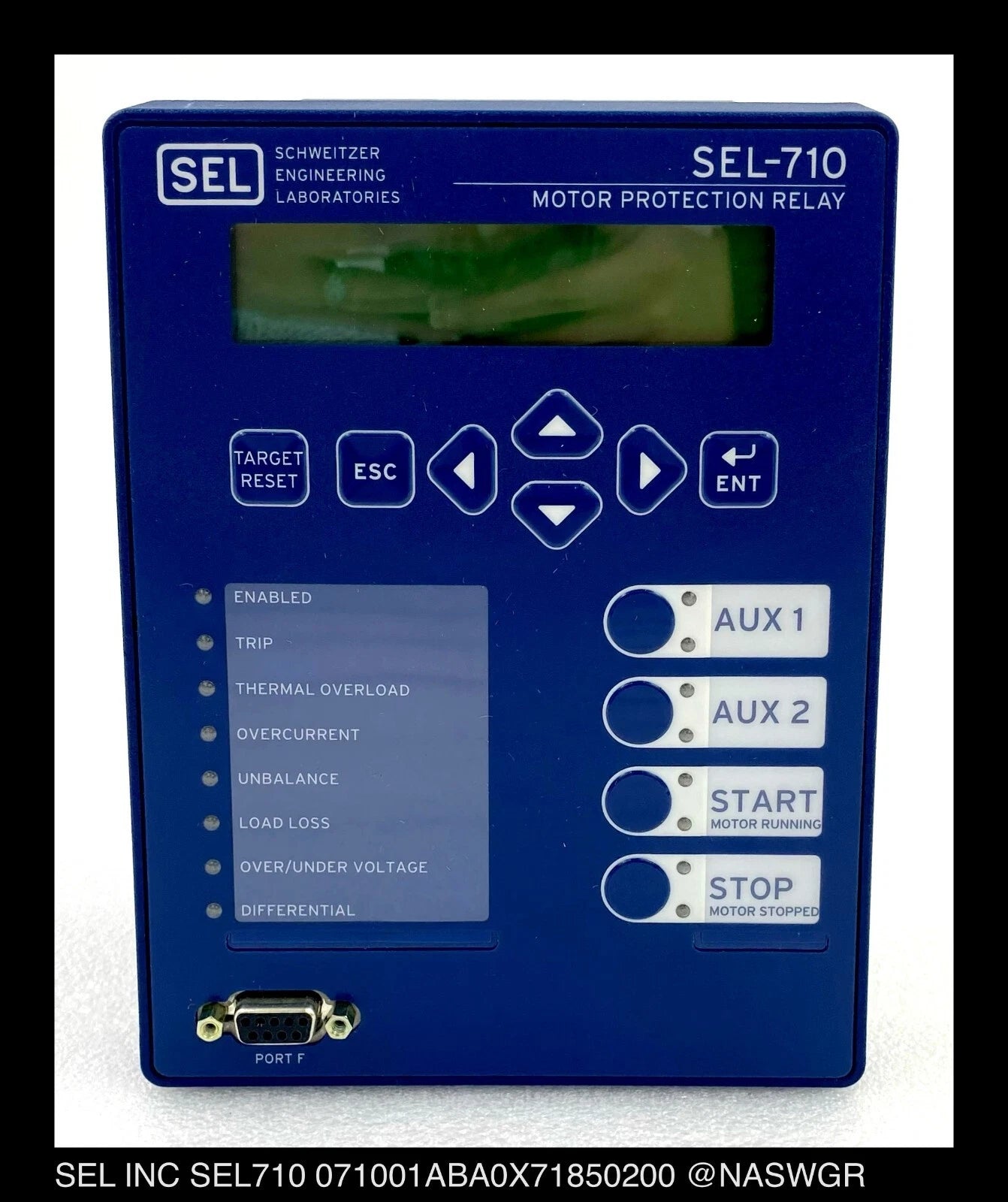

Schweitzer SEL-710 Motor Relay Protection

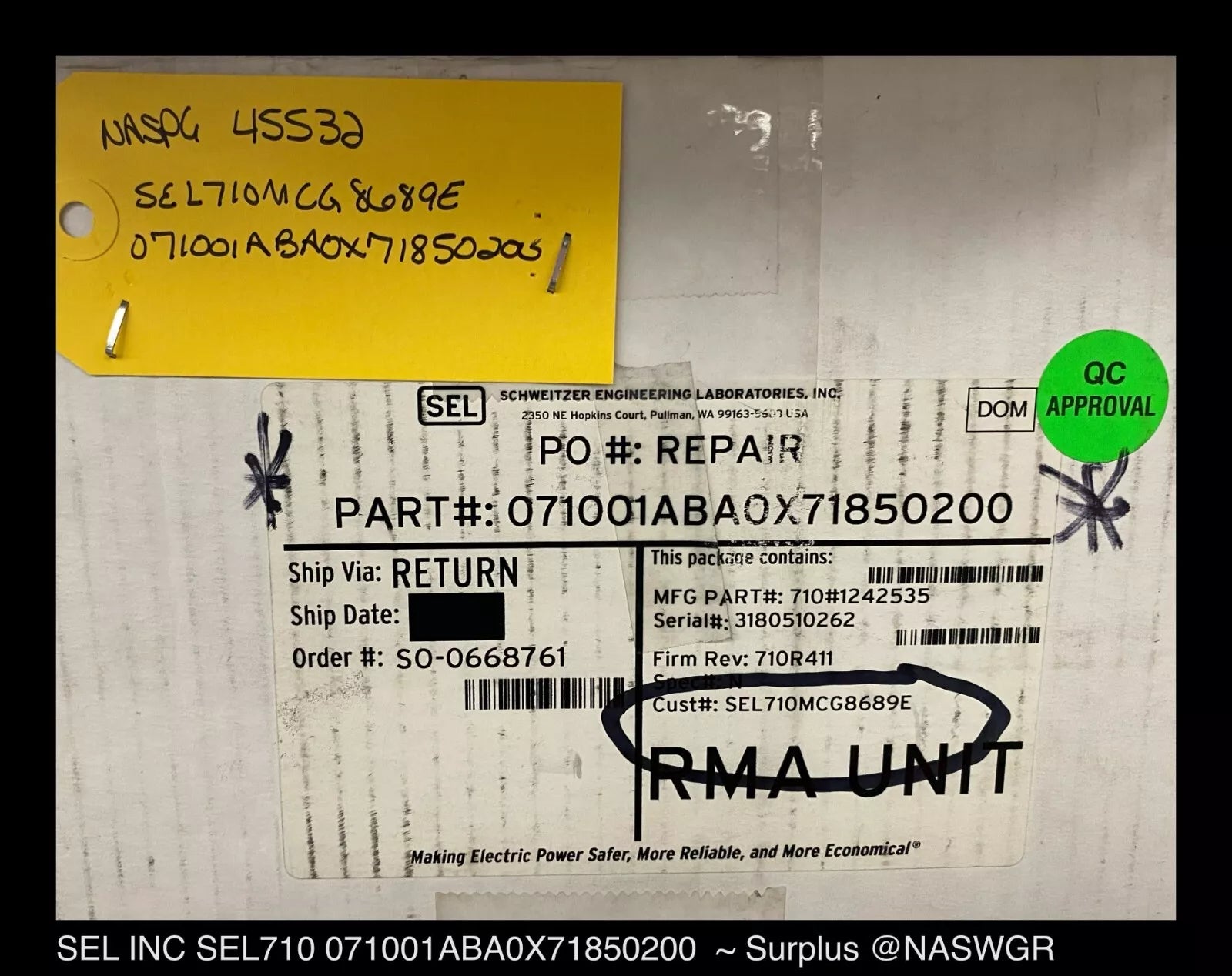

Unused Surplus in Box
071001ABA0X771850200
Power supply range: 125/250vDC, 120/240vAC
Power consumption: 40VA / 20W
Internal fuse: T3.15A H 250V
Phase/neutral current (nominal): 5A/5A
Phase voltage (max): 300V
Contact inputs (IN101–IN102): Control voltage 125vDC
Contact outputs (OUT101–OUT103): General purpose 250vAC, 30vDC, 6A resistive
Pilot duty: B300
Enclosure rating: Open or Type 1
Field installed conductors: 75°C Cu
Terminal tightening torque – current inputs: 9–12 lb-in
Terminal tightening torque – power and other: 5–7 lb-in
Pollution degree: 2
Overvoltage category: II
Motor overload protection: Class 10, 20, and 30
Each SEL-710 is Inspected Prior to Shipping and Carries our One Year Warranty.
