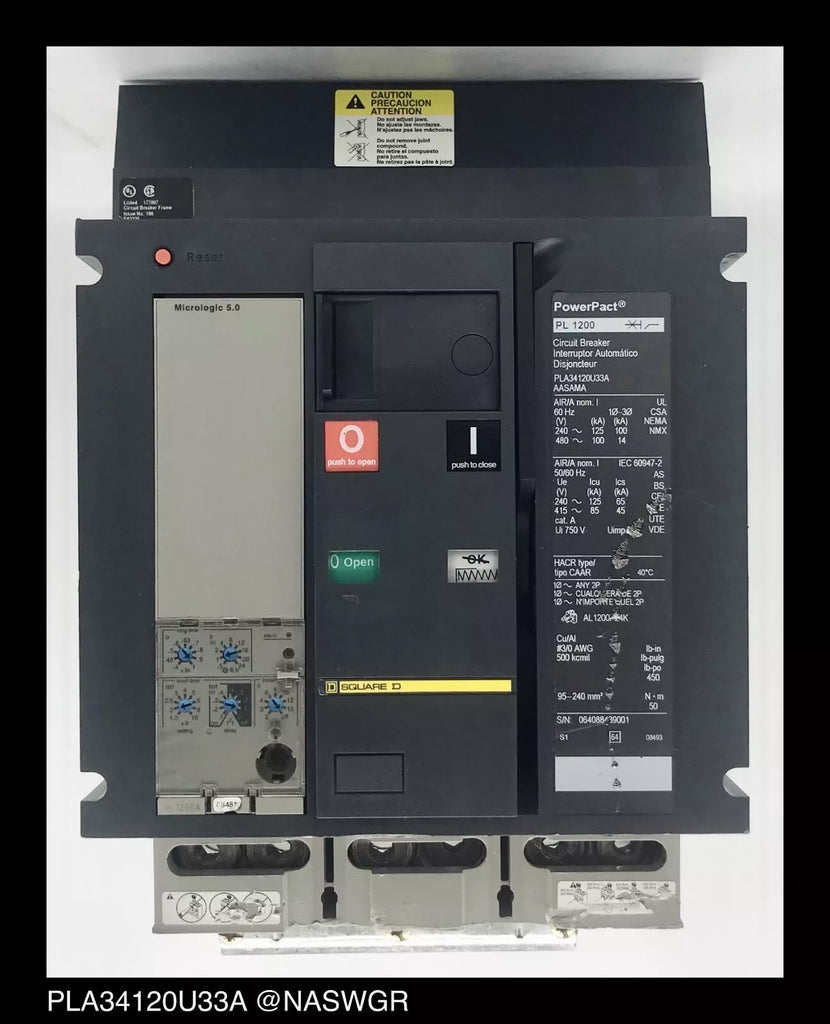

Square D PowerPact PL1200 Circuit Breaker (E/O,B/I) - 1200 Amp
by Square D
Contact for Quote: 800-909-3660 | sales@naswgr.com
PL1200
Square D PowerPact Circuit Breaker
Cat#: PLA34120U33A
Circuit Breaker Frame Amperage: 1200A
Interrupting Rating: 100kA @ 480VAC / 125kA @ 240VAC
Amperage Rating: 1200A
Voltage: 480V

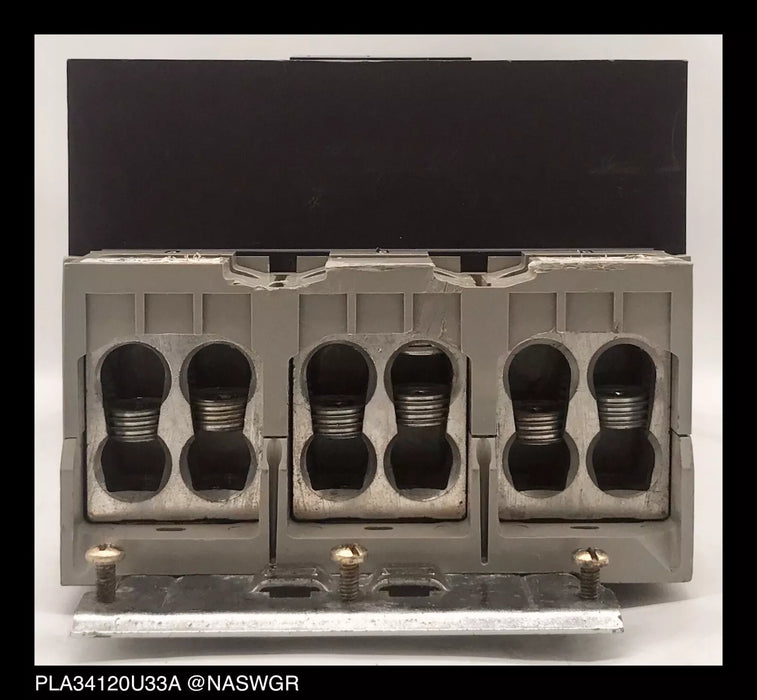

Connection: I-Line
Poles: 3
Circuit Breaker is equipped with the following accessories
Micrologic 6.0A Trip Unit
PN: S144A
Functions: LSIG
Rating Plug: 1200A
Micrologic 6.0A Trip Unit
PN: S144A
Functions: LSIG
Rating Plug: 1200A
*Micrologic 5.0 are Available*
PJ Power Pact Breaker MCH / XM Motor Mechanism
PN: 33176
Voltage: 110 - 130VAC
Square D S33661 MX-XF / SHT-SCH
Shunt Trip, Secondary Shunt Trip & Closed Coil
Voltage: 100 - 130V AC / DC
Quantity: 3 (S33661)
Full Breaker Catalog Number PLA34120U33AAASAMA
PJ Power Pact Breaker MCH / XM Motor Mechanism
PN: 33176
Voltage: 110 - 130VAC
Square D S33661 MX-XF / SHT-SCH
Shunt Trip, Secondary Shunt Trip & Closed Coil
Voltage: 100 - 130V AC / DC
Quantity: 3 (S33661)
Full Breaker Catalog Number PLA34120U33AAASAMA
Each PowerPact Circuit Breaker is Cleaned, Tested with Report, and Carries our One Year Warranty.
