WLL3A340

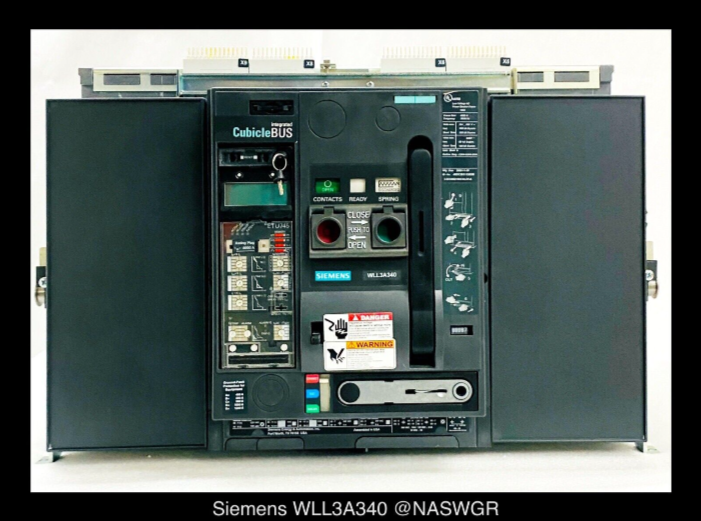

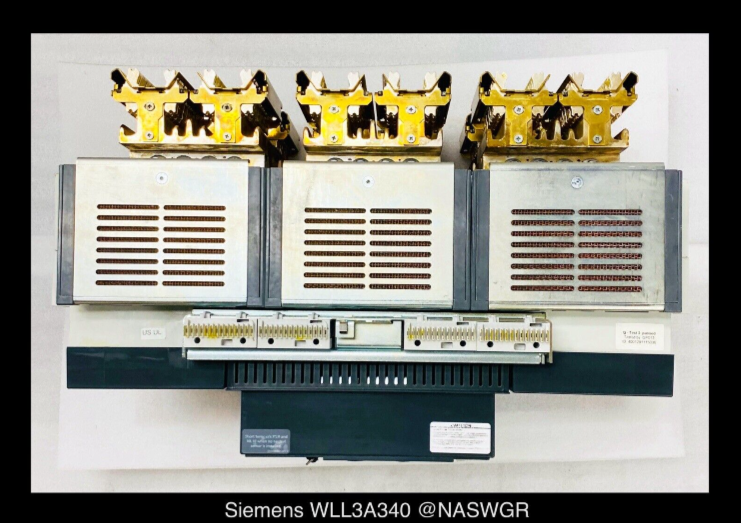

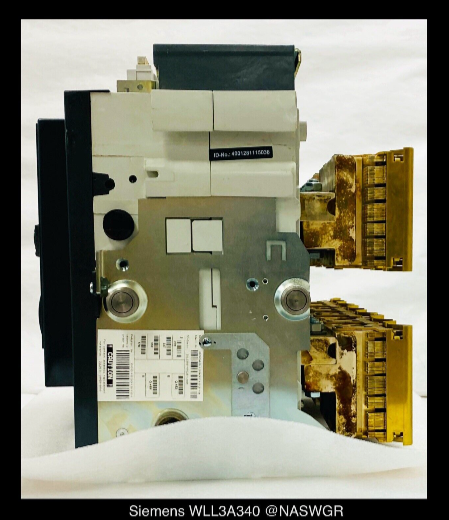

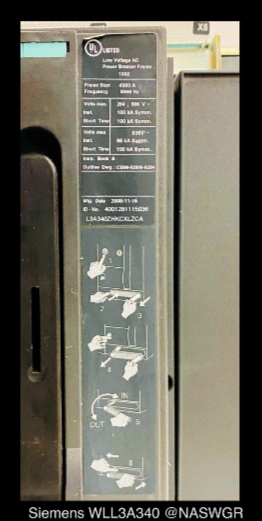

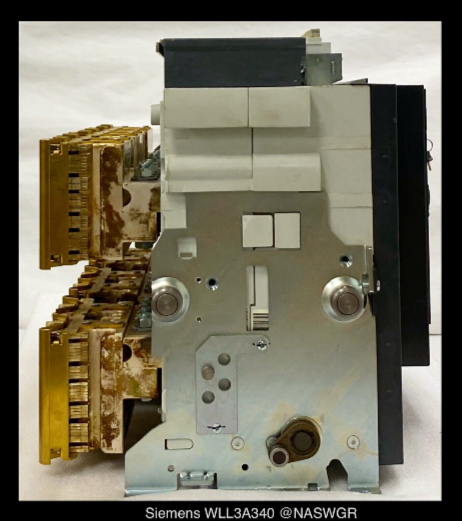

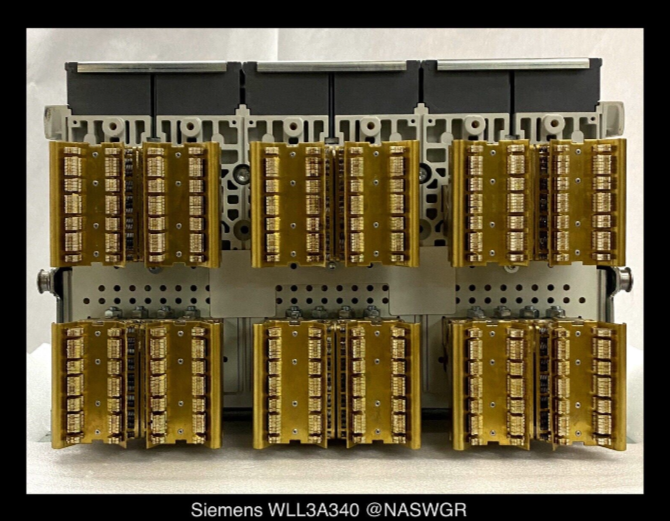

Siemens WL WLL3A340 Circuit Breaker
Cat#: L3A340ZHKCXLZCA

WL Catalog Break Down
L - Interrupting/ Withstand Rating @ 100/100/85kA
3 - Frame Size 3
A - Drawout
3 - 3 Pole
40 - 4000 Amp Frame
Z - 4000 Amp Rating Plug

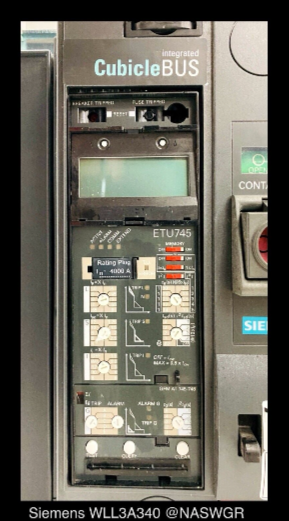

H - ETU745 (LSIG) w/ LCD Display
K - Bell Alarm form C, Ready-to-Close Contact 1b, Auxiliary Contacts 4a/4b
C - 120vAC/125vDC Shunt Trip
X - No UV or 2nd Shunt Trip
L - 120vAC/125vDC Motor Operator and Operations Counter
Z - 120vAC/125vDC Close Coil, Modbus Comms, Power Metering Capability
C - Padlockable Pushbutton Cover
A - additional components are included as part of the guide frame order from OEM - Not Included.

NAS can modify breaker to your accessory configuration. Message us your Catalog # to see if we can fulfill your needs!

Each WLL3A340 is Cleaned, Tested with Report, and Carries our One Year Warranty.

Call 800-909-3660 or email sales@naswgr.com with questions.

After hours emergency hotline 216-570-2725

NASG17555/56JP    Location:

North American Switchgear, Inc. is an industry leader in the sale of new, used and out-of-production industrial circuit breakers, switchgear and associated parts. Our Cleveland, OH facility spans over 300,000 square feet and houses over 13,000 low and medium voltage circuit breakers from all major manufacturers. Aside from the sale of circuit breakers, switchgear and replacement parts, NAS also offers equipment recondition and repair services. For more information please visit our website at www.naswgr.com, call 800-909-3660 or email sales@naswgr.com.
