WLL2A332

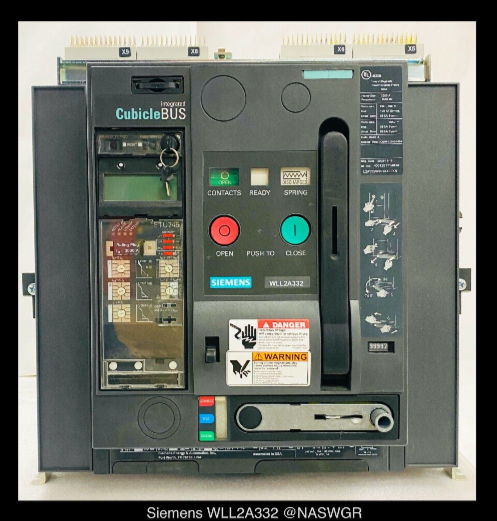

Siemens WL WLL2A332 Circuit Breaker
Cat#: L2A332WDGXXLLXN

WL Catalog Break Down
L - Interrupting/Withstand Rating @ 100/100/85kA
2 - Frame Size 2
A - Drawout
3 - 3 Pole
32 - 3200 Amp Frame
W - 3000 Amp Rating Plug

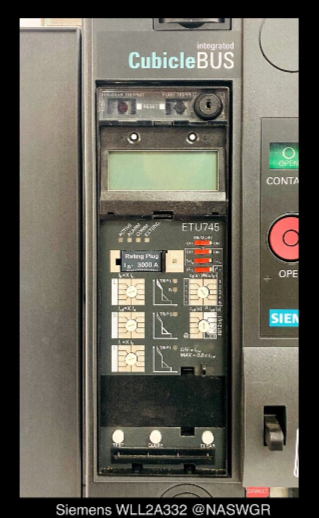

D - ETU745 (LSI) w/ LCD Screen
G - Bell Alarm and 4a/4b Auxiliary Contacts
X - No Shunt Trip
X - No UV or 2nd Shunt Trip
L - 120vAC/125vDC Motor Operator and Operations Counter
L - No Close Coil - Power Metering Capable, Modbus Communications
X - No Padlock Provisions
N - No Additional Accessories

NAS can modify breaker to your accessory configuration. Message us your Catalog # to see if we can fulfill your needs!

Each WLL2A332 is Cleaned, Tested with Report, and Carries our One Year Warranty.

Call 800-909-3660 or email sales@naswgr.com with questions.

After hours emergency hotline 216-570-2725

NASG17507/08/10JP  Location:

North American Switchgear, Inc. is an industry leader in the sale of new, used and out-of-production industrial circuit breakers, switchgear and associated parts. Our Cleveland, OH facility spans over 300,000 square feet and houses over 13,000 low and medium voltage circuit breakers from all major manufacturers. Aside from the sale of circuit breakers, switchgear and replacement parts, NAS also offers equipment recondition and repair services. For more information please visit our website at www.naswgr.com, call 800-909-3660 or email sales@naswgr.com.
