Eaton Magnum SB SBSC16 Circuit Breaker (E/O,D/O) - 1600 Amp
Contact for Quote: 800-909-3660 | sales@naswgr.com
SBSC16

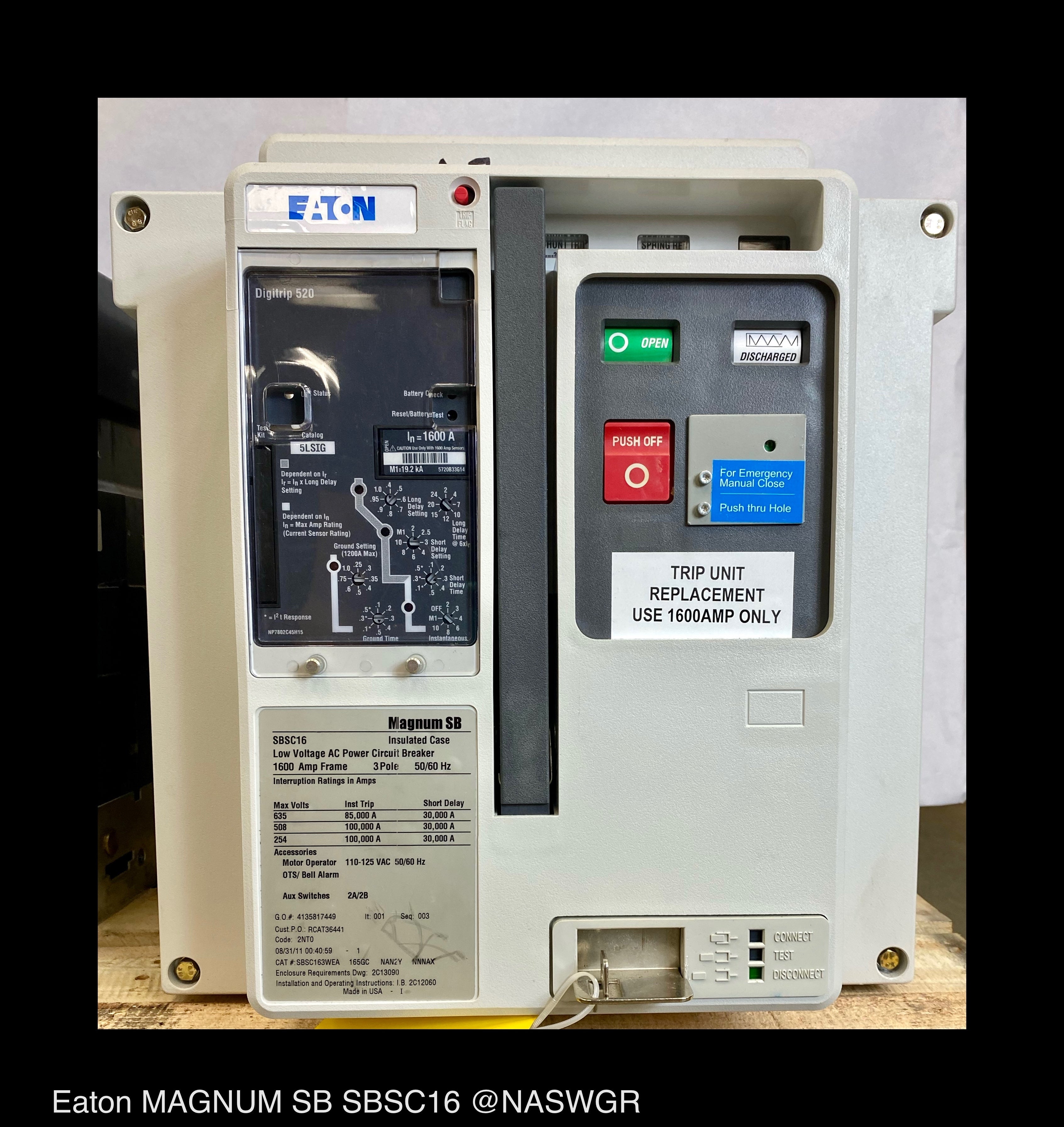

Eaton Magnum SB SBSC16 Circuit Breaker

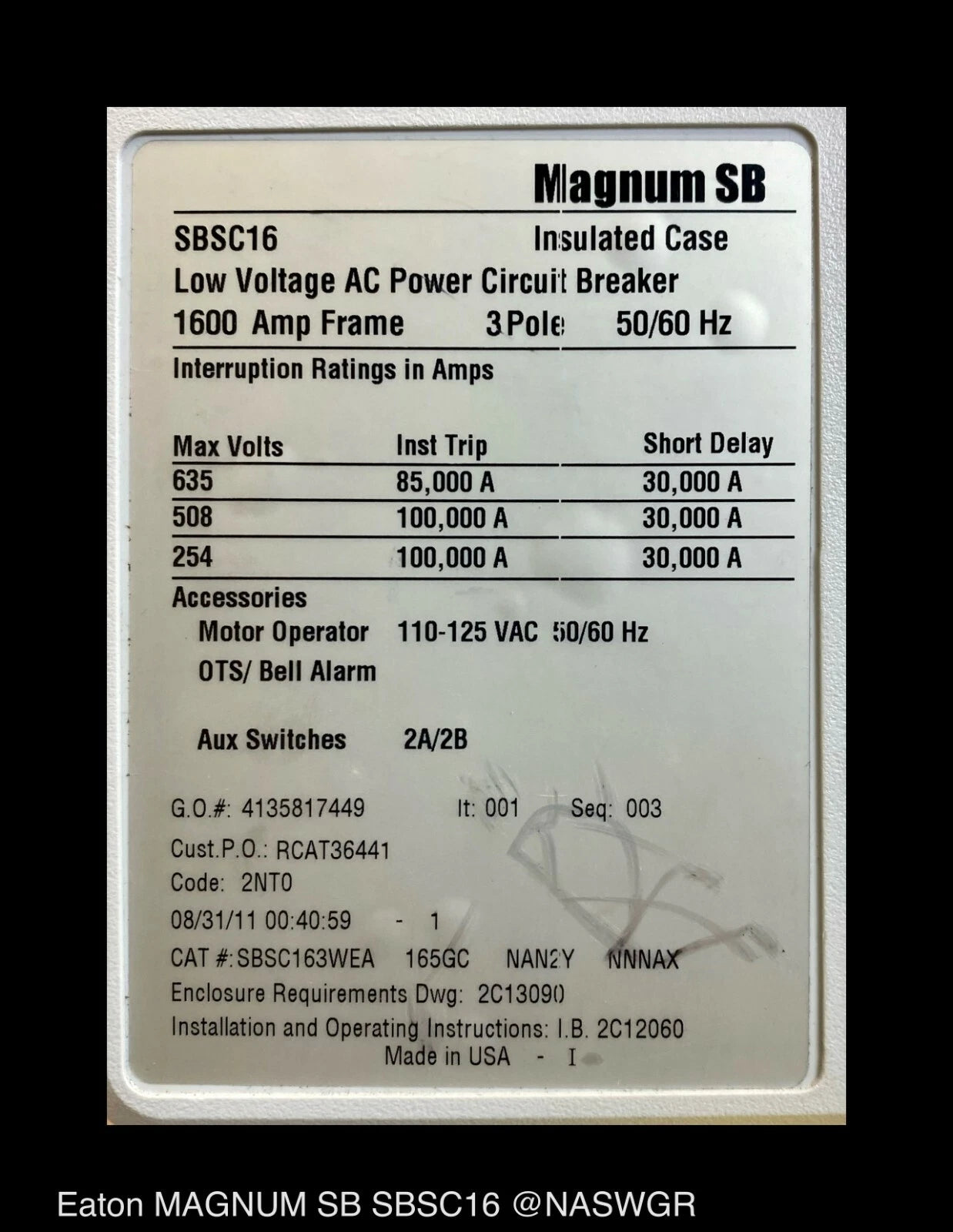

Cat#: SBSC163WEA 165GC NAN2Y NNNAX
Magnum SB Catalog Breakdown
SB - Magnum Switchboard
S - Standard Frame
C - Interrupting/ Withstand Rating @ 100k
16 - 1600 Amp Frame
3 - 3 Pole
W - Drawout
E - English Nameplate
A - Non-DSL
16 - 1600 Amp Sensors & Rating Plug
5G - 520 (LSIG)
C - 24Vdc Shunt Trip
N - 110-125Vac (5-sec) Motor Operator
A - 110-127Vac/Vdc Spring Release
N - No UVR Device
2 - 2A/2B Auxiliary Switch
Y - Mech Trip Indicator, No Mech Interlock, Bell Alarm/OTS
N - No Padlock for Blocking Close
N - No Operations Counter
N - No Latch Check Switch
A - Fixed breaker alone with door kit
X - All Breakers

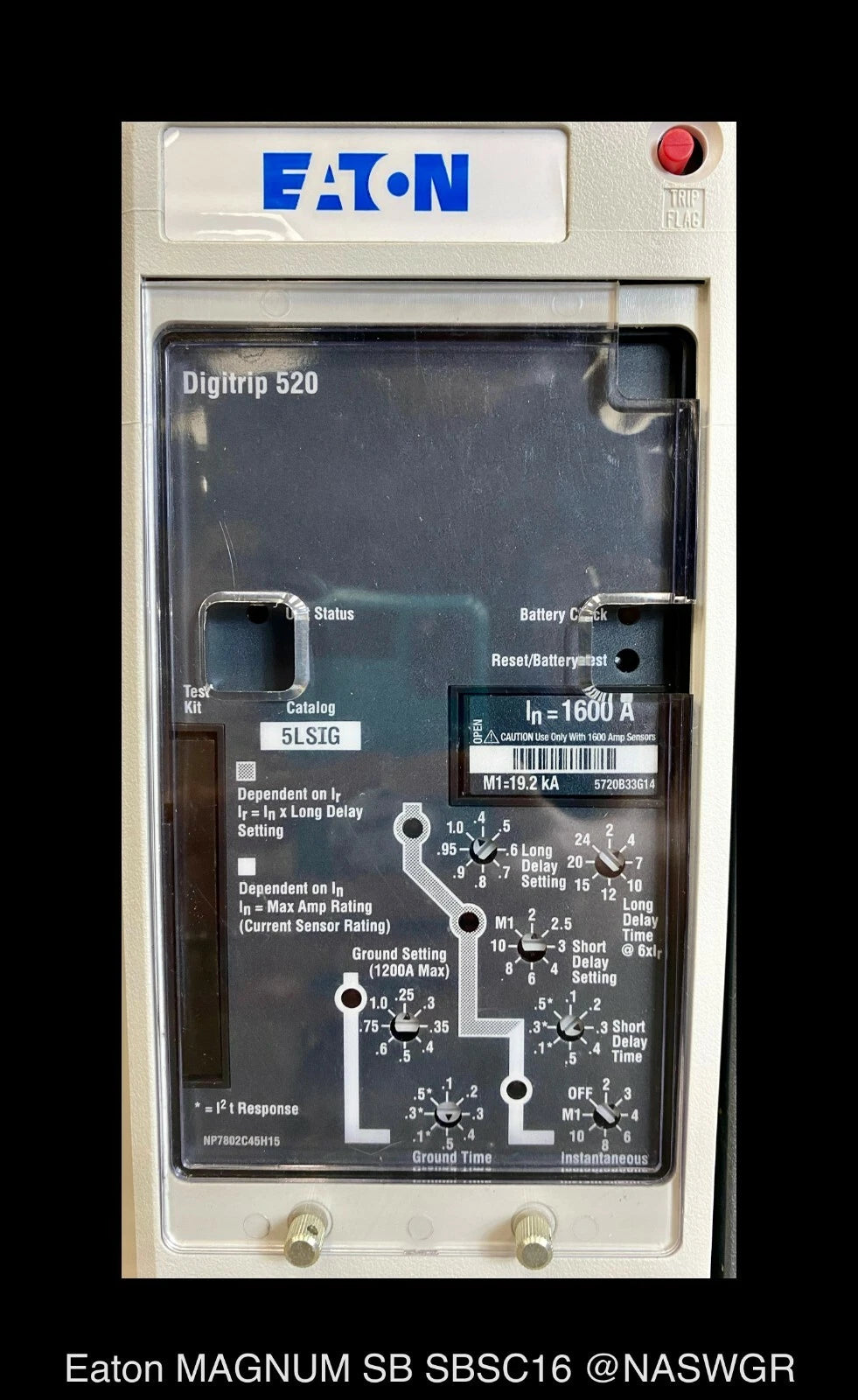

Digitrip 520 Cat#: 5LSIG
Rating Plug Cat#: 5720B33G14
NAS can modify breaker to your accessory configuration. Message us your Catalog # to see if we can match your needs!
Each SBSC16 is Cleaned, Tested with Report, and Carries our One Year Warranty.
Must ship via freight on a pallet. Please contact for freight quote.
Call 800-909-3660 or email sales@naswgr.com with questions.
After hours emergency hotline 216-570-2725
NASG16006EB, NASG16008EB Location: 6451B,A
NASG16017EB, NASG16018EB Location: 6455B,B
NASG16020EB Location: 6449B,B
