MDN608

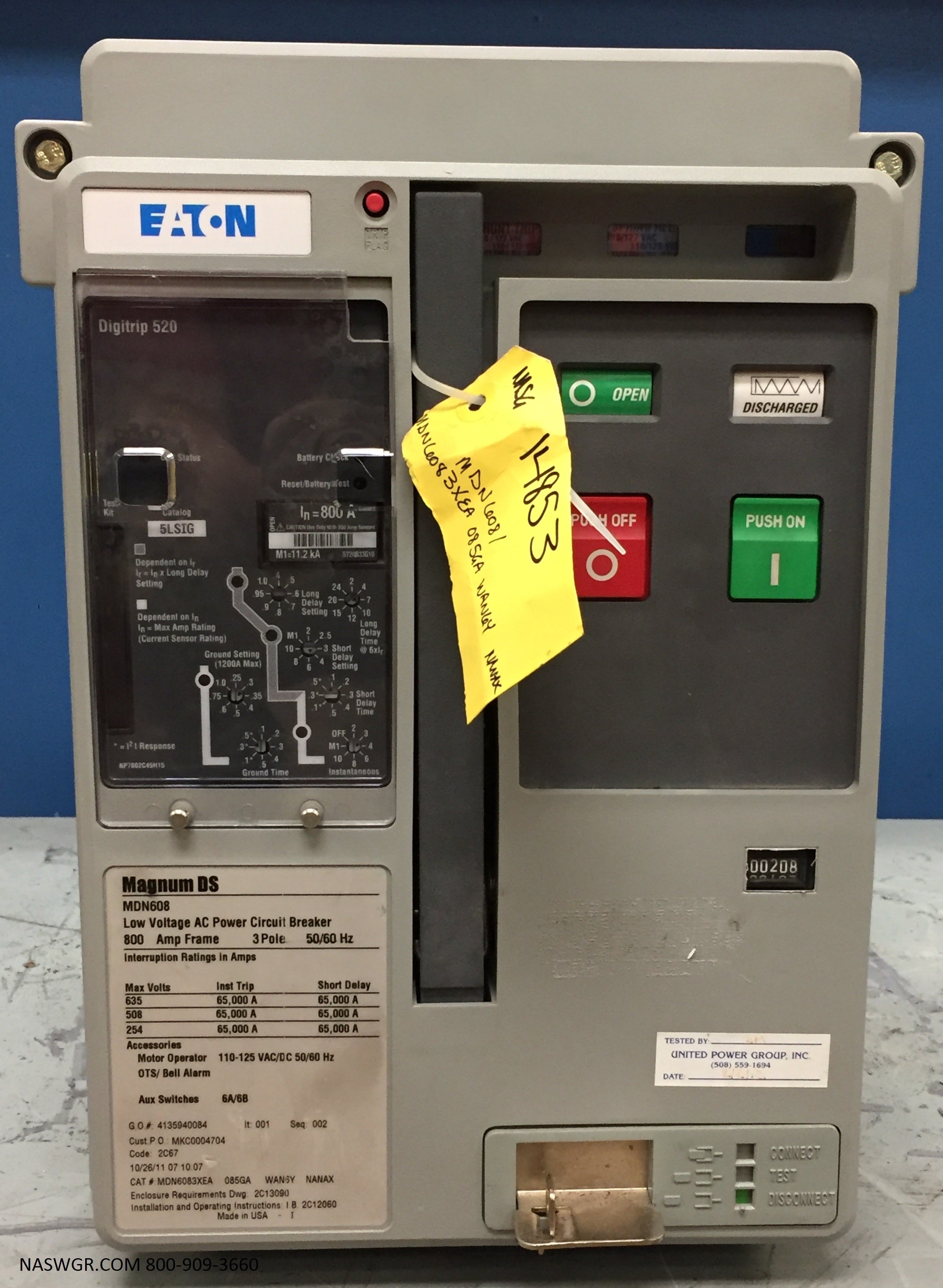

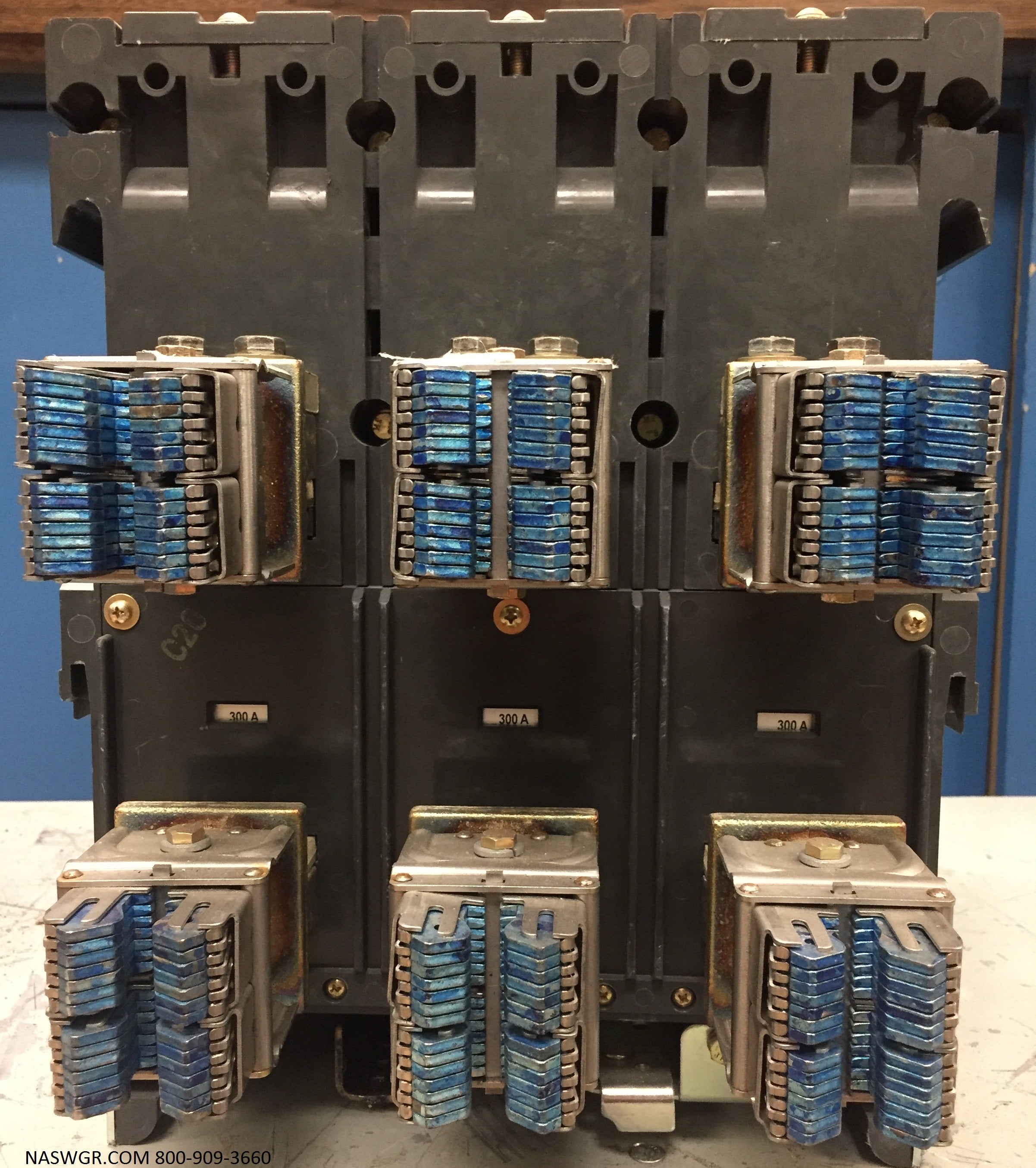

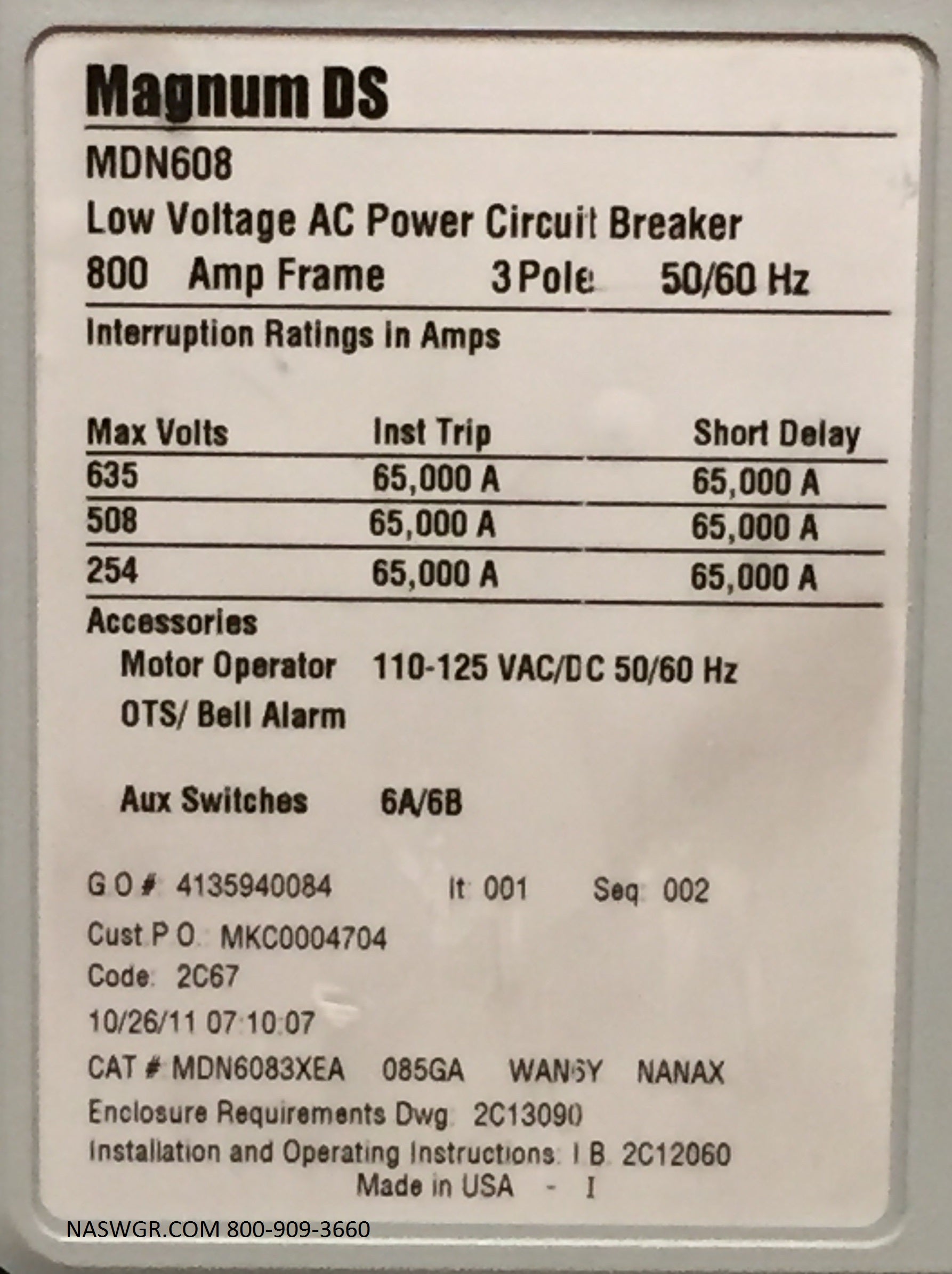

Eaton Magnum DS MDN608 Circuit Breaker
Cat#: MDN6083XEA 085GA WAN6Y NANAX
Magnum DS Catalog Breakdown
MD - Magnum DS Breaker
N - Narrow Frame
6 - Interrupting/ Withstand Rating @ 65k
08 - 800 Amp Frame
3 - 3 Pole
X - Special, Mounting Configuration
E - English Nameplate
A - Non-DSL
08 - 800 Amp Sensors and Rating Plug
5G - 520 (LSIG)
A - 110–127 Vac/Vdc Shunt Trip
W - 110–125 Vdc (5-sec) Motor Operator
A - 110–127 Vac/Vdc Spring Release Device
N - No UVR Device
6 - 6A/6B Auxiliary Switch
Y - Mech Trip Indicator and Bell Alarm/OTS
N - No Padlock
A - Operations Counter
N - No Latch Check Switch
A - Shipping Instruction
X - All Breakers, Future Use

Digitrip 520 Cat#: 5LSIG
Rating Plug Cat#: 5720B33G10

NAS can modify breaker to your accessory configuration. Message us your Catalog # to see if we can match your needs!

Each MDN608 is Cleaned, Tested with Report, and Carries our One Year Warranty.

Must ship via freight on a pallet. Please contact for freight quote.

Call 800-909-3660 or emailsales@naswgr.comwith questions.

 NASG14866  Location: 6464B,A
