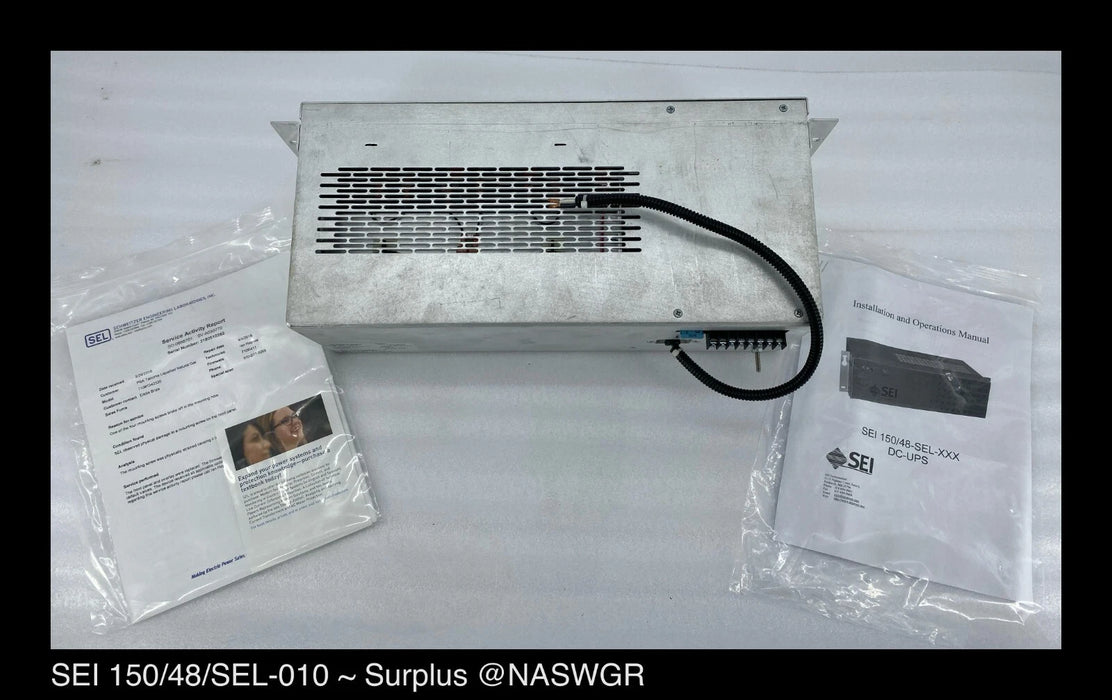

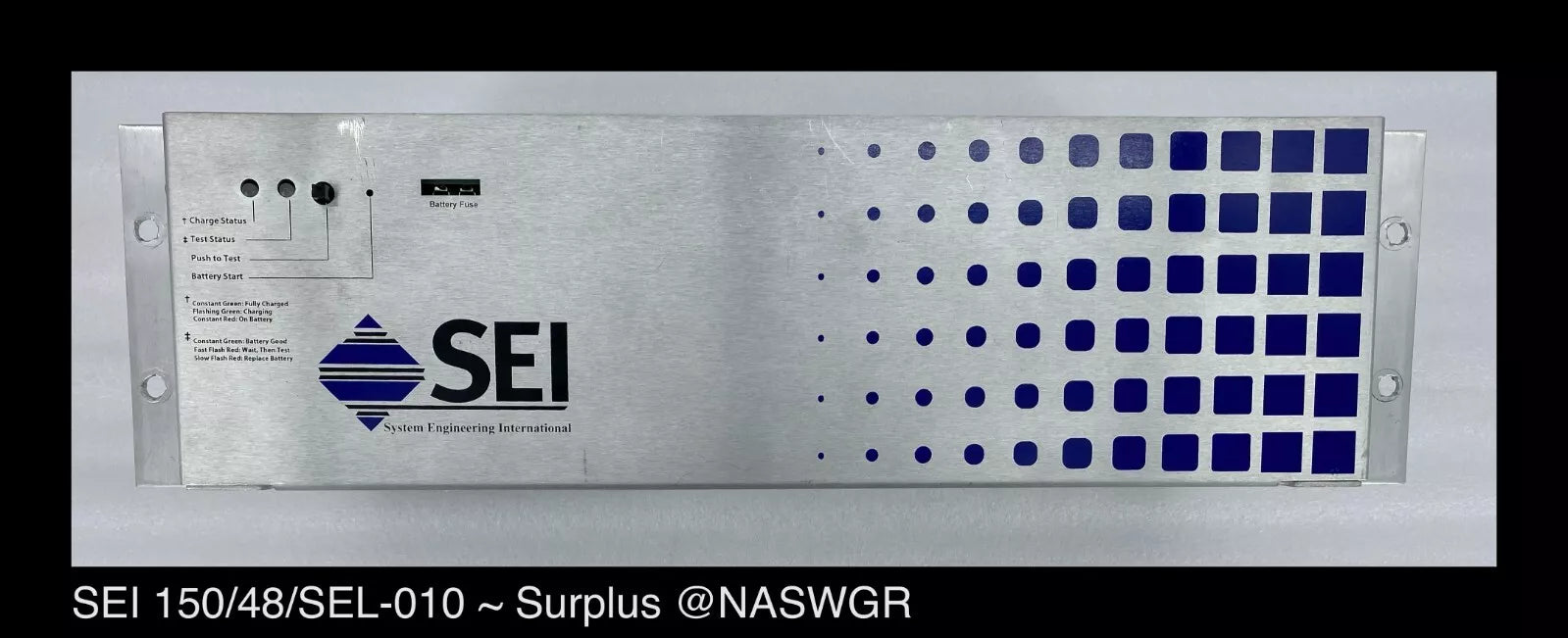

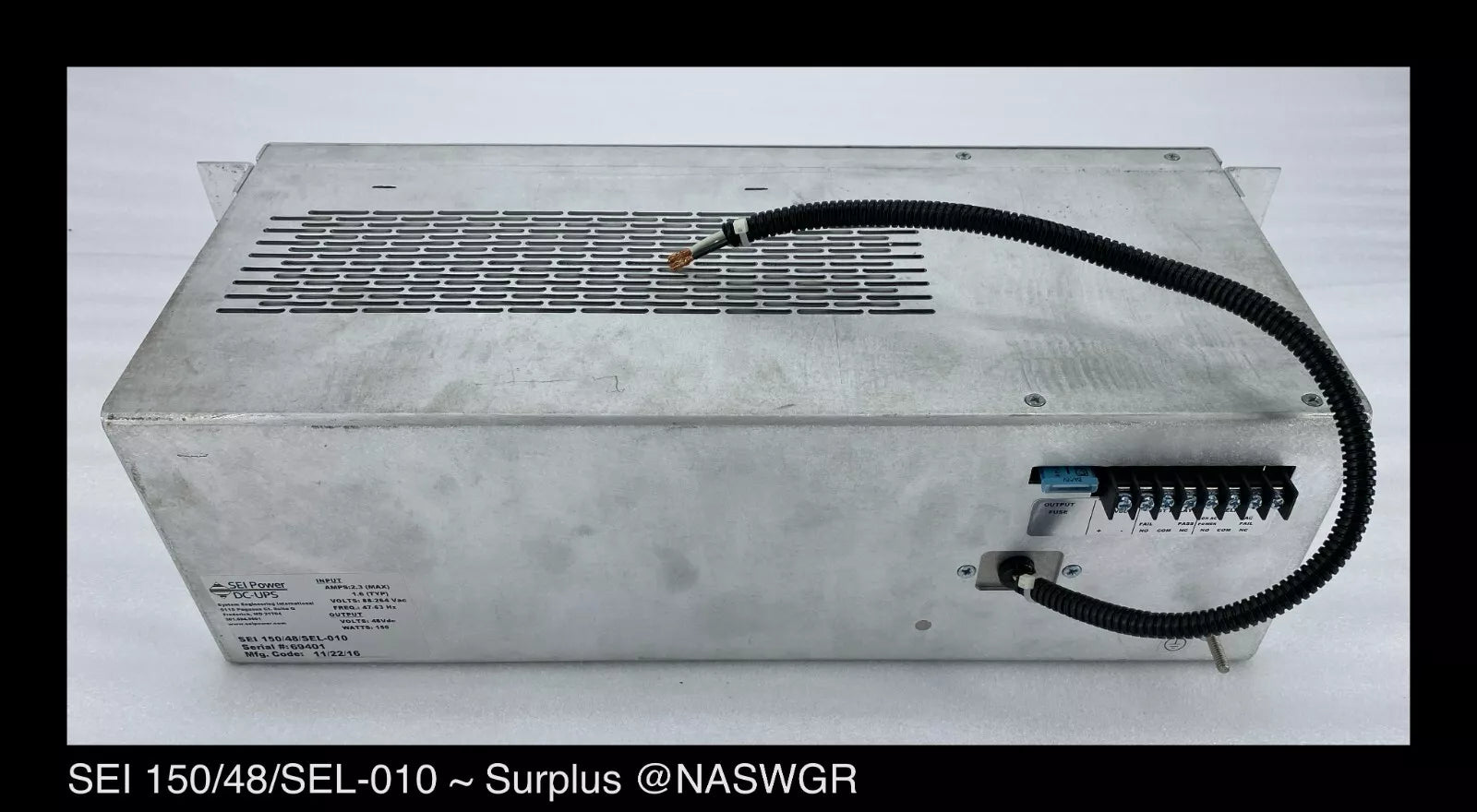

SEI Power 150/48/SEL-010 Uninterruptible Power System - Surplus
Contact for Quote: 800-909-3660 | sales@naswgr.com
SEI 150/48/SEL-010
SEI Power Uninterrupted Power System
SEI 150/48-SEL-X 48 Vdc, 2.7 amp (150 watt) power unit with integrated 9Ah battery backup, one output connection, two alarm contact connections (power fail, battery test fail)
010 10 foot hardwired AC input, unterminated
HWP hardwired AC input, IEC type plug
IEC standard IEC style cord and plug
Technical Specifications
Electrical environmental standards
Input voltage: 85–264 VAC, 43–63 Hz
Output voltage: 54–55Vdc when on AC, 42–48Vdc when on battery
Temperature: Storage -20°C to 50°C, Operating -20°C to 50°C, Charging -20°C to +40°C
Humidity: 0–95% non-condensing
Optimum battery life will be achieved if the unit is stored and operated at a temperature of +25°C
Safety and emissions: Designed to comply with UL 60950 and with FCC Part 15, Class A
Technical Specifications Unit Specific

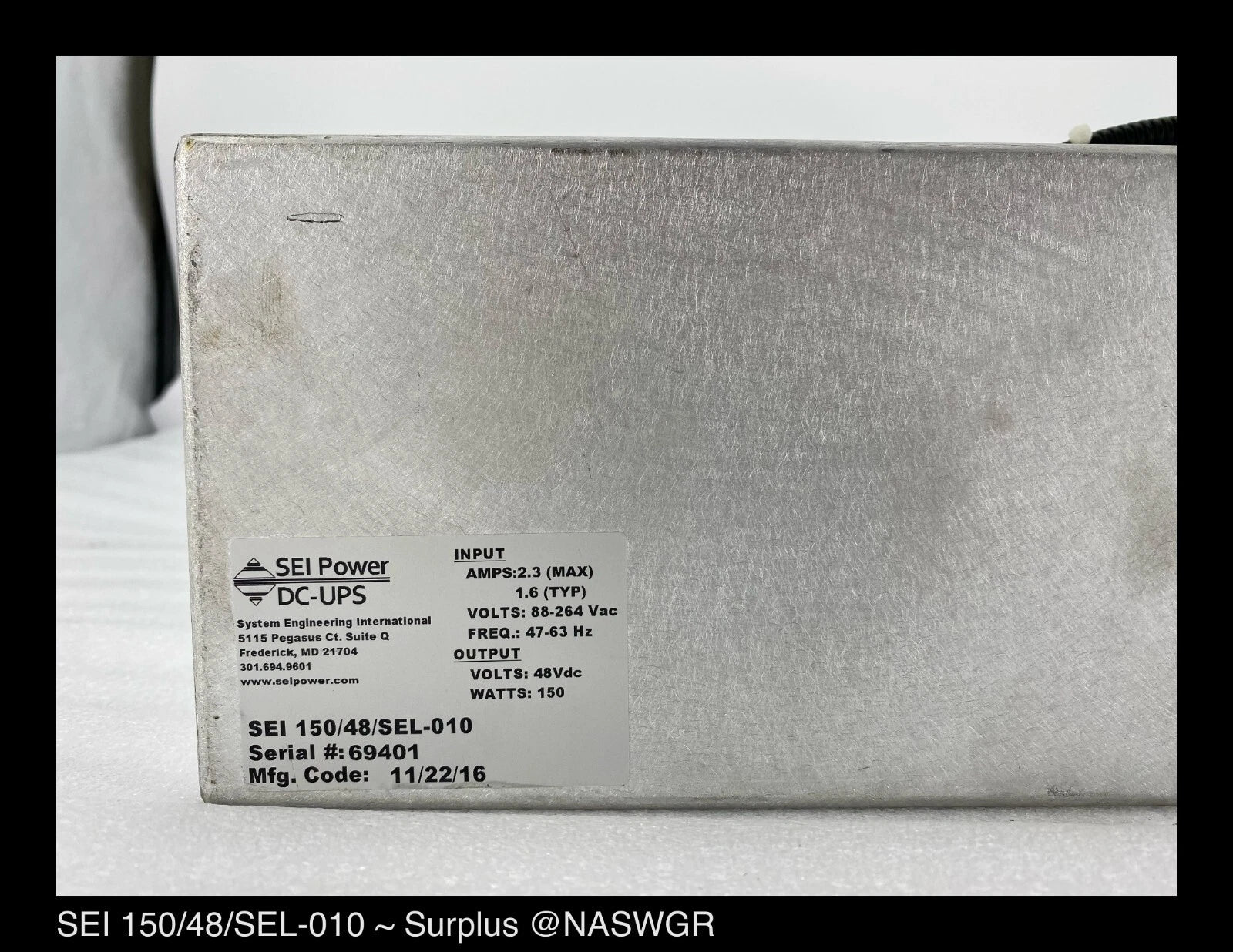

Model: SEI 150/48-SEL-XXX
Input current: 1.6 A max at 115 VAC input
Output current: 2.7 A / 150 watts max
Battery back-up duration: 130 minutes at full load, 260 minutes at half load, 650 minutes at 0.6A typical SEL load
Thermal load: 70 BTU/hr max
Each Unused 150/48/SEL-010 is Inspected Prior to Shipping and Carries our One Year Warranty.
Call 800-909-3660 or email sales@naswgr.com with questions.
After hours emergency hotline 216-570-2725
NASPG45541 Location: 844Z, BLDG 6
