Eaton / Cutler Hammer Ampgard Medium Voltage Control Cell Section- 1250HP/4160V
by Eaton / Cutler Hammer
Contact for Quote: 800-909-3660 | sales@naswgr.com

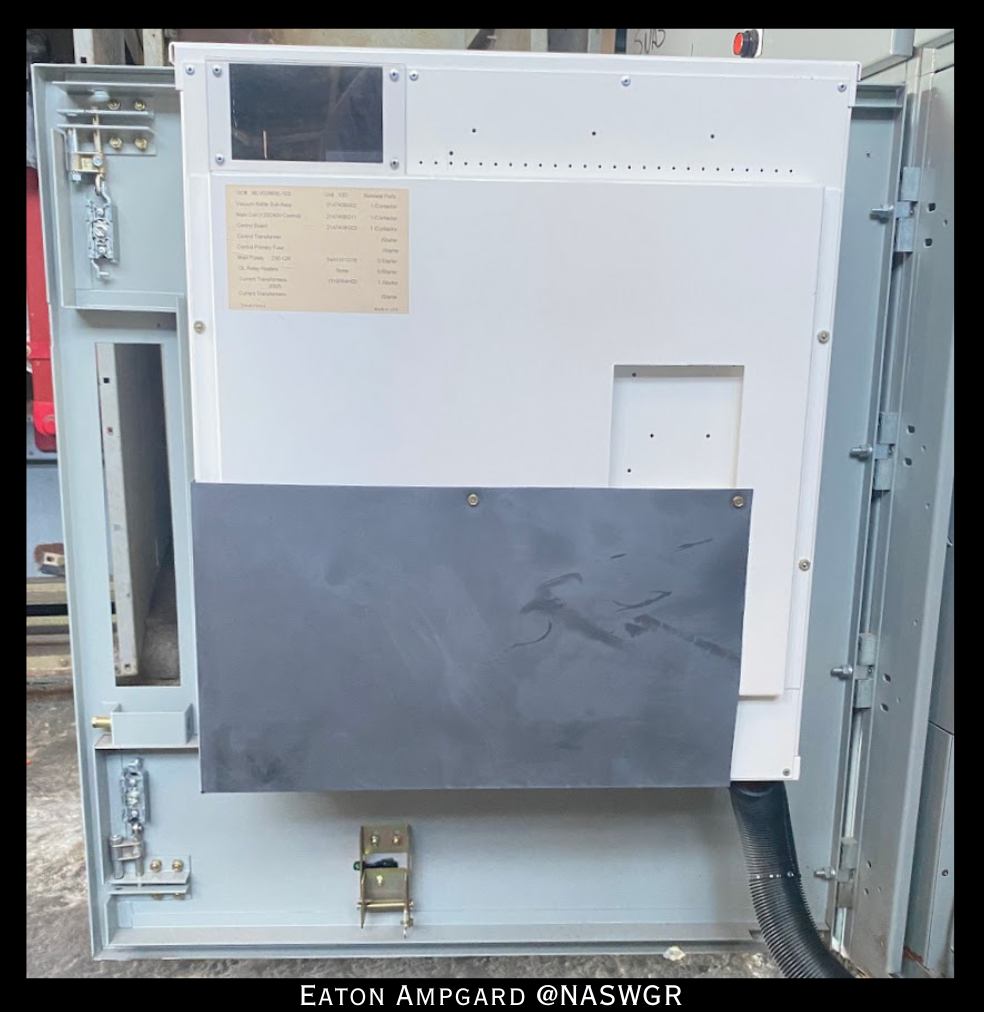

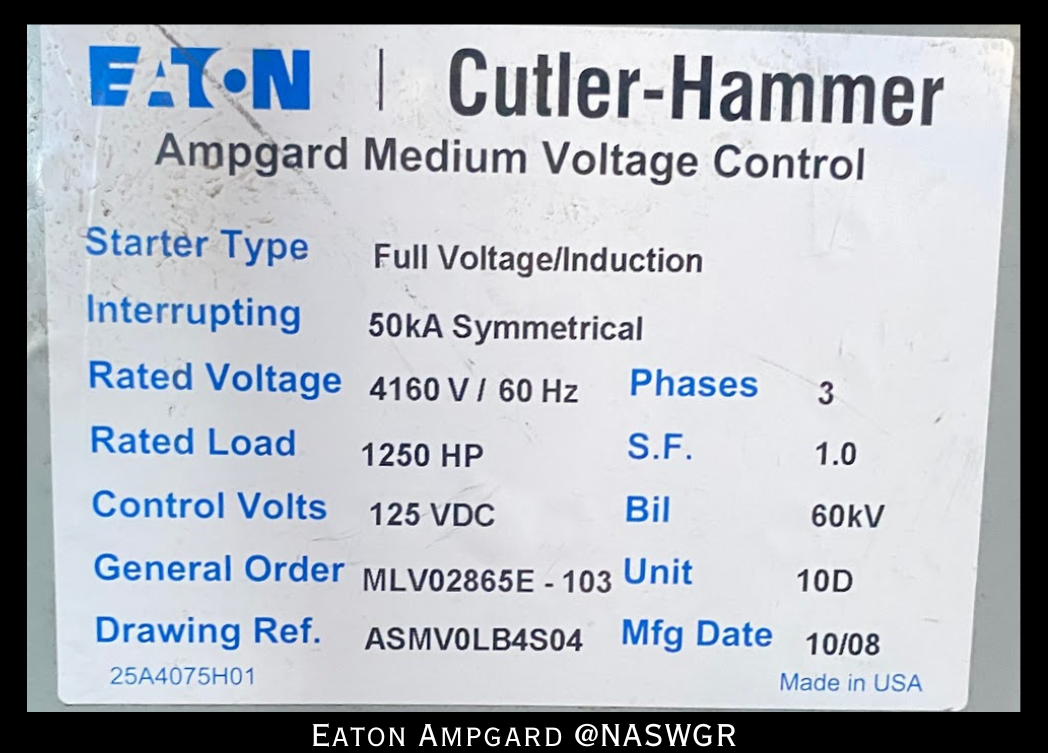

Eaton / Cutler Hammer Ampgard Medium Voltage Control
Eaton / Cutler Hammer Ampgard Medium Voltage Control
Starter Type: Full Voltage/Induction
Interrupting: 50kA Symmetrical
Rated Voltage: 4160V / 60Hz
Rated Load: 1250HP
Control Volts: 125vDC

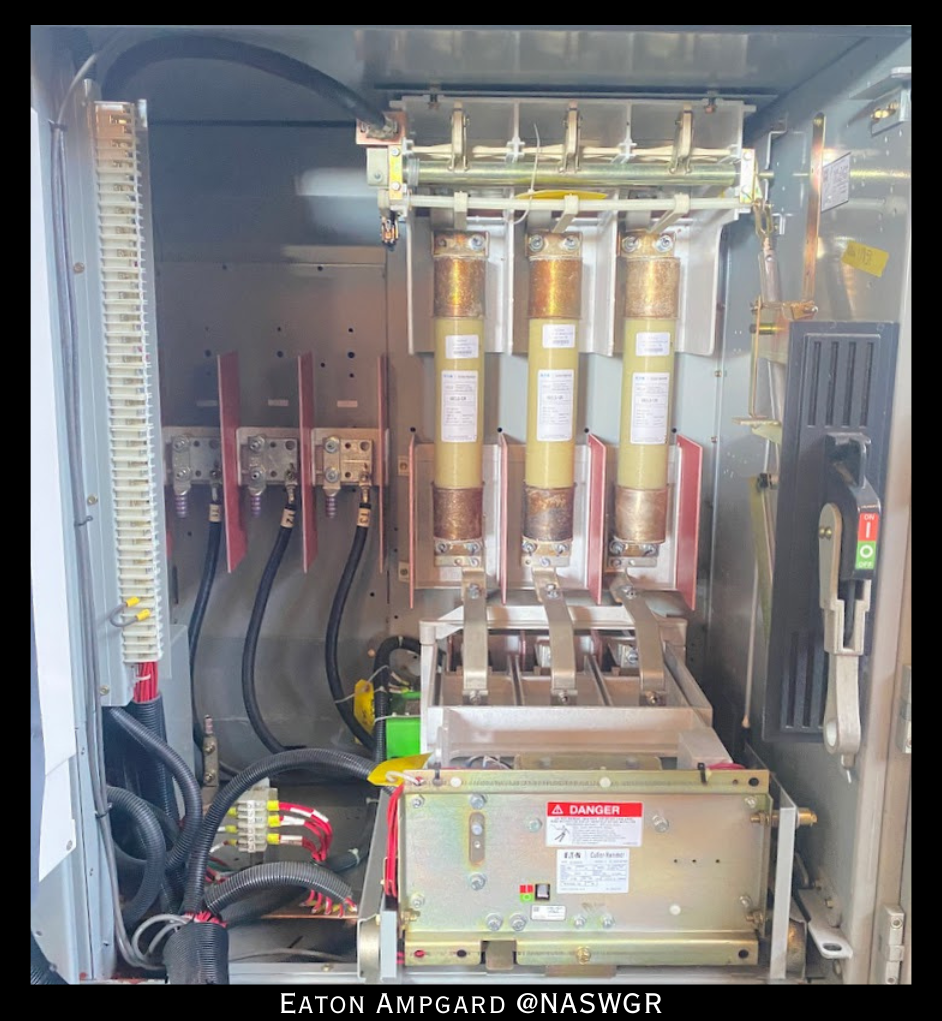

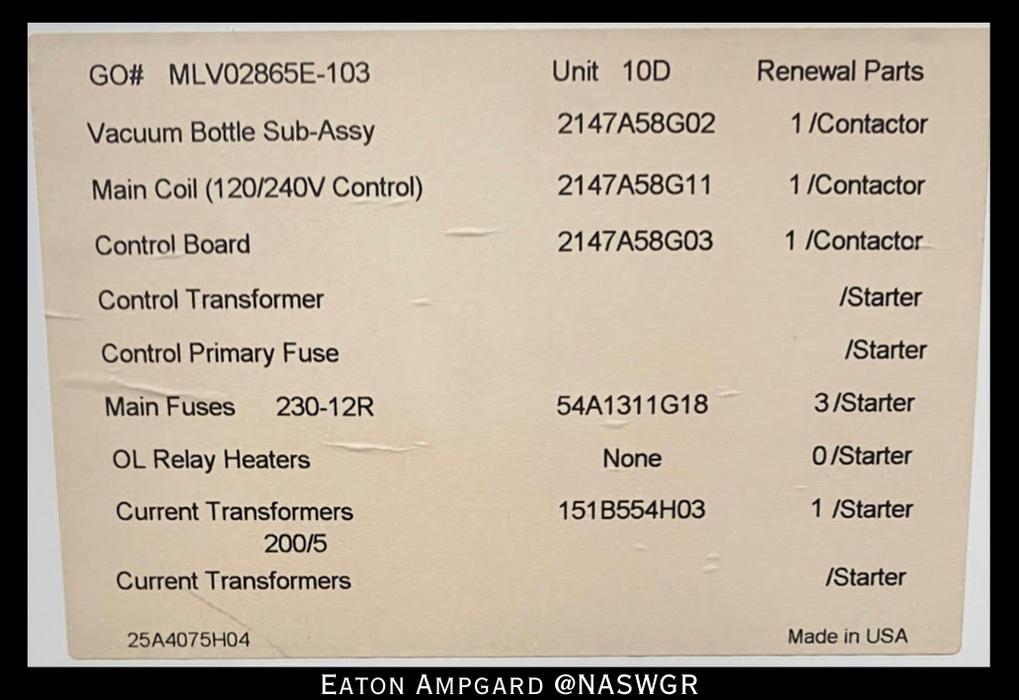

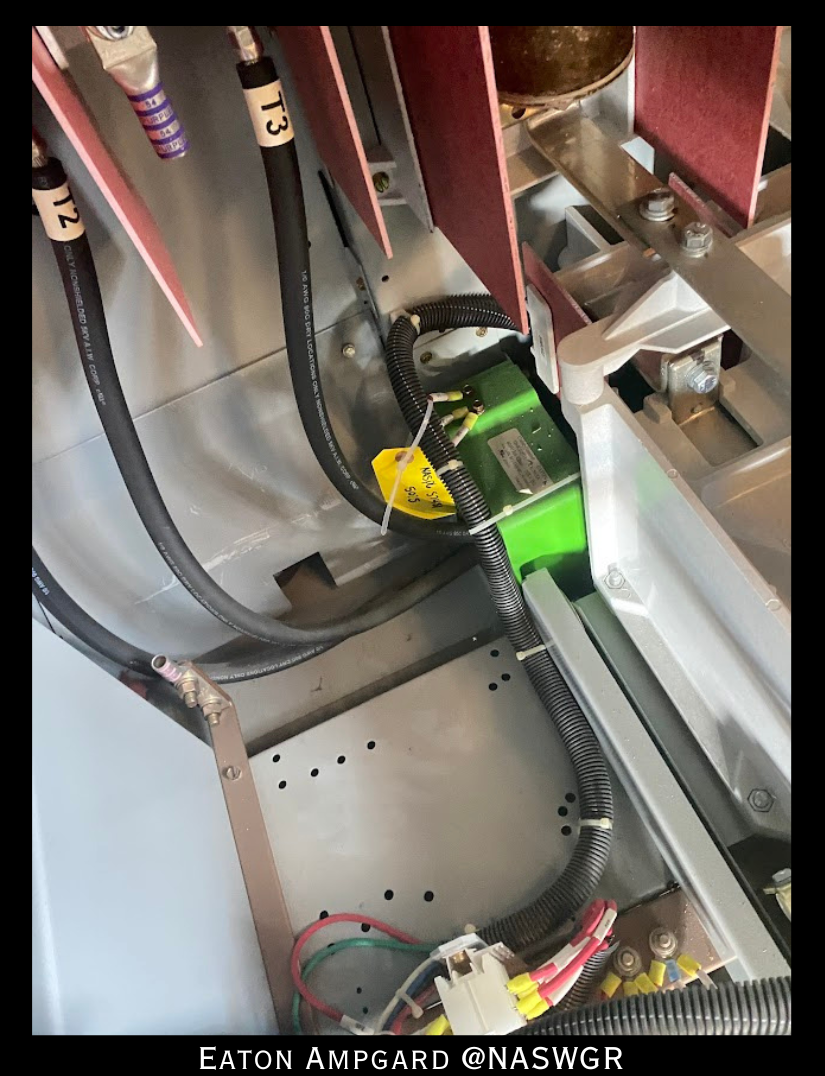

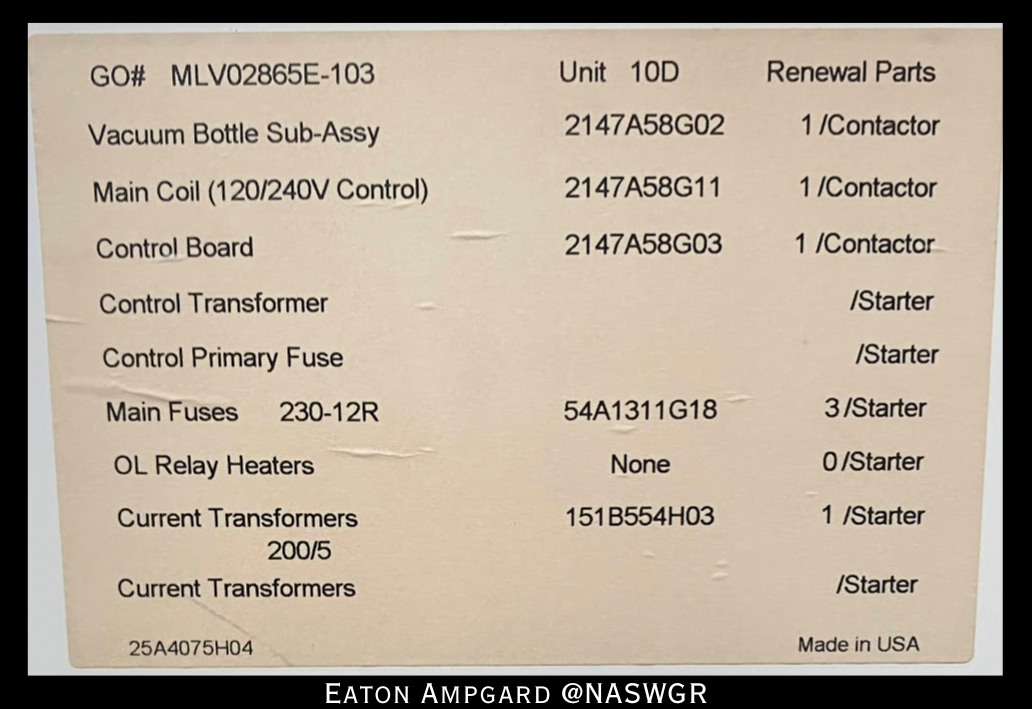

General Order: MLV02865E-103
Drawing Ref: ASMV0LB4S04
Phases: 3
S.F: 1.0
Bil: 60kV
Unit: 10D
MFG Date: 10/08

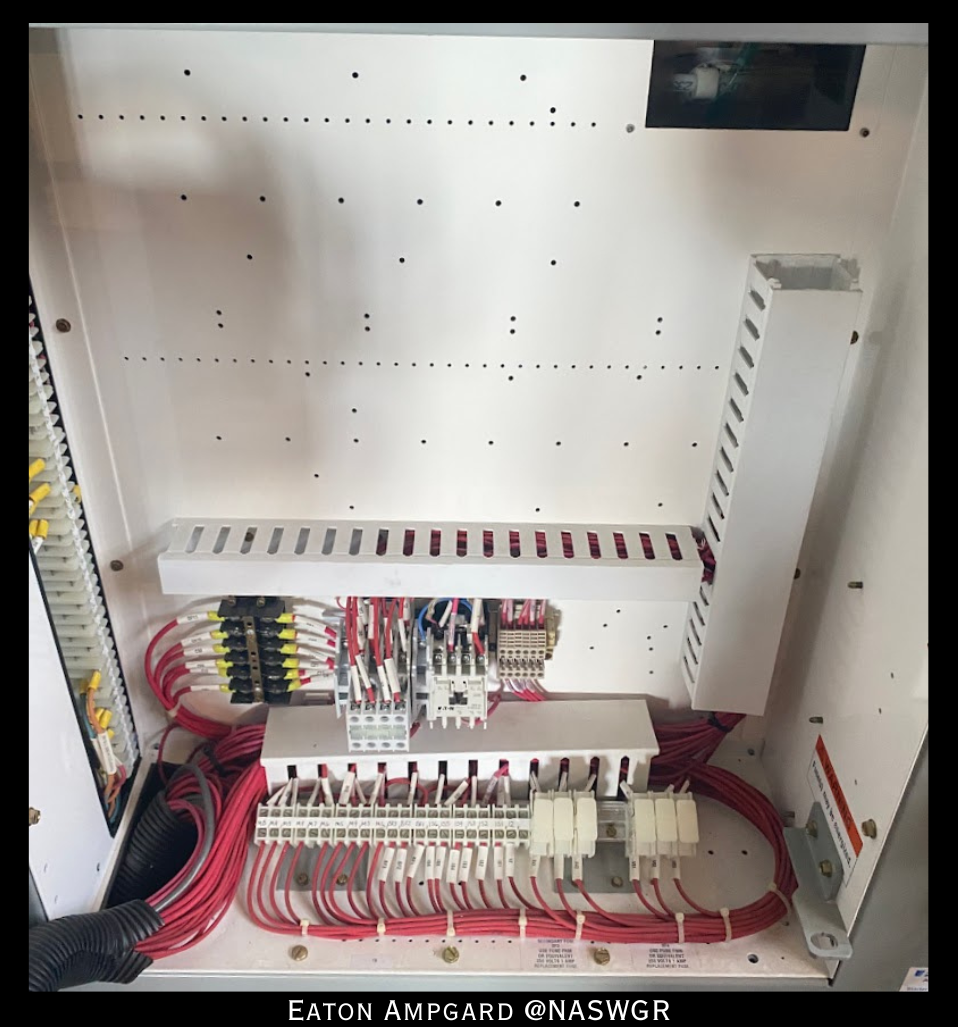

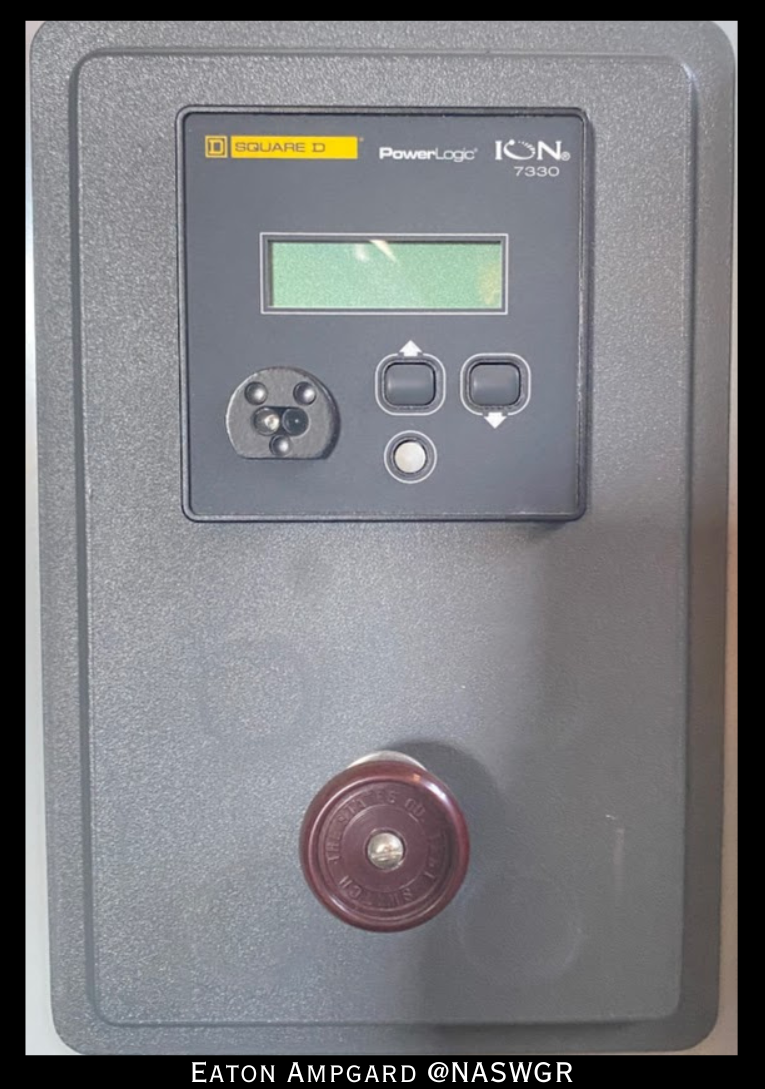

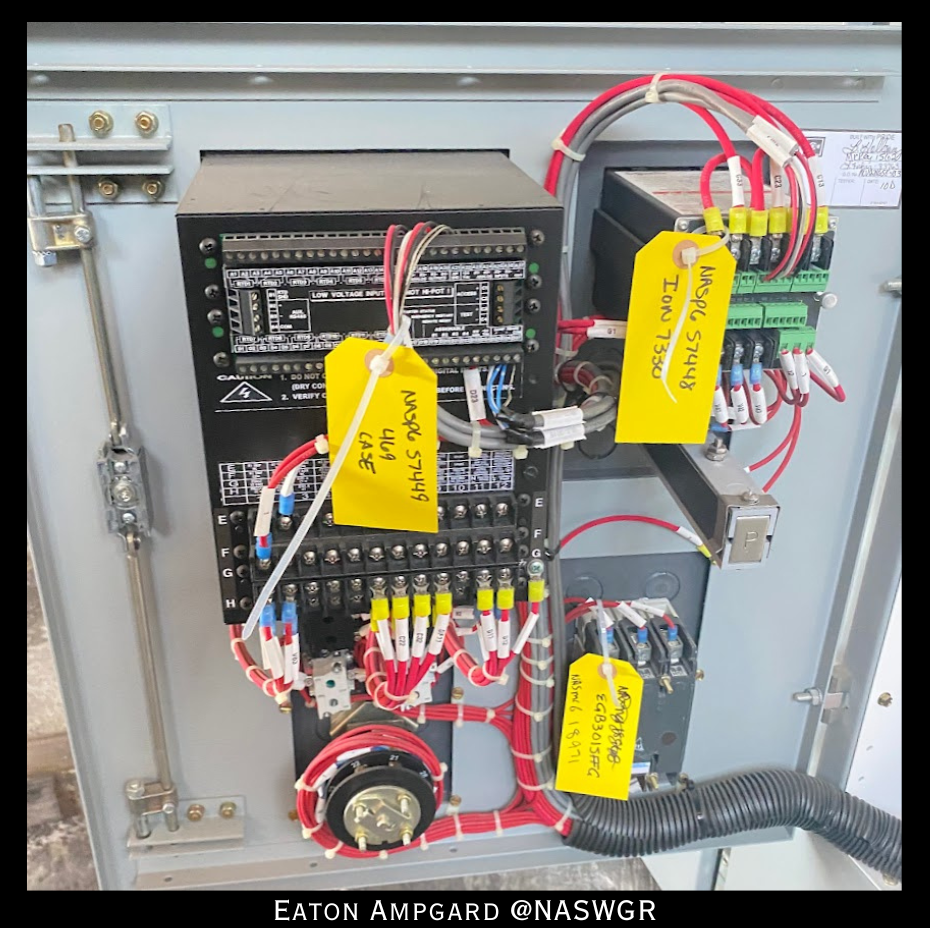

Square D ION7330 Power Logic Relay
Model#: ION7330
Style#: S7330A0B0B0A0K0A
Ratio Primary Voltage: 95-240V
Amperage: 0.3A
Eaton EGB3015FFG Industrial Circuit Breaker
Model#: E125B
Cat#: EGB3015FFG
Style#: 67B3600G25
Amperage: 15A
3 Phase
Eaton EGB3015FFG Industrial Circuit Breaker
Model#: E125B
Cat#: EGB3015FFG
Style#: 67B3600G25
Amperage: 15A
3 Phase

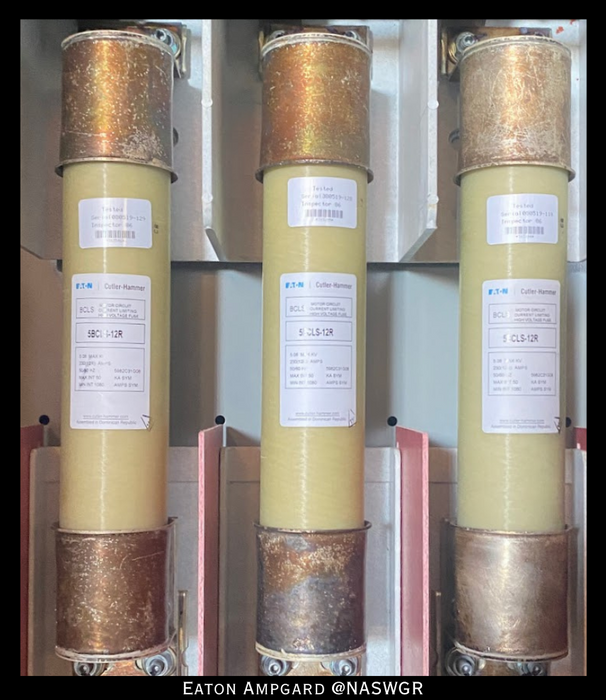

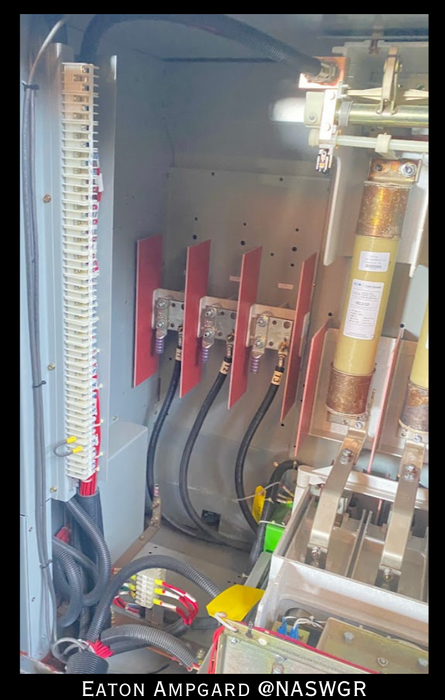

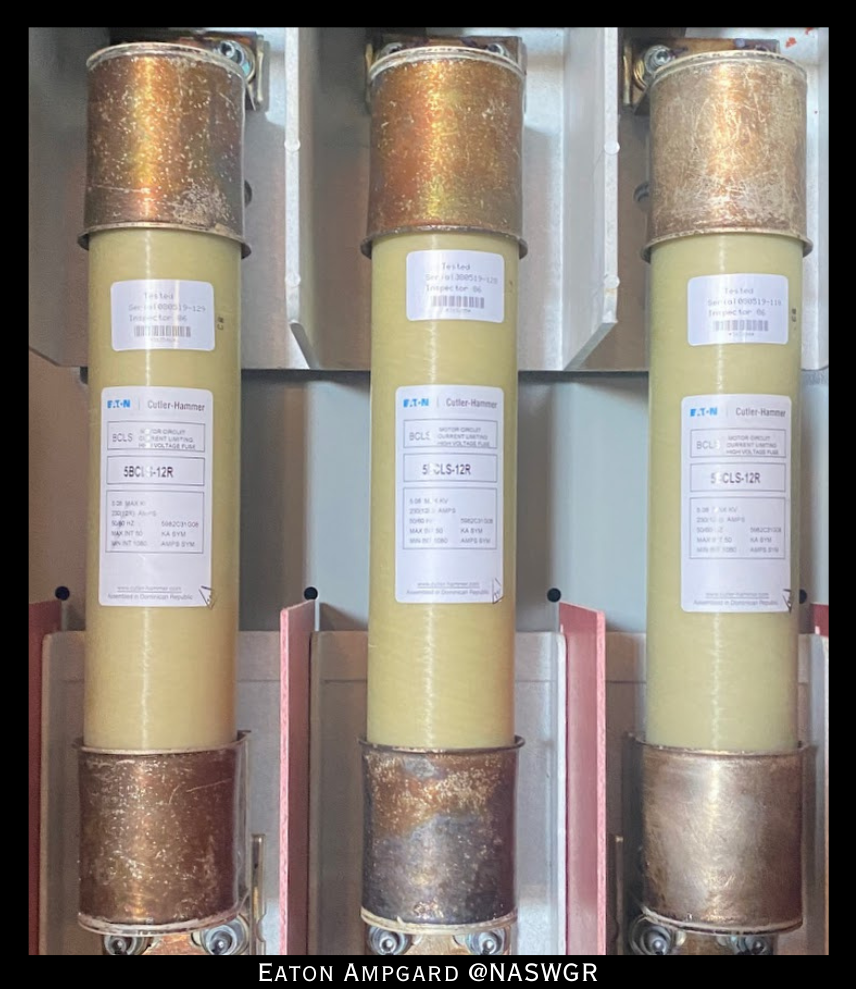

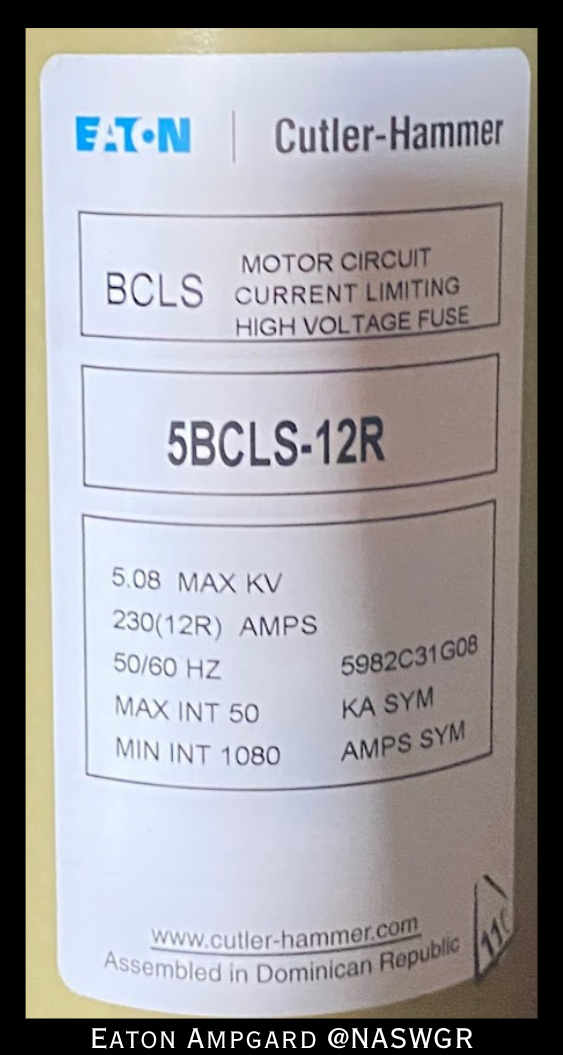

Eaton Cutler Hammer BCLS Current Limiting High Voltage Fuse 5BCLS-12R
Cat#: 5BCLS-12R
Voltage: 5.5kV
Amperage: 220(12R)
50/60 Hz
Style: 5983C02G15
Max INT 50 KA SYM
Min INT 1080 AMPS SYM

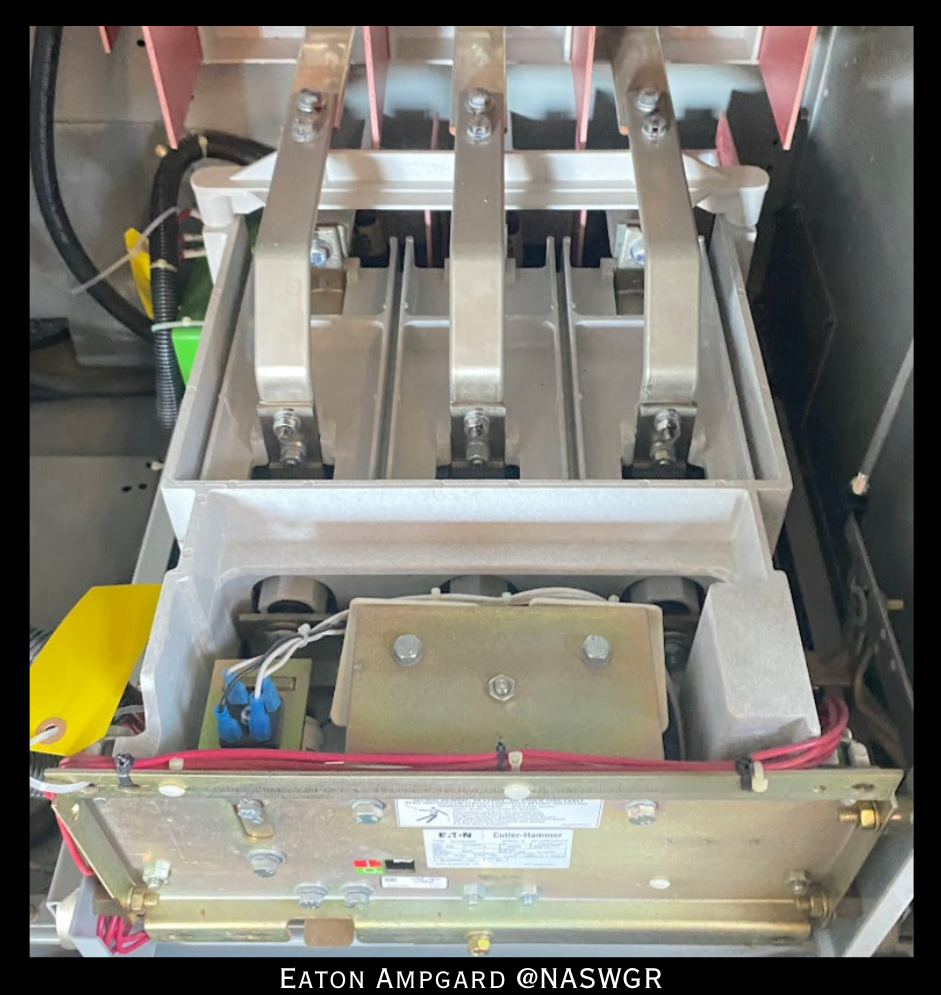

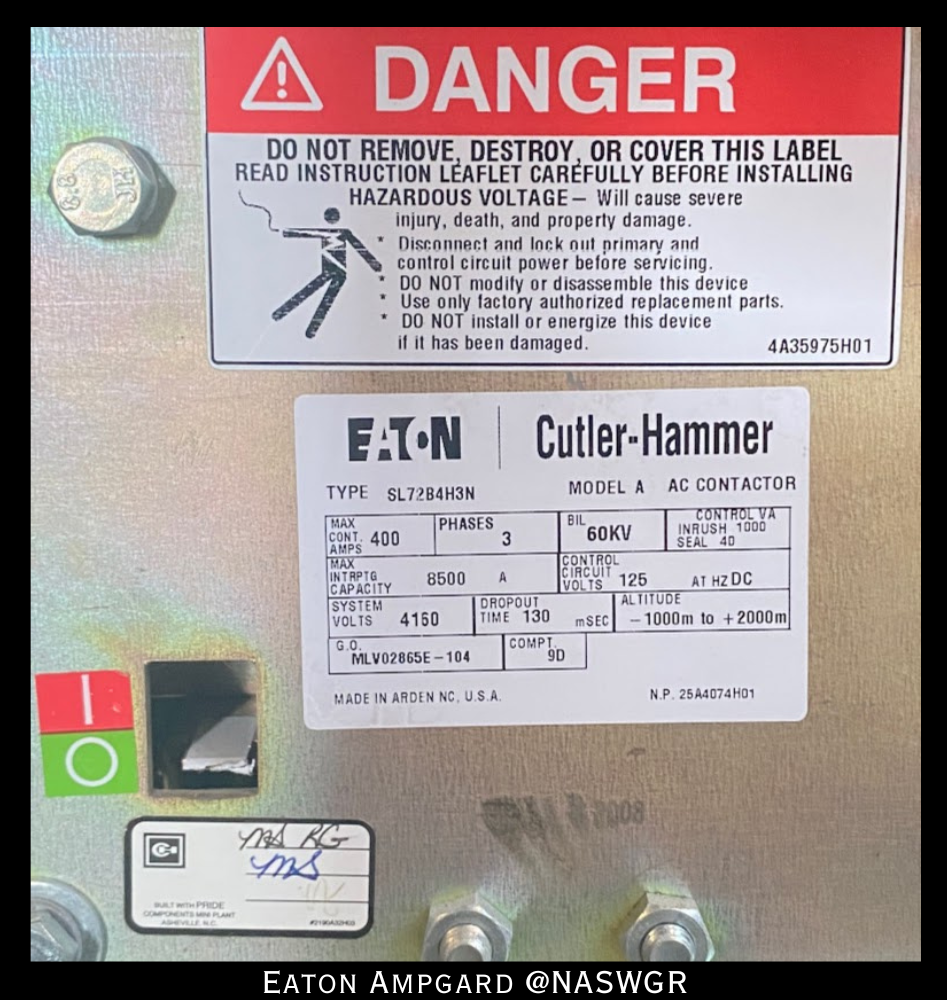

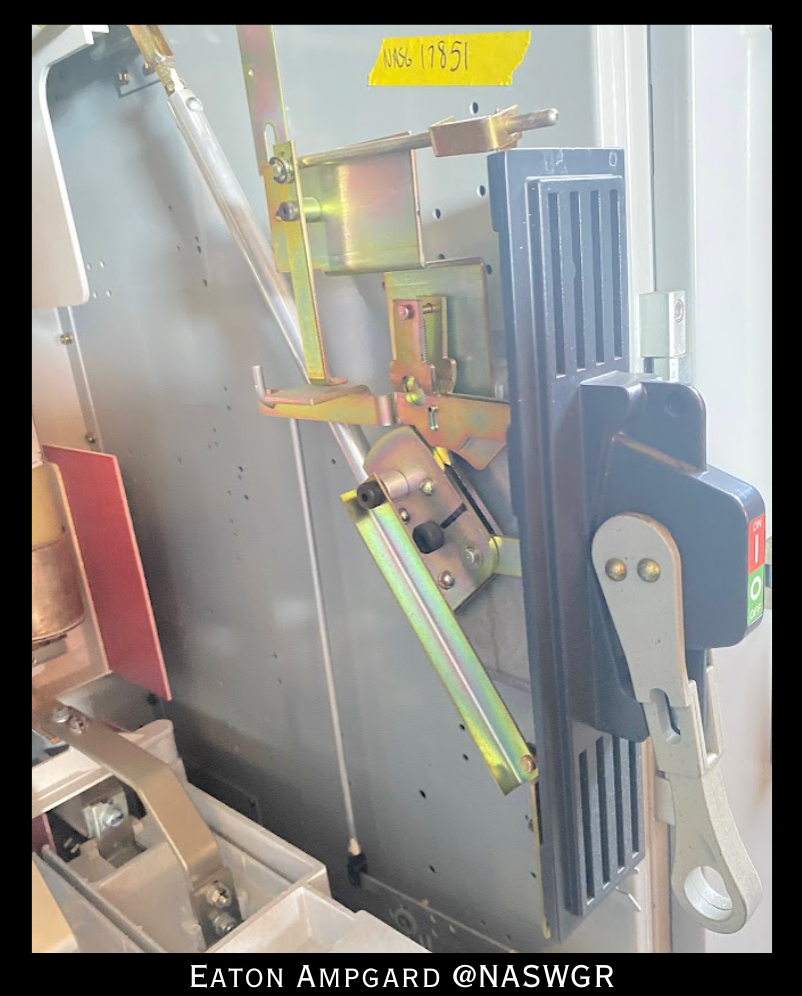

Eaton Ampgard SL72B4H3N AC Contactor
Model A
Type: SL72B4H3N
Rated Amps: 400 A
Rated Volts: 5kV
Interrupting Rating: 8.5kA
System Volts: 4160 V
BIL: 60kV
3 Phase
Control Volts: 120vAC
Control Circuit Burden: Closing 1kVA, Holding 40VA
Dropout Time: 130ms
Standard Aux Contacts
G.O: MLV02865E-104
Altitude -1000m to + 2000m

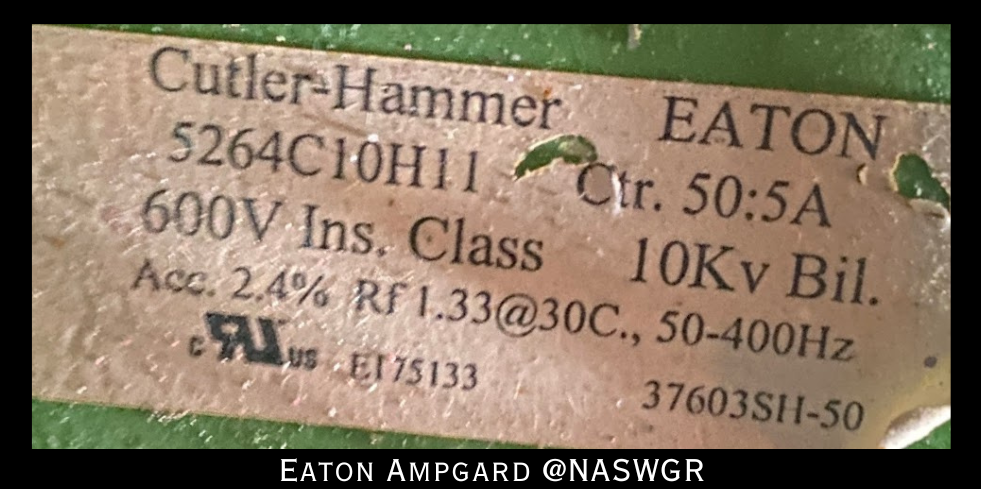

Eaton/Cutler Hammer 5264C10H11 Current Transformer
Cat#: 5264C10H11
Ratio: 50:5A
600V Ins.Class
10kV Bil
Acc.2.4% RF1.33@30C.,50-400Hz
Cat#: 5BCLS-12R
Voltage: 5.5kV
Amperage: 220(12R)
50/60 Hz
Style: 5983C02G15
Max INT 50 KA SYM
Min INT 1080 AMPS SYM
Eaton Ampgard SL72B4H3N AC Contactor
Model A
Type: SL72B4H3N
Rated Amps: 400 A
Rated Volts: 5kV
Interrupting Rating: 8.5kA
System Volts: 4160 V
BIL: 60kV
3 Phase
Control Volts: 120vAC
Control Circuit Burden: Closing 1kVA, Holding 40VA
Dropout Time: 130ms
Standard Aux Contacts
G.O: MLV02865E-104
Altitude -1000m to + 2000m
Eaton/Cutler Hammer 5264C10H11 Current Transformer
Cat#: 5264C10H11
Ratio: 50:5A
600V Ins.Class
10kV Bil
Acc.2.4% RF1.33@30C.,50-400Hz
Each Eaton Ampgard Section will be Inspected Prior to Shipping.
Call 800-909-3660 or email sales@naswgr.com with questions.
After hours emergency hotline 216-570-2725
NASPG57448- ION7330
NASMCG18971- EGB3015FFG

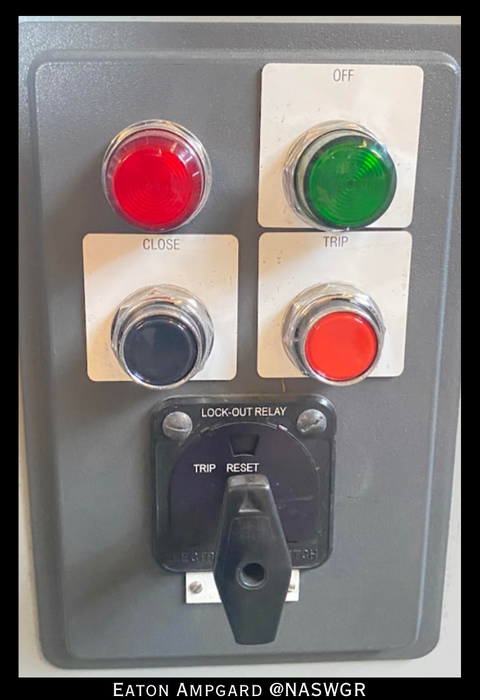

Electroswitch Lockout Relay
NASPG57450- QTY3- 5BCLS-12R
NASG17851: SL72B4H3N
NASPG57451- 5264C10H11
3 Stage- 7802D
D15CR22 Relay
C320KGD1 Relay w/ C320KGT15

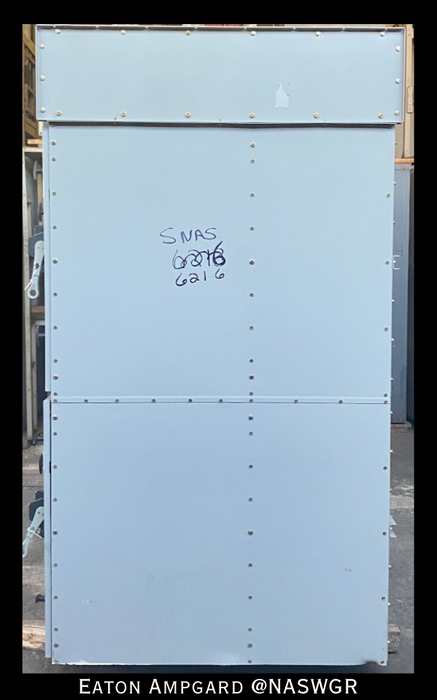

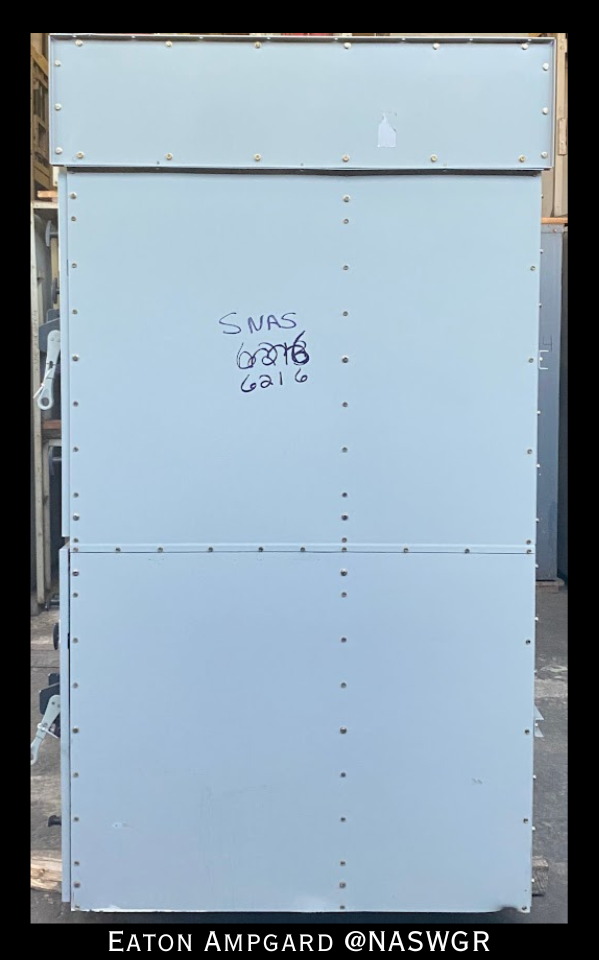

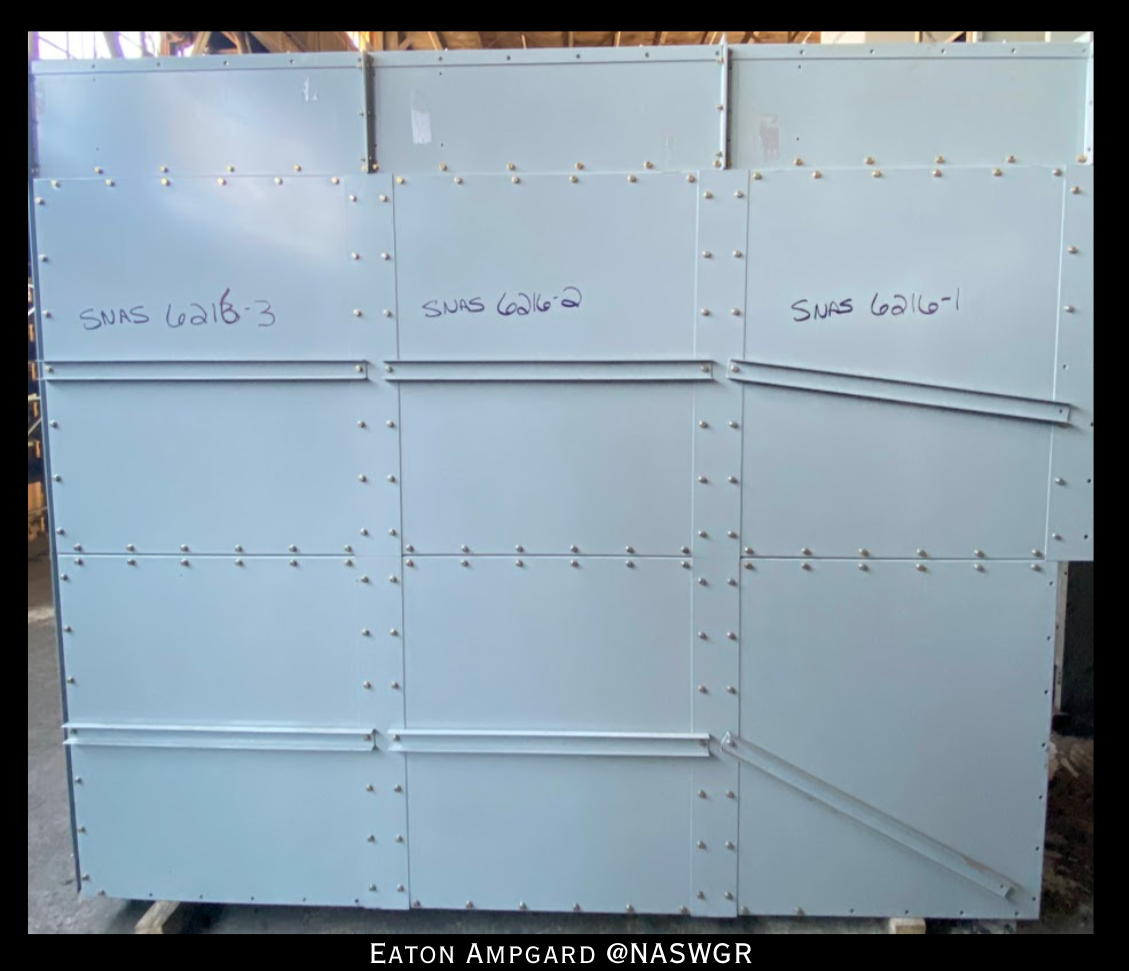

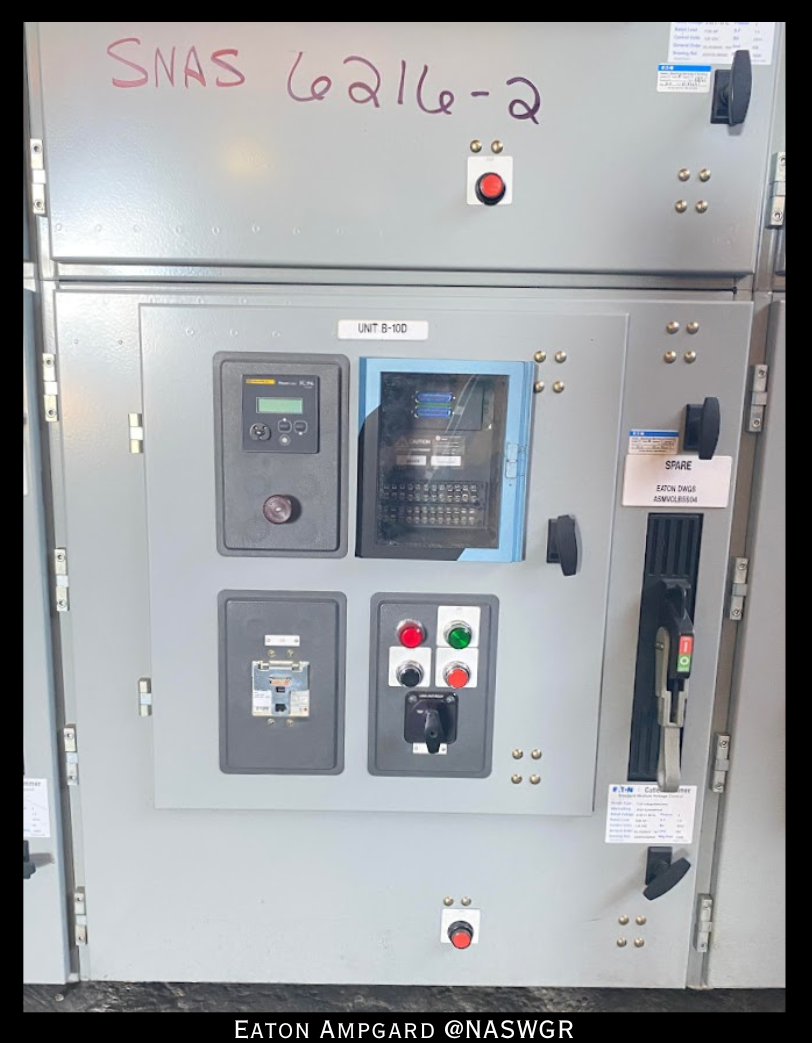

Location: SNAS6216-2 (Bottom Section), SWGR BLDG
