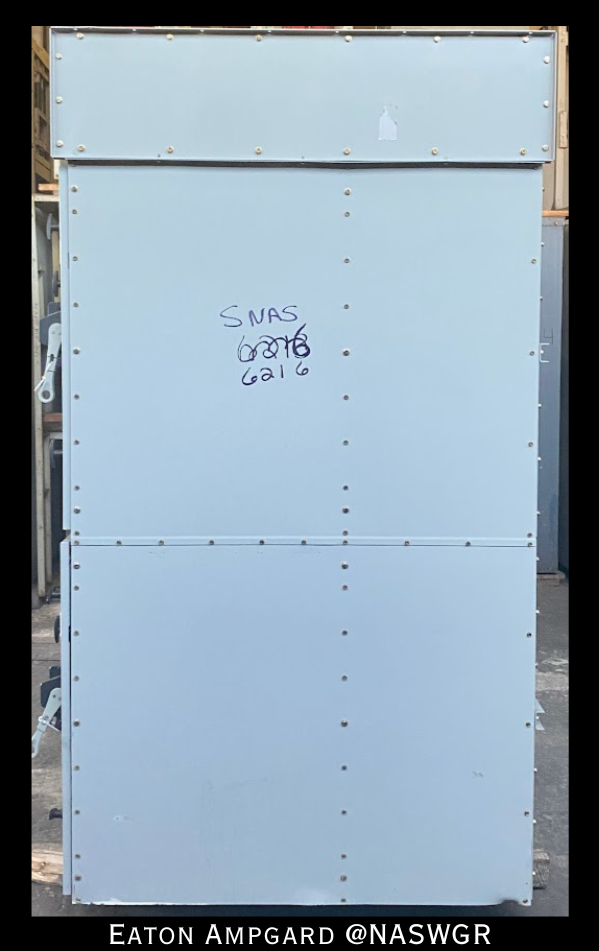

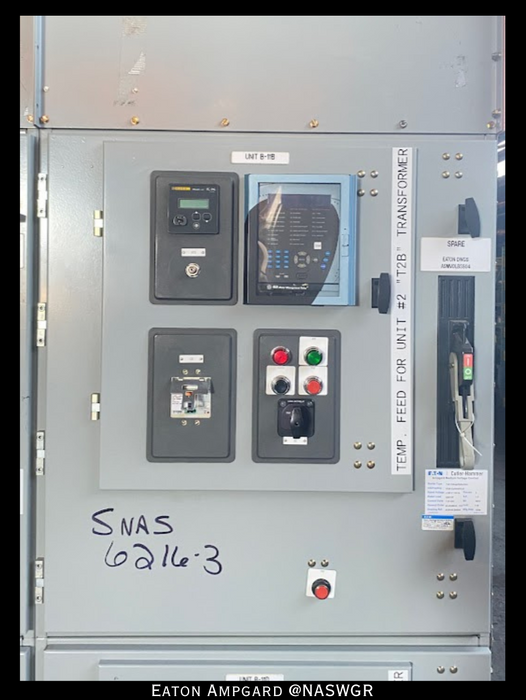

Eaton / Cutler Hammer Ampgard Medium Voltage Control Cell Section- 1250HP/4160V
by Eaton / Cutler Hammer
Contact for Quote: 800-909-3660 | sales@naswgr.com

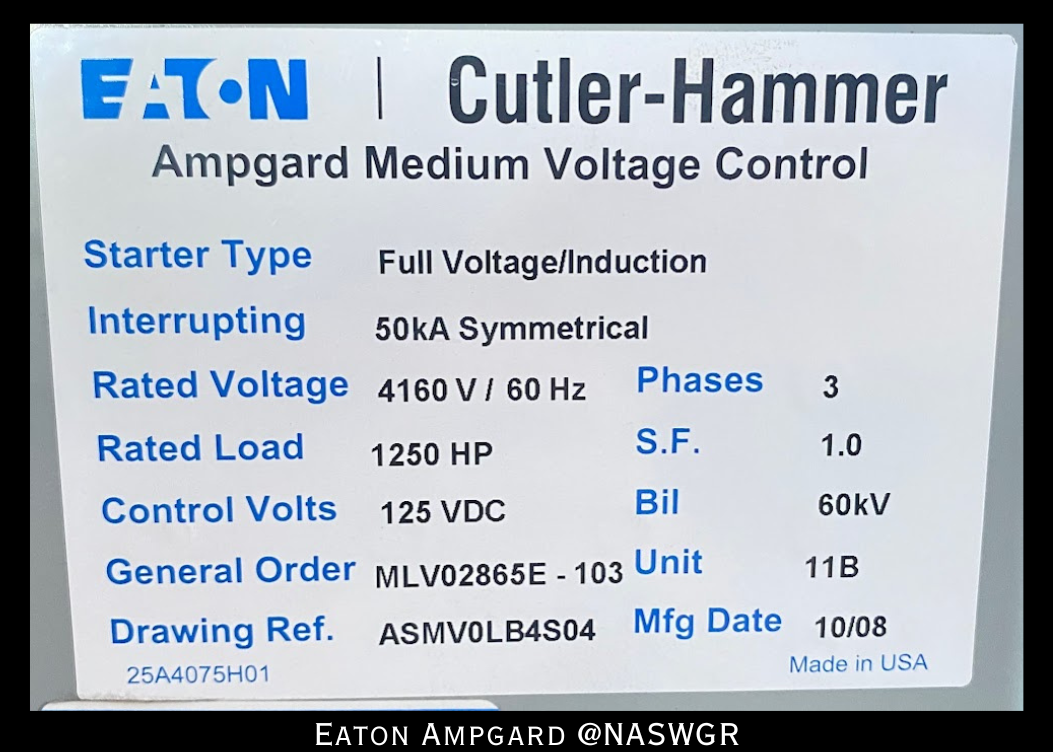

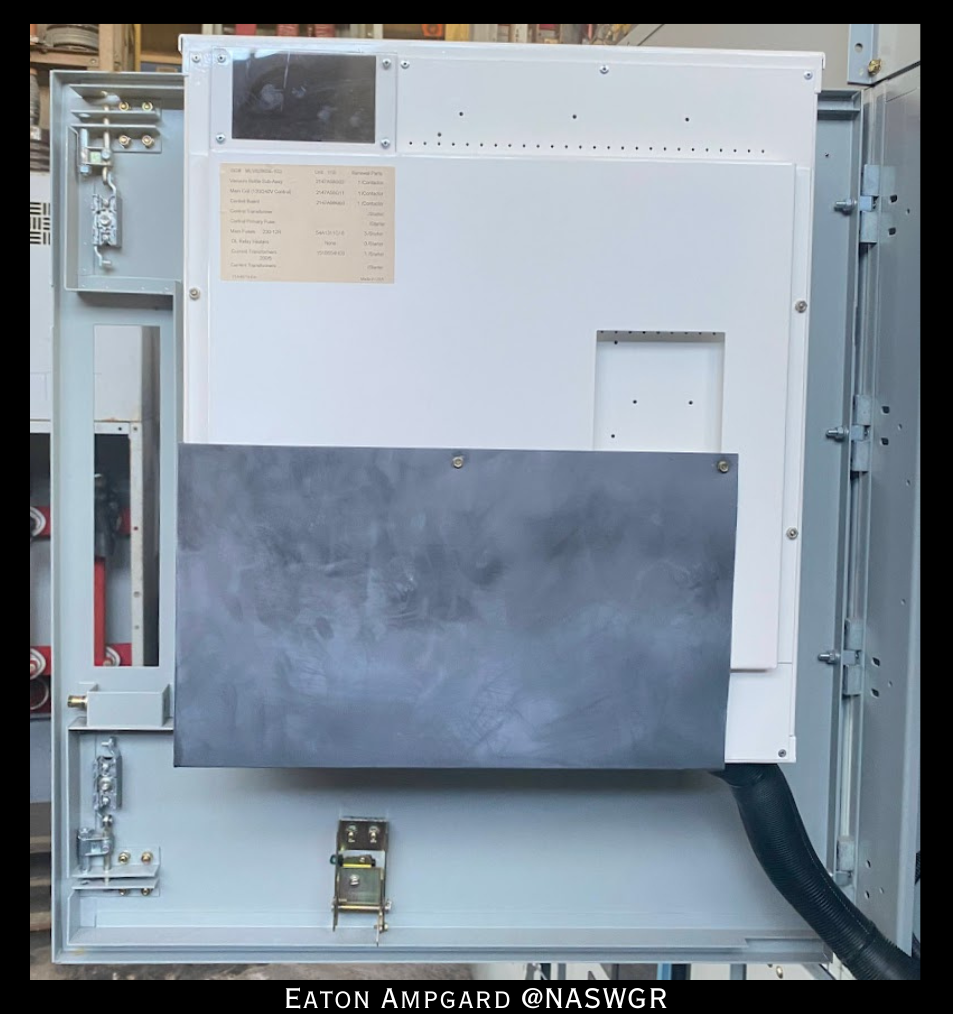

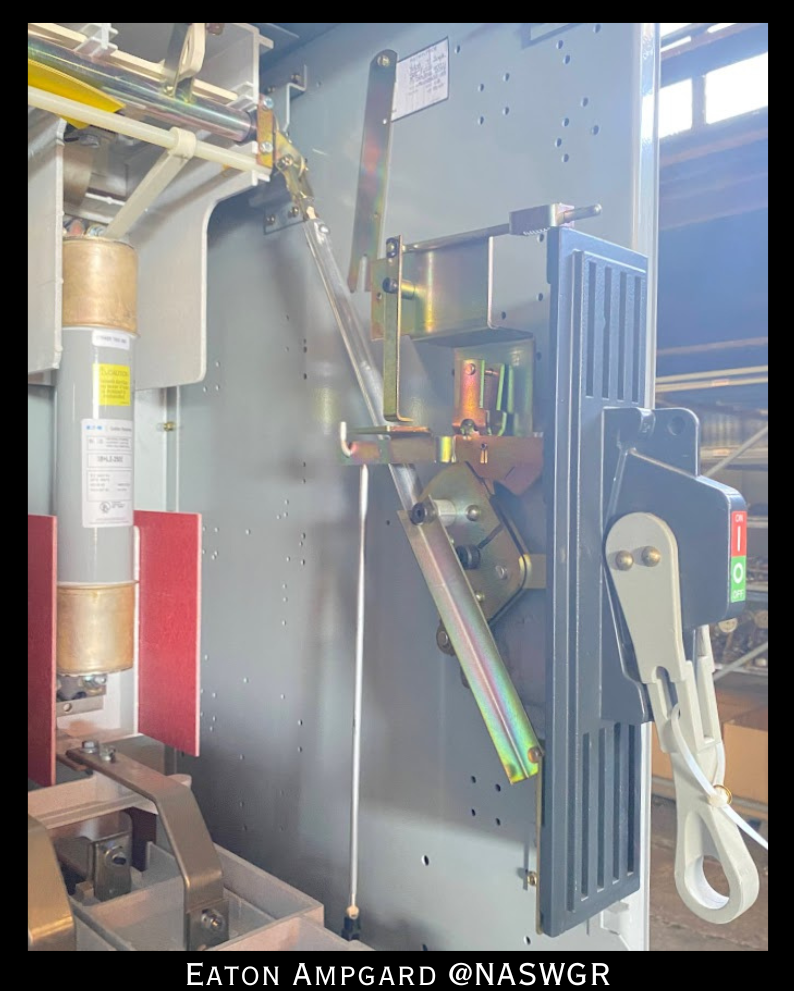

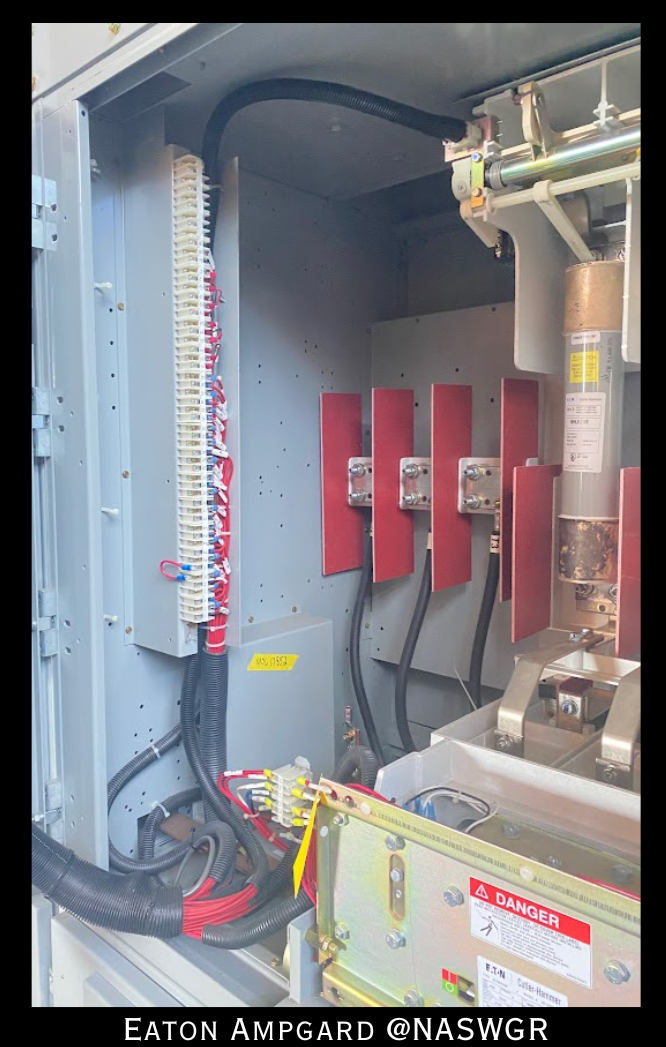

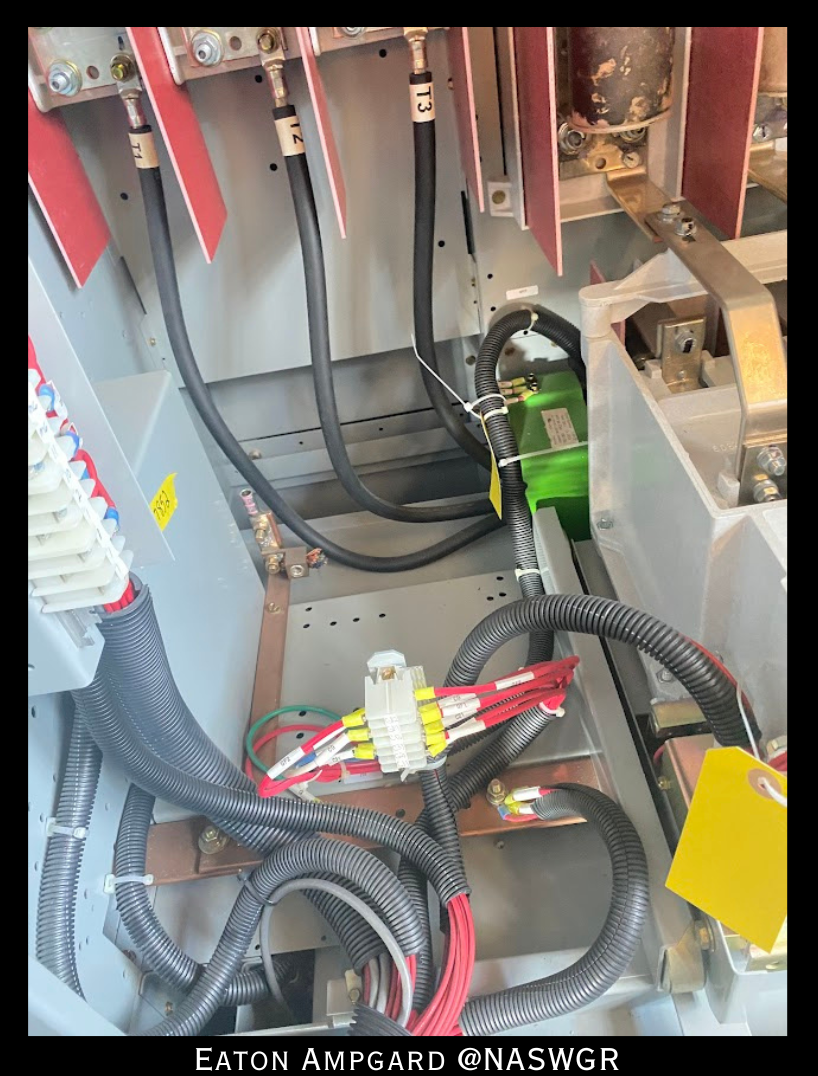

Eaton / Cutler Hammer Ampgard Medium Voltage Control
Eaton / Cutler Hammer Ampgard Medium Voltage Control
Starter Type: Full Voltage/Induction
Interrupting: 50kA Symmetrical
Rated Voltage: 4160V / 60Hz
Rated Load: 1250HP
Control Volts: 125vDC

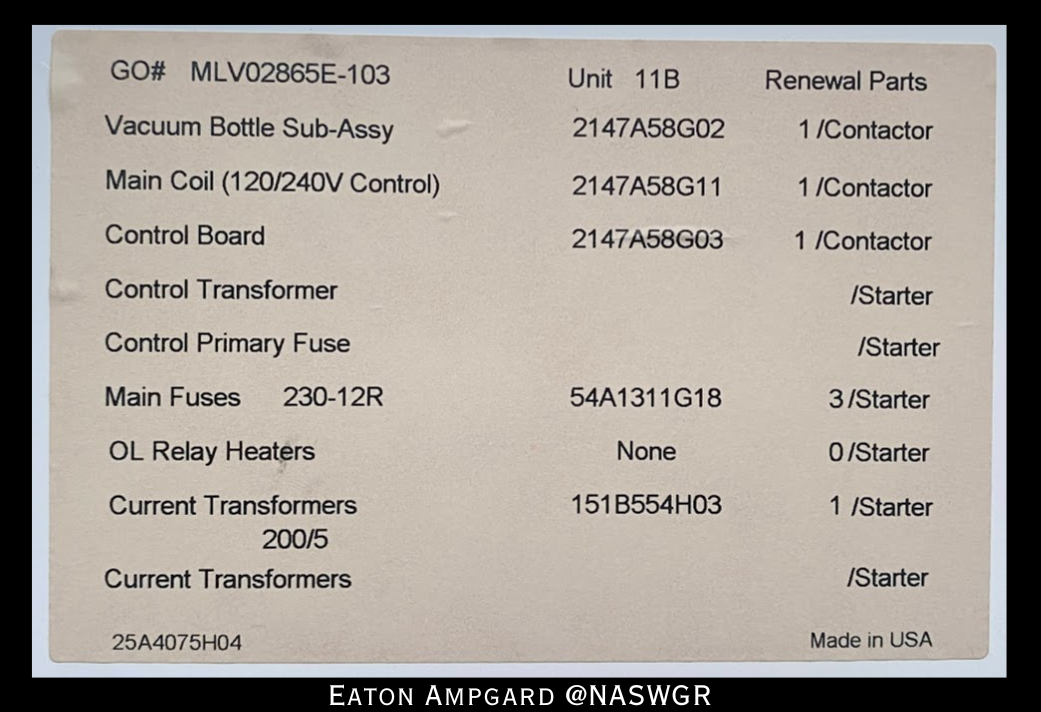

General Order: MLV02865E-103
Drawing Ref: ASMV0LB4S04
Phases: 3
S.F: 1.0
Bil: 60kV
Unit: 11D
MFG Date: 10/08

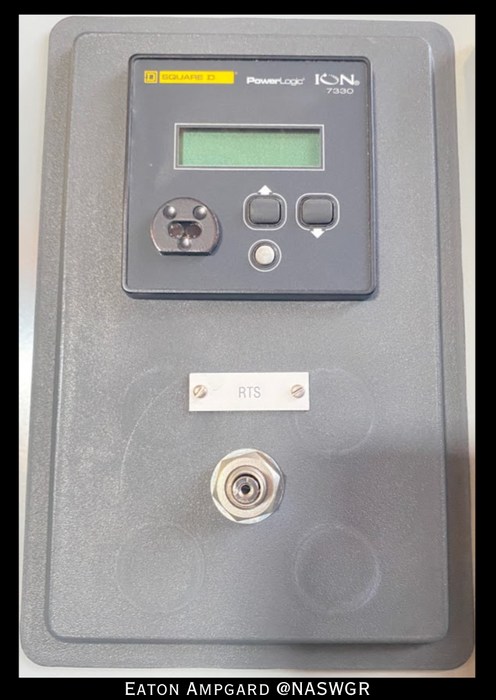

Square D ION7330 Power Logic Relay
Model#: ION7330
Style#: S7330A0B0B0A0K0A
Ratio Primary Voltage: 95-240V
Amperage: 0.3A

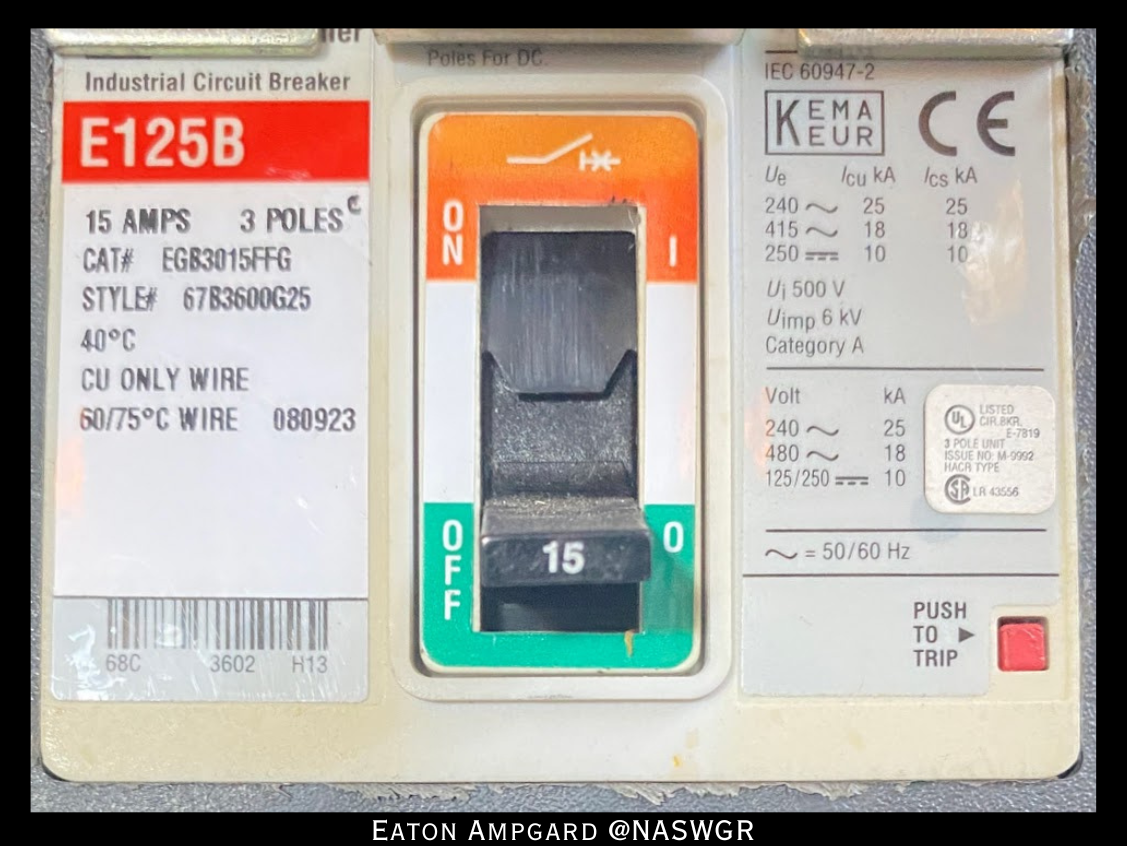

Eaton EGB3015FFG Industrial Circuit Breaker
Model#: E125B
Cat#: EGB3015FFG
Style#: 67B3600G25
Amperage: 15A
3 Phase

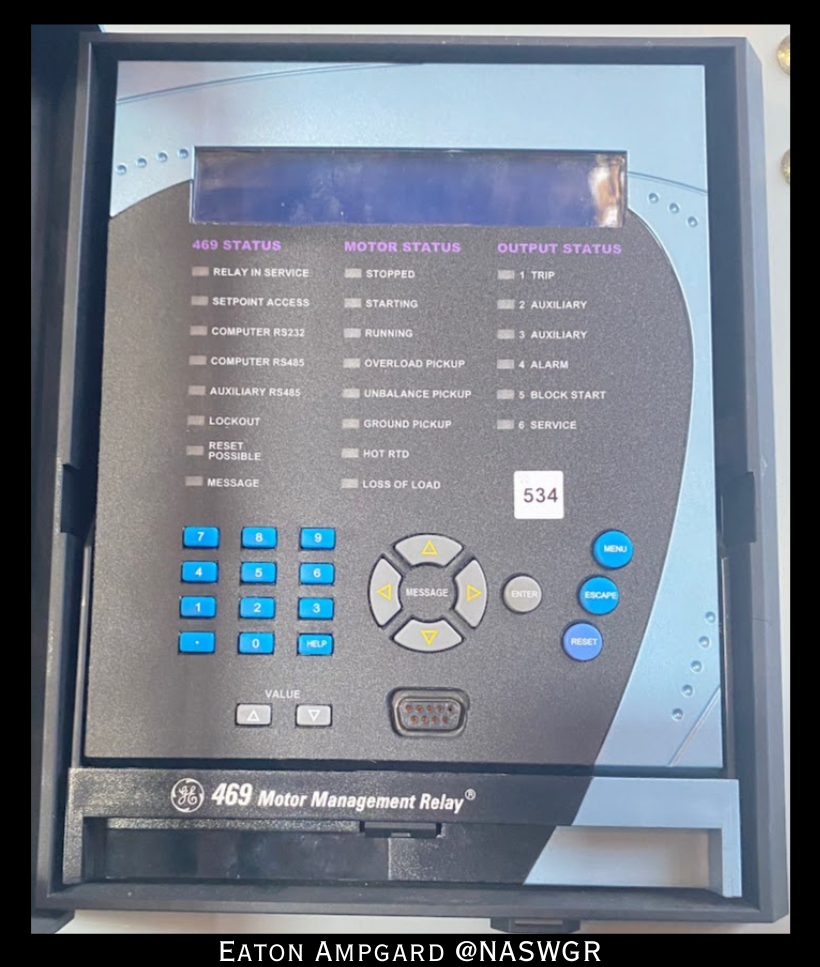

GE SR469-P5-HI-A20-E Motor Management Relay
Model#: SR469
Cat#: SR469-P5-HI-A20-E
Phase CT: 5A
Insulation Voltage: 300V
Control Power:
Eaton EGB3015FFG Industrial Circuit Breaker
Model#: E125B
Cat#: EGB3015FFG
Style#: 67B3600G25
Amperage: 15A
3 Phase
GE SR469-P5-HI-A20-E Motor Management Relay
Model#: SR469
Cat#: SR469-P5-HI-A20-E
Phase CT: 5A
Insulation Voltage: 300V
Control Power:
-90-300vDC 390mA (max)
~70-265vAC 500mA (max)
Output Relay Contacts: 48-62Hz

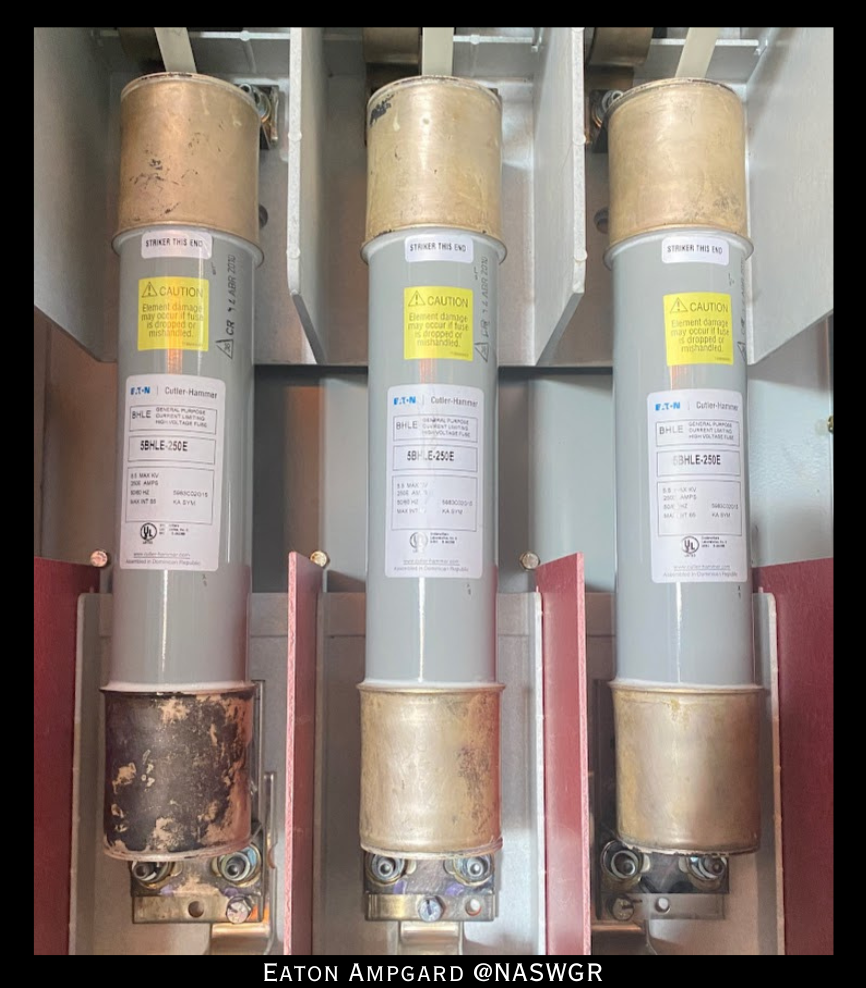

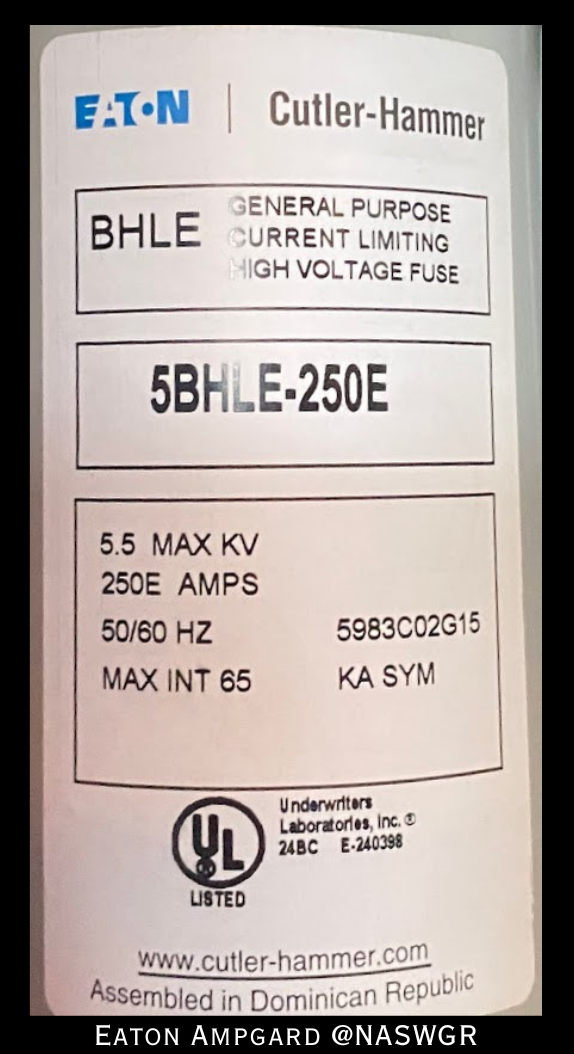

Eaton Cutler Hammer BHLE Current Limiting High Voltage Fuse 5BHLE-250E
Cat#: 5BHLE-250E
Voltage: 5.5kV
Amperage: 250E
50/60 Hz
Style: 5983C02G15
Max INT 65KA SYM

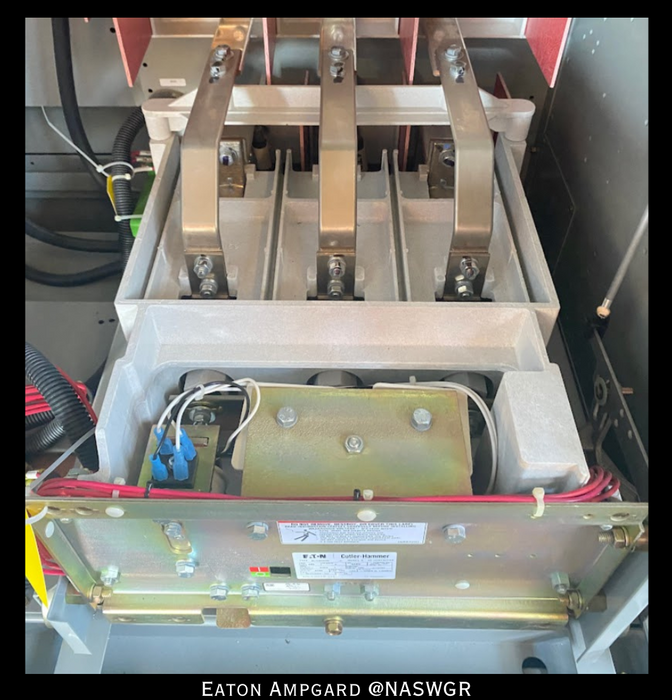

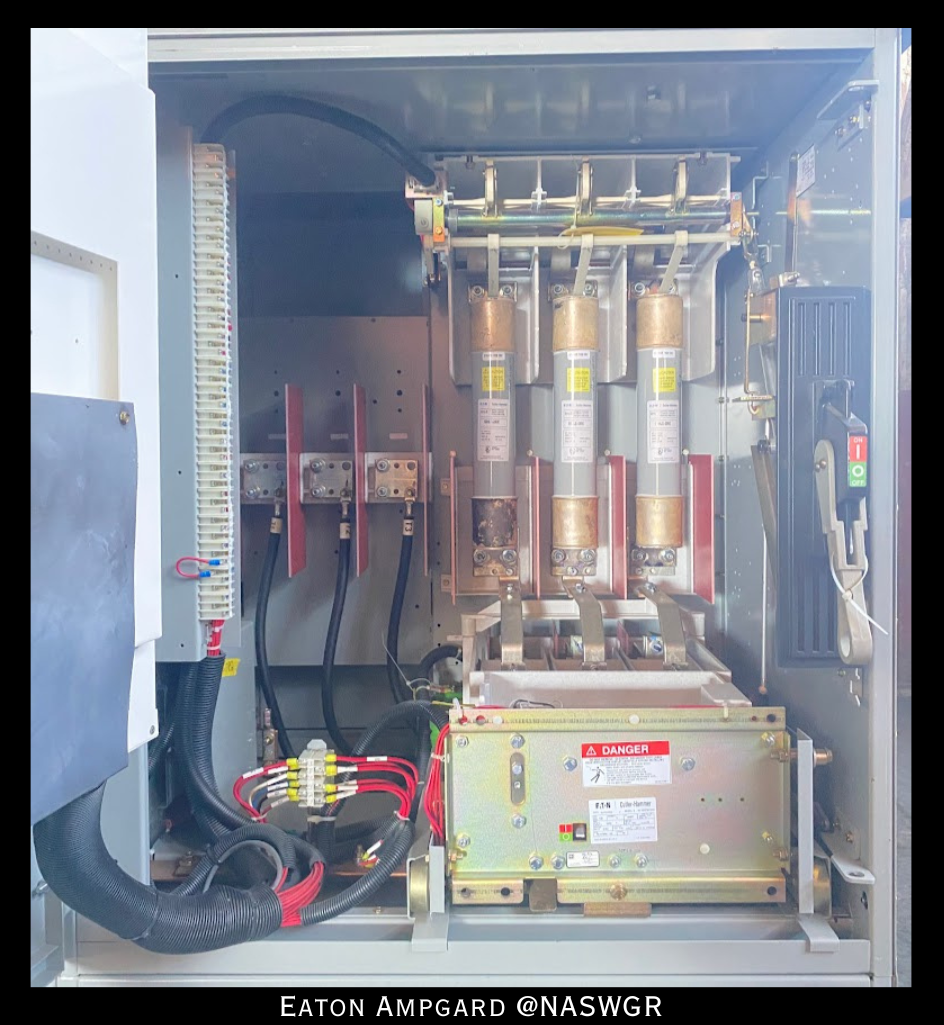

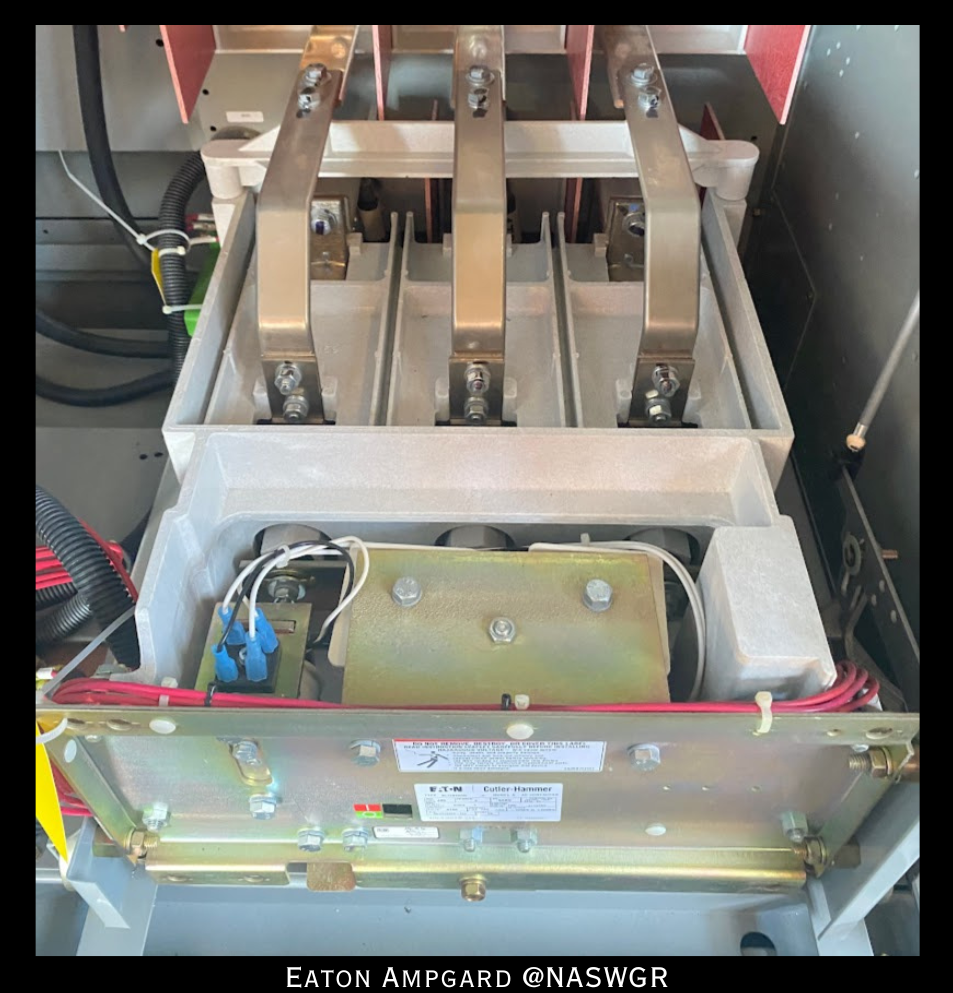

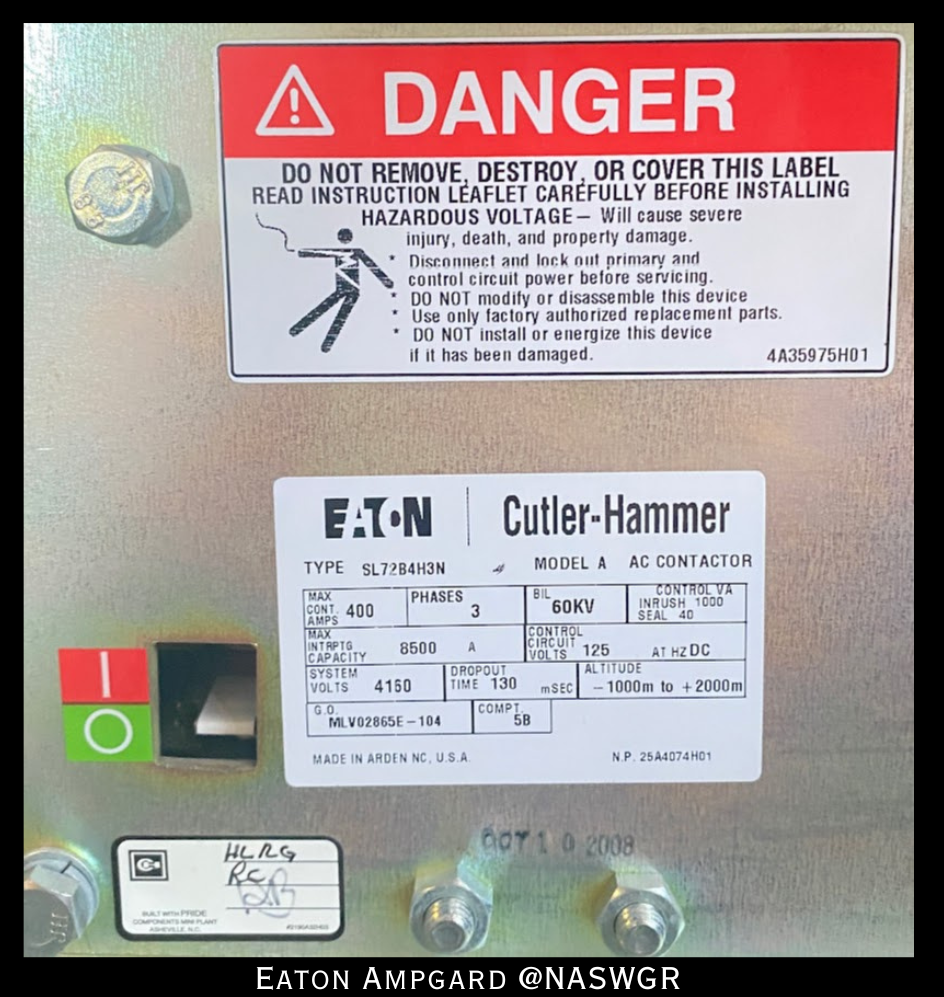

Eaton Ampgard SL72B4H3N AC Contactor
Model A
Type: SL72B4H3N
Rated Amps: 400 A
Rated Volts: 5kV
Interrupting Rating: 8.5kA
System Volts: 4160 V
BIL: 60kV
3 Phase
Control Volts: 120vAC
Control Circuit Burden: Closing 1kVA, Holding 40VA
Dropout Time: 130ms
Standard Aux Contacts
G.O: MLV02865E-104
Altitude -1000m to + 2000m

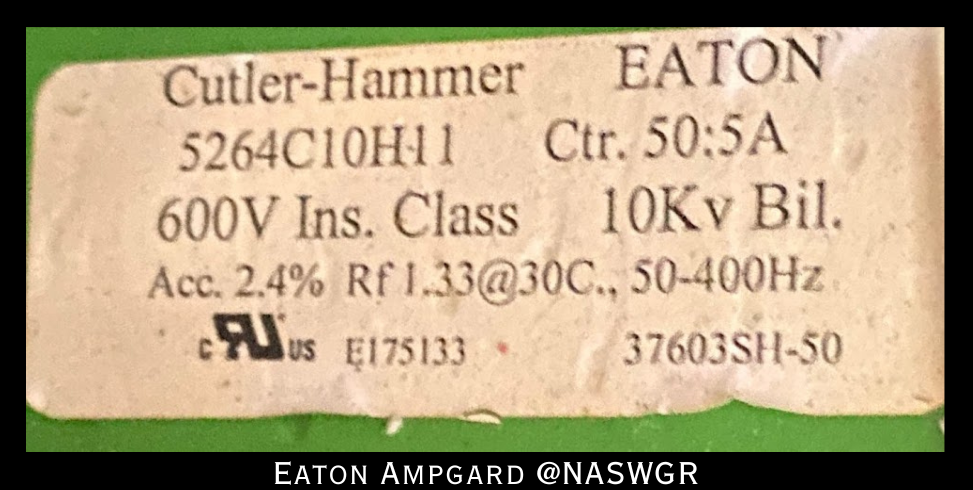

Eaton/Cutler Hammer 5264C10H11 Current Transformer
Cat#: 5264C10H11
Ratio: 50:5A
600V Ins.Class
10kV Bil
Acc.2.4% RF1.33@30C.,50-400Hz
Cat#: 5BHLE-250E
Voltage: 5.5kV
Amperage: 250E
50/60 Hz
Style: 5983C02G15
Max INT 65KA SYM
Eaton Ampgard SL72B4H3N AC Contactor
Model A
Type: SL72B4H3N
Rated Amps: 400 A
Rated Volts: 5kV
Interrupting Rating: 8.5kA
System Volts: 4160 V
BIL: 60kV
3 Phase
Control Volts: 120vAC
Control Circuit Burden: Closing 1kVA, Holding 40VA
Dropout Time: 130ms
Standard Aux Contacts
G.O: MLV02865E-104
Altitude -1000m to + 2000m
Eaton/Cutler Hammer 5264C10H11 Current Transformer
Cat#: 5264C10H11
Ratio: 50:5A
600V Ins.Class
10kV Bil
Acc.2.4% RF1.33@30C.,50-400Hz
Each Eaton Ampgard Section will be Inspected Prior to Shipping.
Call 800-909-3660 or email sales@naswgr.com with questions.
After hours emergency hotline 216-570-2725
NASPG57452- ION7330
NASMCG18968- EGB3015FFG

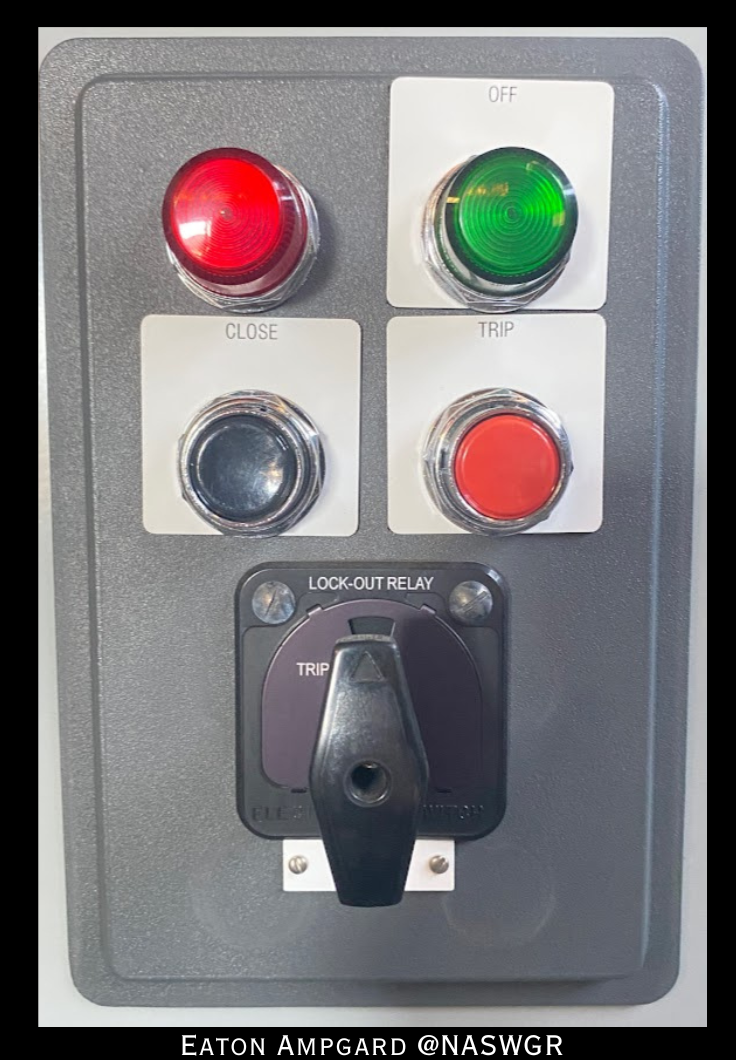

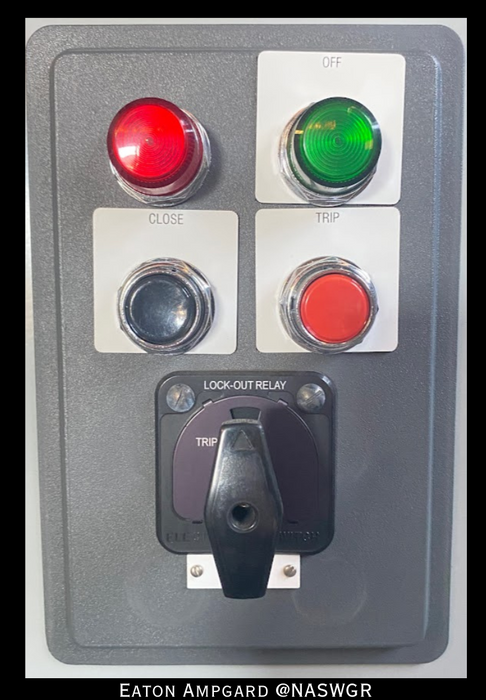

Electroswitch Lockout Relay
NASPG57453- 469 Motor Management Relay
NASPG57454- QTY3- 5BHLE-250E
NASG17852: SL72B4H3N
NASPG57455- 5264C10H11
3 Stage- 7802D
D15CR22 Relay
C320KGD1 Relay w/ C320KGT15

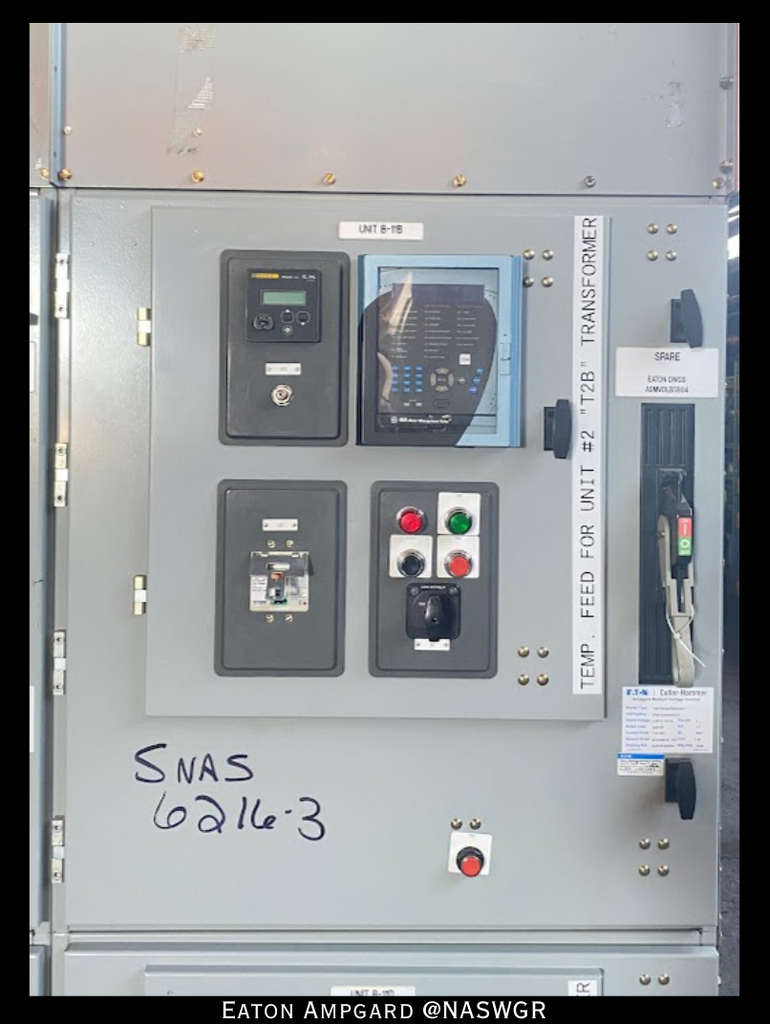

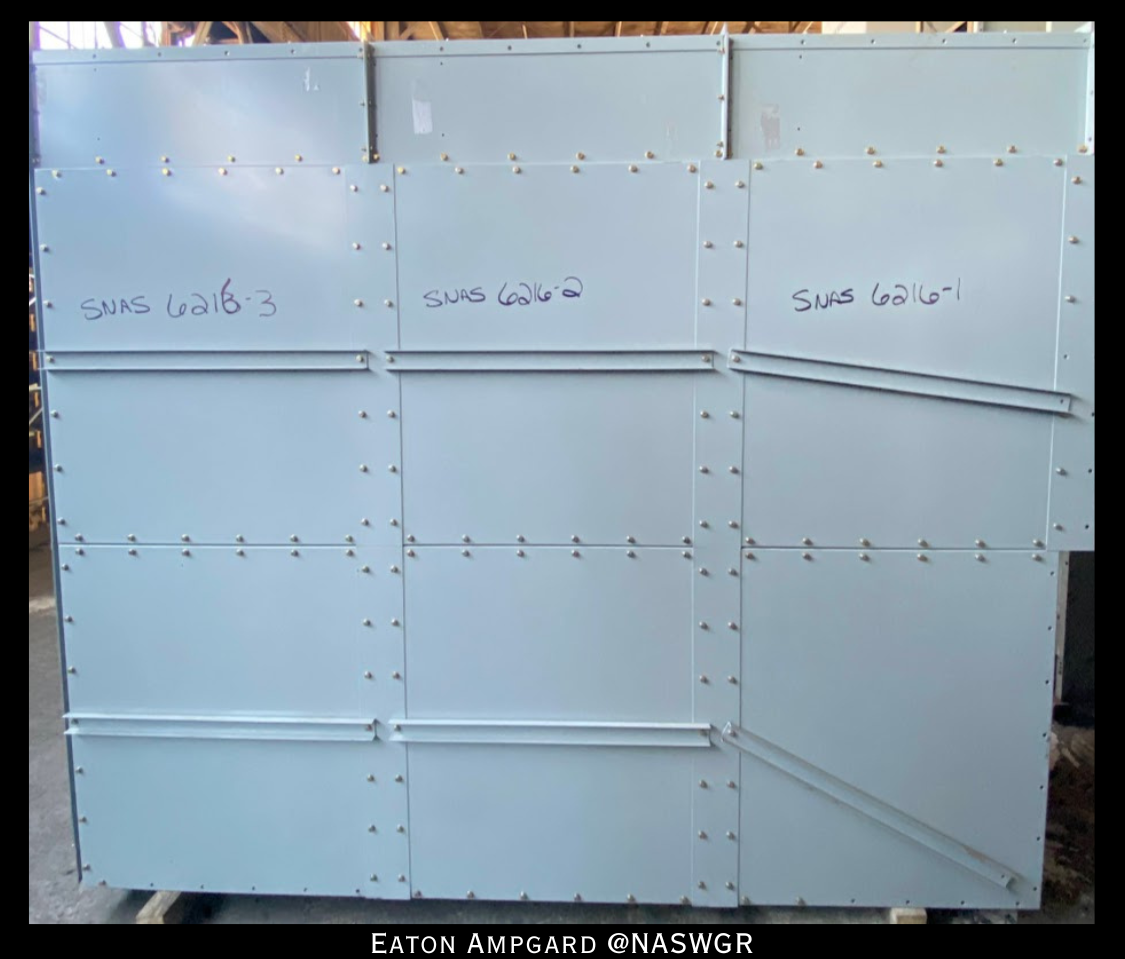

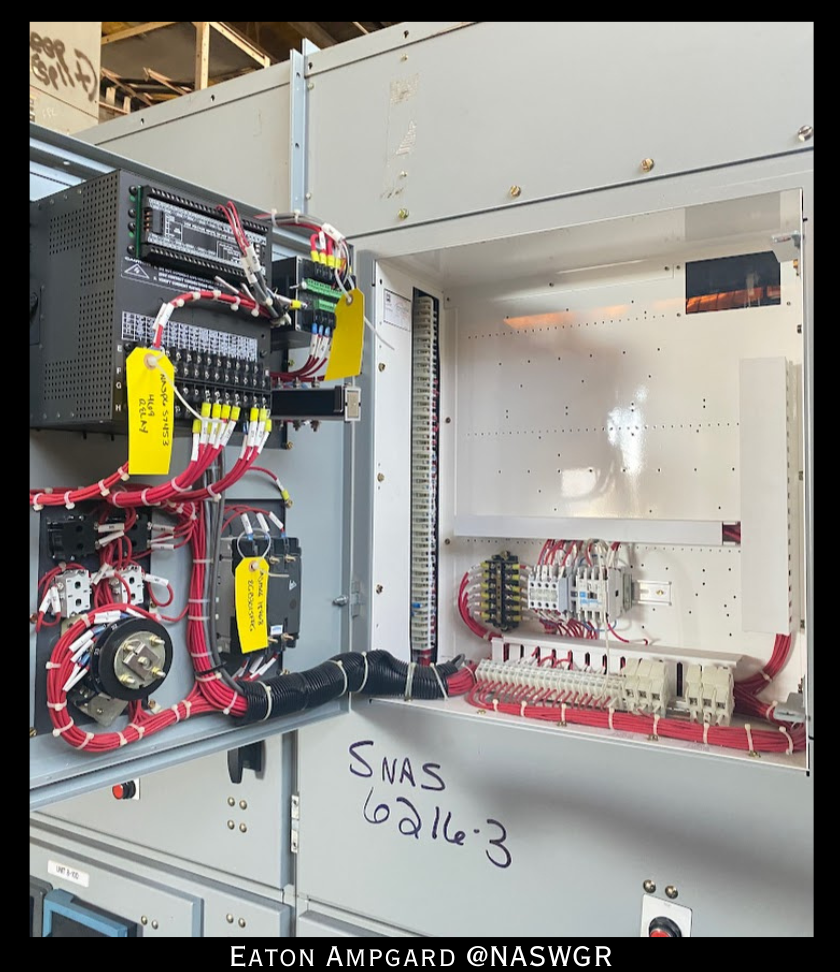

Location: SNAS6216-3 (Top Section), SWGR BLDG
