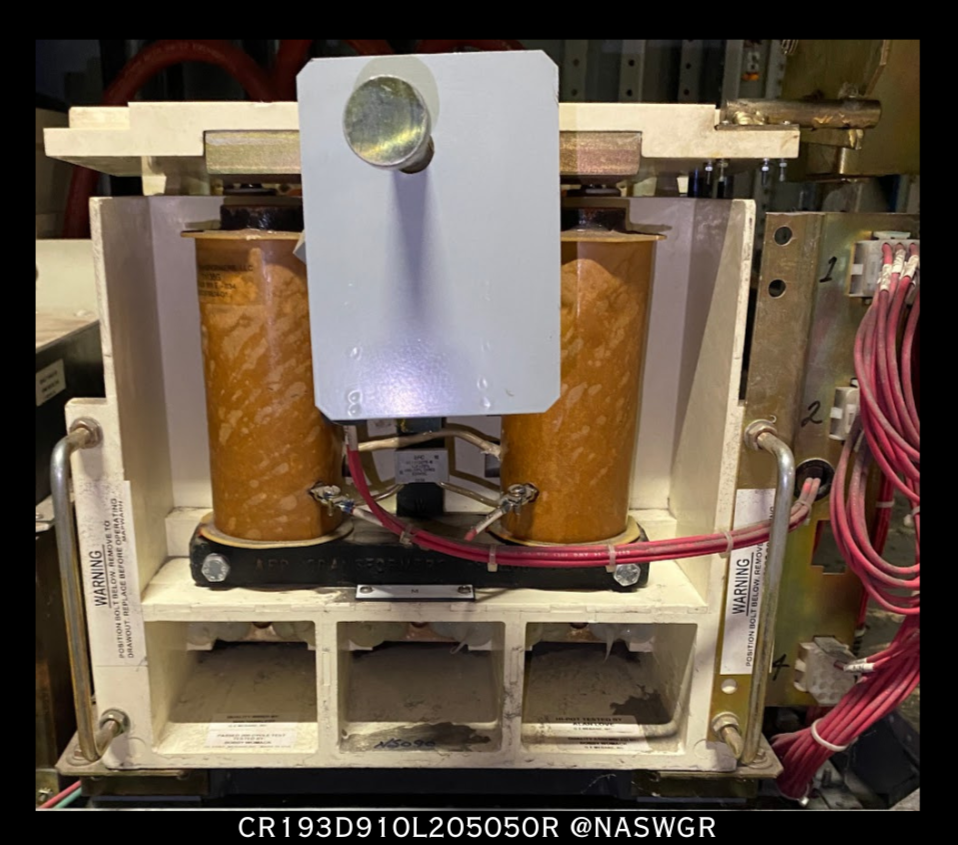

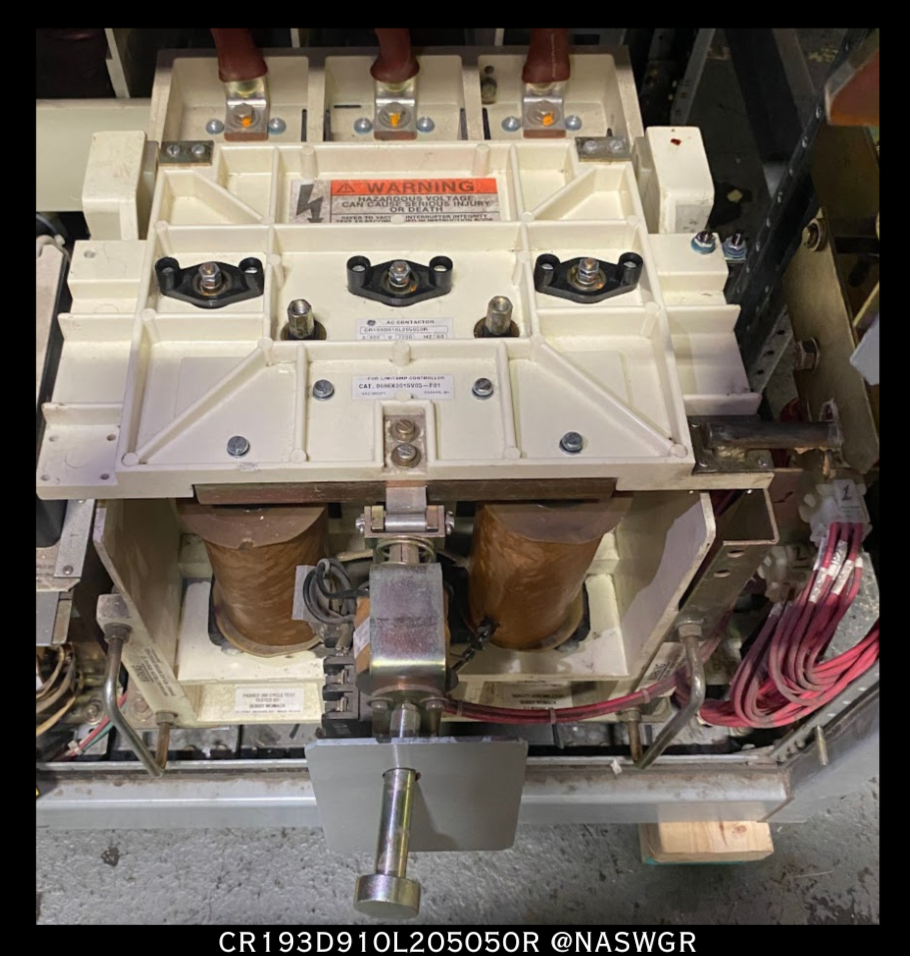

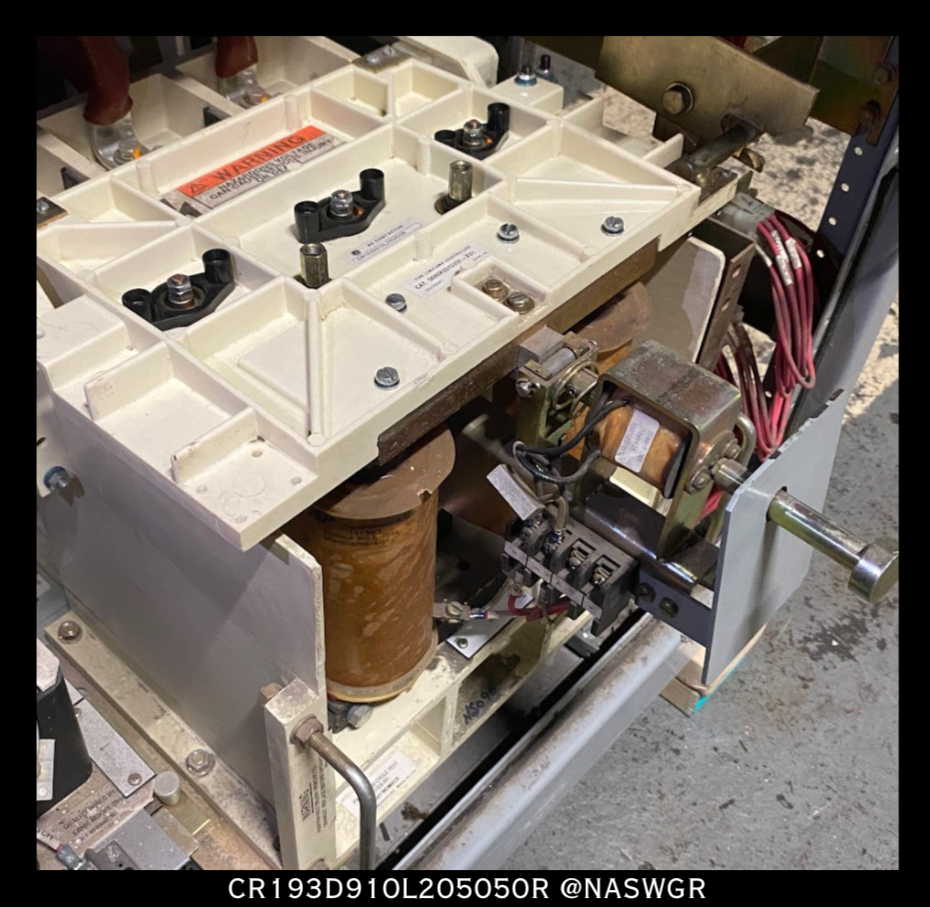

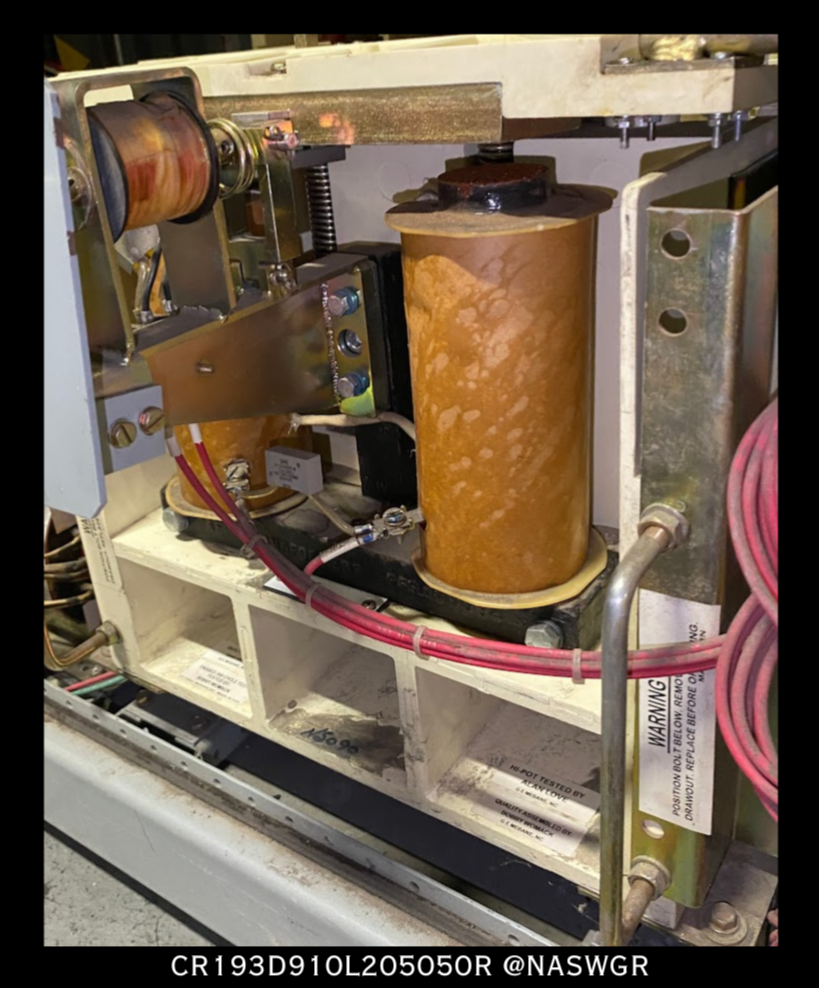

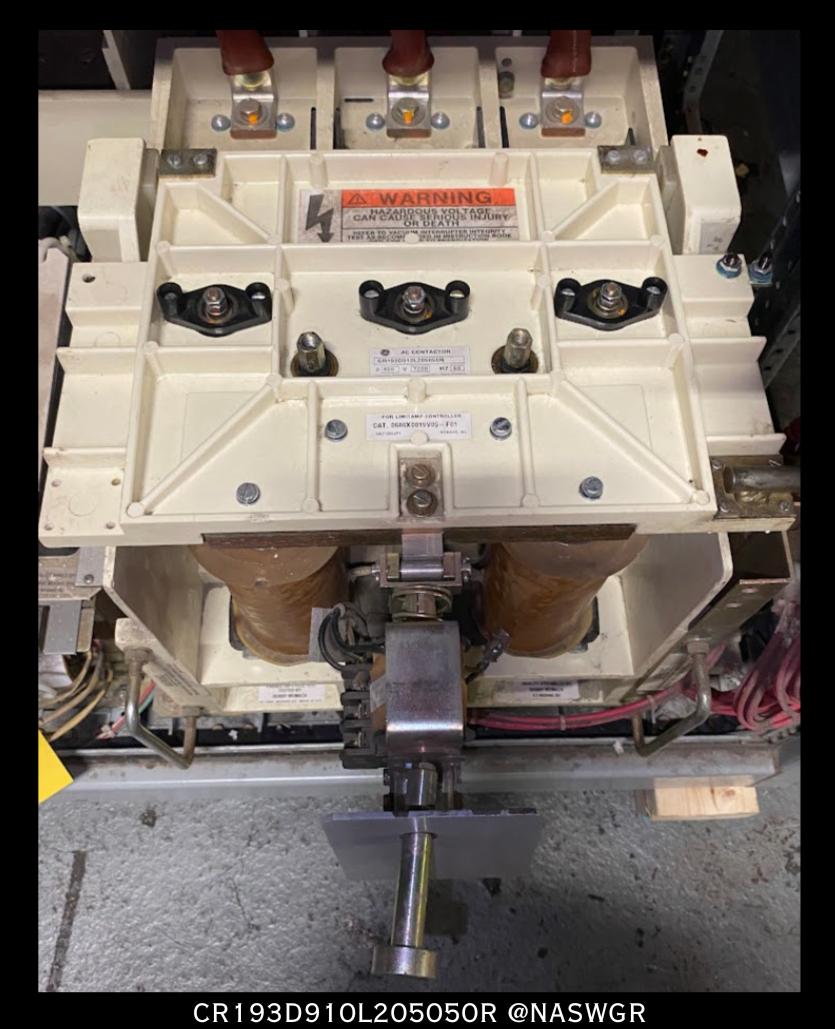

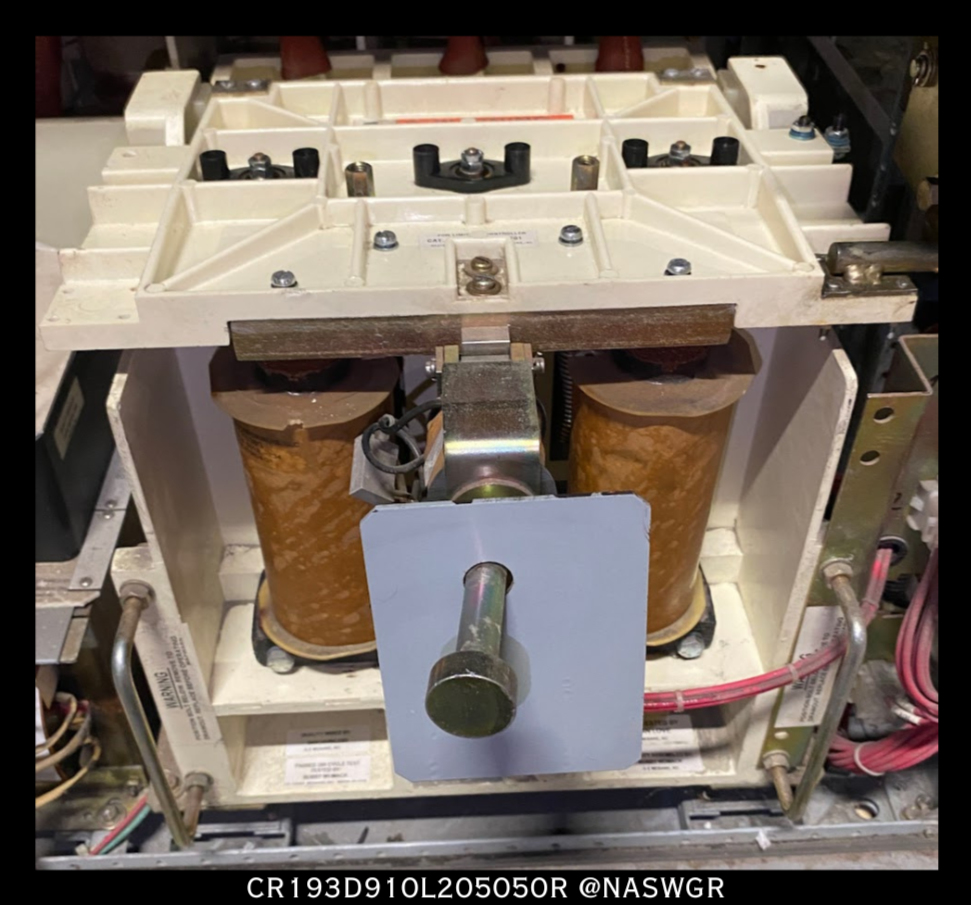

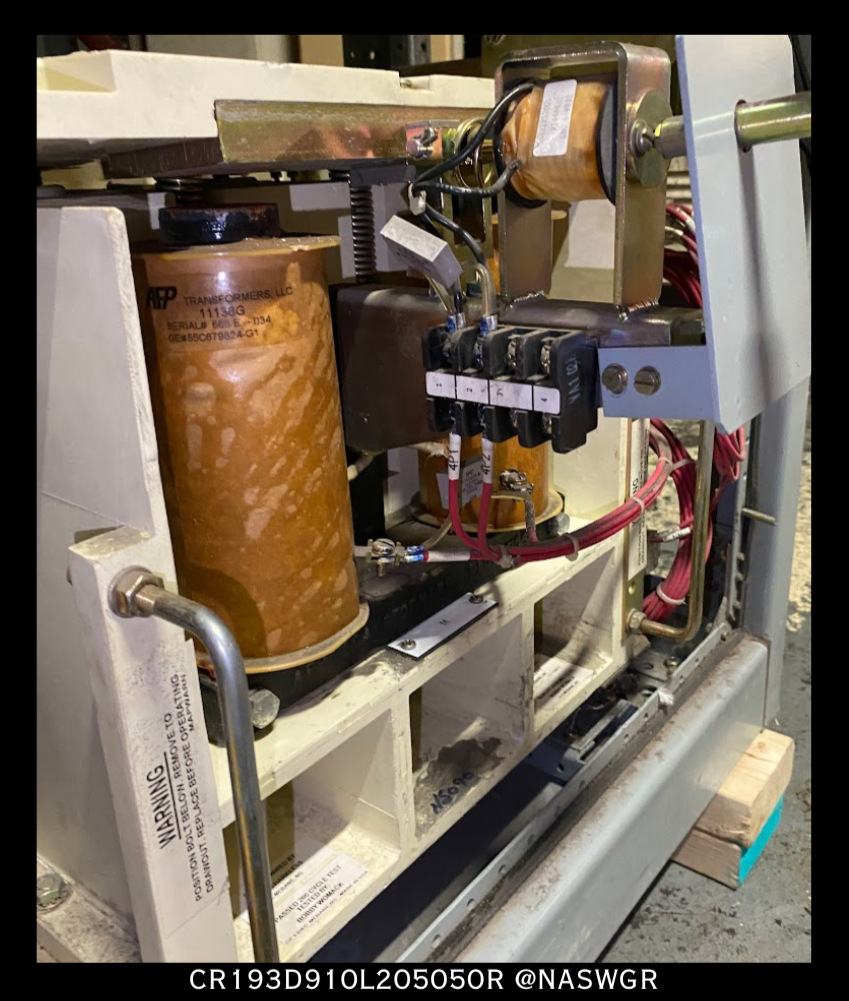

General Electric CR193D910L205050R AC Contactor - 400 Amp
by General Electric
Contact for Quote: 800-909-3660 | sales@naswgr.com

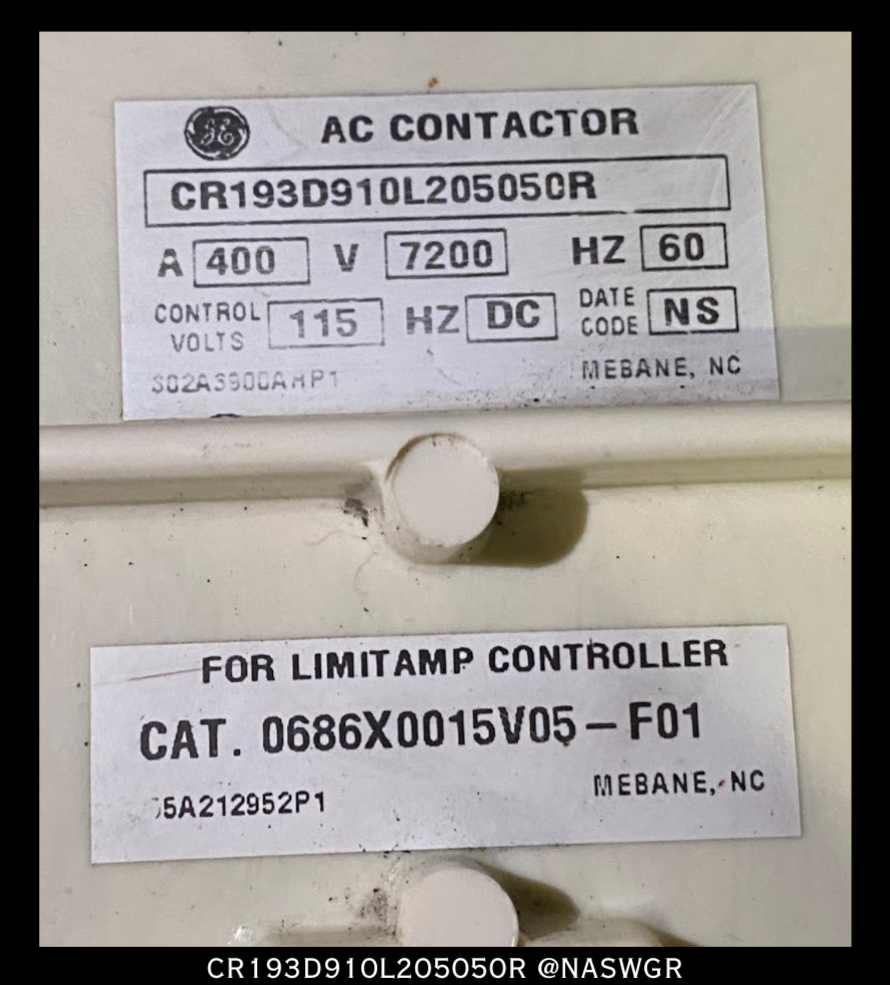

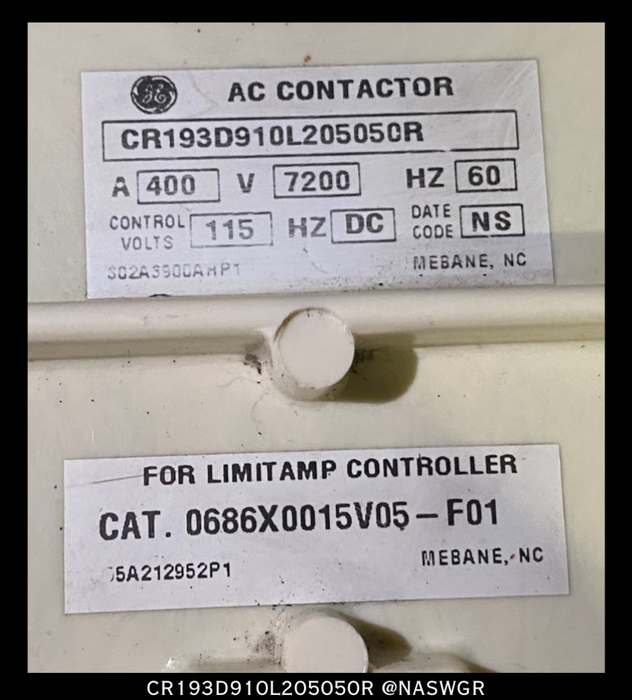

CR193D910L205050R
GE Limitamp Vacuum Contactor
Medium Voltage Motor Control
Type: CR193D
Cat#: CR193D910L205050R
Rated Amps: 400 A
Interrupting Rating E1: 75 MVA
Interrupting Rating E2: 600 MVA
Rated Volts: 7.2kV
Impulse Withstand: 60kV
3 Phase
Interrupting Rating E1: 75 MVA
Interrupting Rating E2: 600 MVA
Rated Volts: 7.2kV
Impulse Withstand: 60kV
3 Phase
with Mechanical Latch
Latch Coil Control Volts: 115vDC
Control Circuit Burden: Closing 175VA, Holding 30VA
Closing Time: 350ms
Opening Time: 50ms
5NO/5NC Aux Contacts
Aux Interlock Location: Right Side Only
Bolt-In Assembly
Latch Coil Control Volts: 115vDC
Control Circuit Burden: Closing 175VA, Holding 30VA
Closing Time: 350ms
Opening Time: 50ms
5NO/5NC Aux Contacts
Aux Interlock Location: Right Side Only
Bolt-In Assembly
Each CR193D910L205050R can be provided either Reconditioned or Cleaned & Tested. Either option includes a test report and our one year warranty.
Call 800-909-3660 or email sales@naswgr.com with questions.
After hours emergency hotline 216-570-2725
NASG17285, NASG17286 Location: SNAS6082
